DMC:V2500-A1-72-41-34-06A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 06 | ||||
| B72413406 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0027 | aa | ||
| SBE0027-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0181 | ab | ||
| SBE0181-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0431 | ac | ||
| SBE0431-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0591 | ad | ||
| SBE0591-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES | ae | ||
| 060 | 6A2035C01 | • SPACER - ADJUSTING | aa-ae | 168 |
| 062 | 6A2035C02 | • SPACER - ADJUSTING | aa-ae | 168 |
| 064 | 6A2035C03 | • SPACER - ADJUSTING | aa-ae | 168 |
| 066 | 6A2035C04 | • SPACER - ADJUSTING | aa-ae | 168 |
| 068 | 6A2035C05 | • SPACER - ADJUSTING | aa-ae | 168 |
| 070 | 6A2035C06 | • SPACER - ADJUSTING | aa-ae | 168 |
| 072 | 6A2035C07 | • SPACER - ADJUSTING | aa-ae | 168 |
| 074 | 6A2035C08 | • SPACER - ADJUSTING | aa-ae | 168 |
| 076 | 6A2035C09 | • SPACER - ADJUSTING | aa-ae | 168 |
| 078 | 6A2035C10 | • SPACER - ADJUSTING | aa-ae | 168 |
| 100 | 6A3327 | • LEVER - A/O,ST.6-V/VANE | aa-ae | 68 |
| 103 | 4W0002 | • NUT - .250 DIA | aa-ae | 68 |
| 110 | 6A2442 | • • PIN - SHOULDER,(VRS6194) POST SBE70-0222 | ***** | 1 |
| 120 | 6A3328 | • LEVER - A/O,ST.6-V/VANE-CONN | aa-ae | 12 |
| 123 | 4W0002 | • NUT - .250 DIA | aa-ae | 12 |
| 130 | 6A2444 | • • PIN - SHOULDER,(VRS6196) POST SBE70-0269 | ***** | 1 |
| 140 | 6A3329 | • LEVER - A/O,ST.6-V/VANE-CONN | aa-ae | 4 |
| 143 | 4W0002 | • NUT - .250 DIA | aa-ae | 4 |
| 150 | 6A2444 | • • PIN - SHOULDER,(VRS6196) POST SBE70-0269 | ***** | 1 |
| 200 | 6A2703 | • CONN - ASSY,ST.6 ACT.RING | aa-ae | 2 |
| 202 | AS20918 | • BOLT - .190 DIA X 1.125 U1653 | aa-ae | 8 |
| 206 | 6A2544 | • DOWEL | aa-ae | 8 |
| 220 | 6A2543 | • • BUSH | aa-ae | 4 |
| 360 | 6A2607 | • BRACKET - ASSY OF | aa-ae | 1 |
| 362 | BLT5278 | • BOLT - .190 DIA X 1.134 | aa-ae | 2 |
| 366 | 6A1910 | • DOWEL | aa-ae | 2 |
| 370 | 6A4361 | • • BUSH - ,(VRS6238) | ***** | 1 |
| 372 | 6A4362 | • • BUSH - ,(VRS6238), 0.005 O/S | ***** | 1 |
| 374 | 6A4363 | • • BUSH - ,(VRS6238), 0.010 O/S | ***** | 1 |
| 440 | 6A3551 | • RING - ASSY,ST.6,ACT.UPPER PRE SBE72-0431 | aa-ae | 1 |
| 440A | 6A8097 | • RING - ASSY,ST.6,ACT.UPPER ST POST SBE72-0431 | aa-ae | 1 |
| 460 | UP10815 | • • BUSH - ,(VRS6232) POST SBE70-0394 PRE SBE72-0431 | ***** | 1 |
| 460A | UP12206 | • • BUSHING - SLEEVE POST SBE72-0431 | ad-ae | 34 |
| 470 | 6A2899 | • • BRACKET - ASSY,RING TO CONN.,(VRS6232) POST SBE70-0394 | ***** | 1 |
| 480 | 6A2903 | • • BRACKET - ASSY STG 6 ACT DRIVE,(VRS6232) POST SBE70-0394 | ***** | 1 |
| 540 | 6A3553 | • RING - ASSY,ST.6,ACT.LOWER PRE SBE72-0431 | aa-ae | 1 |
| 540A | 6A8098 | • RING - ASSY,ST.6,ACT.LOWER ST POST SBE72-0431 | aa-ae | 1 |
| 560 | UP10815 | • • BUSH - ,(VRS6232) POST SBE70-0394 PRE SBE72-0431 | ***** | 1 |
| 560A | UP12206 | • • BUSHING - SLEEVE POST SBE72-0431 | ad-ae | 34 |
| 570 | 6A2899 | • • BRACKET - ASSY,RING TO CONN.,(VRS6232) POST SBE70-0394 | ***** | 1 |
| 580 | 6A3683 | • • BRACKET - ASSY STG 6 LOWER,(VRS6232) POST SBE70-0394 | ***** | 1 |
| 583 | AGS3731 | • • • INSERT - SCREW THREAD, .190 DIA X 1.5D U1653 | aa-ae | 6 |
| 654 | 6A2633C01 | • WASHER - ADJUSTING | aa-ae | 1 |
| 655 | 6A2633C02 | • WASHER - ADJ | aa-ae | 1 |
| 656 | 6A2633C03 | • WASHER - ADJ | aa-ae | 1 |
| 657 | 6A2633C04 | • WASHER - ADJ | aa-ae | 1 |
| 658 | 6A2633C05 | • WASHER - ADJ | aa-ae | 1 |
| 659 | 6A2633C06 | • WASHER - ADJ | aa-ae | 1 |
| 660 | 6A2633C07 | • WASHER - ADJ | aa-ae | 1 |
| 661 | 6A2633C08 | • WASHER - ADJ | aa-ae | 1 |
| 662 | 6A2633C09 | • WASHER - ADJ | aa-ae | 1 |
| 663 | 6A2633C10 | • WASHER - ADJ | aa-ae | 1 |
| 664 | 6A2633C11 | • WASHER - ADJ | aa-ae | 1 |
| 665 | 6A2633C12 | • WASHER - ADJ | aa-ae | 1 |
| 666 | 6A2633C13 | • WASHER - ADJ | aa-ae | 1 |
| 680 | 6A2470 | • PAD - A/O,CENTRALIZING-ST.6 PRE SBE72-0027 | aa | 4 |
| 680A | 6A3959 | • PAD - A/O,CENTRALIZING-ST.6 POST SBE72-0027 | ab-ae | 4 |
| 680B | 6A3959 | • PAD - A/O,CENTRALIZING-ST.6 POST SBE72-0591 | ae | 4 |
| 682 | AS20913 | • BOLT - .190 DIA X .812 U1653 | aa-ae | 8 |
| 704 | 6A2628C01 | • WASHER - ADJUSTING, 0.031INS (0.787MM) | aa-ae | 1 |
| 705 | 6A2628C02 | • WASHER - ADJ, 0.030INS (0.763MM) | aa-ae | 1 |
| 706 | 6A2628C03 | • WASHER - ADJ, 0.029INS (0.737MM) | aa-ae | 1 |
| 707 | 6A2628C04 | • WASHER - ADJ, 0.027INS (0.687MM) | aa-ae | 1 |
| 708 | 6A2628C05 | • WASHER - ADJ, 0.025INS (0.637MM) | aa-ae | 1 |
| 709 | 6A2628C06 | • WASHER - ADJ, 0.023INS (0.587MM) | aa-ae | 1 |
| 710 | 6A2628C07 | • WASHER - ADJ, 0.021INS (0.537MM) | aa-ae | 1 |
| 711 | 6A2628C08 | • WASHER - ADJ, 0.019INS (0.487MM) | aa-ae | 1 |
| 712 | 6A2628C09 | • WASHER - ADJ, 0.017INS (0.437MM) | aa-ae | 1 |
| 713 | 6A2628C10 | • WASHER - ADJ, 0.015INS (0.387MM) | aa-ae | 1 |
| 714 | 6A2628C11 | • WASHER - ADJ, 0.014INS (0.345MM) | aa-ae | 1 |
| 715 | 6A2628C12 | • WASHER - ADJ, 0.012INS (0.305MM) | aa-ae | 1 |
| 716 | 6A2628C13 | • WASHER - ADJ, 0.010INS (0.254MM) | aa-ae | 1 |
| 717 | 6A2628C14 | • WASHER - ADJ, 0.007INS (0.178MM) | aa-ae | 1 |
| 718 | 6A2628C15 | • WASHER - ADJ, 0.006INS (0.152MM) | aa-ae | 1 |
| 719 | 6A2628C16 | • WASHER - ADJ, 0.005INS (0.127MM) | aa-ae | 1 |
| 720 | 6A2628C17 | • WASHER - ADJ, 0.004INS (0.102MM) | aa-ae | 1 |
| 726 | 6A3786 | • PAD - RUBBING | aa-ae | 4 |
| 728 | AS50909 | • SCREW - 100 DEG COUNTERSUNK U1653 PRE SBE72-0027 | aa | 4 |
| 728A | AS50912 | • SCREW U1653 POST SBE72-0027 | ab-ae | 4 |
| 728B | AS50912 | • SCREW U1653 POST SBE72-0591 | ae | 4 |
| 730 | 6A3817 | • HSG - ASSY,LH-ST.6 CONN ALT 6A3782 PRE SBE72-0027 | aa | 2 |
| -730A | 6A3782 | • HSG - ASSY,LH-ST.6 CONN ALT 6A3817 PRE SBE72-0027 | aa | REF |
| 730B | 6A3960 | • HSG - ASSY,LH-ST.6 CONN POST SBE72-0027 | ab-ae | 2 |
| 730C | 6A3960 | • HSG - ASSY,LH-ST.6 CONN ALT 6A3960 POST SBE72-0591 | ab-ae | 2 |
| 732 | AS20918 | • BOLT - .190 DIA X 1.125 U1653 PRE SBE72-0027 | aa | 4 |
| 732A | BLT5409 | • BOLT POST SBE72-0027 | ab-ae | 4 |
| 732B | BLT5409 | • BOLT POST SBE72-0591 | ae | 4 |
| 736 | AGS3731 | • • INSERT - SCREW THREAD, .190 DIA X 1.5D U1653 PRE SBE72-0591 | aa-ad | 3 |
| 736A | AGS3781 | • • INSERT - SCREW THREAD U1653 POST SBE72-0591 | ae | 3 |
| 750 | 6A3819 | • HSG - ASSY,RH-ST.6 CONN ALT 6A3784 PRE SBE72-0027 | aa | 2 |
| -750A | 6A3784 | • HSG - ASSY,RH-ST.6 CONN ALT 6A3819 PRE SBE72-0027 | aa | REF |
| 750B | 6A3962 | • HSG - ASSY,RH-ST.6 CONN POST SBE72-0027 | ab-ae | 2 |
| 750C | 6A3962 | • HSG - ASSY,RH-ST.6 CONN POST SBE72-0591 | ae | 2 |
| 752 | AS20918 | • BOLT - .190 DIA X 1.125 U1653 PRE SBE72-0027 | aa | 4 |
| 752A | BLT5409 | • BOLT POST SBE72-0027 | ab-ae | 4 |
| 752B | BLT5409 | • BOLT POST SBE72-0591 | ae | 4 |
| 756 | AGS3731 | • • INSERT - SCREW THREAD, .190 DIA X 1.5D U1653 PRE SBE72-0591 | aa-ad | 3 |
| 756A | AGS3781 | • • INSERT - SCREW THREAD U1653 POST SBE72-0591 | ae | 3 |
| 780 | 6A3878 | • BRACKET - STG 6-RIG PIN LOC. PRE SBE72-0181 | aa-ab | 2 |
| 780A | 6A5461 | • BRACKET - STAGE 6 RIG PIN POST SBE72-0181 | ac-ae | 2 |
| 782 | AS20911 | • BOLT - .190 DIA X .688 U1653 | aa-ae | 4 |
| 786 | 6A3680 | • DOWEL | aa-ae | 4 |
| 790 | 6A3879 | • BRACKET - STG 6-RIG PIN LOC. PRE SBE72-0181 | aa-ab | 1 |
| 790A | 6A5462 | • BRACKET - STAGE 6 RIG PIN POST SBE72-0181 | ac-ae | 1 |
| 792 | AS20911 | • BOLT - .190 DIA X .688 U1653 | aa-ae | 2 |
| 796 | 6A3680 | • DOWEL | aa-ae | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

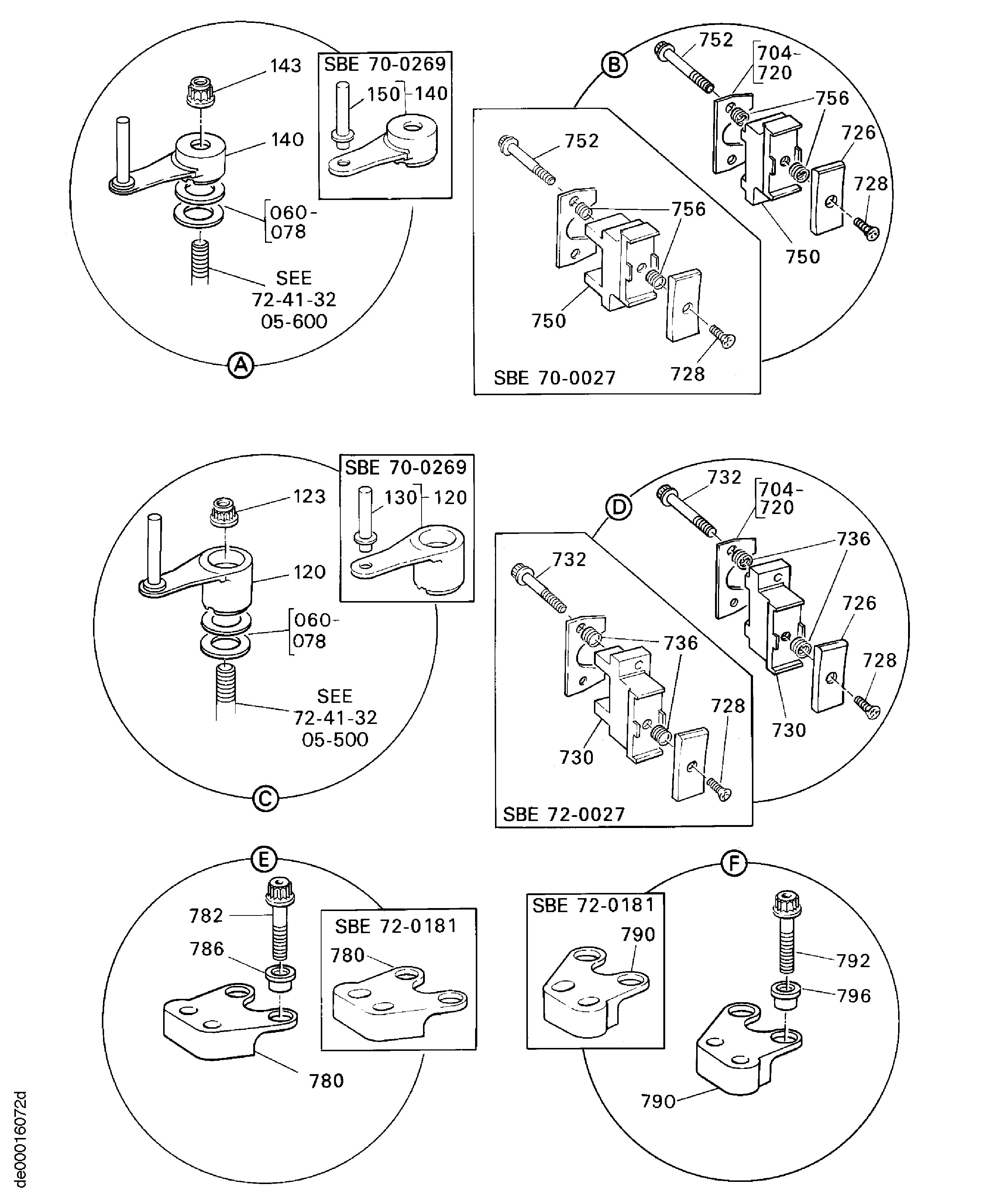

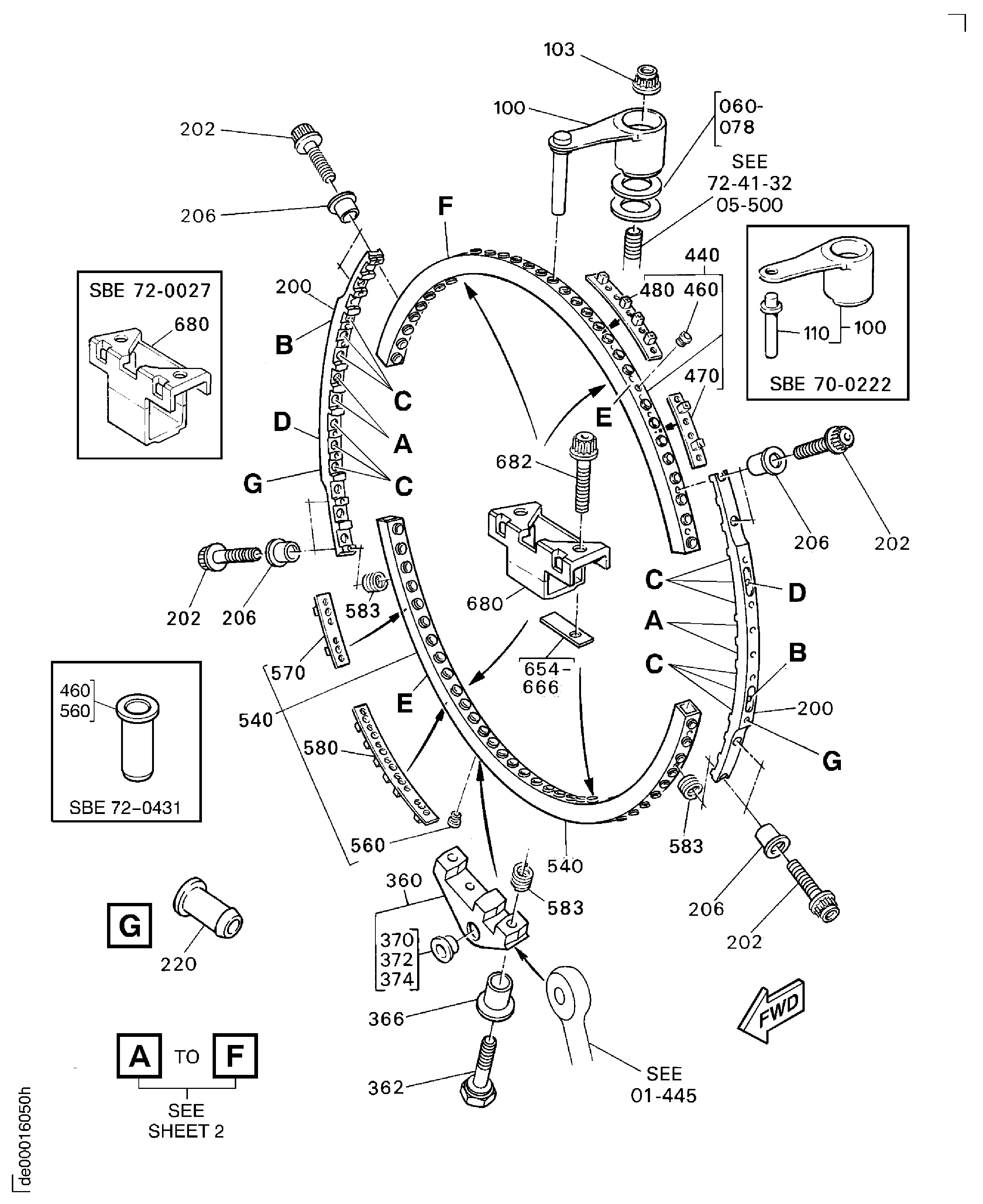

Figure: ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES
