DMC:V2500-A1-72-42-10-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72421001 | ENGINE-DIFFUSER CASE ASSEMBLY AND FITTINGS, PRE SBE72-0099 | aa | ||
| SBE0099-01 | ENGINE-DIFFUSER CASE ASSEMBLY AND FITTINGS, PRE SBE72-0221 | ab | ||
| SBE0221-01 | ENGINE-DIFFUSER CASE ASSEMBLY AND FITTINGS, PRE SBE72-0276 | ac | ||
| SBE0276-01 | ENGINE-DIFFUSER CASE ASSEMBLY AND FITTINGS | ad | ||
| 010 | 673049 | • GASKET 77445 PRE SBE72-0221 | aa-ab | 6 |
| 010A | 673049 | • GASKET 77445 POST SBE72-0221 | ac-ad | 7 |
| 020 | 584971 | • PLUG - MCHT 77445 PRE SBE72-0221 | aa-ab | 5 |
| 020A | 584971 | • PLUG - MCHT 77445 POST SBE72-0221 | ac-ad | 6 |
| 030 | AS27475 | • UNION - DOUBLE ENDED TUBE U1653 PRE SBE72-0099 | aa | 1 |
| 030A | KU37810 | • UNION - DOUBLE ENDED POST SBE72-0099 | ab-ad | 1 |
| 050 | 5W1225 | • GASKET ALT AS3332 PRE SBE72-0099 | aa | 1 |
| 050A | AS3332 | • SPINDLE - VALVE U1653 PRE SBE72-0099 | aa | 1 |
| 050B | 6A4783 | • WASHER - FLAT POST SBE72-0099 | ab-ad | 1 |
| 100 | 2A1632 | • CONNECTR | aa-ad | 1 |
| 120 | MS21914-4S | • CAP - PRESSURE,SEAL,FLARELESS 96906 PRE SBE72-0276 | aa-ad | 1 |
| 120A | MS21914-4R | • CAP - PRESSURE,SEAL,FLARELESS 96906 POST SBE72-0276 | aa-ad | 1 |
| 180 | 2A0489 | • BRACKET - LOOP CLAMP PRE SBE72-0016 | ***** | 1 |
| 200 | 4W2326 | • SCREW - .190 DIA X .625 Optional Part 4W2326 PRE SBE72-0016 | ***** | 1 |
| 220 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 PRE SBE72-0016 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

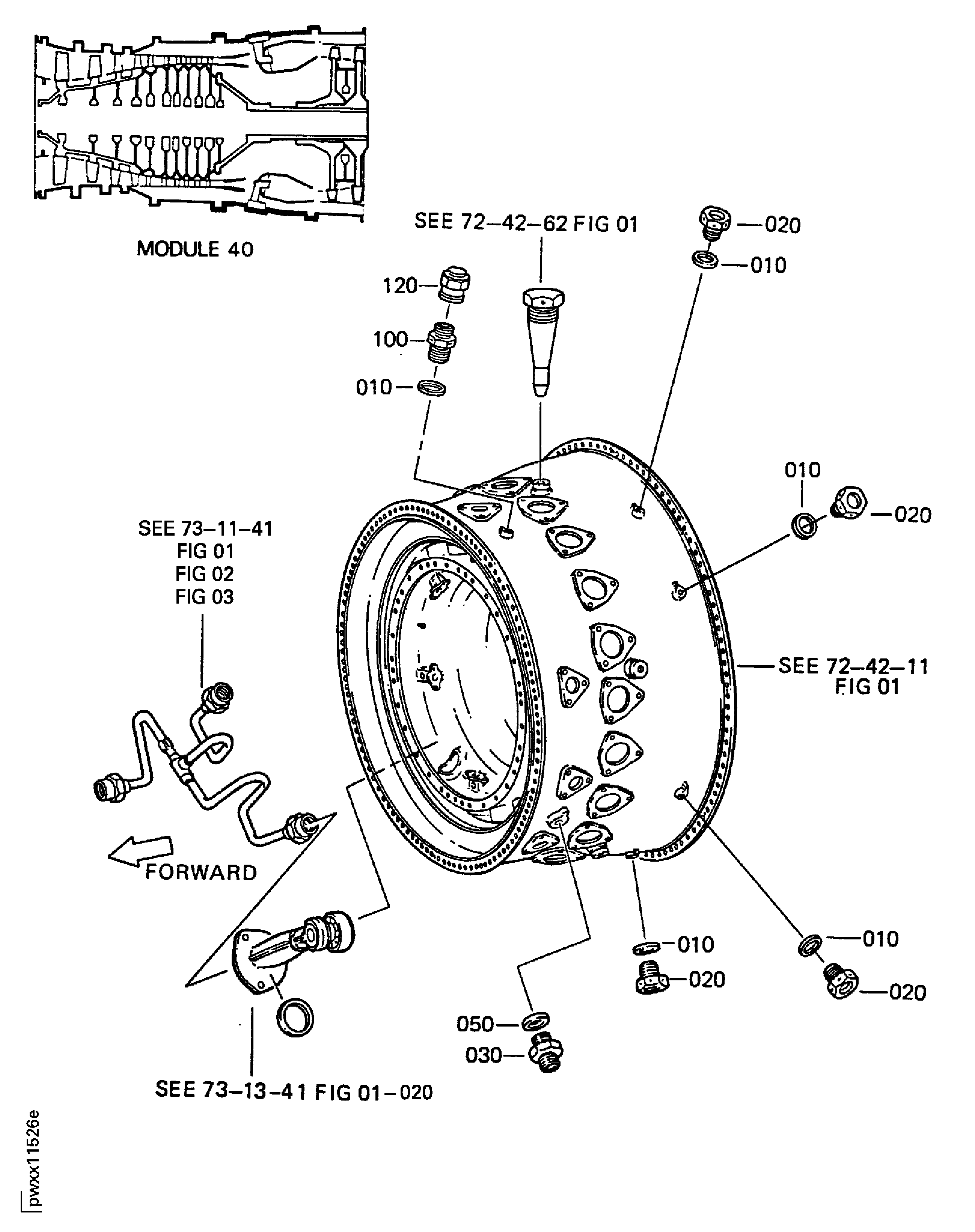

Figure: ENGINE-DIFFUSER CASE ASSEMBLY AND FITTINGS

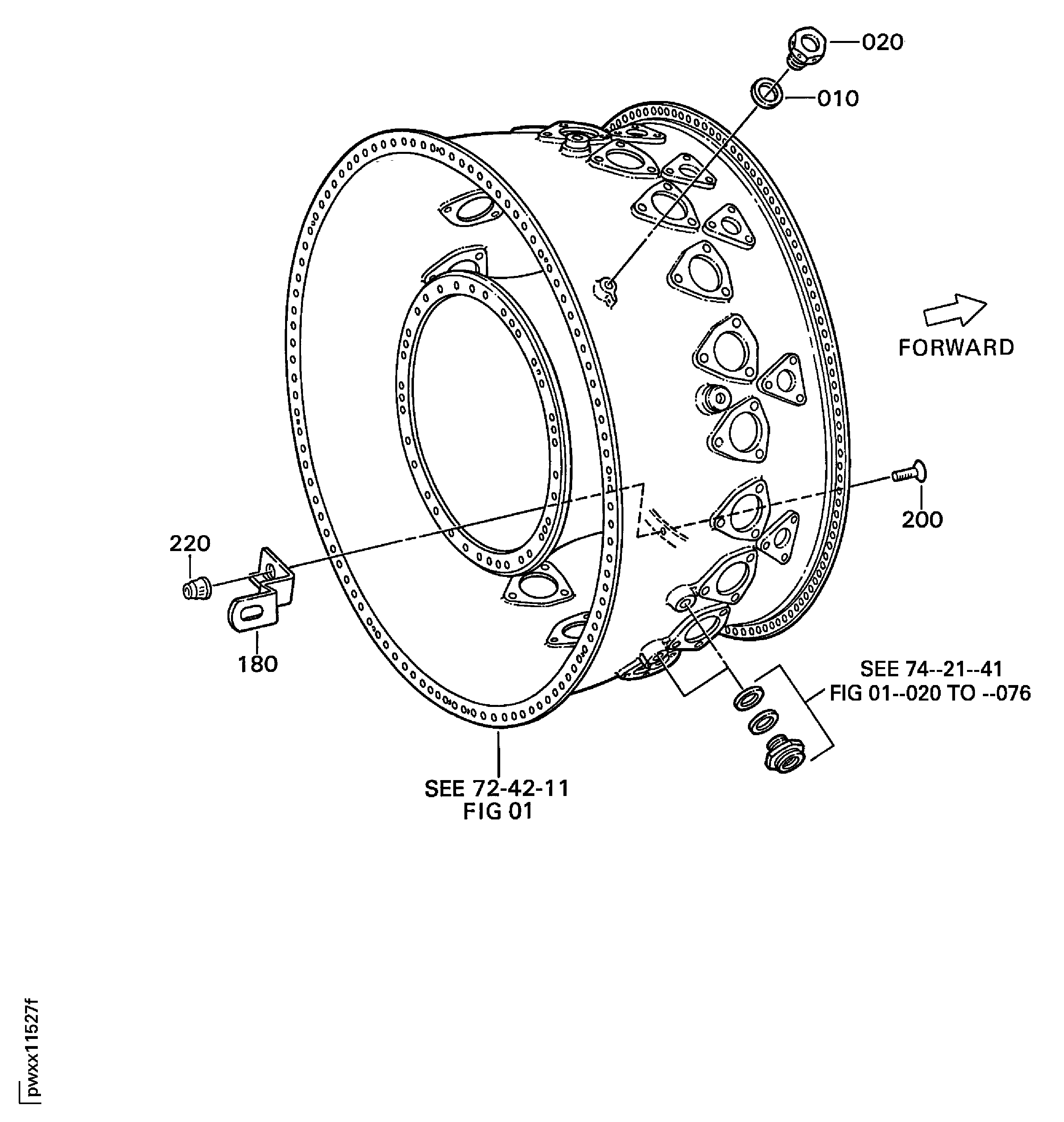

DIFFUSER CASE ASSEMBLY AND FITTINGS
DIFFUSER CASE ASSEMBLY AND FITTINGS
