DMC:V2500-A1-72-42-20-03A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B72422003 | ENGINE-NO.4 BEARING COMPARTMENT TUBES, PRE SBE72-0016 | aa | ||
| SBE0016-01 | ENGINE-NO.4 BEARING COMPARTMENT TUBES, PRE SBE72-0168 | ab | ||
| SBE0168-01 | ENGINE-NO.4 BEARING COMPARTMENT TUBES, PRE SBE72-0434 | ac | ||
| SBE0434-01 | ENGINE-NO.4 BEARING COMPARTMENT TUBES | ad | ||
| 001 | 2A0364 | • SEAL - RING,METAL, .625X .062X .0265 | aa-ad | 2 |
| 020 | 2A0391 | • GASKET PRE SBE72-0016 | aa | 2 |
| 020A | 2A0391 | • GASKET POST SBE72-0016 | ab-ad | 1 |
| 030 | 2A2520 | • GASKET - 2HOLE POST SBE72-0016 | ab-ad | 1 |
| 040 | 2A0367-01 | • TUBE - NO4 BRG&AFR,OUTER,ASSY PRE SBE72-0168 | aa-ab | 1 |
| 040A | 2A2873-01 | • TUBE - #4BRG WEEP,OUTER,ASYO POST SBE72-0168 PRE SBE72-0434 | ac-ad | 1 |
| 040B | 2A3587-01 | • MANIFOLD - ASSY WEEP, NO.4 BRG OUTER POST SBE72-0434 | ac-ad | 1 |
| 120 | 2A1036 | • GASKET - 2.125, 3 HOLE | aa-ad | 1 |
| 140 | 2A0363 | • SLEEVE - SLG,, .625X.900X.650,3 HOL | aa-ad | 1 |
| 160 | 2A0350 | • PLATE - RTNG | aa-ad | 1 |
| 170 | 5W8344 | • BRACKET | aa-ad | 1 |
| 180 | MS9575-09 | • BOLT 96906 | aa-ad | 3 |
| 200 | AS15701 | • NUT - TUBE COUPLING U1653 | aa-ad | 1 |
| 220 | 2A0834 | • WIRE - THRUST, .108 | aa-ad | 1 |
| 240 | 2A0977-01 | • MANIFOLD - #4 BRG&AFR,INNER PRE SBE72-0016 | aa | 1 |
| 240A | 2A2495-01 | • MANIFOLD - A/OF POST SBE72-0016 | ab-ad | 1 |
| 260 | MS9575-06 | • BOLT 96906 | aa-ad | 2 |
| 280 | 4W2326 | • SCREW - .190 DIA X .625 | aa-ad | 1 |
| 300 | 4W0001 | • NUT - .190 DIA | aa-ad | 1 |
| 305 | MS122902 | • CLAMP 96906 PRE SBE72-0016 | aa | 1 |
| 310 | MS9489-05 | • BOLT - .190 DIA X .438 96906 PRE SBE72-0016 | aa | 2 |
| 310A | MS9489-05 | • BOLT - .190 DIA X .438 96906 POST SBE72-0016 | ab-ad | 1 |
| 315 | 493773 | • NUT 77445 PRE SBE72-0016 | aa | 2 |
| 315A | 493773 | • NUT 77445 ALT 493771 POST SBE72-0016 | ab-ad | 1 |
| -315B | 493771 | • NUT 77445 ALT 493772 POST SBE72-0016 | ab-ad | REF |
| -315C | 493772 | • NUT 77445 ALT 638672 POST SBE72-0016 | ab-ad | REF |
| -315D | 638672 | • NUT 77445 ALT 640216 POST SBE72-0016 | ab-ad | REF |
| -315E | 640216 | • NUT 77445 ALT 651159 POST SBE72-0016 | ab-ad | REF |
| -315F | 651159 | • NUT 77445 ALT 493773 POST SBE72-0016 | aa | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

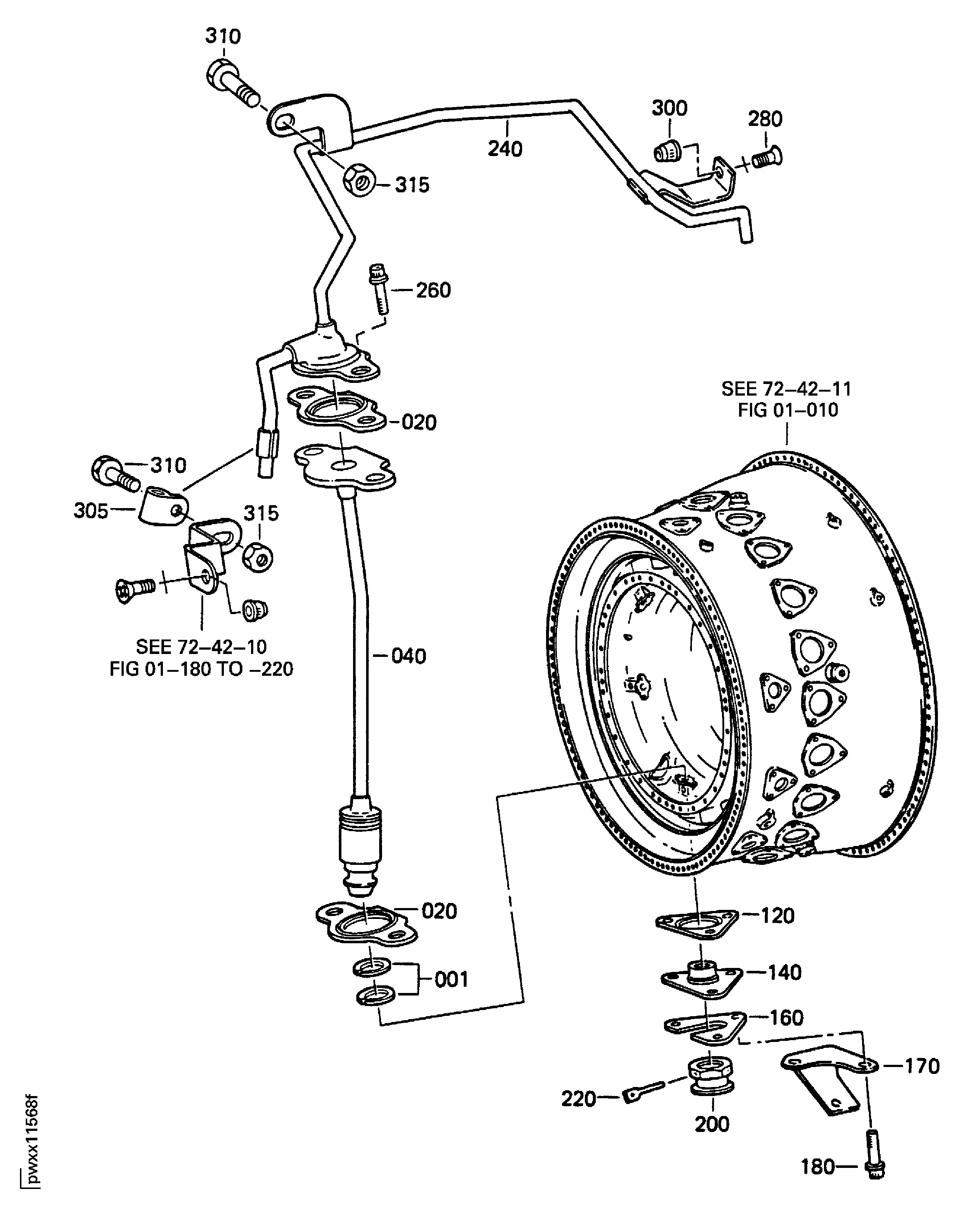

Figure: ENGINE-NO.4 BEARING COMPARTMENT TUBES
NO.4 BEARING COMPARTMENT TUBES
