DMC:V2500-A1-72-42-31-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72423101 | ENGINE-NO.4 BEARING SUPPORT ASSEMBLY, PRE SBE72-0040 | aa | ||
| SBE0040-01 | ENGINE-NO.4 BEARING SUPPORT ASSEMBLY, PRE SBE72-0112 | ab | ||
| SBE0112-01 | ENGINE-NO.4 BEARING SUPPORT ASSEMBLY | ac | ||
| 010 | 2A0846 | • SUPPORT - NO4 ASSY OF PRE SBE72-0040 | aa-ac | 1 |
| 010A | 2A2038 | • SUPPORT - NO.4 BEARING ASSY OF POST SBE72-0040 PRE SBE72-0112 | aa-ac | 1 |
| 010B | 2A2064 | • SUPPORT - #4 BEARING-ASSY OF POST SBE72-0112 | aa-ac | 1 |
| 010C | 2A2064 | • SUPPORT - #4 BEARING-ASSY OF POST SBE72-0112 | ac | 1 |
| 010D | 2A2064 | • SUPPORT - #4 BEARING-ASSY OF POST SBE72-0112 | aa-ac | 1 |
| 020 | 506216 | • • PIN - STR HEADLESS 77445 | aa-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

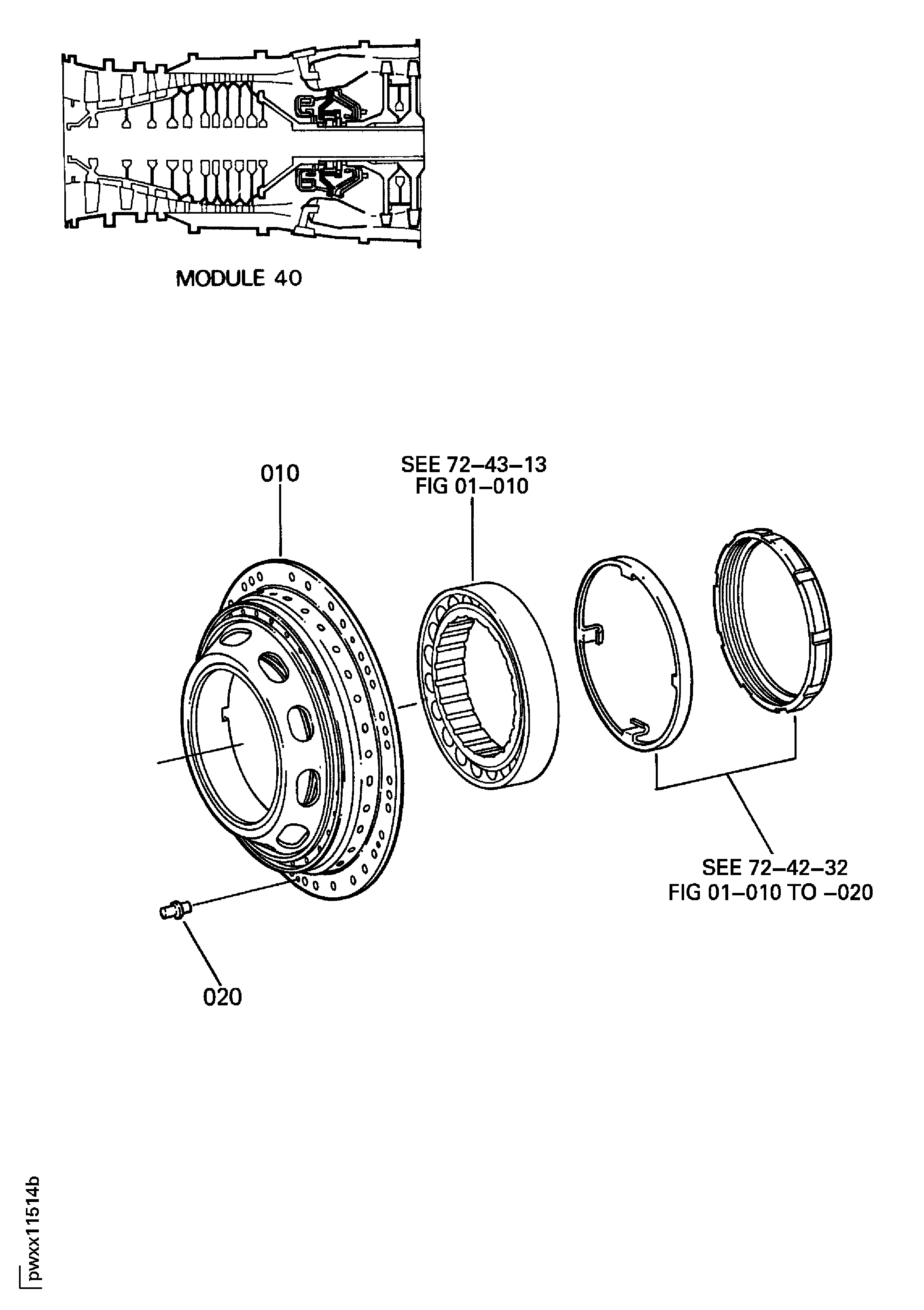

Figure: ENGINE-NO.4 BEARING SUPPORT ASSEMBLY
NO.4 BEARING SUPPORT ASSEMBLY
