ENGINE-NO.4 BEARING FRONT COOLING DUCT

DMC:V2500-A1-72-42-35-01A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B72423501ENGINE-NO.4 BEARING FRONT COOLING DUCT, PRE SBE70-0200aa
000SBE0200-01ENGINE-NO.4 BEARING FRONT COOLING DUCT, PRE SBE72-0415ab
000SBE0415-01ENGINE-NO.4 BEARING FRONT COOLING DUCTac
0100102A0892-01• DUCT - CLG,#4BRG,FRONT,A/O
PRE SBE70-0200		aa-ac1
010010A2A2257-01• DUCT - CLG #4 BRG,FRONT,A/O
POST SBE70-0200
PRE SBE72-0415		aa-ac1
010010B2A3810-01• DUCT - CLG NO.4 BRG FRT
77445
POST SBE72-0415		aa-ac1
010010C2A0892-001• DUCT - A/O CLG NO.4 BRG FRT
77445
POST SBE72-0415		ac1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

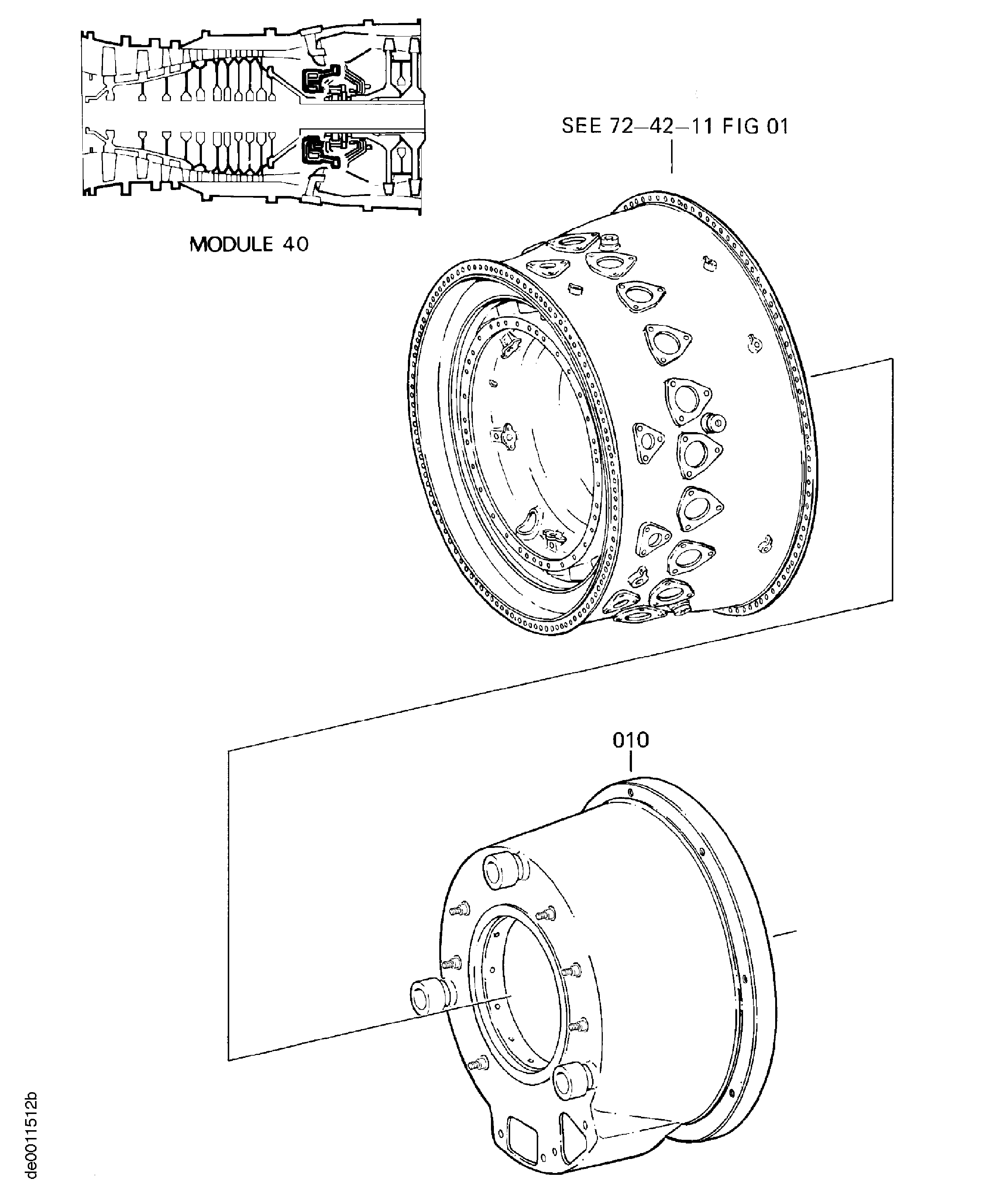

Figure: ENGINE-NO.4 BEARING FRONT COOLING DUCT

NO.4 BEARING FRONT COOLING DUCT

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Link not Found
Part Number:2A0892-01
Part Name:DUCT - COOLING, NO. 4 BEARING, FRONT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2257-01
Part Name:DUCT - AIR, COOLING, NO. 4 BEARING, FRONT, ASSEMBLY OF
Manufacturer Code:0AM53
