ENGINE-NO.4 BEARING REAR SEAL ASSEMBLY

DMC:V2500-A1-72-43-20-01A-941A-D|Issue No:002|Issue Date:2017-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B72432001	ENGINE-NO.4 BEARING REAR SEAL ASSEMBLY, PRE SBE72-0032	aa
000	SBE0032-01	ENGINE-NO.4 BEARING REAR SEAL ASSEMBLY, PRE SBE72-0065	ab
000	SBE0065-01	ENGINE-NO.4 BEARING REAR SEAL ASSEMBLY, PRE SBE70-0091	ac
000	SBE0091-01	ENGINE-NO.4 BEARING REAR SEAL ASSEMBLY, PRE SBE70-0115	ad
000	SBE0115-01	ENGINE-NO.4 BEARING REAR SEAL ASSEMBLY, PRE SBE70-0702	ae
000	SBE0702-01	ENGINE-NO.4 BEARING REAR SEAL ASSEMBLY, PRE SBE70-0801	af
000	SBE0801-01	ENGINE-NO.4 BEARING REAR SEAL ASSEMBLY, PRE SBE72-0401	ag
000	SBE0401-01	ENGINE-NO.4 BEARING REAR SEAL ASSEMBLY, PRE SBE72-0629	ah
000	SBE0629-01	ENGINE-NO.4 BEARING REAR SEAL ASSEMBLY, PRE SBE72-0675	ai
000	SBE0675-01	ENGINE-NO.4 BEARING REAR SEAL ASSEMBLY	aj
-001001	2A2931	• SEAL - ASSY,#4 BRG,REAR POST SBE70-0702 PRE SBE70-0801	af-ai	1
-001001A	2A3526	• SEAL - ASSY,#4 BRG, REAR POST SBE70-0801 PRE SBE72-0401	af-ai	1
-001001B	2A3544	• SEAL - ASSY,#4 BRG,REAR ALT 2A3582 POST SBE72-0401	af-ai	1
-001001C	2A3582	• SEAL - ASSY,REAR''#4 BEARING ALT 2A3544 POST SBE72-0401	ah-ai	1
010010	2A0114	• GASKET PRE SBE72-0065	aa-ai	1
010010A	2A0558	• GASKET - A/O, 10.914 X 11.244 POST SBE72-0065 PRE SBE70-0702 PRE SBE72-0675	ac-ae	1
010010B	2A0558	• GASKET - A/O, 10.914 X 11.244 POST SBE70-0702 PRE SBE72-0675	af-ai	1
010010C	2A4525-01	• GASKET - A/O, 10.914 X 11.244 POST SBE72-0675	aj	1
015015	2A0127	• SPACER - A/O POST SBE70-0702	af-ai	7
-020020	2A0849	• SEAL - ASSY,NO4BRG,REAR PRE SBE72-0032	aa-ae	1
-020020A	2A2056	• SEAL - ASSY #4BRG,REAR POST SBE72-0032 PRE SBE70-0115	aa-ae	1
-020020B	2A2931	• SEAL - ASSY,#4 BRG,REAR POST SBE70-0115 PRE SBE70-0702	aa-ae	1

040040	ST1315-16	• BOLT 77445	aa-ai	30

060060	2A0847	• • SEAL - RING HOLDER PRE SBE70-0702	aa-ai	1
060060A	2A0847	• SEAL - RING HOLDER POST SBE70-0702	aa-ai	1
060060B	2A3543	• SEAL - RING HOLDER POST SBE72-0401	ah-ai	1
080080	MS21209F5-10	• • INSERT - SCREW THREAD 96906 PRE SBE70-0702	aa-ae	4
080080A	MS21209F5-10	• INSERT - SCREW THREAD 96906 POST SBE70-0702 PRE SBE72-0629	af-ah	4
080080B	MS21209F5-10	• INSERT - SCREW THREAD 96906 POST SBE72-0629	ai	6
100100	2A0858	• • PIN - SEAL PRE SBE70-0702	aa-ai	4
100100A	2A0858	• PIN - SEAL	aa-ai	4
120120	2A0074	• • SEAL - RING, 6.562OD X.153 X.1775 PRE SBE70-0091	aa-ai	1
120120A	2A0074	• • SEAL - RING, 6.562OD X.153 X.1775 POST SBE70-0091 PRE SBE70-0702	aa-ai	1
120120B	2A0074	• SEAL - RING, 6.562OD X.153 X.1775 POST SBE70-0702	aa-ai	1
122122	2A0074P5	• • SEAL - RING, 6.562OD X.158 X.1775 POST SBE70-0091 PRE SBE70-0702	ad-ai	1
122122A	2A0074P5	• SEAL - RING, 6.562OD X.158 X.1775	ad-ai	1
124124	2A0074P10	• • SEAL - RING, 6.562OD X.163 X.1775 POST SBE70-0091 PRE SBE70-0702	ad-ai	1
124124A	2A0074P10	• SEAL - RING, 6.562OD X.163 X.1775	ad-ai	1
126126	2A0074P15	• • SEAL - RING, 6.562OD X.168 X.1775 POST SBE70-0091 PRE SBE70-0702	ad-ai	1
126126A	2A0074P15	• SEAL - RING, 6.562OD X.168 X.1775 POST SBE70-0702	ad-ai	1
128128	2A0074P20	• • SEAL - RING, 6.562OD X.173 X.1775 POST SBE70-0091 PRE SBE70-0702	ad-ai	1
128128A	2A0074P20	• SEAL - RING, 6.562OD X.173 X.1775 POST SBE70-0702	ad-ai	1
140140	2A0860	• • SPRING - HELICAL COMPRESSION, .430X.042X20 COILS PRE SBE70-0702	aa-ai	12
140140A	2A0860	• SPRING - HELICAL COMPRESSION, .430X.042X20 COILS POST SBE70-0702	aa-ai	12
160160	2A0859	• • SPACER - SLEEVE, .2031DX.940 PRE SBE70-0702	aa-ai	2
160160A	2A0859	• SPACER - SLEEVE, .2031DX.940 POST SBE70-0702	aa-ai	2
180180	2A0856	• • SEAL - FACE,NO4BRG,ASSY OF PRE SBE72-0032	aa-ai	1
180180A	2A2053	• • SEAL - FACE,#4BRG-ASSY OF POST SBE72-0032 PRE SBE70-0115	aa-ai	1
180180B	2A2918	• • SEAL - ASSY,OPTION ASSY OF POST SBE70-0115 PRE SBE70-0702	aa-ai	1
180180C	2A2918	• SEAL - ASSY,OPTION POST SBE70-0702 PRE SBE70-0801	aa-ai	1
180180D	2A3517	• SEAL - ASSY,OPTION POST SBE70-0801	aa-ai	1
200200	2A0076	• • • GUIDE - SEAL SPRING PRE SBE70-0115	aa-ad	12
201201	2A2053	• • • SEAL - FACE,#4BRG-ASSY OF (OPT TO 2A2011) POST SBE70-0115 PRE SBE70-0702	ae-af	1
201201A	2A2053	• • SEAL - FACE,#4BRG,ASSY OF (OPT TO 2A2011) POST SBE70-0702 PRE SBE70-0801	ae-af	1
206206	2A0076	• • • • GUIDE - SEAL SPRING POST SBE70-0115 PRE SBE70-0702	ae-af	12
206206A	2A0076	• • • GUIDE - SEAL SPRING POST SBE70-0702 PRE SBE70-0801	ae-af	12
208208	2A2011	• • • SEAL - FACE #4BRG,ASSY OF (OPT TO 2A2053) POST SBE70-0115 PRE SBE70-0702	ae-ai	1
208208A	2A2011	• • SEAL - FACE #4BRG,ASSY OF (OPT TO 2A2053) POST SBE70-0702 PRE SBE70-0801	ae-ai	1
208208B	2A3499	• • SEAL - ASSY OF,FACE,#4 BRG POST SBE70-0801	ae-ai	1
212212	2A0076	• • • • GUIDE - SEAL SPRING POST SBE70-0115 PRE SBE70-0702	ae-ai	12
212212A	2A0076	• • • GUIDE - SEAL SPRING POST SBE70-0702	ae-ai	12
220220	1A2592	• • COLLAR - RETAINING, .200X.450X.250 77445 PRE SBE70-0702	aa-ai	4
220220A	1A2592	• COLLAR - RETAINING, .200X.450X.250 77445 POST SBE70-0702	aa-ai	4
240240	MS9245-24	• • PIN - COTTER SPLIT 96906 PRE SBE70-0702	aa-ae	1
240240A	MS9245-24	• PIN - COTTER SPLIT 96906 POST SBE70-0702	af-ai	4
260260	2A0127	• SPACER - A/O PRE SBE70-0702	aa-ae	7
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	77445
Enterprise Name:	PRATT AND WHITNEY
BU Name:	PRATT & WHITNEY
Street:	400 MAIN STREET
City:	EAST HARTFORD
Country:	USA
Phone Number:	8605657700

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Part Number:	1A2592
Part Name:	COLLAR - RETAINING, .200 X .450 X .250
Manufacturer Code:	77445

Part Number:	2A0074P10
Part Name:	SEAL - RING, 6.562 OD X .163
Manufacturer Code:	0AM53

ENGINE-NO.4 BEARING REAR SEAL ASSEMBLY

Export Control

Copyright

Applicability

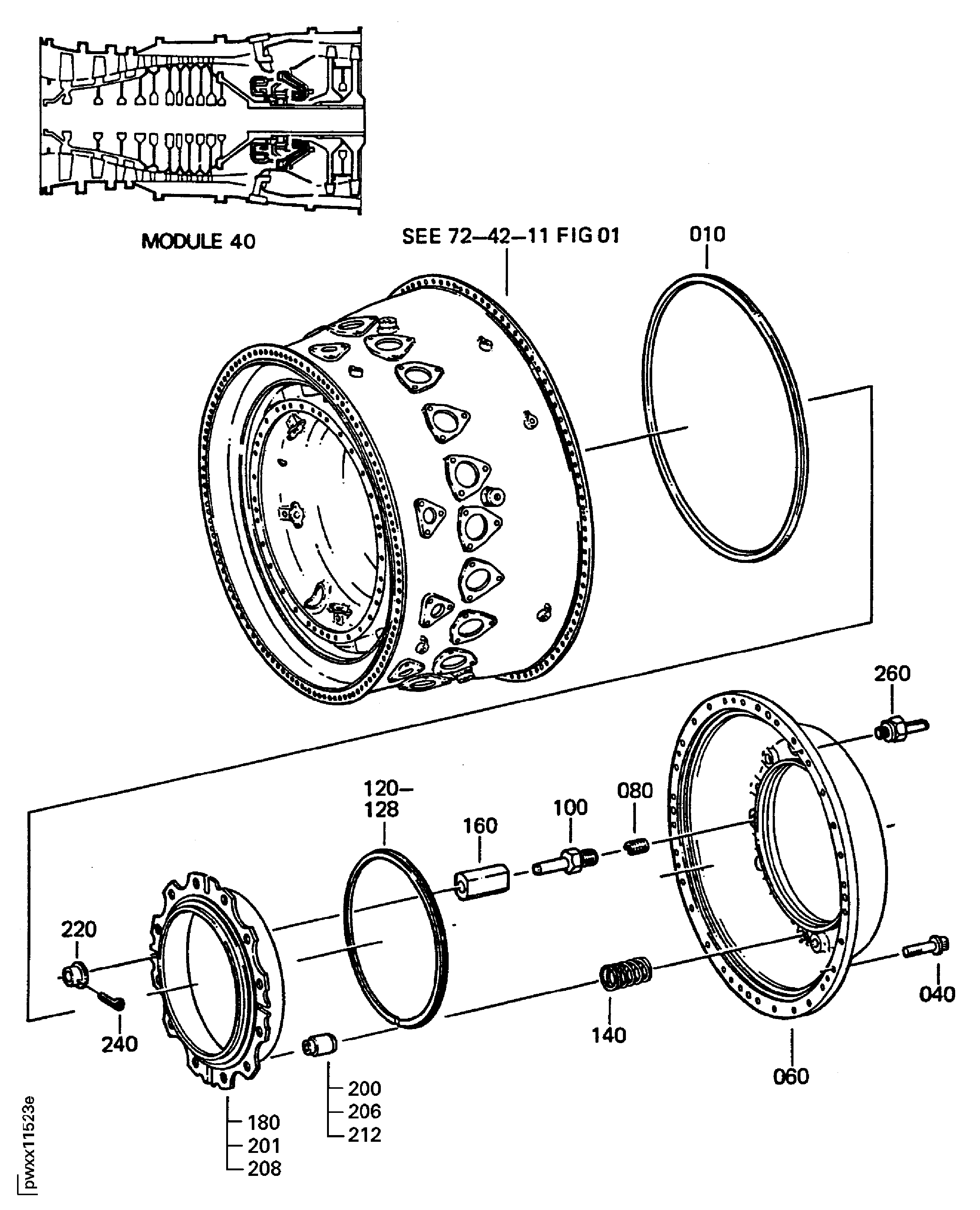

Figure: ENGINE-NO.4 BEARING REAR SEAL ASSEMBLY
