DMC:V2500-A1-72-43-30-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72433001 | NO.4 BEARING REAR COOLING DUCT AND HEATSHIELD, PRE SBE72-0097 | aa | ||
| SBE0097-01 | NO.4 BEARING REAR COOLING DUCT AND HEATSHIELD, PRE SBE72-0190 | ab | ||
| SBE0190-01 | NO.4 BEARING REAR COOLING DUCT AND HEATSHIELD, PRE SBE70-0713 | ac | ||
| SBE0713-01 | NO.4 BEARING REAR COOLING DUCT AND HEATSHIELD, PRE SBE72-0415 | ad | ||
| SBE0415-01 | NO.4 BEARING REAR COOLING DUCT AND HEATSHIELD | ae | ||
| 010 | 2A0891-01 | • DUCT - CLG, 4BRG,REAR,ASSY OF PRE SBE72-0097 | aa | 1 |
| 010A | 2A1205-01 | • DUCT - A/O CLG,NO.4 BRG,REAR POST SBE72-0097 PRE SBE72-0190 | ab | 1 |
| 010B | 2A3078-01 | • DUCT - ASSY,CLG,#4 BRG,REAR POST SBE72-0190 PRE SBE72-0415 | ac-ae | 1 |
| 010C | 2A3808-01 | • DUCT - CLG NO.4 BRG FRT 77445 POST SBE72-0415 | ac-ae | 1 |
| 010D | 2A0891-001 | • DUCT - CLG NO.4 BRG FRT 77445 POST SBE72-0415 | ae | 1 |
| 010E | 2A1205-001 | • DUCT - CLG NO.4 BRG FRT 77445 POST SBE72-0415 | ae | 1 |
| 020 | 2A0104 | • WASHER | aa-ae | 7 |
| 040 | 2A1199 | • NUT | aa-ae | 7 |
| 060 | 2A3383 | • • SPACER - ,#4 BRG CLG DUCT POST SBE70-0713 | ad-ae | 8 |
| 062 | 2A1256 | • • FLANGE - NO.4 BRG CLG DUCT POST SBE72-0097 | ab-ae | 1 |
| 080 | 2A0890-01 | • SHIELD - HEAT, 4BRG,ASSY OF PRE SBE72-0097 | aa | 1 |
| 080A | 2A1204-01 | • SHIELD - A/O HEAT,NO.4 BRG POST SBE72-0097 | ab-ae | 1 |
| 100 | 2A0104 | • WASHER | aa-ae | 8 |
| 120 | 2A1199 | • NUT | aa-ae | 8 |
| 125 | 2A1255 | • • SHIELD - HEAT,NO.4 BRG POST SBE72-0097 | ab-ae | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

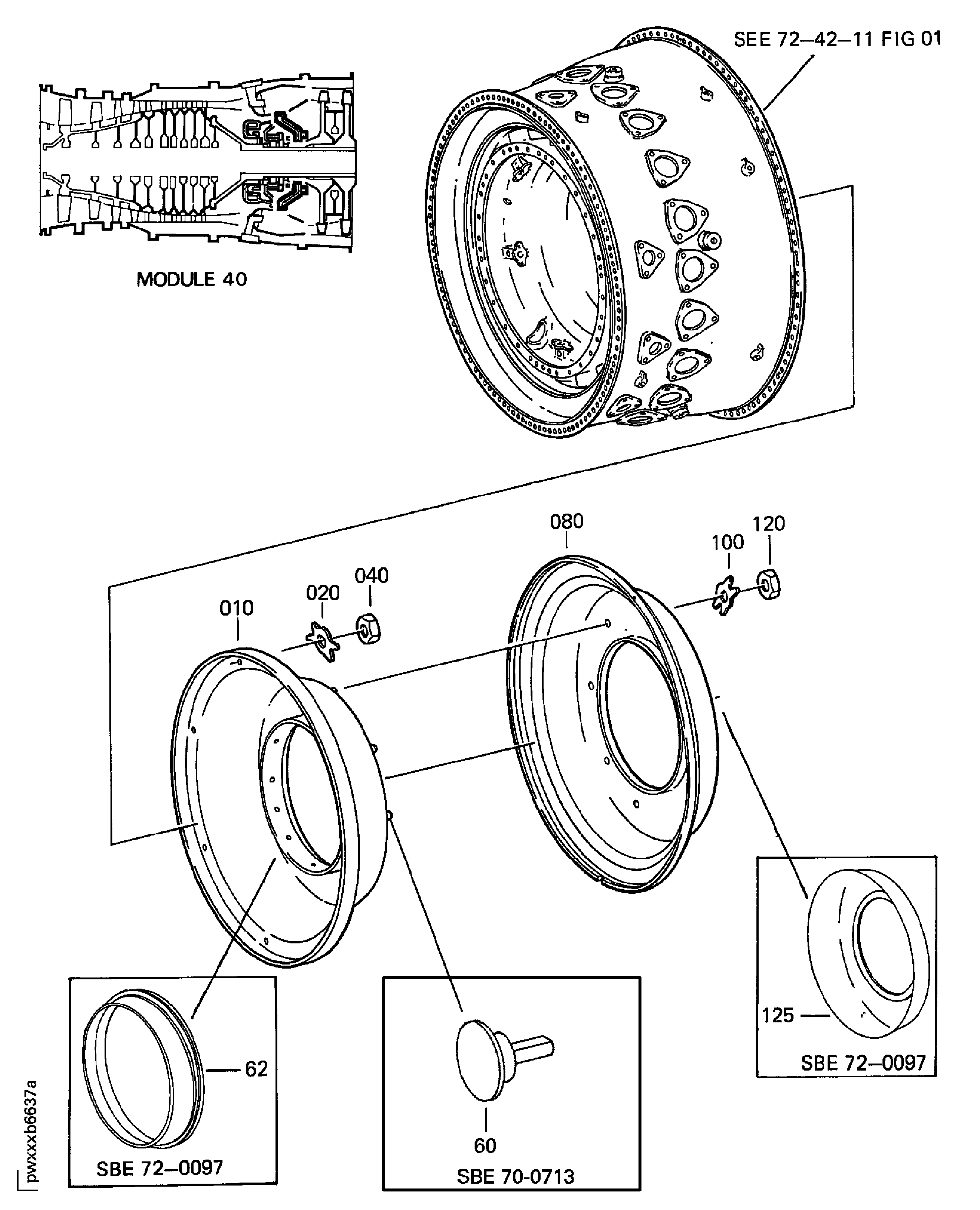

Figure: NO.4 BEARING REAR COOLING DUCT AND HEATSHIELD
NO.4 BEARING REAR COOLING DUCT
