| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72446001 | ENGINE-STAGE 1 HPT SEGMENT, PRE SBE72-0013 | aa | ||
| SBE0013-01 | ENGINE-STAGE 1 HPT SEGMENT, PRE SBE70-0182 | ab | ||
| SBE0182-01 | ENGINE-STAGE 1 HPT SEGMENT, PRE SBE72-0113 | ac | ||
| SBE0113-01 | ENGINE-STAGE 1 HPT SEGMENT, PRE SBE72-0432 | ad | ||
| SBE0432-01 | ENGINE-STAGE 1 HPT SEGMENT | ae | ||
| 010 | 2A0087 | • DUCT - SEGMENT,HPT,1STG PRE SBE72-0013 | aa | 20 |
| 010A | 2A1198 | • DUCT - SEGMENT HPT 1STG POST SBE72-0013 PRE SBE72-0113 | ab-ac | 20 |
| 010B | 2A2364 | • DUCT - SEGMENT, POST SBE72-0113 PRE SBE70-0815 | ***** | 20 |
| 010C | 2A2363 | • DUCT - SEGMENT,HPT,1 STG POST SBE72-0113 PRE SBE72-0113 | ***** | 20 |
| 010D | 2A3569 | • DUCT - SEGMENT POST SBE72-0432 | ae | 20 |
| 020 | 2A0936 | • STOP - HPT DUCT,1STG PRE SBE72-0113 | aa-ac | 20 |
| 020A | 2A2365 | • STOP POST SBE72-0113 | ad-ae | 20 |
| 040 | 2A0155 | • BOLT - MACH, .250-28 X .950 PRE SBE70-0182 | aa-ae | 40 |
| 040A | 2A2474 | • BOLT - MACH 250-28X1.010,HEX POST SBE70-0182 | aa-ae | 40 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

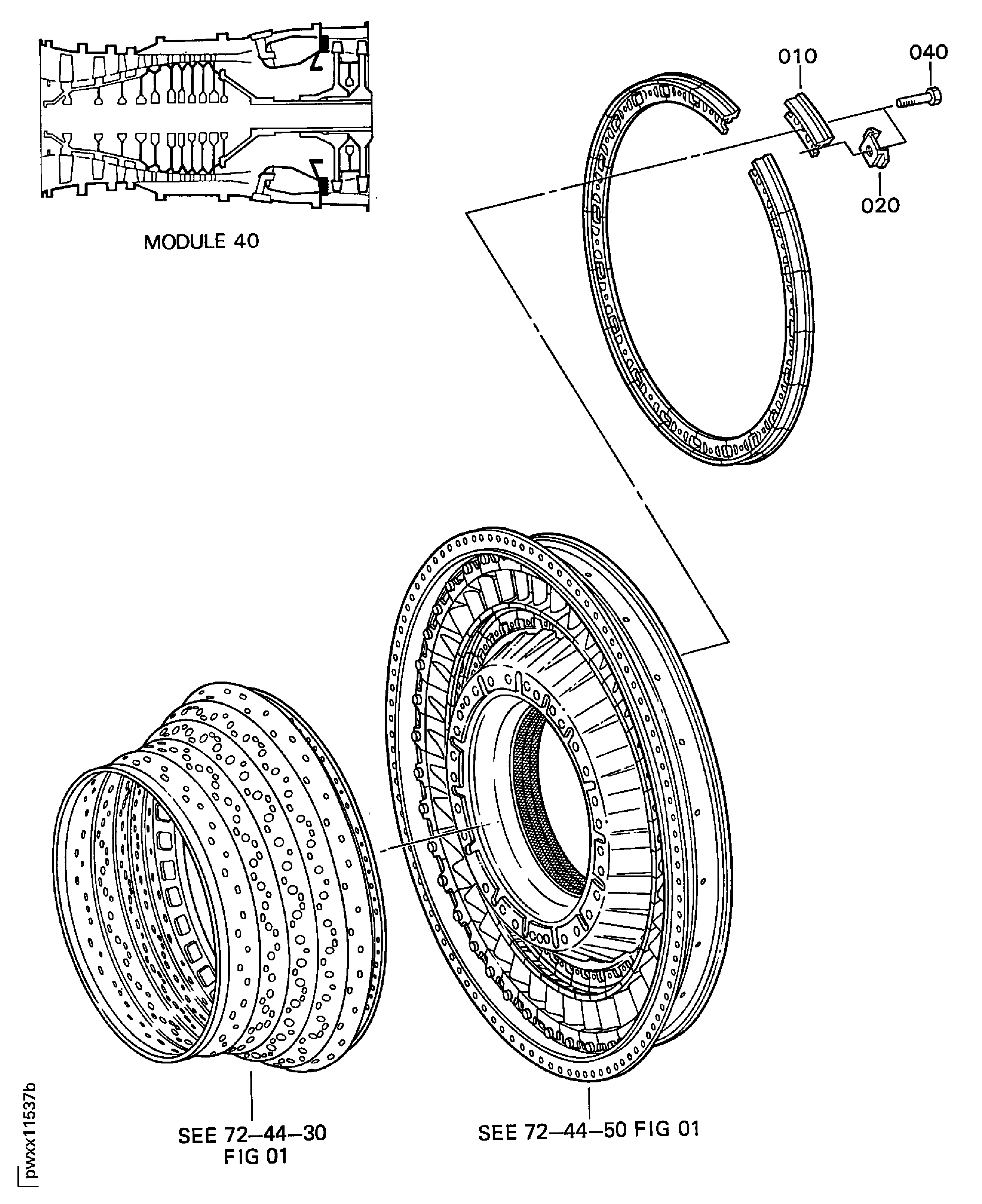

Figure: ENGINE-STAGE 1 HPT SEGMENT
STAGE 1 HPT DUCT SEGMENT
