DMC:V2500-A1-72-45-00-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72450001 | ENGINE-HP TURBINE ROTOR AND STATOR ASSEMBLY, PRE SBE72-0002 | aa | ||
| SBE0002-01 | ENGINE-HP TURBINE ROTOR AND STATOR ASSEMBLY, PRE SBE72-0013 | ab | ||
| SBE0013-01 | ENGINE-HP TURBINE ROTOR AND STATOR ASSEMBLY, PRE SBE72-0022 | ac | ||
| SBE0022-01 | ENGINE-HP TURBINE ROTOR AND STATOR ASSEMBLY, PRE SBE72-0046 | ad | ||
| SBE0046-01 | ENGINE-HP TURBINE ROTOR AND STATOR ASSEMBLY, PRE SBE72-0076 | ae | ||
| SBE0076-01 | ENGINE-HP TURBINE ROTOR AND STATOR ASSEMBLY, PRE SBE72-0111 | af | ||
| SBE0111-01 | ENGINE-HP TURBINE ROTOR AND STATOR ASSEMBLY, PRE SBE72-0123 | ag | ||
| SBE0123-01 | ENGINE-HP TURBINE ROTOR AND STATOR ASSEMBLY, PRE SBE72-0121 | ah | ||
| SBE0121-01 | ENGINE-HP TURBINE ROTOR AND STATOR ASSEMBLY, PRE SBE72-0207 | ai | ||
| SBE0207-01 | ENGINE-HP TURBINE ROTOR AND STATOR ASSEMBLY, PRE SBE72-0240 | aj | ||
| SBE0240-01 | ENGINE-HP TURBINE ROTOR AND STATOR ASSEMBLY, PRE SBE72-0363 | ak | ||
| SBE0363-01 | ENGINE-HP TURBINE ROTOR AND STATOR ASSEMBLY, PRE SBE72-0542 | al | ||
| SBE0542-01 | ENGINE-HP TURBINE ROTOR AND STATOR ASSEMBLY, PRE SBE72-0548 | am | ||
| SBE0548-01 | ENGINE-HP TURBINE ROTOR AND STATOR ASSEMBLY | an | ||
| -001 | 2A0100 | RTR&STTR - ASSY-HPT MODUL PRE SBE72-0002 | aa | 1 |
| -001A | 2A1300 | RTR&STTR - ASSY,HPT MODUL POST SBE72-0002 PRE SBE72-0013 | ab | 1 |
| -001B | 2A0400 | ROTR - & STATR,ASSY HPT MODUL POST SBE72-0013 PRE SBE72-0046 | ac-af | 1 |
| -001C | 2A1700 | ROTOR - & STATOR-ASSY HPT MODULE POST SBE72-0046 PRE SBE72-0111 | ac-af | 1 |
| -001D | 2A5100 | ROTOR - & STATOR-ASSY HPT MODULE POST SBE72-0046 PRE SBE72-0111 | ae-af | 1 |
| -001E | 2A5200 | ROTOR - & STATOR-ASSY HPT MODULE POST SBE72-0046 PRE SBE72-0111 | ae-af | 1 |
| -001F | 2A4400 | ROTOR - & STATOR-ASSY HPT MODULE POST SBE72-0111 PRE SBE72-0123 | ag | 1 |
| -001G | 2A4500 | ROTOR - & STATOR-ASSY HPT MODULE POST SBE72-0111 PRE SBE72-0111 | ***** | 1 |
| -001H | 2A4600 | ROTOR - & STATOR-ASSY HPT MODULE POST SBE72-0111 PRE SBE72-0111 | ***** | 1 |
| -001J | 2A5400 | ROTOR - & STATOR-ASSY HPT MODULE POST SBE72-0111 PRE SBE72-0123 | ag | 1 |
| -001K | 2A5500 | ROTOR - & STATOR-ASSY HPT MODULE POST SBE72-0111 PRE SBE72-0123 | ag | 1 |
| -001L | 2A5300 | ROTOR - & STATOR-ASSY HPT MODULE POST SBE72-0111 PRE SBE72-0111 | ***** | 1 |
| -001M | 2A6700 | RTR/STR - MODULE POST SBE72-0123 PRE SBE72-0542 | ah-al | 1 |
| -001N | 2A5800 | ROTOR - & STATOR ASSY HPT MODUL POST SBE72-0123 PRE SBE72-0542 | ah-al | 1 |
| -001P | 2A6200 | ROTOR - & STATOR ASSY, HPT MODUL POST SBE72-0123 PRE SBE72-0542 | ah-al | 1 |
| -001Q | 2A6300 | ROTOR - & STATOR ASSY, HPT MODUL POST SBE72-0123 PRE SBE72-0542 | ah-al | 1 |
| -001R | 2A6500 | ROTOR - & STATOR ASSY, HPT MODUL POST SBE72-0123 PRE SBE72-0542 | ah-al | 1 |
| -001S | 2A6600 | ROTOR - & STATOR ASSY, HPT MODUL POST SBE72-0123 PRE SBE72-0542 | ah-al | 1 |
| -001T | 2A4110 | MODULE - HPT ROTOR & STATOR POST SBE72-0542 PRE SBE72-0548 | am | 1 |
| -001U | 2A6200-001 | MODULE - HPT ROTOR & STATOR POST SBE72-0542 PRE SBE72-0548 | am | 1 |
| -001V | 2A6300-001 | MODULE - HPT ROTOR & STATOR POST SBE72-0542 PRE SBE72-0548 | am | 1 |
| -001W | 2A6500-001 | MODULE - HPT ROTOR & STATOR POST SBE72-0542 PRE SBE72-0548 | am | 1 |
| -001X | 2A6600-001 | MODULE - HPT ROTOR & STATOR POST SBE72-0542 PRE SBE72-0548 | am | 1 |
| -001Y | 2A5800-001 | MODULE - HPT ROTOR & STATOR POST SBE72-0542 PRE SBE72-0548 | am | 1 |
| -001Z | 2A4223 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AA | 2A6200-003 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AB | 2A5800-003 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AC | 2A4110-001 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AD | 2A6300-003 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AE | 2A6500-003 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AF | 2A5800-002 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AG | 2A6600-003 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AH | 2A6500-002 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AJ | 2A6200-002 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AK | 2A6600-002 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AL | 2A6300-002 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AM | 2A5400-001 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AN | 2A5500-001 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AP | 2A4400-001 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AQ | 2A5100-001 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AR | 2A5200-001 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| -001AS | 2A1700-001 | MODULE - HPT ROTOR & STATOR POST SBE72-0548 | an | 1 |
| 020 | 2A0150 | • LOCK - TURB HUB PRE SBE72-0076 | aa-an | 1 |
| 020A | 2A1254 | • LOCK - TURB HUB POST SBE72-0076 | aa-an | 1 |
| 040 | 2A0044 | • SEAL - HPT, PRE SBE72-0363 | aa-an | 1 |
| 040A | 50L294 | • SEAL - HPT, 1 & 2 STAGE 77445 POST SBE72-0363 | aa-an | 1 |
| 061 | 2A1281CL1 | • SPACER - NO.4 BRG, 0.143INS (3.63 MM) | aa-an | 1 |
| 062 | 2A1281CL2 | • SPACER - NO.4 BRG, 0.143INS (3.63 MM) | aa-an | 1 |
| 063 | 2A1281CL3 | • SPACER - NO.4 BRG, 0.145INS (3.68 MM) | aa-an | 1 |
| 064 | 2A1281CL4 | • SPACER - NO.4 BRG, 0.147INS (3.73 MM) | aa-an | 1 |
| 065 | 2A1281CL5 | • SPACER - NO.4 BRG, 0.149INS (3.78 MM) | aa-an | 1 |
| 066 | 2A1281CL6 | • SPACER - NO.4 BRG, 0.151INS (3.84 MM) | aa-an | 1 |
| 067 | 2A1281CL7 | • SPACER - NO.4 BRG, 0.153INS (3.89 MM) | aa-an | 1 |
| 068 | 2A1281CL8 | • SPACER - NO.4 BRG, 0.155INS (3.94 MM) | aa-an | 1 |
| 069 | 2A1281CL9 | • SPACER - NO.4 BRG, 0.157INS (3.99 MM) | aa-an | 1 |
| 070 | 2A1281CL10 | • SPACER - NO.4 BRG, 0.159INS (4.04 MM) | aa-an | 1 |
| 080 | 2A0487 | • SEAL - AIR,HPT,2STG PRE SBE72-0121 | aa-aj | 1 |
| 080A | 2A1160 | • SEAL - ASSY,AIR,HPT,2 STAGE ALT 2A1159 POST SBE72-0121 PRE SBE72-0207 | aa-aj | 1 |
| 080B | 2A1159 | • SEAL - ASSY,AIR,HPT,2 STAGE ALT 2A1160 POST SBE72-0121 PRE SBE72-0121 | aa-ai | 1 |
| 080C | 2A3108 | • SEAL - ASSY AIR, HPT, 2 STAGE POST SBE72-0207 PRE SBE72-0240 | aa-aj | 1 |
| 080D | 2A3185 | • SEAL - ASSY POST SBE72-0240 PRE SBE72-0548 | ak-am | 1 |
| 080E | 2A4196 | • SEAL - ASSY,AIR,HPT,2 STG POST SBE72-0548 | an | 1 |
| 080F | 2A4196 | • SEAL - ASSY,AIR,HPT,2 STG POST SBE72-0548 | an | 1 |
| 080G | 2A4196 | • SEAL - ASSY,AIR,HPT,2 STG POST SBE72-0548 | an | 1 |
| 080H | 2A4196 | • SEAL - ASSY,AIR,HPT,2 STG POST SBE72-0548 | an | 1 |
| 082 | 2A1161 | • • SEAL - AIR, HPT, POST SBE72-0121 | ai-an | 1 |
| 084 | 2A1158 | • • PLUG - METERING, HPT SEAL POST SBE72-0121 PRE SBE72-0240 | ai-aj | 2 |
| 084A | 2A1158 | • • PLUG - METERING, HPT SEAL POST SBE72-0240 | ak-an | 4 |
| 100 | 2A0044 | • SEAL - HPT, PRE SBE72-0022 | aa-ac | 2 |
| 100A | 2A0044 | • SEAL - HPT, POST SBE72-0022 PRE SBE72-0363 | ad-an | 1 |
| 100B | 50L294 | • SEAL - HPT, 1 & 2 STAGE 77445 POST SBE72-0363 | ad-an | 1 |
| 105 | 2A0140 | • SEAL - TURB, POST SBE72-0022 PRE SBE72-0158 | ***** | 1 |
| 120 | ST1140-21 | • GASKET - OPTION 77445 | aa-an | 2 |
| 140 | 2A0605 | • PLUG - INSTM | aa-an | 2 |
| 160 | MS9575-05 | • BOLT - MACHINE 96906 | aa-an | 4 |
| 200 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 | aa-an | 2 |
| 220 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 | aa-an | 2 |
| 240 | 2A1122 | • PLATE - IDENT HPT | aa-an | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

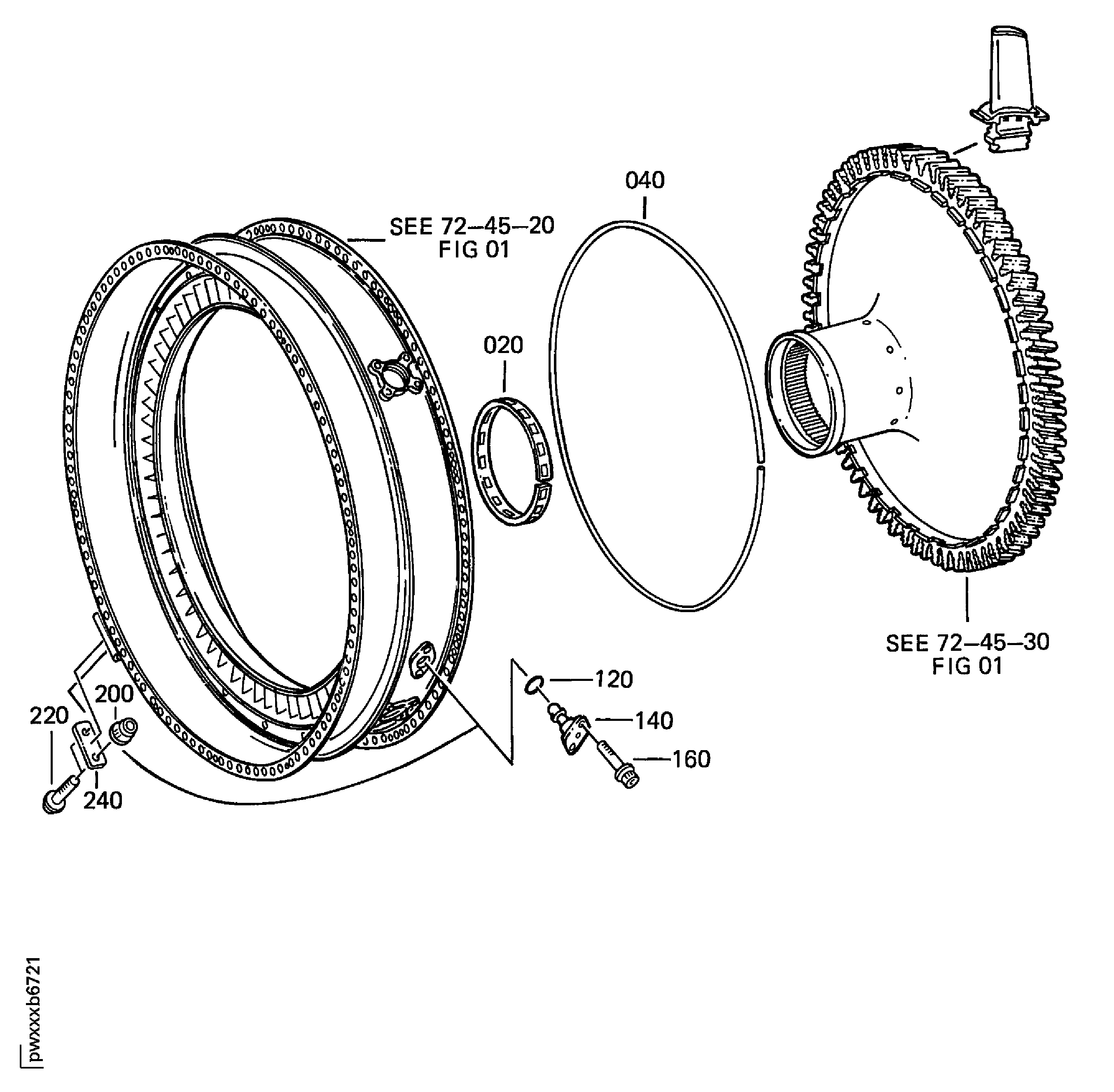

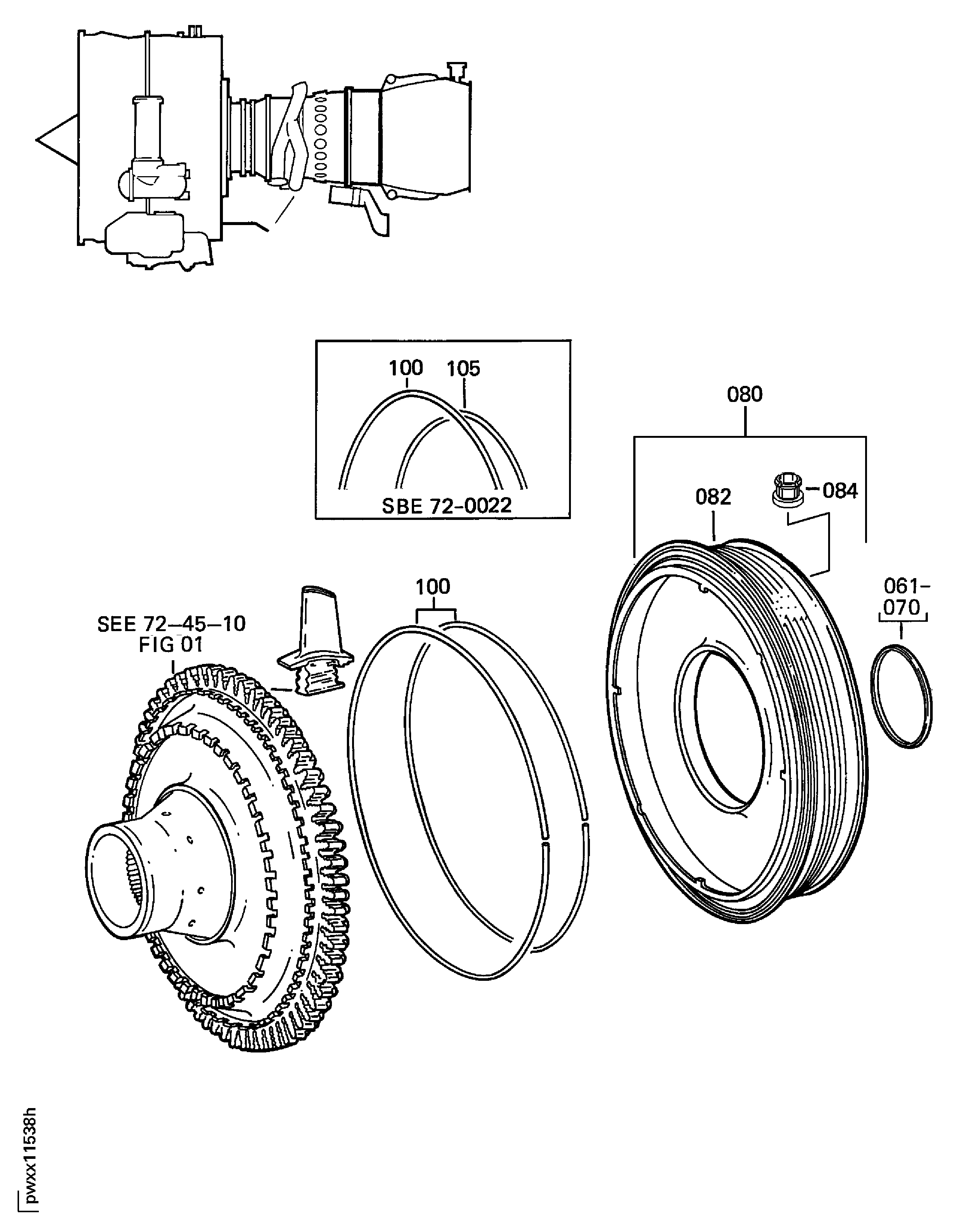

Figure: ENGINE-HP TURBINE ROTOR AND STATOR ASSEMBLY
HPT ROTOR AND STATOR ASSEMBLY
HPT ROTOR AND STATOR ASSEMBLY
