| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72451001 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0013 | aa | ||
| SBE0013-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0011 | ab | ||
| SBE0011-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0046 | ac | ||
| SBE0046-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0075 | ad | ||
| SBE0075-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0111 | ae | ||
| SBE0111-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0123 | af | ||
| SBE0123-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE70-0576 | ag | ||
| SBE0576-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0351 | ah | ||
| SBE0351-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0430 | ai | ||
| SBE0430-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY | aj | ||
| -010 | 2A1021 | • TURBINE - ROTOR,1STAGE,ASSY PRE SBE72-0013 | aa | 1 |
| -010A | 2A1621 | • ROTOR - A/O 1STG TURBINE POST SBE72-0013 PRE SBE72-0011 | ab | 1 |
| -010B | 2A2321 | • ROTOR - A/O 1STG TURBINE POST SBE72-0011 PRE SBE72-0046 | ac | 1 |
| -010C | 2A1921 | • ROTOR - A/O 1STG TURBINE POST SBE72-0011 PRE SBE72-0046 | ac | 1 |
| -010D | 2A2521 | • TURBINE - ROTOR 1STG-ASSY OF POST SBE72-0046 PRE SBE72-0075 | ad-ae | 1 |
| -010E | 2A2721 | • TURBINE - ROTOR POST SBE72-0046 PRE SBE72-0111 | ad-ae | 1 |
| -010F | 2A6321 | • TURBINE - ROTOR-A/O 1ST STAGE POST SBE72-0046 PRE SBE72-0111 | ad-ae | 1 |
| -010G | 2A6421 | • TURBINE - ROTOR-A/O 1ST STAGE POST SBE72-0046 PRE SBE72-0111 | ad-ae | 1 |
| -010H | 2A2121 | • ROTOR - A/O 1 STG TURBINE POST SBE72-0075 PRE SBE72-0111 | ad-ae | 1 |
| -010J | 2A4921 | • TURBINE - ROTOR-A/O 1ST STAGE POST SBE72-0111 PRE SBE72-0123 | af | 1 |
| -010K | 2A3921 | • TURBINE - ROTOR-A/O 1ST STAGE POST SBE72-0111 PRE SBE72-0111 | ***** | 1 |
| -010L | 2A4021 | • TURBINE - ROTOR-A/O 1ST STAGE POST SBE72-0111 PRE SBE72-0111 | ***** | 1 |
| -010M | 2A6721 | • TURBINE - ROTOR-A/O 1ST STAGE POST SBE72-0111 PRE SBE72-0111 | ***** | 1 |
| -010N | 2A4121 | • TURBINE - ROTOR-A/O 1ST STAGE POST SBE72-0111 PRE SBE72-0111 | ***** | 1 |
| -010P | 2A4521 | • TURBINE - ROTOR-A/O 1ST STAGE POST SBE72-0111 PRE SBE72-0123 | af | 1 |
| -010Q | 2A4421 | • TURBINE - ROTOR-A/O 1ST STAGE POST SBE72-0111 PRE SBE72-0123 | af | 1 |
| -010R | 2A6821 | • TURBINE - ROTOR-A/O 1ST STAGE POST SBE72-0111 PRE SBE72-0123 | af | 1 |
| -010S | 2A6921 | • TURBINE - ROTOR-A/O 1ST STAGE POST SBE72-0111 PRE SBE72-0123 | af | 1 |
| -010T | 2A4921 | • TURBINE - ROTOR-A/O 1ST STAGE POST SBE72-0111 PRE SBE72-0111 | ***** | 1 |
| -010U | 2A8021 | • TURBINE - ROTOR, A/O,1 STG POST SBE72-0123 PRE SBE70-0576 | ag-ah | 1 |
| -010V | 2A6121 | • ROTOR - A/O,1 STG, TURBINE POST SBE72-0123 PRE SBE72-0123 | ***** | 1 |
| -010W | 2A6021 | • ROTOR - A/O,1 STG,TURBINE POST SBE72-0123 PRE SBE72-0123 | ***** | 1 |
| -010X | 2A5821 | • ROTOR - A/O,1 STG,TURBINE POST SBE72-0123 PRE SBE72-0123 | ***** | 1 |
| -010Y | 2A7421 | • TURBINE - ROTOR, A/O,1 STG POST SBE72-0123 PRE SBE72-0123 | ***** | 1 |
| -010Z | 2A7321 | • TURBINE - ROTOR, A/O,1 STG POST SBE72-0123 PRE SBE72-0123 | ***** | 1 |
| -010AA | 2A7521 | • TURBINE - ROTOR, A/O,1 STG POST SBE72-0123 PRE SBE72-0123 | ***** | 1 |
| -010AB | 2A7621 | • TURBINE - ROTOR, A/O,1 STG POST SBE72-0123 PRE SBE72-0123 | ***** | 1 |
| -010AC | 2A7821 | • TURBINE - ROTOR, A/O,1 STG POST SBE72-0123 PRE SBE72-0123 | ***** | 1 |
| -010AD | 2A7921 | • TURBINE - ROTOR, A/O,1 STG POST SBE72-0123 PRE SBE72-0123 | ***** | 1 |
| -010AE | 2A8021 | • TURBINE - ROTOR, POST SBE70-0576 PRE SBE72-0351 | ag-aj | 1 |
| -010AF | 2A5201 | • TURBINE - ROTOR,1 STG,ASSY OF POST SBE72-0351 PRE SBE72-0430 | ag-aj | 1 |
| -010AG | 2A2121-001 | • TURBINE - ROTOR,1STG,ASSY OF 77445 POST SBE72-0351 PRE SBE72-0351 | ***** | 1 |
| -010AH | 2A9221 | • TURBINE - ROTOR ASSY OF 77445 POST SBE72-0430 | ag-aj | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

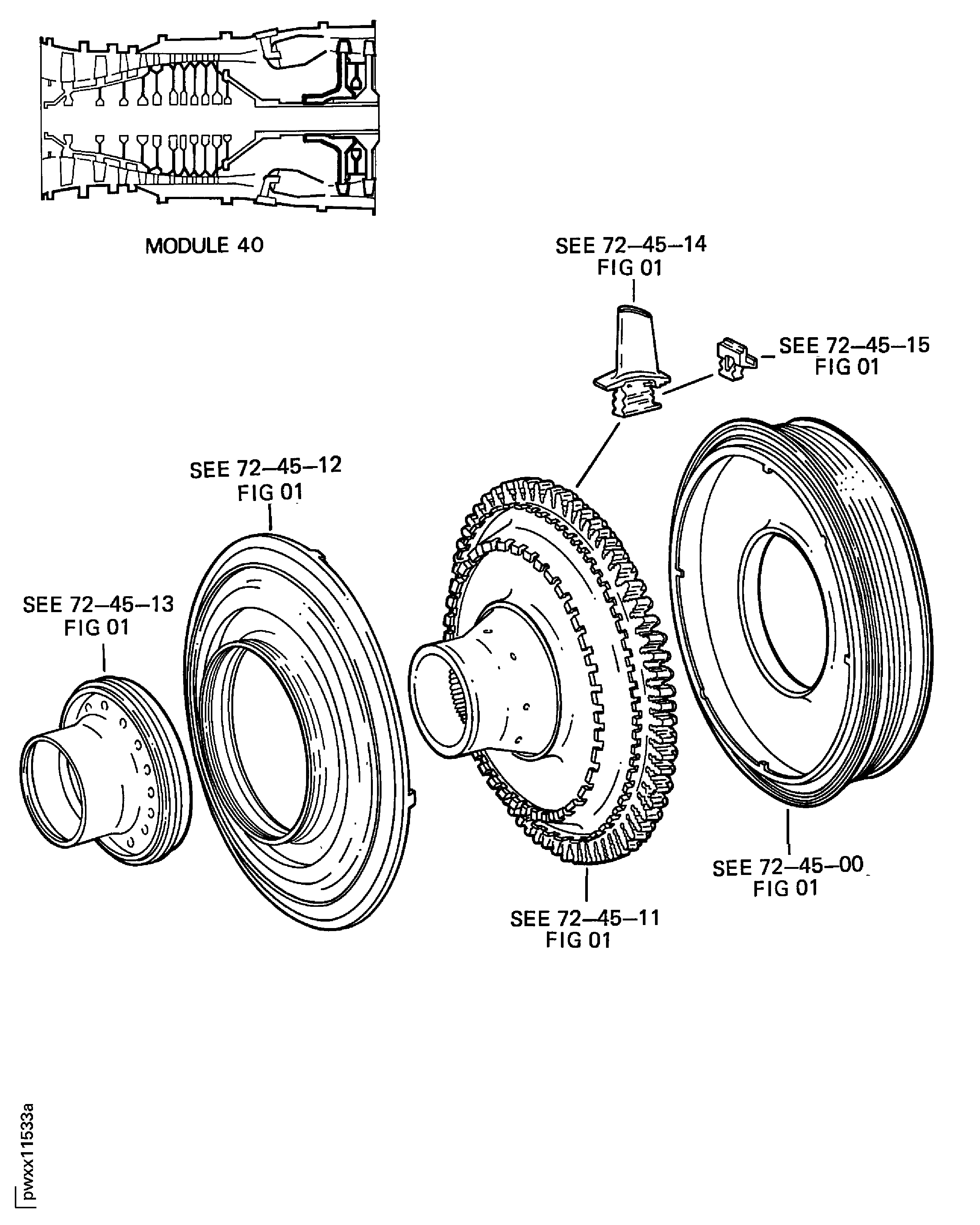

Figure: ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY
STAGE 1 TURBINE ROTOR ASSEMBLY
