DMC:V2500-A1-72-45-11-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72451101 | ENGINE-STAGE 1 TURBINE HUB, PRE SBE72-0011 | aa | ||
| SBE0011-01 | ENGINE-STAGE 1 TURBINE HUB, PRE SBE70-0008 | ab | ||
| SBE0008-01 | ENGINE-STAGE 1 TURBINE HUB, PRE SBE72-0075 | ac | ||
| SBE0075-01 | ENGINE-STAGE 1 TURBINE HUB, PRE SBE72-0123 | ad | ||
| SBE0123-01 | ENGINE-STAGE 1 TURBINE HUB, PRE SBE72-0430 | ae | ||
| SBE0430-01 | ENGINE-STAGE 1 TURBINE HUB | af | ||
| 010 | 2A1121 | • HUB - ASSY,TURBINE,1STG PRE SBE72-0011 | aa | 1 |
| 010A | 2A2021 | • HUB - ASSY 1 STG TURBINE POST SBE72-0011 PRE SBE72-0075 | ab-ac | 1 |
| 010B | 2A2221 | • HUB - ASSY 1 STG TURBINE POST SBE72-0075 PRE SBE72-0123 | ad | 1 |
| 011 | 2A1101 | • HUB - 1 STG TURBINE POST SBE72-0123 | ae-af | 1 |
| 011A | 2A1901 | • HUB - 1STG TURBINE POST SBE72-0123 | ae-af | 1 |
| 011B | 2A1801 | • HUB - 1STG TURBINE POST SBE72-0123 | ae-af | 1 |
| 040 | 2A0594 | • • METERING - PLUG,HPT HUB,1STG PRE SBE70-0008 | aa-ab | 12 |
| 040A | 2A1040 | • • METERING - PLUG-HPT HUB,1STG POST SBE70-0008 PRE SBE72-0123 | ac-ad | 12 |
| 040B | 2A2181 | • PLUG - METERING, POST SBE72-0123 PRE SBE72-0430 | ae | 12 |
| 040C | 2A3833 | • PLUG - METERING POST SBE72-0430 | af | 12 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

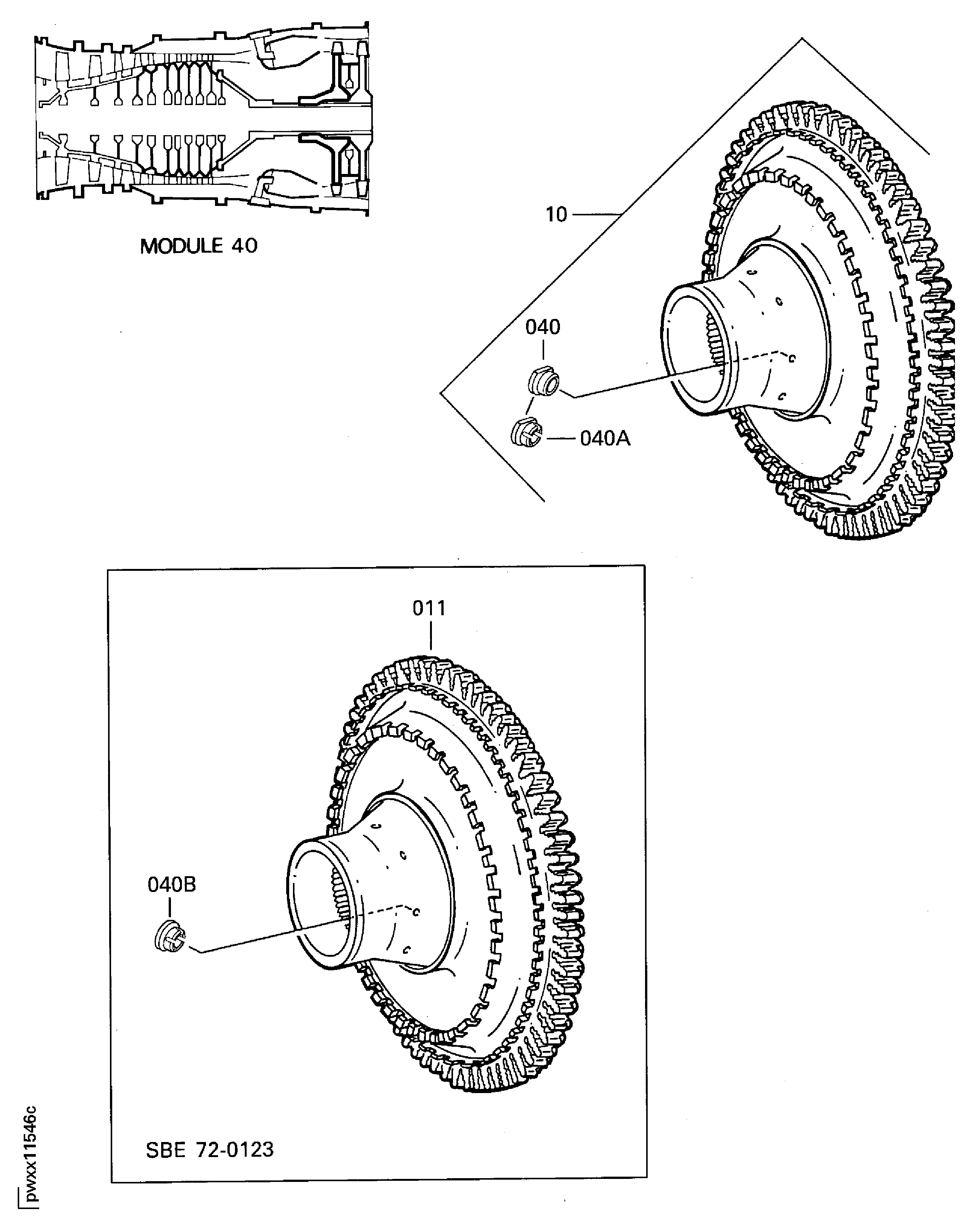

Figure: ENGINE-STAGE 1 TURBINE HUB
STAGE 1 TURBINE HUB
