DMC:V2500-A1-72-45-14-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72451401 | ENGINE-STAGE 1 HPT BLADE ASSEMBLY, PRE SBE72-0046 | aa | ||
| SBE0046-01 | ENGINE-STAGE 1 HPT BLADE ASSEMBLY, PRE SBE70-0429 | ab | ||
| SBE0429-01 | ENGINE-STAGE 1 HPT BLADE ASSEMBLY, PRE SBE72-0220 | ac | ||
| SBE0220-01 | ENGINE-STAGE 1 HPT BLADE ASSEMBLY, PRE SBE70-0576 | ad | ||
| SBE0576-01 | ENGINE-STAGE 1 HPT BLADE ASSEMBLY, PRE SBE72-0321 | ae | ||
| SBE0321-01 | ENGINE-STAGE 1 HPT BLADE ASSEMBLY, PRE SBE72-0363 | af | ||
| SBE0363-01 | ENGINE-STAGE 1 HPT BLADE ASSEMBLY | ag | ||
| 010 | 2A1221 | • BLADE - HPT,1STG,ASSY OF PRE SBE72-0220 | aa-ae | 64 |
| 010A | 2A1721 | • BLADE - HPT,1ST STAGE PRE SBE72-0046 | aa | 64 |
| 010B | 2A2421 | • BLADE - HPT,1STG POST SBE72-0046 PRE SBE70-0429 | ab-ad | 64 |
| 010C | 2A3001 | • BLADE POST SBE70-0429 PRE SBE72-0220 | ab-ad | 64 |
| 010D | 2A3001-001 | • BLADE 77445 POST SBE72-0220 PRE SBE70-0576 | ab-ad | 64 |
| 010E | 2A1721-001 | • BLADE 77445 POST SBE72-0220 PRE SBE72-0220 | ***** | 64 |
| 010F | 2A2421-001 | • BLADE 77445 POST SBE72-0220 PRE SBE72-0220 | ***** | 64 |
| 010G | 2A1221-001 | • BLADE 77445 POST SBE72-0220 PRE SBE72-0321 | aa-ag | 64 |
| 010H | 2A8601 | • BLADE - HPT 1 STAGE POST SBE70-0576 PRE SBE72-0321 | ae-ag | 64 |
| 010J | 2A8601 | • BLADE - HPT 1 STAGE POST SBE70-0576 PRE SBE70-0576 | ab-ad | 64 |
| 010K | 2A1221-002 | • BLADE - HPT,1STAGE 77445 POST SBE72-0321 | af-ag | 64 |
| 010L | 2A1221-002 | • BLADE - HPT,1STAGE 77445 POST SBE72-0321 | aa-ag | 64 |
| 010M | 2A1721-002 | • BLADE - HPT,1STAGE 77445 POST SBE72-0321 | af-ag | 64 |
| 010N | 2A3001-002 | • BLADE - HPT,1STAGE 77445 POST SBE72-0321 | af-ag | 64 |
| 010P | 2A8901 | • BLADE - HPT,1 STAGE POST SBE72-0321 | ae-ag | 64 |
| 020 | 2A0062 | • DAMPER - HPT,1STG | aa-ag | 64 |
| 040 | 2A0980 | • SEAL - HPT,1ST STAGE | aa-ag | 64 |
| 060 | 2A0140 | • SEAL - TURB, PRE SBE72-0363 | aa-ag | 1 |
| 060A | 50L294 | • SEAL - HPT, 1 & 2 STAGE 77445 POST SBE72-0363 | aa-ag | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

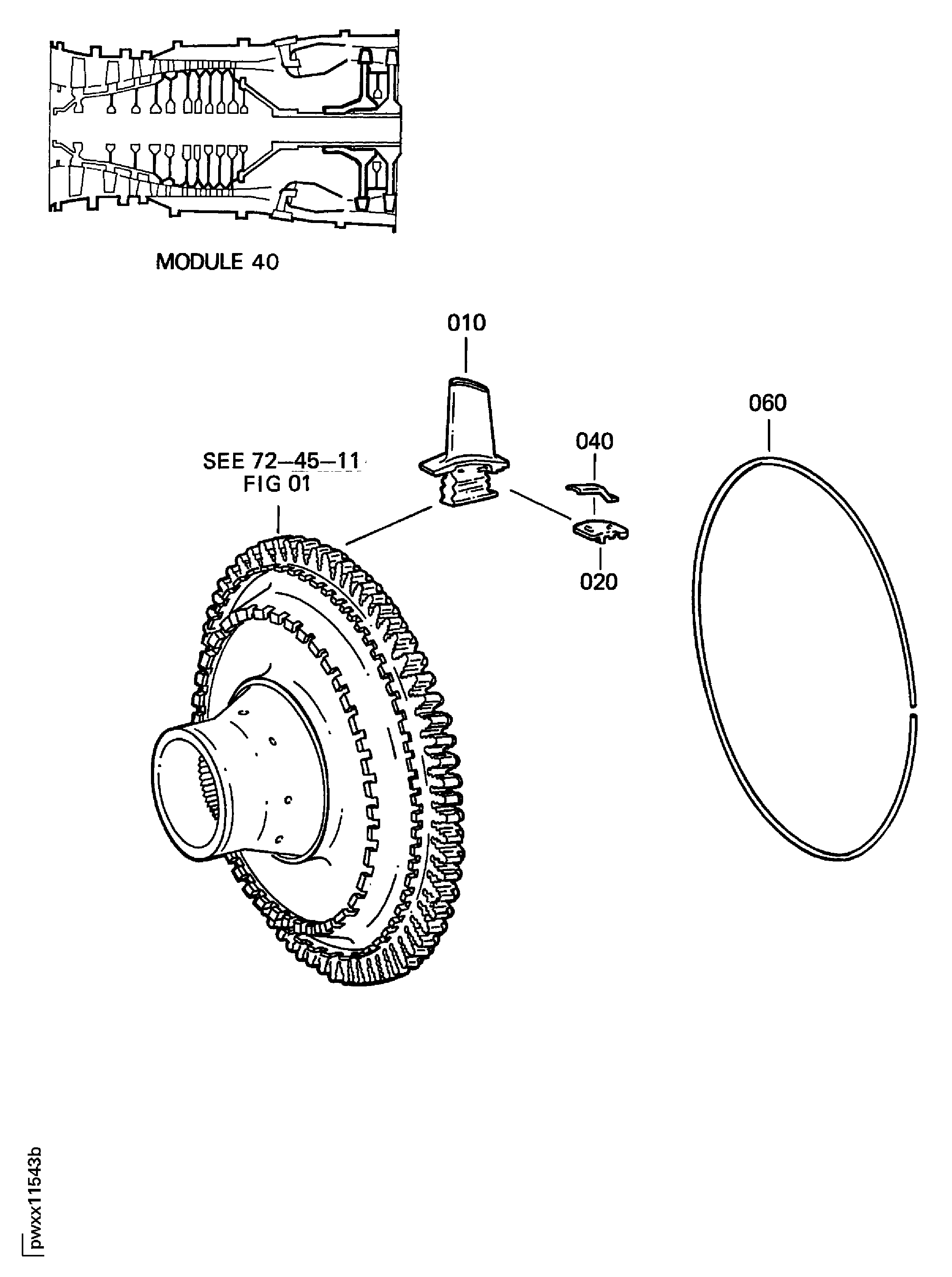

Figure: ENGINE-STAGE 1 HPT BLADE ASSEMBLY
STAGE 1 HPT BLADE ASSEMBLY
