DMC:V2500-A1-72-45-22-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72452201 | ENGINE-STAGE 1 HPT DUCT SUPPORT SET, PRE SBE72-0092 | aa | ||
| SBE0092-01 | ENGINE-STAGE 1 HPT DUCT SUPPORT SET, PRE SBE72-0339 | ab | ||
| SBE0339-01 | ENGINE-STAGE 1 HPT DUCT SUPPORT SET | ac | ||
| 010 | 2A0177 | • SUPPORT - SET,HPT DUCT,1STG PRE SBE72-0092 | aa | 1 |
| 010A | 2A1313 | • SUPPORT - ASSY HPT DUCT,1STG POST SBE72-0092 PRE SBE72-0339 | ab | 19 |
| 010B | 2A3296 | • SUPPORT - HPT DUCT,1STG POST SBE72-0339 | ac | 19 |
| 020 | 2A0178 | • • SUPPORT - SET,HPT DUCT,1STG PRE SBE72-0092 | aa | 1 |
| 040 | 2A0981 | • • PIN - SHOULDER,HEADLESS,, .1088 X.120 SQ X.390 POST SBE72-0092 | ab-ac | 1 |
| 042 | 2A0981CL1 | • • • PIN - SHOULDER,HEADLESS, .1088 X.120 SQ X.390 PRE SBE72-0092 | aa-ac | 1 |
| 042A | 2A0981CL1 | • PIN - SHOULDER,HEADLESS, .1088 X.120 SQ X.390 POST SBE72-0092 | aa-ac | 1 |
| 044 | 2A0981CL2 | • • • PIN - SHOULDER,HEADLESS, .1093 X.120 SQ X.390 PRE SBE72-0092 | aa-ac | 1 |
| 044A | 2A0981CL2 | • • PIN - SHOULDER,HEADLESS, .1093 X.120 SQ X.390 POST SBE72-0092 | aa-ac | 1 |
| 046 | 2A0981CL3 | • • • PIN - SHOULDER,HEADLESS, .10975 X.120 SQ X.39 PRE SBE72-0092 | aa-ac | 1 |
| 046A | 2A0981CL3 | • • PIN - SHOULDER,HEADLESS, .10975 X.120 SQ X.39 POST SBE72-0092 | aa-ac | 1 |
| 048 | 2A0981CL4 | • • • PIN - SHOULDER,HEADLESS, .1103 X.120 SQ X.390 PRE SBE72-0092 | aa-ac | 1 |
| 048A | 2A0981CL4 | • • PIN - SHOULDER,HEADLESS, .1103 X.120 SQ X.390 POST SBE72-0092 | aa-ac | 1 |
| 050 | 2A0981P3 | • • • PIN - SHOULDER,HEADLESS, .11175 X.120 SQ X.39 PRE SBE72-0092 | aa-ac | 1 |
| 050A | 2A0981P3 | • • PIN - SHOULDER,HEADLESS, .11175 X.120 SQ X.39 POST SBE72-0092 | aa-ac | 1 |
| 054 | 2A0981P5 | • • • PIN - SHOULDER,HEADLESS, .11375 X.120 SQ X.39 PRE SBE72-0092 | aa-ac | 1 |
| 054A | 2A0981P5 | • • PIN - SHOULDER,HEADLESS, .11375 X.120 SQ X.39 POST SBE72-0092 | aa-ac | 1 |
| 060 | 2A0180 | • SEAL - HPT DUCT SPRT,1STG PRE SBE72-0339 | aa-ab | 19 |
| 060A | 2A3299 | • SEAL - HPT DUCT SPRT,1STG POST SBE72-0339 | ac | 19 |
| 080 | 2A0181 | • SEAL - HPT DUCT SPRT,1STG PRE SBE72-0339 | aa-ab | 19 |
| 080A | 2A0181 | • SEAL - HPT DUCT SPRT,1STG POST SBE72-0339 | ac | 19 |
| 100 | ST1359-12 | • SCREW - MACHINE 77445 PRE SBE72-0339 | aa-ab | 19 |
| 100A | 2A1704 | • BOLT - MACHINE HEAD POST SBE72-0339 | ac | 19 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

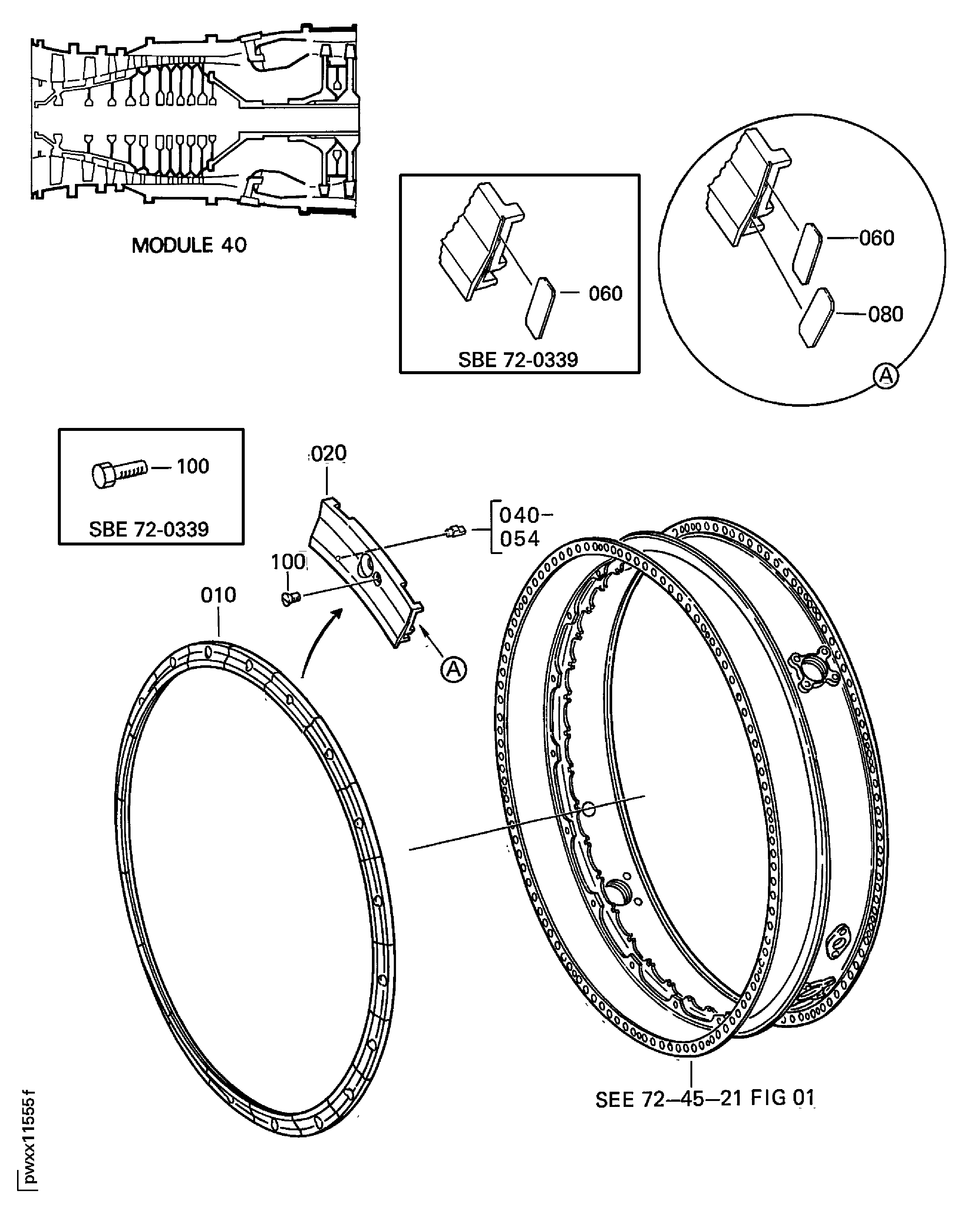

Figure: ENGINE-STAGE 1 HPT DUCT SUPPORT SET
STAGE 1 HPT DUCT SUPPORT SET
