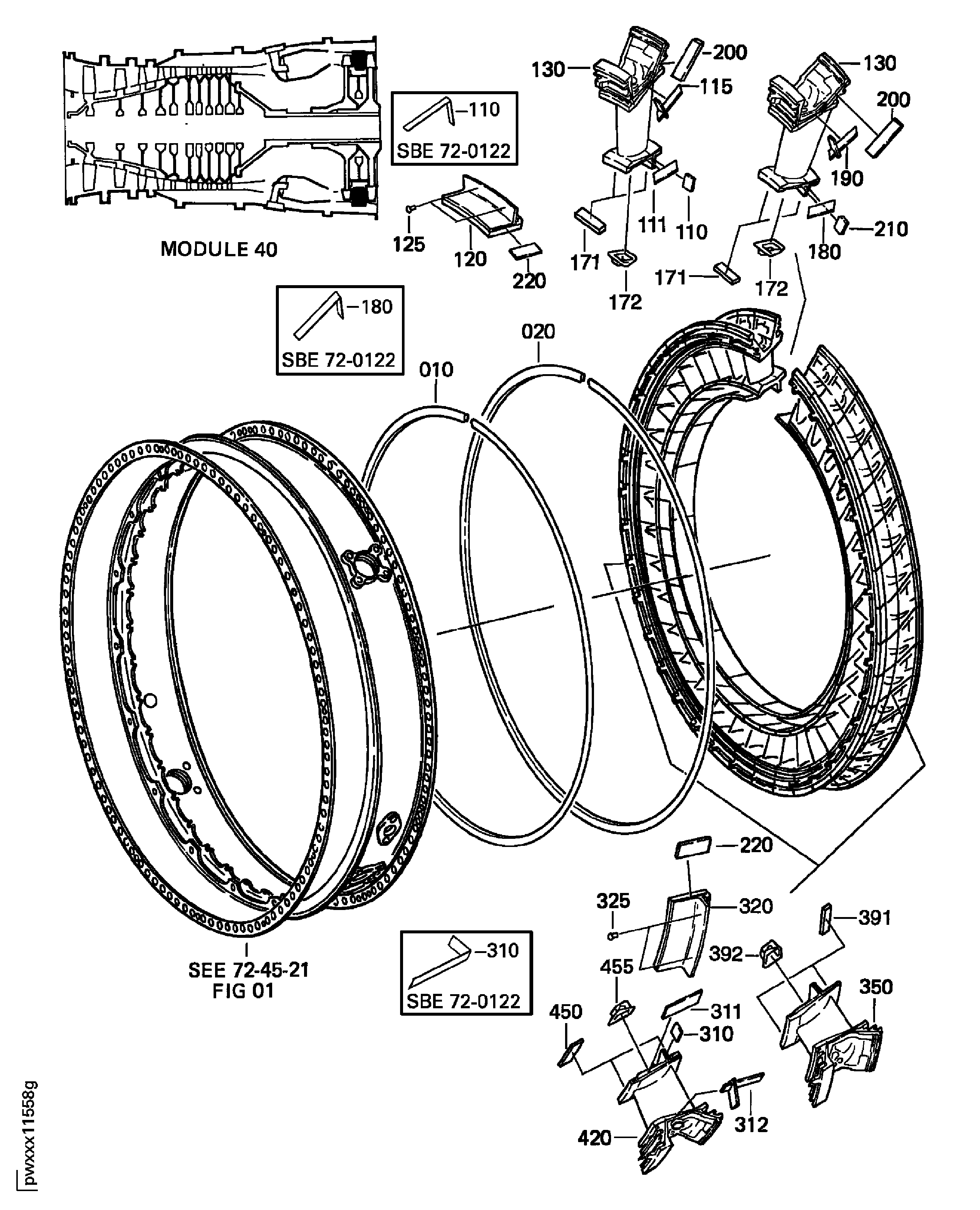

ENGINE-STAGE 2 HPT RING SEGMENT AND VANE CLUSTER

DMC:V2500-A1-72-45-24-02A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
02
000B72452402ENGINE-STAGE 2 HPT RING SEGMENT AND VANE CLUSTER, PRE SBE70-0015aa
000SBE0015-01ENGINE-STAGE 2 HPT RING SEGMENT AND VANE CLUSTER, PRE SBE70-0159ab
000SBE0159-01ENGINE-STAGE 2 HPT RING SEGMENT AND VANE CLUSTER, PRE SBE72-0122ac
000SBE0122-01ENGINE-STAGE 2 HPT RING SEGMENT AND VANE CLUSTER, PRE SBE70-0286ad
000SBE0286-01ENGINE-STAGE 2 HPT RING SEGMENT AND VANE CLUSTER, PRE SBE70-0319ae
000SBE0319-01ENGINE-STAGE 2 HPT RING SEGMENT AND VANE CLUSTER, PRE SBE70-0445af
000SBE0445-01ENGINE-STAGE 2 HPT RING SEGMENT AND VANE CLUSTER, PRE SBE72-0341ag
000SBE0341-01ENGINE-STAGE 2 HPT RING SEGMENT AND VANE CLUSTER, PRE SBE72-0365ah
000SBE0365-01ENGINE-STAGE 2 HPT RING SEGMENT AND VANE CLUSTER, PRE SBE72-0548ai
000SBE0548-01ENGINE-STAGE 2 HPT RING SEGMENT AND VANE CLUSTERaj
0100102A0182• GASKET
PRE SBE70-0015		aa1
010010A2A1960• GASKET - OPTION
ALT 2A0988
POST SBE70-0015
PRE SBE72-0339		aa1
-010010B2A0988• GASKET
ALT 2A0182
POST SBE70-0015
PRE SBE72-0339		aaREF
-010010C2A0182• GASKET
ALT 2A0984
POST SBE70-0015
PRE SBE72-0339		aaREF
-010010D2A0984• GASKET
ALT 2A1960
POST SBE70-0015
PRE SBE72-0339		aaREF
010010E2A1960• GASKET - OPTION
POST SBE72-0341		*****1
0200202A0176• GASKET
PRE SBE70-0319		aa-aj1
020020A2A2373• GASKET - OPTION
ALT 2A0176
POST SBE70-0319		aa-aj1
-020020B2A0176• GASKET
ALT 2A2277
POST SBE70-0319		aa-ajREF
-020020C2A2277• GASKET
ALT 2A2373
POST SBE70-0319		aa-ajREF
-0500502A0172• RING - SEG & VANE CLUSTER,HPT
PRE SBE72-0122		aa-ac17
-050050A2A2072• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-050050B2A2772• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE72-0122		*****17
-050050C2A3272• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-050050D2A2072-001• RING - SEG, VANE CLUSTER
77445
POST SBE72-0365		ai-aj17
-050050E2A5002• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
050050F2A3272• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0700702A0172CL21• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-070070A2A2072CL21• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-070070B2A3272CL21• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-070070C2A5002CL21• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
070070D2A3272CL21• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0710712A0172CL22• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-071071A2A2072CL22• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-071071B2A3272CL22• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-071071C2A5002CL22• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
071071D2A3272CL22• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0720722A0172CL23• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-072072A2A2072CL23• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-072072B2A3272CL23• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-072072C2A5002CL23• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
072072D2A3272CL23• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0730732A0172CL24• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-073073A2A2072CL24• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-073073B2A3272CL24• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-073073C2A5002CL24• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
073073D2A3272CL24• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0740742A0172CL25• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-074074A2A2072CL25• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-074074B2A3272CL25• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-074074C2A5002CL25• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
074074D2A3272CL25• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0750752A0172CL26• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-075075A2A2072CL26• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-075075B2A3272CL26• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-075075C2A5002CL26• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
075075D2A3272CL26• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0760762A0172CL27• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-076076A2A2072CL27• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-076076B2A3272CL27• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-076076C2A5002CL27• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
076076D2A3272CL27• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0770772A0172CL28• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-077077A2A2072CL28• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-077077B2A3272CL28• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-077077C2A5002CL28• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
077077D2A3272CL28• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0780782A0172CL29• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-078078A2A2072CL29• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-078078B2A3272CL29• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-078078C2A5002CL29• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
078078D2A3272CL29• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0790792A0172CL30• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-079079A2A2072CL30• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-079079B2A3272CL30• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-079079C2A5002CL30• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
079079D2A3272CL30• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0800802A0172CL31• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-080080A2A2072CL31• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-080080B2A3272CL31• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-080080C2A5002CL31• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
080080D2A3272CL31• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0810812A0172CL32• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-081081A2A2072CL32• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-081081B2A3272CL32• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-081081C2A5002CL32• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
081081D2A3272CL32• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0820822A0172CL33• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-082082A2A2072CL33• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-082082B2A3272CL33• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-082082C2A5002CL33• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
082082D2A3272CL33• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0830832A0172CL34• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-083083A2A2072CL34• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-083083B2A3272CL34• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-083083C2A5002CL34• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
083083D2A3272CL34• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0840842A0172CL35• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-084084A2A2072CL35• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-084084B2A3272CL35• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-084084C2A5002CL35• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
084084D2A3272CL35• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0850852A0172CL36• RING - SEG & VANE CLSTR SEG & VANE CLSTR 2ST ASY
PRE SBE70-0159		aa-ab17
-0860862A0172CL37• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE70-0159		aa-ab17
-0870872A0172CL38• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-087087A2A2072CL38• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-087087B2A3272CL38• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-087087C2A5002CL38• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
087087D2A3272CL38• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0880882A0172CL39• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-088088A2A2072CL39• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-088088B2A3272CL39• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-088088C2A5002CL39• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
088088D2A3272CL39• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0890892A0172CL40• RING - SEG&VANE CLSTR 2ST ASY
PRE SBE72-0122		aa-ac17
-089089A2A2072CL40• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-089089B2A3272CL40• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-089089C2A5002CL40• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
089089D2A3272CL40• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0900902A0172CL41• RING - SEG & VANE CLSTR
PRE SBE72-0122		aa-ac17
-090090A2A2072CL41• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-090090B2A3272CL41• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-090090C2A5002CL41• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
090090D2A3272CL41• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0930932A0172CL36• RING - SEG & VANE CLSTR 2ST ASY
POST SBE70-0159
PRE SBE72-0122		ac17
-093093A2A2072CL36• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-093093B2A3272CL36• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-093093C2A5002CL36• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
093093D2A3272CL36• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0940942A0172CL36-5• RING - SEG & VANE CLSTR, 2ST ASYO
77445
POST SBE70-0159
PRE SBE72-0122		ac17
-094094A2A2072CL36-5• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
77445
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-094094B2A3272CL36-5• RING - SEG & VANE CLUSTER,HPT
77445
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-094094C2A5002CL36-5• RING - SEG, VANE CLUSTER,ASYO
77445
POST SBE72-0365
PRE SBE72-0548		ai17
094094D2A3272CL36-5• RING - SEG & VANE CLUSTER,HPT
77445
POST SBE72-0548		aj17
-0950952A0172CL37• RING - SEG&VANE CLSTR 2ST ASY
POST SBE70-0159
PRE SBE72-0122		ac17
-095095A2A2072CL37• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-095095B2A3272CL37• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-095095C2A5002CL37• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365
PRE SBE72-0548		ai17
095095D2A3272CL37• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj17
-0960962A0172CL37-5• RING - SEG&VANE CLSTR,2S,ASYO
77445
POST SBE70-0159
PRE SBE72-0122		ac17
-096096A2A2072CL37-5• RING - SEG & VANE CLUSTER,HPT
77445
POST SBE72-0122
PRE SBE70-0445		ad-ah17
-096096B2A3272CL37-5• RING - SEG & VANE CLUSTER,HPT
77445
POST SBE70-0445
PRE SBE72-0365		ad-ah17
-096096C2A5002CL37-5• RING - SEG, VANE CLUSTER,ASYO
77445
POST SBE72-0365
PRE SBE72-0548		ai17
096096D2A3272CL37-5• RING - SEG & VANE CLUSTER,HPT
77445
POST SBE72-0548		aj17
1101102A0054• • SEAL - HPT,2STG
PRE SBE72-0122		aa-ac1
110110A2A0544• • SEAL - HPT, 2STG
POST SBE72-0122		ad-aj1
1111112A0055• • SEAL - HPT,2STG
PRE SBE72-0122		aa-ac1
1151152A0056-01• • SEAL - HPT,2STG ASSY OFaa-aj1
1201202A0088-01• • RING - SEG,AIR SLG,HPT,2STG
PRE SBE72-0122		aa-ac1
120120A2A1106-01• • RING - SEG, A/O AIR SLG,
POST SBE72-0122
PRE SBE72-0365		ad-ah1
120120B2A3431-01• • RING - SEG,A/O,AIR SLG,2S,HPT
POST SBE72-0365
PRE SBE72-0548		ai1
120120C2A1106-01• • RING - SEG, A/O AIR SLG,
POST SBE72-0548		aj1
125125ST1219-160• • RIVET - SOLID UNIVERSAL
77445		aa-aj2
1301302A0152CL21• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
130130A2A1152CL21• • VANE - A/O STAGE 2 HPT
POST SBE72-0122		ad-aj2
1311312A0152CL22• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
131131A2A1152CL22• • VANE - A/O STAGE 2 HPT
POST SBE72-0122		ad-aj2
1321322A0152CL23• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
132132A2A1152CL23• • VANE - A/O STAGE 2 HPT
POST SBE72-0122		ad-aj2
1331332A0152CL24• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
133133A2A1152CL24• • VANE - A/O STAGE 2 HPT
POST SBE72-0122		ad-aj2
1341342A0152CL25• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
134134A2A1152CL25• • VANE - A/O STAGE 2 HPT
POST SBE72-0122		ad-aj2
1351352A0152CL26• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
135135A2A1152CL26• • VANE - A/O STAGE 2 HPT
POST SBE72-0122		ad-aj2
1361362A0152CL27• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
136136A2A1152CL27• • VANE - A/O STAGE 2 HPT
POST SBE72-0122		ad-aj2
1371372A0152CL28• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
137137A2A1152CL28• • VANE - A/O STAGE 2 HPT
POST SBE72-0122		ad-aj2
1381382A0152CL29• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
138138A2A1152CL29• • VANE - A/O STAGE 2 HPT
POST SBE72-0122		ad-aj2
1391392A0152CL30• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
139139A2A1152CL30• • VANE - A/O STAGE 2 HPT
POST SBE72-0122		ad-aj2
1401402A0152CL31• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
140140A2A1152CL31• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad2
140140B2A1152CL31• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ae-aj2
1411412A0152CL32• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
141141A2A1152CL32• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad2
141141B2A1152CL32• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ae-aj2
1421422A0152CL33• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
142142A2A1152CL33• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad2
142142B2A1152CL33• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ae-aj2
1431432A0152CL34• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
143143A2A1152CL34• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad2
143143B2A1152CL34• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ae-aj2
1441442A0152CL35• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
144144A2A1152CL35• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad2
144144B2A1152CL35• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ae-aj2
1451452A0152CL36• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
145145A2A1152CL36• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad2
145145B2A1152CL36• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ae-aj2
1461462A0152CL37• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
146146A2A1152CL37• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad2
146146B2A1152CL37• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ae-aj2
1471472A0152CL38• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
147147A2A1152CL38• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad2
147147B2A1152CL38• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ae-aj2
1481482A0152CL39• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
148148A2A1152CL39• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad2
148148B2A1152CL39• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ae-aj2
1491492A0152CL40• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
149149A2A1152CL40• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad2
149149B2A1152CL40• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ae-aj2
1501502A0152CL41• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac2
150150A2A1152CL41• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad2
150150B2A1152CL41• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ae-aj2
1711712A0047• • • RING - SEG CELLULARaa-aj1
1721722A0049• • • COVER - VANE
PRE SBE72-0122		aa-ac1
172172A2A0527• • • COVER - HPT VANE,2STG
POST SBE72-0122
PRE SBE70-0286		ad-aj1
172172B2A2706• • • COVER - HPT VANE,2 STAGE
POST SBE70-0286		ad-aj1
1801802A0055• SEAL - HPT,2STG
PRE SBE72-0122		aa-ac19
180180A2A0544• SEAL - HPT, 2STG
POST SBE72-0122		ad-aj19
1901902A0056-01• SEAL - HPT,2STG ASSY OFaa-aj19
2002002A0059• SEAL - HPT,2STGaa-aj38
2102102A0054• SEAL - HPT,2STG
PRE SBE72-0122		aa-ac19
2202202A0060• SEAL - HPT,2STG
PRE SBE72-0122		aa-ac19
220220A2A2345• SEAL - HPT, 2STG
POST SBE72-0122		ad-aj19
-2602602A1072• RING - SEG&VANE CLUSTER-HPT
PRE SBE72-0122		aa-ac2
-260260A2A2172• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-260260B2A2872• RING - SEG & VANE CLSTR, 2S,ASYO
POST SBE72-0122
PRE SBE70-0445		ad-aj2
-260260C2A3172• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ad-aj2
-260260D2A4902• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
260260E2A3172• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2702702A1072CL21• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-270270A2A2172CL21• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-270270B2A3172CL21• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-270270C2A4902CL21• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
270270D2A3172CL21• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2712712A1072CL22• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-271271A2A2172CL22• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-271271B2A3172CL22• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-271271C2A4902CL22• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
271271D2A3172CL22• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2722722A1072CL23• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-272272A2A2172CL23• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-272272B2A3172CL23• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-272272C2A4902CL23• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
272272D2A3172CL23• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2732732A1072CL24• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-273273A2A2172CL24• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-273273B2A3172CL24• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-273273C2A4902CL24• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
273273D2A3172CL24• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2742742A1072CL25• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-274274A2A2172CL25• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-274274B2A3172CL25• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-274274C2A5002CL25• RING - SEG,VANE CLUSTER, ASYO
POST SBE72-0365		ai-aj2
-2752752A1072CL26• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-275275A2A2172CL26• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-275275B2A3172CL26• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-275275C2A4902CL26• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
275275D2A3172CL26• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2762762A1072CL27• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-276276A2A2172CL27• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-276276B2A3172CL27• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-276276C2A4902CL27• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
276276D2A3172CL27• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2772772A1072CL28• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-277277A2A2172CL28• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-277277B2A3172CL28• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-277277C2A4902CL28• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
277277D2A3172CL28• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2782782A1072CL29• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-278278A2A2172CL29• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-278278B2A3172CL29• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-278278C2A4902CL29• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
278278D2A3172CL29• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2792792A1072CL30• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-279279A2A2172CL30• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-279279B2A3172CL30• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-279279C2A4902CL30• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
279279D2A3172CL30• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2802802A1072CL31• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-280280A2A2172CL31• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-280280B2A3172CL31• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-280280C2A4902CL31• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
280280D2A3172CL31• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2812812A1072CL32• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-281281A2A2172CL32• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-281281B2A3172CL32• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-281281C2A4902CL32• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
281281D2A3172CL32• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2822822A1072CL33• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-282282A2A2172CL33• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-282282B2A3172CL33• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-282282C2A4902CL33• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
282282D2A3172CL33• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2832832A1072CL34• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-283283A2A2172CL34• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-283283B2A3172CL34• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-283283C2A4902CL34• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
283283D2A3172CL34• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2842842A1072CL35• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-284284A2A2172CL35• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-284284B2A3172CL35• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-284284C2A4902CL35• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
284284D2A3172CL35• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2852852A1072CL36• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE70-0159		aa-ab2
-2862862A1072CL37• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE70-0159		aa-ab2
-286286A2A3172CL37• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-2872872A1072CL38• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-287287A2A2172CL38• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-287287B2A3172CL38• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-287287C2A4902CL38• RING - SEG,VANE CLUSTER ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
287287D2A3172CL38• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2882882A1072CL39• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-288288A2A2172CL39• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-288288B2A3172CL39• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-288288C2A4902CL39• RING - SEG, VANE CLUSTER,ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
288288D2A3172CL39• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2892892A1072CL40• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-289289A2A2172CL40• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-289289B2A3172CL40• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-289289C2A4902CL40• RING - SEG, VANE CLUSTER,ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
289289D2A3172CL40• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2902902A1072CL41• RING - SEG&VAN CLS HPT 2S ASY
PRE SBE72-0122		aa-ac2
-290290A2A2172CL41• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122		ad-aj2
-290290B2A3172CL41• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445		ag-aj2
-290290C2A4902CL41• RING - SEG, VANE CLUSTER,ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
290290D2A3172CL41• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2932932A1072CL36• RING - SEG&VAN CLS HPT 2S ASY
POST SBE70-0159
PRE SBE72-0122		ac2
-293293A2A2172CL36• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122
PRE SBE70-0445		ad-ah2
-293293B2A3172CL36• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah2
-293293C2A4902CL36• RING - SEG, VANE CLUSTER,ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
293293D2A3172CL36• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2942942A1072CL36-5• RING - SEG & VANE CLSTR, 2S ASY
77445
POST SBE70-0159
PRE SBE72-0122		ac2
-294294A2A2172CL36-5• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
77445
POST SBE72-0122
PRE SBE70-0445		ad-ah2
-294294B2A3172CL36-5• RING - SEG & VANE CLUSTER,HPT
77445
POST SBE70-0445
PRE SBE72-0365		ad-ah2
-294294C2A4902CL36-5• RING - SEG, VANE CLUSTER,ASYO
77445
POST SBE72-0365
PRE SBE72-0548		ai2
294294D2A3172CL36-5• RING - SEG & VANE CLUSTER,HPT
77445
POST SBE72-0548		aj2
-2952952A1072CL37• RING - SEG&VAN CLS HPT 2S ASY
POST SBE70-0159
PRE SBE72-0122		ac2
-295295A2A2172CL37• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
POST SBE72-0122
PRE SBE70-0445		ad-ah2
-295295B2A3172CL37• RING - SEG & VANE CLUSTER,HPT
POST SBE70-0445
PRE SBE72-0365		ad-ah2
-295295C2A4902CL37• RING - SEG, VANE CLUSTER,ASYO
POST SBE72-0365
PRE SBE72-0548		ai2
295295D2A3172CL37• RING - SEG & VANE CLUSTER,HPT
POST SBE72-0548		aj2
-2962962A1072CL37-5• RING - SEG & VANE CLSTR, 2S,ASYO
77445
POST SBE70-0159
PRE SBE72-0122		ac2
-296296A2A2172CL37-5• RING - SEG & VANE CLUSTER,HPT 2S,ASYO
77445
POST SBE72-0122
PRE SBE70-0445		ad-ah2
-296296B2A3172CL37-5• RING - SEG & VANE CLUSTER,HPT
77445
POST SBE70-0445
PRE SBE72-0365		ad-ah2
-296296C2A4902CL37-5• RING - SEG, VANE CLUSTER,ASYO
77445
POST SBE72-0365
PRE SBE72-0548		ai2
296296D2A3172CL37-5• RING - SEG & VANE CLUSTER,HPT
77445
POST SBE72-0548		aj2
3103102A0544• • SEAL - HPT,2STG
POST SBE72-0122		ad-aj1
3203202A0088-01• • RING - SEG,AIR SLG,HPT,2STG
PRE SBE72-0122		aa-ac1
320320A2A1106-01• • RING - SEG, A/O AIR SLG, 2S,HPT
POST SBE72-0122
PRE SBE72-0365		ad-ah1
320320B2A3431-01• • RING - SEG,A/O,AIR SLG,2S,HPT
POST SBE72-0365
PRE SBE72-0548		ai1
320320C2A1106-01• • RING - SEG, A/O AIR SLG,
POST SBE72-0548		aj1
325325ST1219-160• • RIVET - SOLID UNIVERSAL
77445		aa-aj1
3503502A0152CL21• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
350350A2A1152CL21• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
350350B2A1152CL21• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3513512A0152CL22• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
351351A2A1152CL22• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
351351B2A1152CL22• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3523522A0152CL23• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
352352A2A1152CL23• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
352352B2A1152CL23• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3533532A0152CL24• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
353353A2A1152CL24• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
353353B2A1152CL24• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3543542A0152CL25• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
354354A2A1152CL25• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
354354B2A1152CL25• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3553552A0152CL26• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
355355A2A1152CL26• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
355355B2A1152CL26• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3563562A0152CL27• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
356356A2A1152CL27• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad1
356356B2A1152CL27• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ae-aj1
3573572A0152CL28• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
357357A2A1152CL28• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
357357B2A1152CL28• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3583582A0152CL29• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
358358A2A1152CL29• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
358358B2A1152CL29• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3593592A0152CL30• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
359359A2A1152CL30• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
359359B2A1152CL30• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3603602A0152CL31• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
360360A2A1152CL31• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
360360B2A1152CL31• • VANE - A/O STAGE 2 HPT A/O,HPT,2STG
POST SBE70-0286		ad-aj1
3613612A0152CL32• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
361361A2A1152CL32• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
361361B2A1152CL32• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3623622A0152CL33• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
362362A2A1152CL33• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
362362B2A1152CL33• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3633632A0152CL34• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
363363A2A1152CL34• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
363363B2A1152CL34• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3643642A0152CL35• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
364364A2A1152CL35• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
364364B2A1152CL35• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3653652A0152CL36• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
365365A2A1152CL36• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
365365B2A1152CL36• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3663662A0152CL37• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
366366A2A1152CL37• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
366366B2A1152CL37• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3673672A0152CL38• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
367367A2A1152CL38• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
367367B2A1152CL38• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3683682A0152CL39• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
368368A2A1152CL39• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
368368B2A1152CL39• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3693692A0152CL40• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
369369A2A1152CL40• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
369369B2A1152CL40• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3703702A0152CL41• • VANE - A/O STG 2 HPT
PRE SBE72-0122		aa-ac1
370370A2A1152CL41• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
370370B2A1152CL41• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
3913912A0047• • • RING - SEG CELLULARaa-aj2
3923922A0049• • • COVER - VANE
PRE SBE72-0122		aa-ac1
392392A2A0527• • • COVER - HPT VANE,2STG
POST SBE72-0122
PRE SBE70-0286		ad1
392392B2A2706• • • COVER - HPT VANE,2 STAGE
POST SBE70-0286		ae-aj1
4204202A1052CL21• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
420420A2A1252CL21• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad1
420420B2A1252CL21• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ae-aj1
4214212A1052CL22• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
421421A2A1252CL22• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
421421B2A1252CL22• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4224222A1052CL23• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
422422A2A1252CL23• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
422422B2A1252CL23• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4234232A1052CL24• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
423423A2A1252CL24• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
423423B2A1252CL24• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4244242A1052CL25• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
424424A2A1252CL25• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
424424B2A1252CL25• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4254252A1052CL26• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
425425A2A1252CL26• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
425425B2A1252CL26• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4264262A1052CL27• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
426426A2A1252CL27• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad1
426426B2A1252CL27• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ae-aj1
4274272A1052CL28• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
427427A2A1252CL28• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
427427B2A1252CL28• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4284282A1052CL29• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
428428A2A1252CL29• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
428428B2A1252CL29• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4294292A1052CL30• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
429429A2A1252CL30• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
429429B2A1252CL30• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4304302A1052CL31• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
430430A2A1252CL31• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
430430B2A1252CL31• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4314312A1052CL32• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
431431A2A1252CL32• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
431431B2A1252CL32• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4324322A1052CL33• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
432432A2A1252CL33• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
432432B2A1252CL33• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4334332A1052CL34• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
433433A2A1252CL34• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
433433B2A1252CL34• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4344342A1052CL35• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
434434A2A1252CL35• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
434434B2A1252CL35• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4354352A1052CL36• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
435435A2A1252CL36• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
435435B2A1252CL36• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4364362A1052CL37• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
436436A2A1252CL37• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
436436B2A1252CL37• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4374372A1052CL38• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
437437A2A1252CL38• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
437437B2A1252CL38• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4384382A1052CL39• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
438438A2A1252CL39• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
438438B2A1252CL39• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4394392A1052CL40• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
439439A2A1252CL40• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
439439B2A1252CL40• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4404402A1052CL41• • VANE - A/O 2STG HPT
PRE SBE72-0122		aa-ac1
440440A2A1252CL41• • VANE - A/O STAGE 2 HPT
POST SBE72-0122
PRE SBE70-0286		ad-aj1
440440B2A1252CL41• • VANE - A/O STAGE 2 HPT
POST SBE70-0286		ad-aj1
4504502A0047• • • RING - SEG CELLULARaa-aj2
4554552A0049• • • COVER - VANE
PRE SBE72-0122		aa-ac1
455455A2A0527• • • COVER - HPT VANE,2STG
POST SBE72-0122
PRE SBE70-0286		ad1
455455B2A2706• • • COVER - HPT VANE,2 STAGE
POST SBE70-0286		ae-aj1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Figure: ENGINE-STAGE 2 HPT RING SEGMENT AND VANE CLUSTER

STAGE 2 HPT RING SEGMENT AND VANE CLUSTER

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:77445
Enterprise Name:PRATT AND WHITNEY
BU Name:PRATT & WHITNEY
Street:400 MAIN STREET
City:EAST HARTFORD
Country:USA
Phone Number:8605657700
Part Number:2A0047
Part Name:RING - SEGMENT CELLULAR
Manufacturer Code:0AM53
Part Number:2A0049
Part Name:COVER - HPT 2ND STAGE, VANE
Manufacturer Code:0AM53
Part Number:2A0054
Part Name:SEAL - HPT, 2ND STAGE
Manufacturer Code:0AM53
Part Number:2A0055
Part Name:SEAL - HPT, 2ND STAGE
Manufacturer Code:0AM53
Part Number:2A0056-01
Part Name:SEAL - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0059
Part Name:SEAL - HPT, 2ND STAGE
Manufacturer Code:0AM53
Part Number:2A0060
Part Name:SEAL - HPT, 2ND STAGE
Manufacturer Code:0AM53
Part Number:2A0088-01
Part Name:RING - SEGMENT, AIR SEALING, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL21
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL22
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL23
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL24
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL25
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL26
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL27
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL28
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL29
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL30
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL31
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL32
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL33
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL34
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL35
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL36
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL37
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL38
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL39
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL40
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0152CL41
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0172CL21
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL22
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL23
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL24
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL25
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL26
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL27
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL28
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL29
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL30
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL31
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL32
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL33
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL34
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL35
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Link not Found
Part Number:2A0172CL36
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Link not Found
Part Number:2A0172CL37
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL38
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL39
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL40
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172CL41
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0172
Part Name:VANE - CLUSTER, 2ND STAGE, RING SEGMENT
Manufacturer Code:0AM53
Part Number:2A0176
Part Name:GASKET
Manufacturer Code:0AM53
Part Number:2A0182
Part Name:GASKET
Manufacturer Code:0AM53
Part Number:2A0527
Part Name:COVER - HPT 2ND STAGE, VANE
Manufacturer Code:0AM53
Part Number:2A0544
Part Name:SEAL - HPT, 2ND STAGE
Manufacturer Code:0AM53
Part Number:2A0984
Part Name:GASKET
Manufacturer Code:0AM53
Part Number:2A0988
Part Name:GASKET
Manufacturer Code:0AM53
Part Number:2A1052CL21
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL22
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL23
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL24
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL25
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL26
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL27
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL28
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL29
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL30
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL31
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL32
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL33
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL34
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL35
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL36
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL37
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL38
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL39
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL40
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1052CL41
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL21
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL22
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL23
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL24
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL25
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL26
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL27
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL28
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL29
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL30
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL31
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL32
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL33
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL34
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL35
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:2A1072CL36
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL37-5
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:77445
Part Number:2A1072CL37
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL38
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL39
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL40
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072CL41
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1072
Part Name:RING SEGMENT - VANE CLUSTER, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1106-01
Part Name:RING SEGMENT - AIR SEALING, HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL21
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL22
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL23
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL24
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL25
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL26
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL27
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL28
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL29
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL30
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL31
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL32
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL33
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL34
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL35
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL36
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL37
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL38
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL39
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL40
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1152CL41
Part Name:VANE - HPT 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL21
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL22
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL23
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL24
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL25
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL26
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL27
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL28
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL29
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL30
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL31
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL32
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL33
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL34
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL35
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL36
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL37
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL38
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL39
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL40
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1252CL41
Part Name:VANE - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1960
Part Name:GASKET OPTION
Manufacturer Code:0AM53
Link not Found
Part Number:2A2072CL21
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL22
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL23
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL24
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL25
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL26
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL27
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL28
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL29
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL30
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL31
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL32
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL33
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL34
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL35
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:2A2072CL36
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:2A2072CL37
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL38
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL39
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL40
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072CL41
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2072
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL21
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL22
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL23
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL24
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL25
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL26
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL27
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL28
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL29
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL30
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL31
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL32
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL33
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL34
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL35
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:2A2172CL36
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:2A2172CL37
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL38
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL39
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL40
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172CL41
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2172
Part Name:RING SEGMENT AND VANE CLUSTER - HPT, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2277
Part Name:GASKET
Manufacturer Code:0AM53
Part Number:2A2345
Part Name:SEAL - HPT, 2ND STAGE
Manufacturer Code:0AM53
Part Number:2A2373
Part Name:GASKET OPTION
Manufacturer Code:0AM53
Part Number:2A2706
Part Name:COVER - HPT, 2ND STAGE, VANE
Manufacturer Code:0AM53
Part Number:2A2772
Part Name:RING SEGMENT - VANE CLUSTER, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2872
Part Name:RING - SEGMENT, VANE CLUSTER, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL21
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL22
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL23
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL24
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL25
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL26
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL27
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL28
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL29
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL30
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL31
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL32
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL33
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL34
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL35
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:2A3172CL36
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:2A3172CL37
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL38
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL39
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL40
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172CL41
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3172
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL21
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL22
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL23
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL24
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL25
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL26
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL27
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL28
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL29
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL30
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL31
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL32
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL33
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL34
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL35
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:2A3272CL36
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:2A3272CL37
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL38
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL39
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL40
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272CL41
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3272
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A3431-01
Part Name:RING SEGMENT - AIR SEALING, 2ND STAGE
Manufacturer Code:0AM53
Part Number:2A4902CL21
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL22
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL23
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL24
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL26
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL27
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL28
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL29
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL30
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL31
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL32
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL33
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL34
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL35
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:2A4902CL36
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:2A4902CL37
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL38
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL39
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL40
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902CL41
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4902
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL21
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL22
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL23
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL24
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL25
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL26
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL27
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL28
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL29
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL30
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL31
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL32
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL33
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL34
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL35
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:2A5002CL36
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:2A5002CL37
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL38
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL39
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL40
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002CL41
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A5002
Part Name:RING SEGMENT - VANE CLUSTER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:ST1219-160
Part Name:RIVET - SOLID, UNIVERSAL HEAD, 0.156 X 0.438
Manufacturer Code:77445
