ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLY

DMC:V2500-A1-72-45-30-01A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B72453001ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLY, PRE SBE72-0011aa
000SBE0011-01ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLY, PRE SBE72-0075ab
000SBE0075-01ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLY, PRE SBE72-0101ac
000SBE0101-01ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLY, PRE SBE70-0576ad
000SBE0576-01ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLY, PRE SBE72-0399ae
000SBE0399-01ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLYaf
-0100102A1022• TURBINE - ROTOR,2STG ASSY OF
PRE SBE72-0011		aa1
-010010A2A1722• ROTOR - A/O TURBINE 2STG
POST SBE72-0011
PRE SBE72-0075		ab-af1
-010010B2A1922• ROTOR - A/O TURBINE 2 STG
POST SBE72-0075
PRE SBE72-0101		ab-af1
-010010C2A2422• TURBINE - ROTOR-A/O 2STG
POST SBE72-0101
PRE SBE70-0576		ab-af1
-010010D2A2422• TURBINE - ROTOR-A/O
POST SBE70-0576
PRE SBE72-0399		ab-af1
-010010E2A4032• TURBINE - ROTOR,A/O,2STG
POST SBE72-0399		ab-af1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

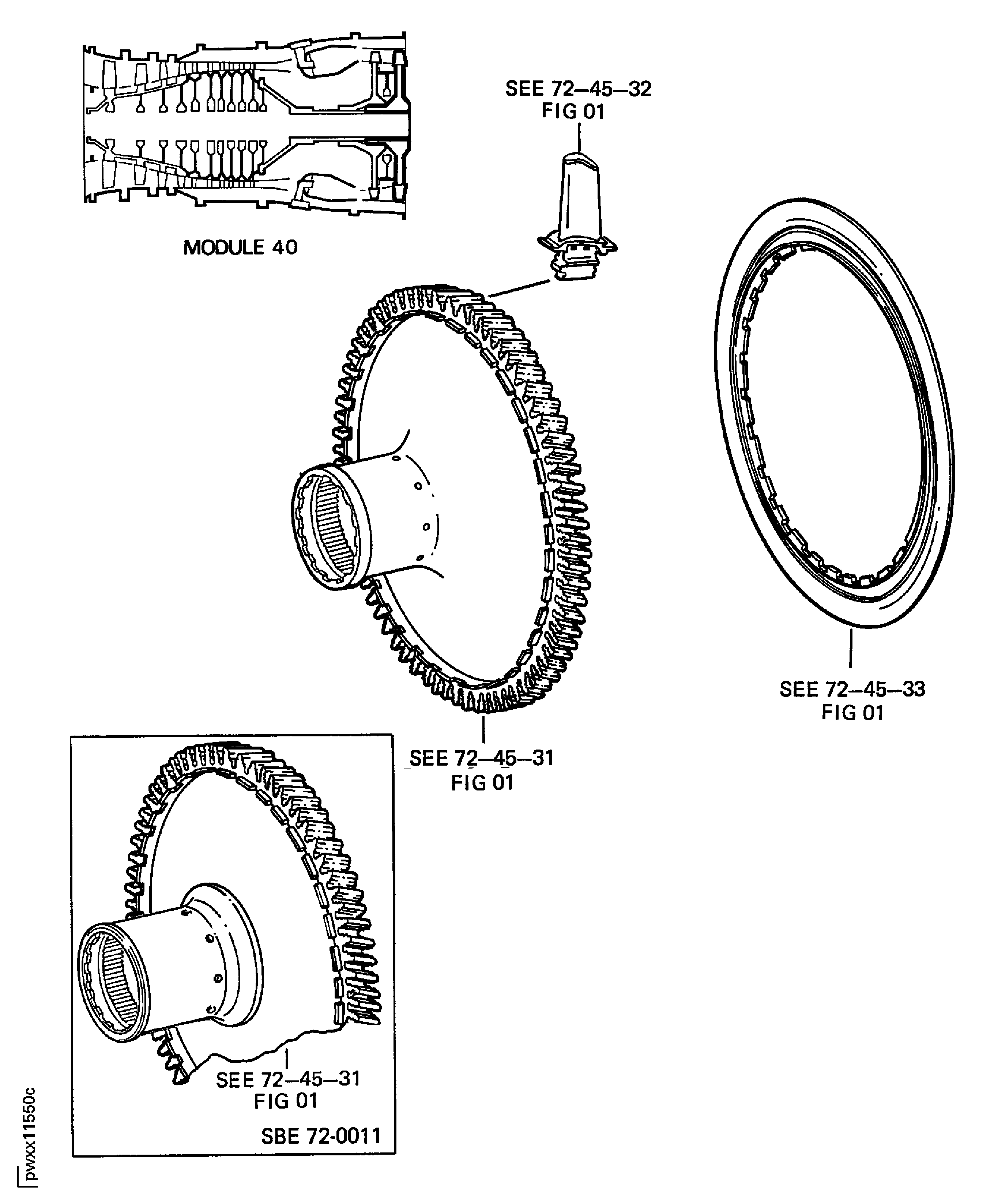

Figure: ENGINE-STAGE 2 TURBINE ROTOR ASSEMBLY

STAGE 2 TURBINE ROTOR ASSEMBLY

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Part Number:2A1022
Part Name:TURBINE - ROTOR, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1722
Part Name:ROTOR - TURBINE, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1922
Part Name:TURBINE - ROTOR, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2422
Part Name:TURBINE - ROTOR, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4032
Part Name:TURBINE - ROTOR, 2ND STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
