| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72453301 | ENGINE-STAGE 2 HPT BLADE RETAINING PLATE, PRE SBE72-0028 | aa | ||
| SBE0028-01 | ENGINE-STAGE 2 HPT BLADE RETAINING PLATE, PRE SBE72-0075 | ab | ||
| SBE0075-01 | ENGINE-STAGE 2 HPT BLADE RETAINING PLATE, PRE SBE72-0222 | ac | ||
| SBE0222-01 | ENGINE-STAGE 2 HPT BLADE RETAINING PLATE, PRE SBE72-0363 | ad | ||
| SBE0363-01 | ENGINE-STAGE 2 HPT BLADE RETAINING PLATE, PRE SBE72-0399 | ae | ||
| SBE0399-01 | ENGINE-STAGE 2 HPT BLADE RETAINING PLATE | af | ||
| 010 | 2A0044 | • SEAL - HPT, PRE SBE72-0363 | aa-af | 1 |
| 010A | 50L294 | • SEAL - HPT, 1 & 2 STAGE 77445 POST SBE72-0363 | aa-af | 1 |
| 020 | 2A0160 | • PLATE - RTNG,BLADE,HPT,2STG PRE SBE72-0028 | aa-af | 1 |
| 020A | 2A1813 | • PLATE - RTNG,BLADE,HPT,2STG POST SBE72-0028 | aa-af | 1 |
| 040 | 2A0143 | • LOCK - HPT,2STG PRE SBE72-0075 | aa-ab | 2 |
| 040A | 2A1638 | • RETAINER - TURB BLADE LOCK POST SBE72-0075 PRE SBE72-0222 | ac | 2 |
| 040B | 2A3158 | • RETAINER - ,TURB BLADE LOCK POST SBE72-0222 PRE SBE72-0399 | ad-ae | 2 |
| 040C | 2A3546 | • RETAINER - TURB BLADE LOCK POST SBE72-0399 | af | 4 |
| 060 | 2A1812 | • KEY - 2STG HPT PRE SBE72-0075 | aa-ab | 2 |
| 060A | 2A1097 | • LOCK - HPT,2 STG POST SBE72-0075 PRE SBE72-0399 | ac-ae | 2 |
| 060B | 2A3545 | • LOCK - HPT,2STG POST SBE72-0399 | af | 4 |
| -100 | AS3214-04 | • WIRE U1653 PRE SBE72-0029 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

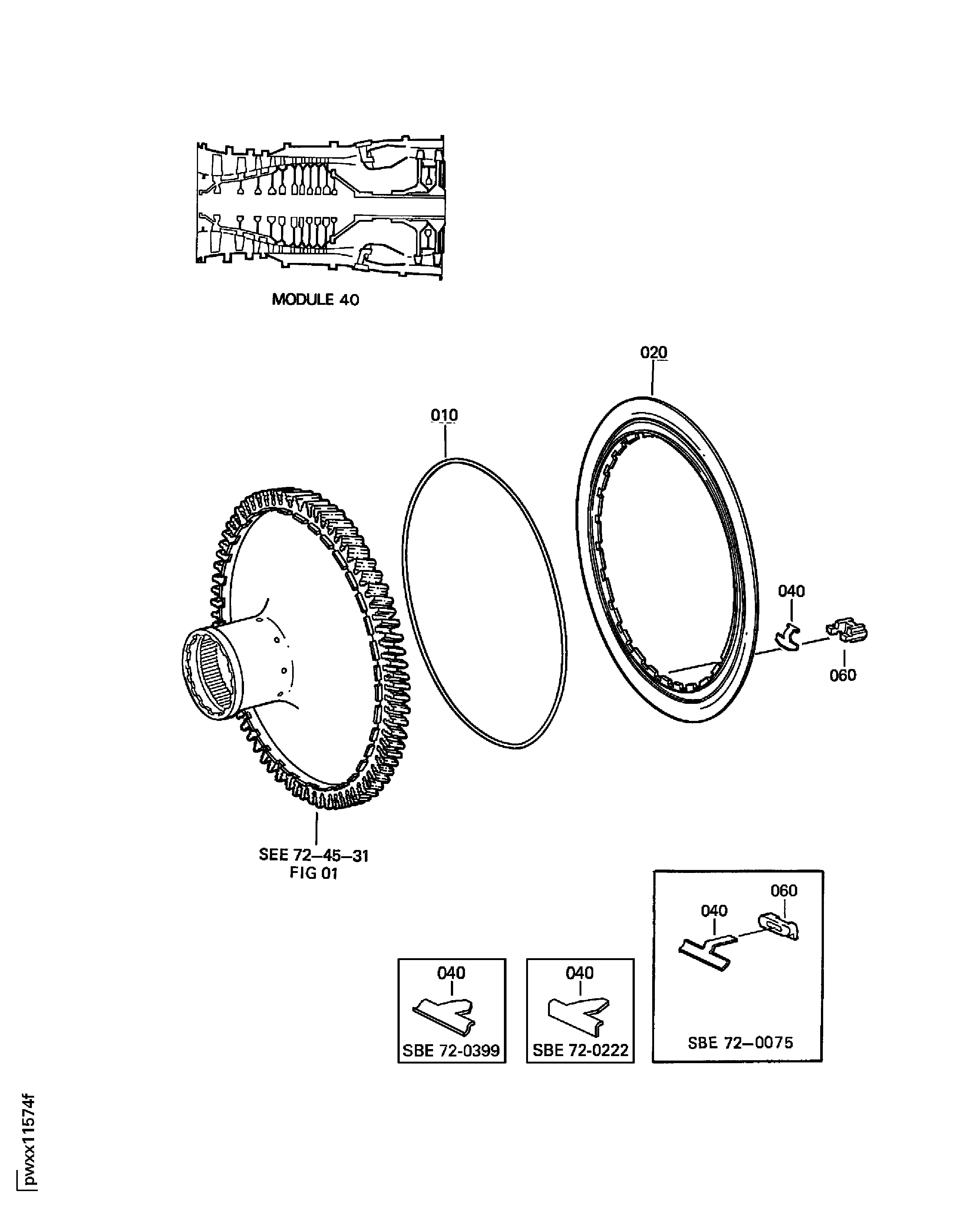

Figure: ENGINE-STAGE 2 HPT BLADE RETAINING PLATE
STAGE 2 HPT BLADE RETAINING PLATE
