V2500-A1
Common Information
TASK 72-50-22-300-034 LPT Stage 4 Vane - Overcoat The Aluminide Coating, Repair-034 (VRS4259)
Repair facilities
The Proprietary nature of this repair requires that any facility not authorised to accomplish this repair either utilize the Authorized Repair Vendors listed below or contacts the IAE Repair Services Group to determine if a qualification programe can be initiated at their facility.
IAE International Aero Engines AG
400 Main Street
East Hartford CT 06108
U.S.A.
ATTN: Manager Repair Services
Authorized repair vendors for VRS4259 Task TASK 72-50-22-300-034 are listed in the SPM TASK 70-38-10-380-501.
The designation by IAE of an authorized repair vendor indicates that the repair vendor has demonstrated the necessary capability to enable it to carry out the listed repair work. However, IAE makes no warranties or representations concerning the qualifications or quality standards of the repair vendors to carry out the repair work, and accepts no responsibility whatsoever for any work that may be carried out by a repair vendor, other than when IAE is listed as the repair vendor. Authorized repair vendors do not act as agents or representatives of IAE.
Before repair remove the honeycomb, refer to VRS4059 TASK 72-50-22-300-020.
After repair install the honeycomb, refer to VRS4059 TASK 72-50-22-300-020.
This repair may not be done twice consecutively.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to the SPM TASK 70-38-10-380-501.
Visually examine for vibro-engrave appropriate vendor source symbol.
SUBTASK 72-50-22-220-110 Do the Post Repair Inspection

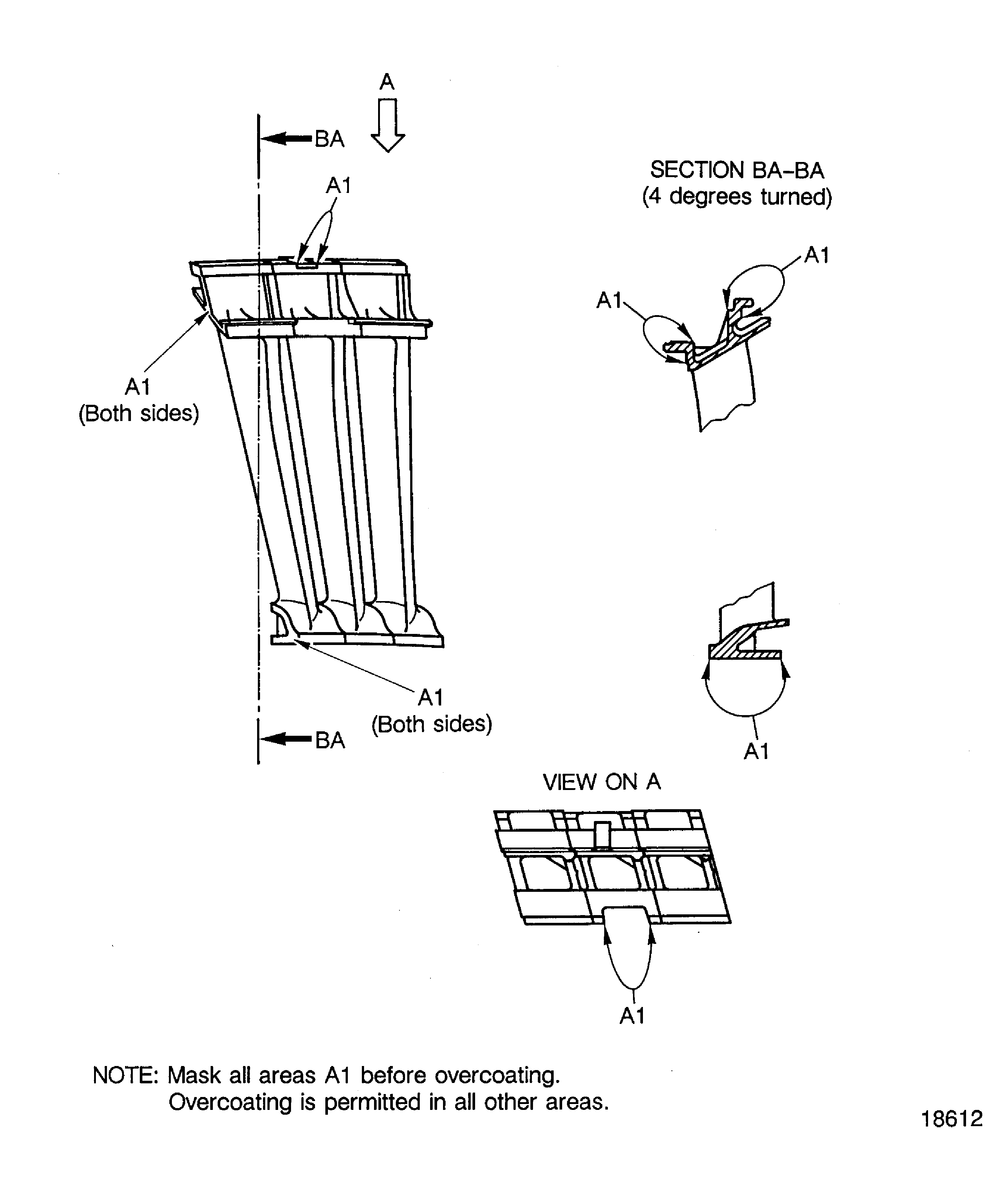

Figure: Overcoat the aluminide coating of the turbine vane
Overcoat the aluminide coating of the turbine vane
