V2500-A1
Common Information
TASK 72-50-24-300-010 LPT Inner Diffuser Duct Segment - Overcoat The Aluminide Coating, Repair-010 (VRS4116)
Repair facilities
The proprietary nature of this Repair requires that any facility not authorized to accomplish this Repair either utilize the Authorized Repair Vendors listed below or contacts the IAE Repair Services Group to determine if a qualification program can be initiated at their facility.
IAE INTERNATIONAL AERO ENGINES AG
400 Main Street
East Hartford CT06108
U.S.A.
ATTN: Manager Repair Services
Authorized repair vendors for VRS4116 TASK 72-50-24-300-010 are listed in TASK 70-38-10-380-501.
The designation by IAE for an authorized Repair vendor indicates that the Repair vendor has demonstrated the necessary capability to enable it to carry out the listed Repair work. However, IAE makes no warranties or representations concerning the qualifications or quality standards of the Repair vendors to carry out the Repair work, and accepts no responsibility whatsoever for any work that may be carried out by a Repair vendor, other than when IAE is listed as the Repair vendor. Authorized Repair vendors do not act as agents or representatives of IAE.
Before Repair Remove the honeycomb refer to VRS4115, TASK 72-50-24-300-009.
After coating Repair, install the honeycomb refer to VRS4115, TASK 72-50-24-300-009.
This repair may not be done twice consecutively.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to the SPM TASK 70-38-10-380-501.
Visually examine for vibro-engraved appropriate vendor source symbol.
SUBTASK 72-50-24-220-095 Do the Post Repair Inspection

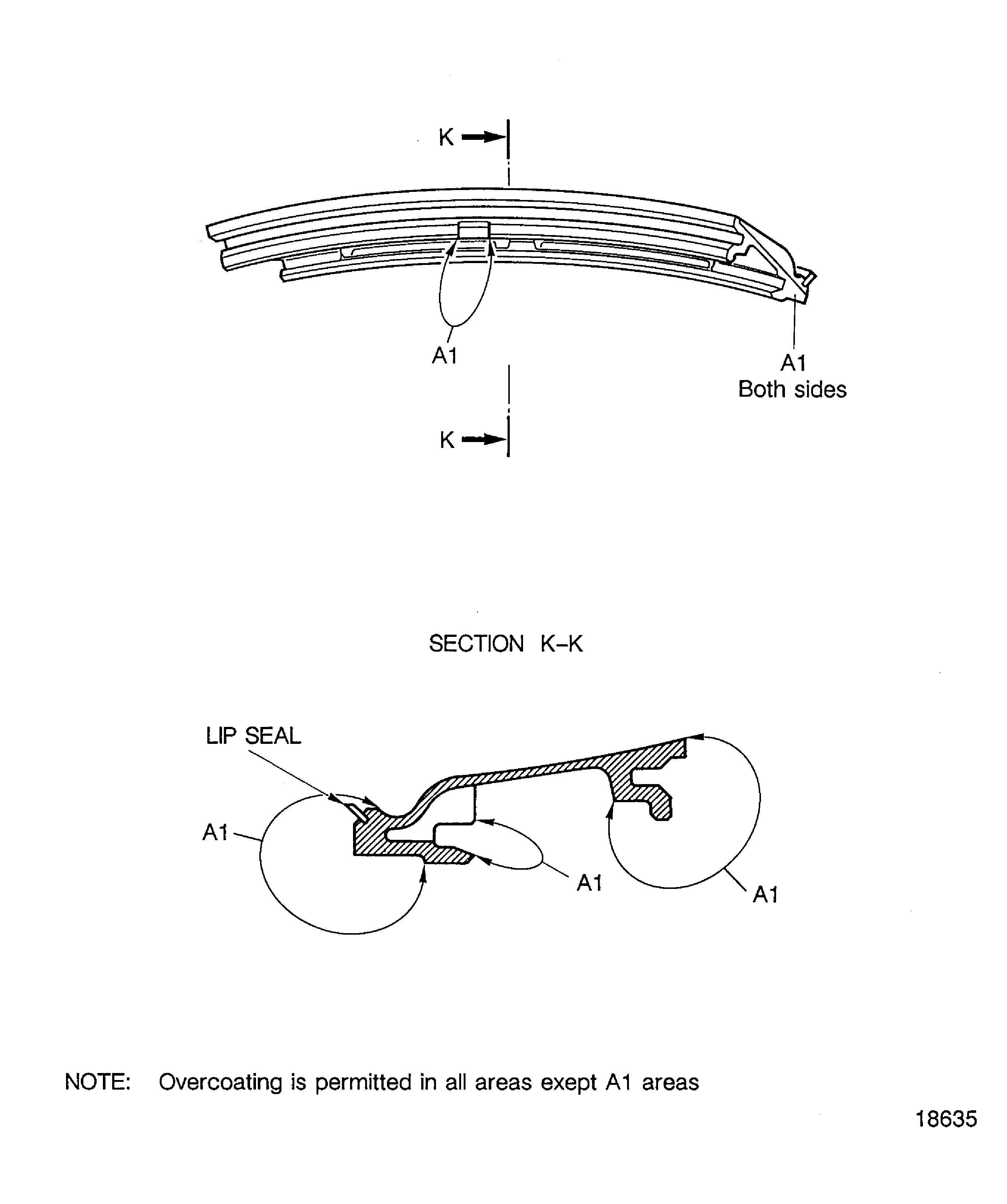

Figure: Overcoat the inner duct segment
Overcoat the inner duct segment
