DMC:V2500-A1-72-50-31-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72503101 | ENGINE-LP TURBINE DISCS, PRE SBE72-0157 | aa | ||
| SBE0157-01 | ENGINE-LP TURBINE DISCS, PRE SBE70-0522 | ab | ||
| SBE0522-01 | ENGINE-LP TURBINE DISCS, PRE SBE72-0307 | ac | ||
| SBE0307-01 | ENGINE-LP TURBINE DISCS, PRE SBE70-0644 | ad | ||
| SBE0644-01 | ENGINE-LP TURBINE DISCS, PRE SBE70-0705 | ae | ||
| SBE0705-01 | ENGINE-LP TURBINE DISCS, PRE SBE70-0942 | af | ||
| SBE0942-01 | ENGINE-LP TURBINE DISCS | ag | ||
| 010 | 3A0067 | • DISK - TURBINE STG7 | aa-ag | 1 |
| 010A | 3A0717 | • DISK - TURBINE,STG7 PRE SBE72-0157 | aa-ag | 1 |
| 010B | 3A0717 | • DISK - TURBINE,STG7 POST SBE72-0157 PRE SBE70-0644 | aa-ag | 1 |
| 010C | 3A2512 | • DISK - TURBINE STG 7 POST SBE70-0644 | aa-ag | 1 |
| 010D | 3A2514 | • DISK - TURBINE STG7 POST SBE70-0705 | af-ag | 1 |
| 050 | 3A0066 | • DISK - TURBINE STG6 PRE SBE72-0157 | aa | 1 |
| 050A | 3A0066 | • DISK - TURBINE STG6 PRE SBE72-0157 | aa-af | 1 |
| 050B | 3A0066 | • DISK - TURBINE STG6 POST SBE72-0157 PRE SBE70-0644 | aa-af | 1 |
| 050C | 3A1986 | • DISK POST SBE70-0644 PRE SBE70-0942 | aa-af | 1 |
| 050D | 3A2996 | • DISK - TURBINE STG6 POST SBE70-0942 | aa-ag | 1 |
| 100 | 3A1665 | • DISK - TURBINE STG5 | aa-ag | 1 |
| 100A | 3A2153 | • DISK - TURBINE STG5 POST SBE72-0157 PRE SBE70-0522 | ab-ag | 1 |
| 100B | 3A2430 | • DISK - TURBINE STG5 POST SBE70-0522 | ab-ag | 1 |
| 150 | 3A0794 | • DISK - TURBINE STG4 PRE SBE72-0157 | aa | 1 |
| 150A | 3A0794 | • DISK - TURBINE STG4 PRE SBE72-0157 | aa-ag | 1 |
| 150B | 3A0794 | • DISK - TURBINE STG4 POST SBE72-0157 PRE SBE70-0644 | aa-ag | 1 |
| 150C | 3A1984 | • DISK - TURBINE STG 4 POST SBE70-0644 | aa-ag | 1 |
| 200 | 3A0063 | • DISK - TURBINE STG3 | aa-ag | 1 |
| 200A | 3A0713 | • DISK - TURBINE,STG3 PRE SBE72-0157 | aa-ab | 1 |
| 200B | 3A2151 | • DISK - TURBINE STG3 POST SBE72-0157 PRE SBE70-0522 | aa-ab | 1 |
| 200C | 3A2428 | • DISK - TURBINE STG3 POST SBE70-0522 | aa-ag | 1 |
| 200D | 3A2508 | • DISK - TURBINE STG 3 POST SBE72-0307 PRE SBE70-0705 | ad-ag | 1 |
| 200E | 3A2513 | • DISK - TURBINE STG3 POST SBE70-0705 | ad-ag | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

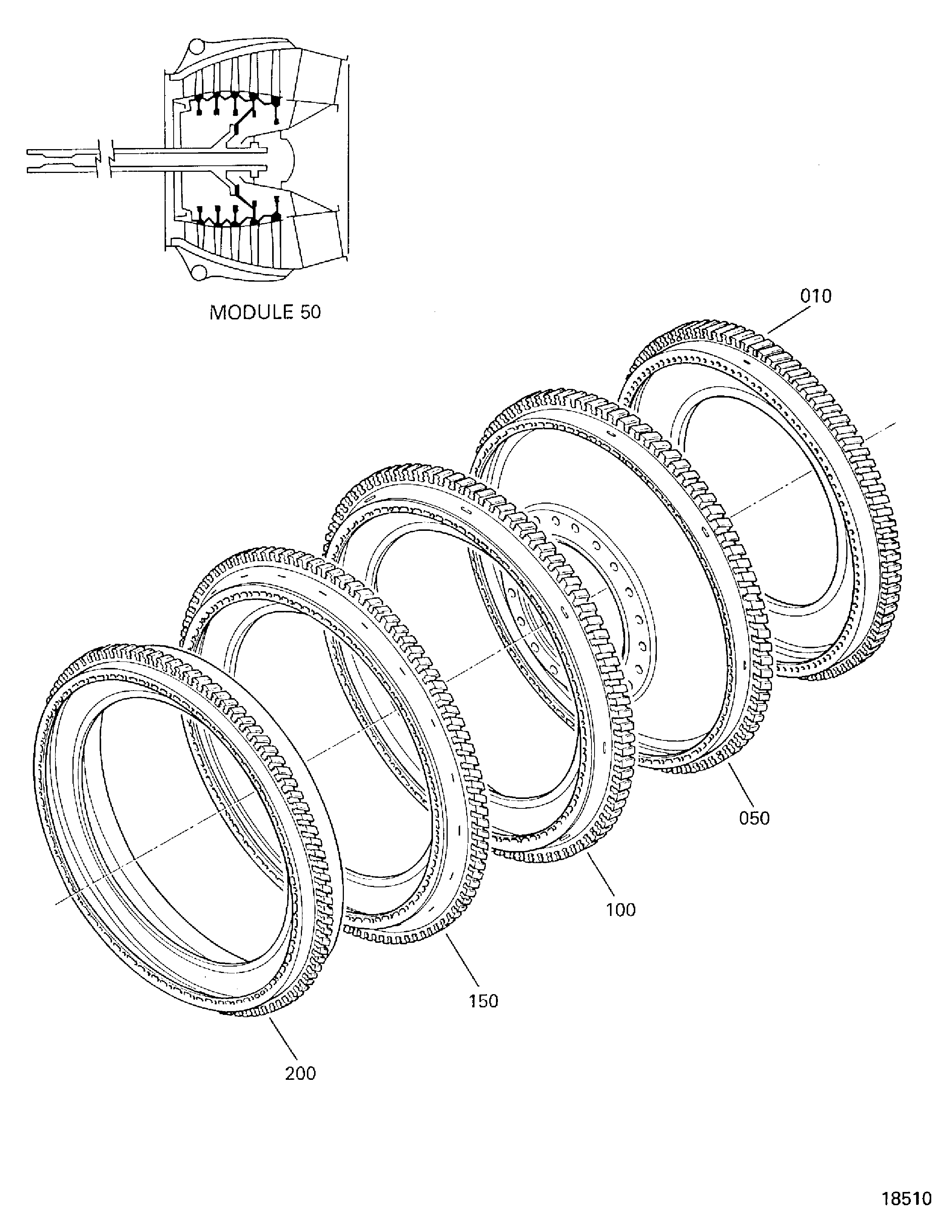

Figure: ENGINE-LP TURBINE DISCS
LPT DISK
