| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72504201 | ENGINE-NO.5 BEARING ASSEMBLY AND SEAL, PRE SBE70-0051 | aa | ||
| SBE0051-01 | ENGINE-NO.5 BEARING ASSEMBLY AND SEAL, PRE SBE72-0142 | ab | ||
| SBE0142-01 | ENGINE-NO.5 BEARING ASSEMBLY AND SEAL, PRE SBE72-0063 | ac | ||
| SBE0063-01 | ENGINE-NO.5 BEARING ASSEMBLY AND SEAL, PRE SBE72-0162 | ad | ||
| SBE0162-01 | ENGINE-NO.5 BEARING ASSEMBLY AND SEAL | ae | ||
| 100 | 4T8001 | • BEARING - NO.5 PRE SBE70-0051 | aa-ac | 1 |
| 100A | 4T8009 | • BEARING - NO.5 ALT 4T8001 POST SBE70-0051 PRE SBE72-0063 | aa-ae | 1 |
| 100B | 4T8001 | • BEARING - NO.5 ALT 4T8005 POST SBE70-0051 PRE SBE72-0063 | aa-ae | 1 |
| 100C | 4T8005 | • BEARING - NO.5 ALT 4T8009 POST SBE70-0051 PRE SBE72-0063 | aa-ae | 1 |
| 100D | 2A2134 | • BEARING - OPTION ALT 2A2136 POST SBE72-0063 | aa-ae | 1 |
| 100E | 2A2136 | • BEARING - ROLLER, ALT 2A2255 POST SBE72-0063 | aa-ae | 1 |
| 100F | 2A2255 | • BEARING - ROLLER, ALT 2A2134 POST SBE72-0063 | aa-ae | 1 |
| 140 | 4T8017 | • SEAL - CARBON ASSY | aa-ae | 1 |
| 140A | 4T8017 | • SEAL - CARBON ASSY ALT 4T8002 PRE SBE72-0142 | aa-ab | 1 |
| -140B | 4T8002 | • SEAL - CARBON ASSY ALT 4T8035 | aa-ab | REF |
| 140C | 4T8035 | • SEAL POST SBE72-0142 PRE SBE72-0063 | aa-ab | 1 |
| 142 | 4T8036 | • • SPACER POST SBE72-0142 PRE SBE72-0063 | ac | 1 |
| 142A | 2A1217 | • • SPACER - #5BRG SEAL POST SBE72-0063 | ad-ae | 1 |
| 144 | 4T8037 | • • SPACER POST SBE72-0142 PRE SBE72-0063 | ac | 1 |
| 144A | 2A2919 | • • SPACER - NO.5 BRG. POST SBE72-0063 | ad-ae | 1 |
| 146 | 4T8051 | • • SEAL - CARBON,OPTION ALT 4T8034 POST SBE72-0142 PRE SBE72-0063 | ac | 1 |
| -146A | 4T8034 | • • SEAL - CARBON ALT 2A1214 POST SBE72-0142 PRE SBE72-0063 | ac | REF |
| -146B | 2A1214 | • • SEAL - FACE, #5 BRG ALT 2A2877 POST SBE72-0142 PRE SBE72-0063 | ac | REF |
| 146C | 2A2877 | • • SEAL ALT 2A2878 POST SBE72-0162 | ac | 1 |
| -146D | 2A2878 | • • SEAL ALT 2A2879 POST SBE72-0162 | ac | REF |
| -146E | 2A2879 | • • SEAL ALT 4T8034 POST SBE72-0162 | ac | REF |
| -146F | 4T8034 | • • SEAL - CARBON POST SBE72-0162 | ac | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

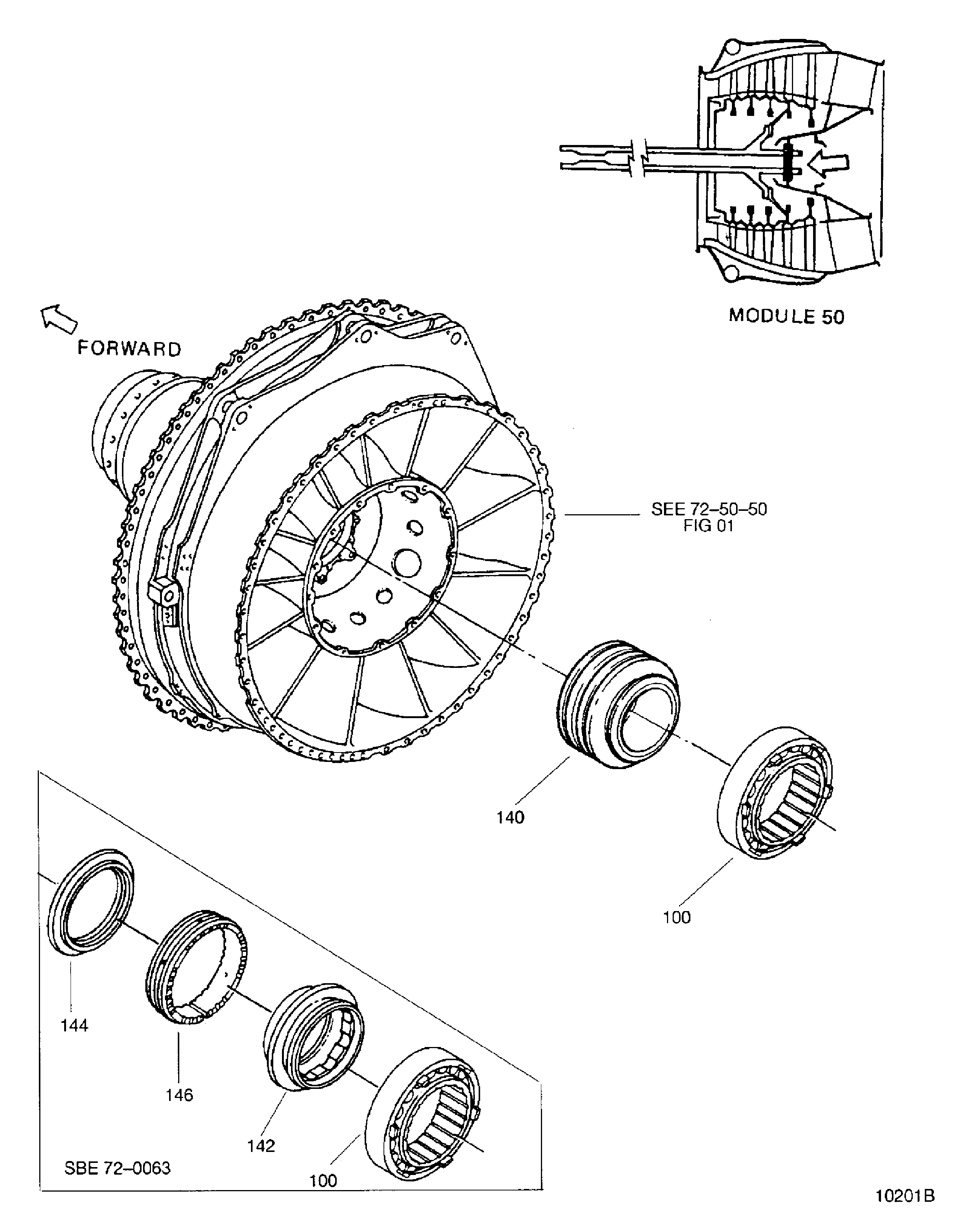

Figure: ENGINE-NO.5 BEARING ASSEMBLY AND SEAL
NO.5 BEARING SPACER AND SEAL
