DMC:V2500-A1-72-50-52-20A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 20 | ||||
| B72505220 | ENGINE-NO.5 BEARING PLATE AND OIL DEFLECTOR, PRE SBE72-0063 | aa | ||
| SBE0063-01 | ENGINE-NO.5 BEARING PLATE AND OIL DEFLECTOR, PRE SBE70-0267 | ab | ||
| SBE0267-01 | ENGINE-NO.5 BEARING PLATE AND OIL DEFLECTOR | ac | ||
| 010 | MS9886-08 | • BOLT - MACH DBL HEX EXT 96906 POST SBE72-0063 | ab-ac | 6 |
| 020 | 2A1264 | • STRAINER - ELEMENT, #5BRG POST SBE72-0063 | ab-ac | 2 |
| 040 | 2A1213 | • PLATE - RETAINING, #5BRG POST SBE72-0063 | ab-ac | 1 |
| 060 | 2A2255 | • BEARING - ROLLER, NO.5 POST SBE72-0063 PRE SBE70-0267 | ab-ac | 1 |
| 060A | 2A2134 | • BEARING - OPTION ALT 2A2136 POST SBE70-0267 | ab-ac | 1 |
| -060B | 2A2136 | • BEARING - ROLLER, N0.5 ALT 2A2255 POST SBE70-0267 | ac | REF |
| -060C | 2A2255 | • BEARING - ROLLER, NO.5 ALT 2A2134 POST SBE70-0267 | ac | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

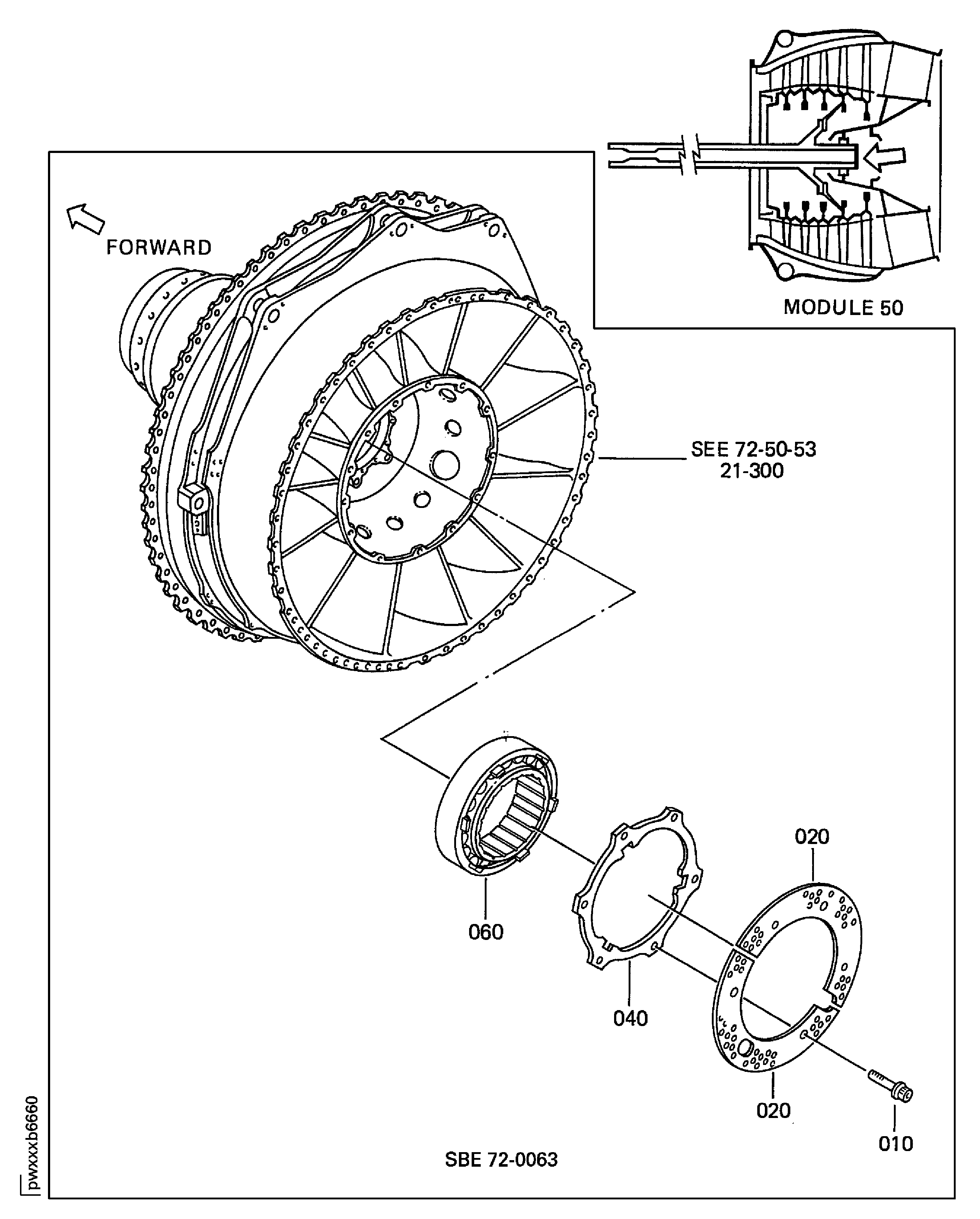

Figure: ENGINE-NO.5 BEARING PLATE AND OIL DEFLECTOR
NO.5 BEARING ASSEMBLY AND RETAINER
