DMC:V2500-A1-72-50-53-20A-941A-DIssue No:003.00Issue Date:2019-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 20 | ||||
| B72505320 | ENGINE - EXHAUST CASE AND FITTINGS, PRE SBE72-0063 | aa | ||
| SBE0063-01 | ENGINE - EXHAUST CASE AND FITTINGS, PRE SBE70-0352 | ab | ||
| SBE0352-01 | ENGINE - EXHAUST CASE AND FITTINGS, PRE SBE73-0094 | ac | ||
| SBE0094-01 | ENGINE - EXHAUST CASE AND FITTINGS, PRE SBE70-0857 | ad | ||
| SBE0857-01 | ENGINE - EXHAUST CASE AND FITTINGS | ae | ||
| 010 | 2A2231-01 | • TUBE POST SBE72-0063 REF SBE72-0660 | ab-ae | 1 |
| 015 | 4W0001 | • NUT, OPTION - .190 DIA Optional Part 4W0001 POST SBE72-0063 | ab-ae | 1 |
| 016 | MS122905 | • CLAMP - LOOP, SUPPORT 96906 POST SBE72-0063 | ab-ae | 1 |
| 017 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE72-0063 | ab-ae | 1 |
| 020 | 2A2232 | • BRACKET - LOOP CLAMP POST SBE72-0063 PRE SBE73-0094 | ab-ac | 1 |
| 020A | 2A3120 | • BRACKET - LOOP CLAMP POST SBE73-0094 PRE SBE70-0797 | ***** | 1 |
| 030 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA Optional Part 4W0002 POST SBE72-0063 | ab-ae | 2 |
| 040 | 4W0165 | • BOLT, MACHINE DOUBLE HEX - .250 DIA X .688 Optional Part 4W0165 POST SBE72-0063 | ab-ae | 2 |
| 084 | MS9378-06 | • • COLLAR - SWIVEL, O-RING 96906 POST SBE72-0063 | ab-ae | 1 |
| -085 | 2A3119 | • BRACKET - LOOP CLAMP POST SBE73-0094 PRE SBE70-0797 | ***** | 1 |
| 086 | MS9879-06 | • • SLEEVE - SWIVEL O-RING 96906 POST SBE72-0063 | ab-ae | 1 |
| 088 | AS3268-044 | • • SLEEVE HALF - REINFORCING U1653 POST SBE72-0063 | ab-ae | 2 |
| -130 | 2A2241 | • SHIELD OPTION POST SBE72-0063 | ab-ae | 1 |
| -132 | 2A2237 | • HEATSHIELD - NO. 5 BEARING PRESSURE TUBE, ASSEMBLY OF POST SBE72-0063 | ab-ae | REF |
| -151 | 2A2238 | • HEATSHIELD - NO. 5 BEARING PRESSURE TUBE, ASSEMBLY OF POST SBE72-0063 | ab-ae | REF |
| 170 | ST1003-06 | • WIRE - THRUST 77445 POST SBE72-0063 REF SBE72-0660 | ab-ae | 1 |
| 172 | ST2121-06 | • NUT - TUBE, COUPLING 77445 POST SBE72-0063 REF SBE72-0660 | ab-ae | 1 |
| 176 | 2A2168-01 | • TUBE POST SBE72-0063 PRE SBE70-0352 | ab-ae | 1 |
| 176A | 2A3091-01 | • TUBE - PRESSURE, NO.5 BEARING, ASSEMBLY OF 77445 POST SBE70-0352 REF SBE72-0660 | ab-ae | 1 |
| 180 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA Optional Part 4W0002 POST SBE72-0063 | ab-ae | 2 |
| 190 | 4W0165 | • BOLT, MACHINE DOUBLE HEX - .250 DIA X .688 Optional Part 4W0165 POST SBE72-0063 | ab-ae | 2 |
| 200 | 2A2177 | • BRACKET - LOOP CLAMP POST SBE72-0063 | ab-ae | 1 |
| 210 | 4W0001 | • NUT, OPTION - .190 DIA Optional Part 4W0001 POST SBE72-0063 | ab-ae | 1 |
| 215 | 4W2621 | • WASHER Optional Part 4W2621 POST SBE72-0063 | ab-ae | 2 |
| -217 | 2A3119 | • BRACKET - LOOP CLAMP POST SBE73-0094 PRE SBE70-0797 | ***** | 1 |
| 220 | 4W0106 | • BOLT - .190 DIA X .688 Optional Part 4W0106 POST SBE72-0063 | ab-ae | 1 |
| 254 | 2A2207 | • • SPACER POST SBE72-0063 | ab-ae | 1 |
| 256 | 2A2235 | • • SLEEVE POST SBE72-0063 | ab-ae | 1 |
| 258 | MS9198-06 | • • NUT - TUBE COUPLING 96906 POST SBE72-0063 | ab-ae | 1 |
| 260 | MS9483-06 | • • FERRULE - STRAIGHT 96906 POST SBE72-0063 | ab-ae | 1 |
| 274 | 2A2173 | • • FERRULE POST SBE72-0063 | ab-ae | 1 |
| 290 | 2A2175 | • NIPPLE POST SBE72-0063 REF SBE72-0660 | ab-ae | 1 |
| 300 | AS3209-014 | • PACKING - PREFORMED U1653 POST SBE72-0063 PRE SBE70-0857 REF SBE72-0660 | ab-ae | 1 |
| 300A | ST1946-014 | • PACKING - PREFORMED 77445 POST SBE70-0857 REF SBE72-0660 | ab-ae | 1 |
| 300B | AS3209-014 | • PACKING - PREFORMED U1653 REF SBE72-0660 | aa-ae | 1 |
| 320 | 2A2210 | • TUBE - ELBOW, NO. 5 BEARING POST SBE72-0063 REF SBE72-0660 | ab-ae | 1 |
| 330 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA Optional Part 4W0002 POST SBE72-0063 | ab-ae | 1 |
| 340 | 4W0165 | • BOLT, MACHINE DOUBLE HEX - .250 DIA X .688 Optional Part 4W0165 POST SBE72-0063 | ab-ae | 1 |
| 350 | 2A2212 | • BRACKET - ELBOW TUBE POST SBE72-0063 | ab-ae | 1 |
| 355 | 2A3123 | • BRACKET - LOOP CLAMP POST SBE73-0094 PRE SBE70-0797 | ***** | 1 |
| 360 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA Optional Part 4W0002 POST SBE72-0063 | ab-ae | 2 |
| 370 | 4W0165 | • BOLT, MACHINE DOUBLE HEX - .250 DIA X .688 Optional Part 4W0165 POST SBE72-0063 | ab-ae | 2 |
| -390 | 2A2242 | • SHIELD OPTION POST SBE72-0063 | ab-ae | 1 |
| -392 | 2A2239 | • HEATSHIELD - SET, NO. 5 BEARING SCAVENGE POST SBE72-0063 | ab-ae | REF |
| -410 | 2A2240 | • HEATSHIELD - SET, NO. 5 BEARING SCAVENGE POST SBE72-0063 | ab-ae | REF |
| 432 | ST1003-07 | • WIRE - THRUST 77445 POST SBE72-0063 REF SBE72-0660 | ab-ae | 1 |
| 433 | 493975 | • NUT - TUBE COUPLING 77445 POST SBE72-0063 REF SBE72-0660 | ab-ae | 1 |
| 435 | 2A2169-01 | • TUBE - SCAVENGE, NO. 5 BEARING, ASSEMBLY OF POST SBE72-0063 PRE SBE70-0352 | ab-ae | 1 |
| 435A | 2A3092-01 | • TUBE - ASSEMBLY OF 77445 POST SBE70-0352 REF SBE72-0660 | ab-ae | 1 |
| 440 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA Optional Part 4W0002 POST SBE72-0063 | ab-ae | 2 |
| 450 | 4W0165 | • BOLT, MACHINE DOUBLE HEX - .250 DIA X .688 Optional Part 4W0165 POST SBE72-0063 | ab-ae | 2 |
| 460 | 2A2176 | • BRACKET - LOOP CLAMP POST SBE72-0063 | ab-ae | 1 |
| 470 | 4W0001 | • NUT, OPTION - .190 DIA Optional Part 4W0001 POST SBE72-0063 | ab-ae | 1 |
| 475 | 4W2621 | • WASHER Optional Part 4W2621 POST SBE72-0063 | ab-ae | 2 |
| 480 | 4W0106 | • BOLT - .190 DIA X .688 Optional Part 4W0106 POST SBE72-0063 | ab-ae | 1 |
| 524 | 5004855-01 | • • SPACER 77445 POST SBE72-0063 | ab-ae | 1 |
| 526 | 2A2468 | • • SLEEVE - HEAT, NO. 5 BEARING POST SBE72-0063 | ab-ae | 1 |
| 528 | MS9198-07 | • • NUT - TUBE COUPLING 96906 POST SBE72-0063 | ab-ae | 1 |
| 530 | MS9483-07 | • • FERRULE - STRAIGHT 96906 POST SBE72-0063 | ab-ae | 1 |
| 544 | 2A2209 | • • FERRULE POST SBE72-0063 | ab-ae | 1 |
| 560 | 50P186 | • ADAPTER - STRAIGHT, TUBE TO BOSS 77445 POST SBE72-0063 REF SBE72-0660 | ab-ae | 1 |
| 570 | AS3209-015 | • PACKING - PREFORMED U1653 POST SBE72-0063 PRE SBE70-0857 REF SBE72-0660 | ab-ae | 1 |
| 570A | ST1946-015 | • PACKING - PREFORMED 77445 POST SBE70-0857 REF SBE72-0660 | ab-ae | 1 |
| 570B | AS3209-015 | • PACKING - PREFORMED U1653 REF SBE72-0660 | aa-ae | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

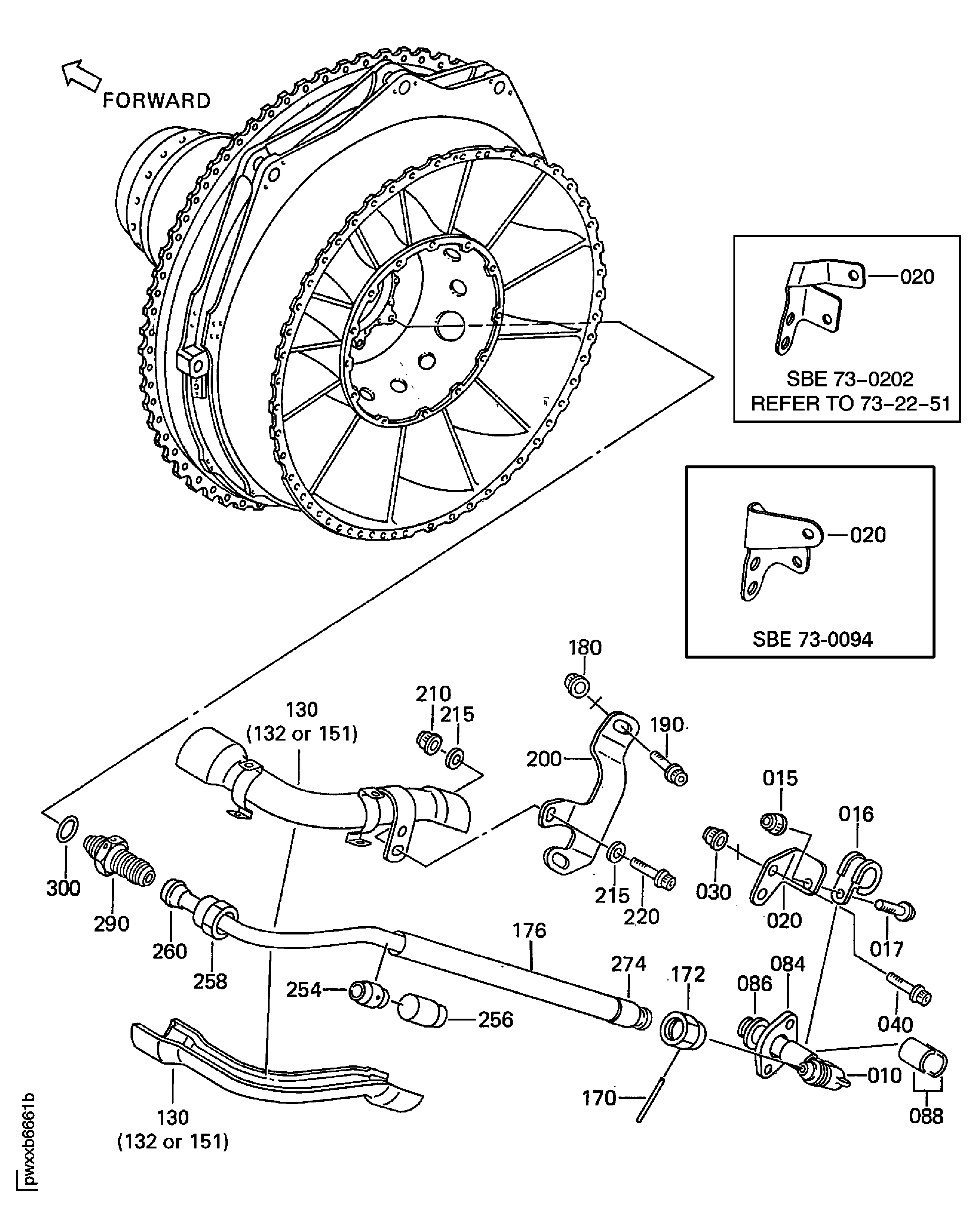

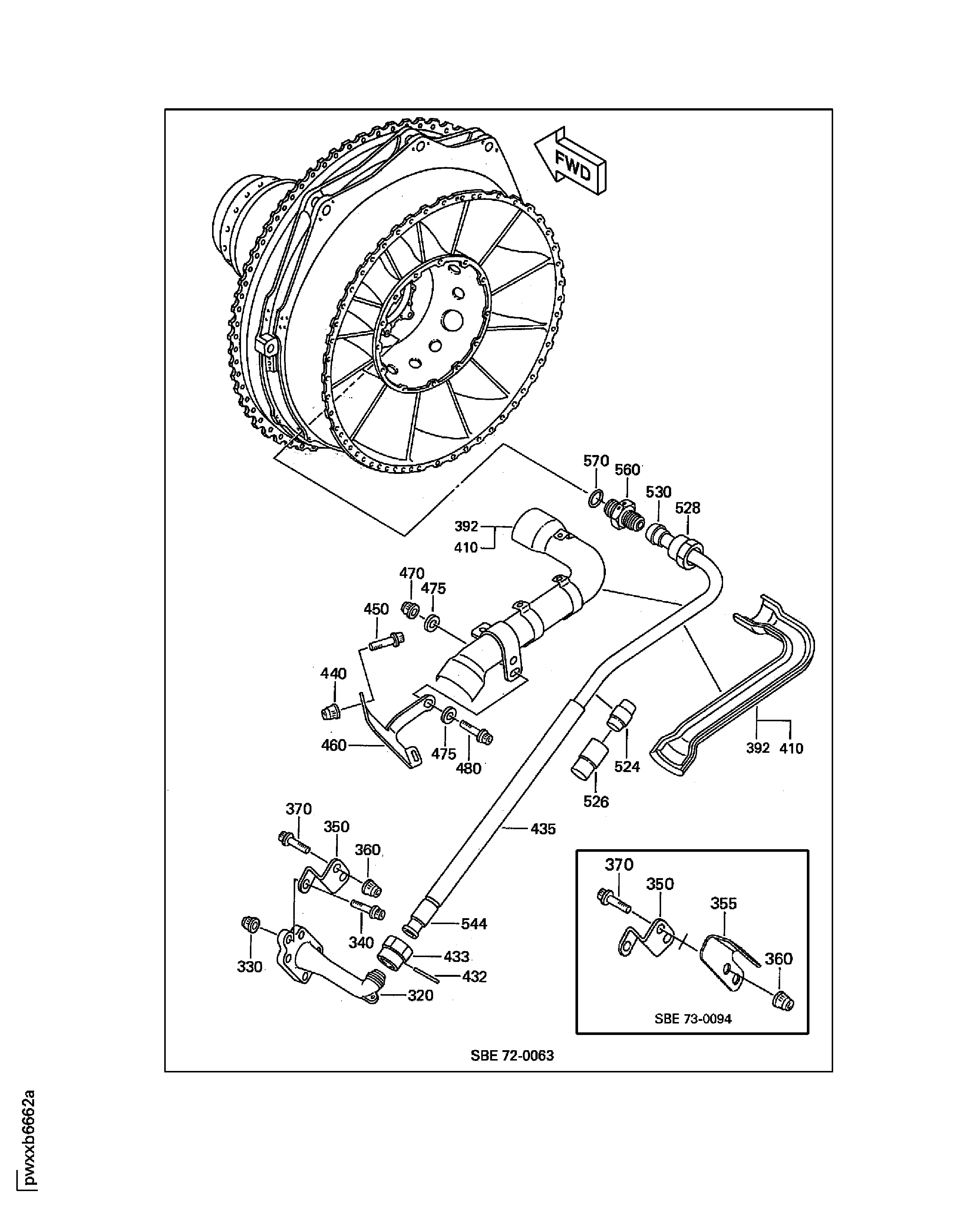

Figure: ENGINE - EXHAUST CASE AND FITTINGS
ENGINE - EXHAUST CASE AND FITTINGS
ENGINE - EXHAUST CASE AND FITTINGS
