TASK 72-50-53-300-019 Turbine Exhaust Case (TEC) - Nickel Plate The Rear Face Of The Rear Inner Flange, Repair-019 (VRS5403)

DMC:V2500-A1-72-50-5301-01A-647A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-50-53-300-019 Turbine Exhaust Case (TEC) - Nickel Plate The Rear Face Of The Rear Inner Flange, Repair-019 (VRS5403)

Effectivity

FIG/ITEM

PART NO.

01-001

4A8014

01-001A

4A8025

Material of component

DESCRIPTION

SYMBOL

MATERIAL

Turbine exhaust case

Corrosion and heat resistant

iron base alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

  1. To identify the consumable materials refer to the PCI.

  2. Consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
BasketLOCALBasket
Process Plating TanksLOCALProcess plating tanks
FurnaceLOCALFurnace
Magnifying glass, 4XLOCALMagnifying glass, 4X
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-027 HYDROFLUORIC ACIDLOCALCoMat 01-027
CoMat 01-058 NITRIC ACID HNO3LOCALCoMat 01-058
CoMat 01-112 ALKALINE SILICATE DEGREASER23373CoMat 01-112
CoMat 01-343 DELETED0AM53CoMat 01-343
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-53-320-059 Machine the Rear Face of the Rear Inner Flange

    1. Refer to: Figure

      2. Machine the rear face of the rear inner flange.

      1. The dimension must be between 10.0256 to 10.0177in. (254.65 to 254.45 mm) in relation to surface Z.

        Remove all damage and wear.

        Keep the removal of material to the minimum necessary to remove the damage.

    2. SUBTASK 72-50-53-230-058 Examine the Turbine Exhaust Case

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to the SPM TASK 70-23-02-230-501.

        No cracks are permitted.

      2. Drain the fluorescent penetrant from the struts.

      1. Repair, VRS3655 TASK 72-50-53-300-076 (REPAIR-076).

    3. SUBTASK 72-50-53-330-054 Nickel Plate the Rear Face of the Rear Inner Flange of the Turbine Exhaust Case

    1. Refer to Figure.

      2. Mask the areas of the turbine exhaust case not to be plated.

      3. Do the nickel plating.

      1. Plate to a sufficient thickness to permit the machining to the last dimension.

        The plating out of the rear face is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the turbine exhaust case.

      1. Flush with cold water.

        Flush with hot water.

        Dry with air blast.

    4. SUBTASK 72-50-53-370-055 De-embrittle the Turbine Exhaust Case

      1. Put the turbine exhaust case into a furnace at 349 to 399 deg F (176 to 204 deg C) for 4 hours.

      1. Do this process as soon as possible in less than 4 hours after the plating.

    5. SUBTASK 72-50-53-220-089 Examine the Turbine Exhaust Case

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

        No circumferential cracks are permitted.

        No rough and blistering are permitted.

    6. SUBTASK 72-50-53-320-060 Machine the Rear Face of the Rear Inner Flange of the Turbine Exhaust Case

    1. Refer to: Figure

      2. Machine the rear face of the rear inner flange.

      1. The dimension must be between 10.0492 to 10.0295in. (255.25 to 254.75 mm) in relation to surface Z.

        Chamfer where necessary.

    7. SUBTASK 72-50-53-220-090 Examine the Nickel Plated Area

    1. Refer to: Figure

      2. Do the visual inspection of the plated area for cracks and adhesion.

      1. Use a 4X magnifying glass.

        The natural network crack, emphasized by grinding, is permitted.

      3. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.0006in. (0.015 mm) after the last machining.

    8. SUBTASK 72-50-53-350-058 Record the Repair

      1. Vibro engrave VRS5403 adjacent to the part number.

      1. Remove the metal lifted by marking.

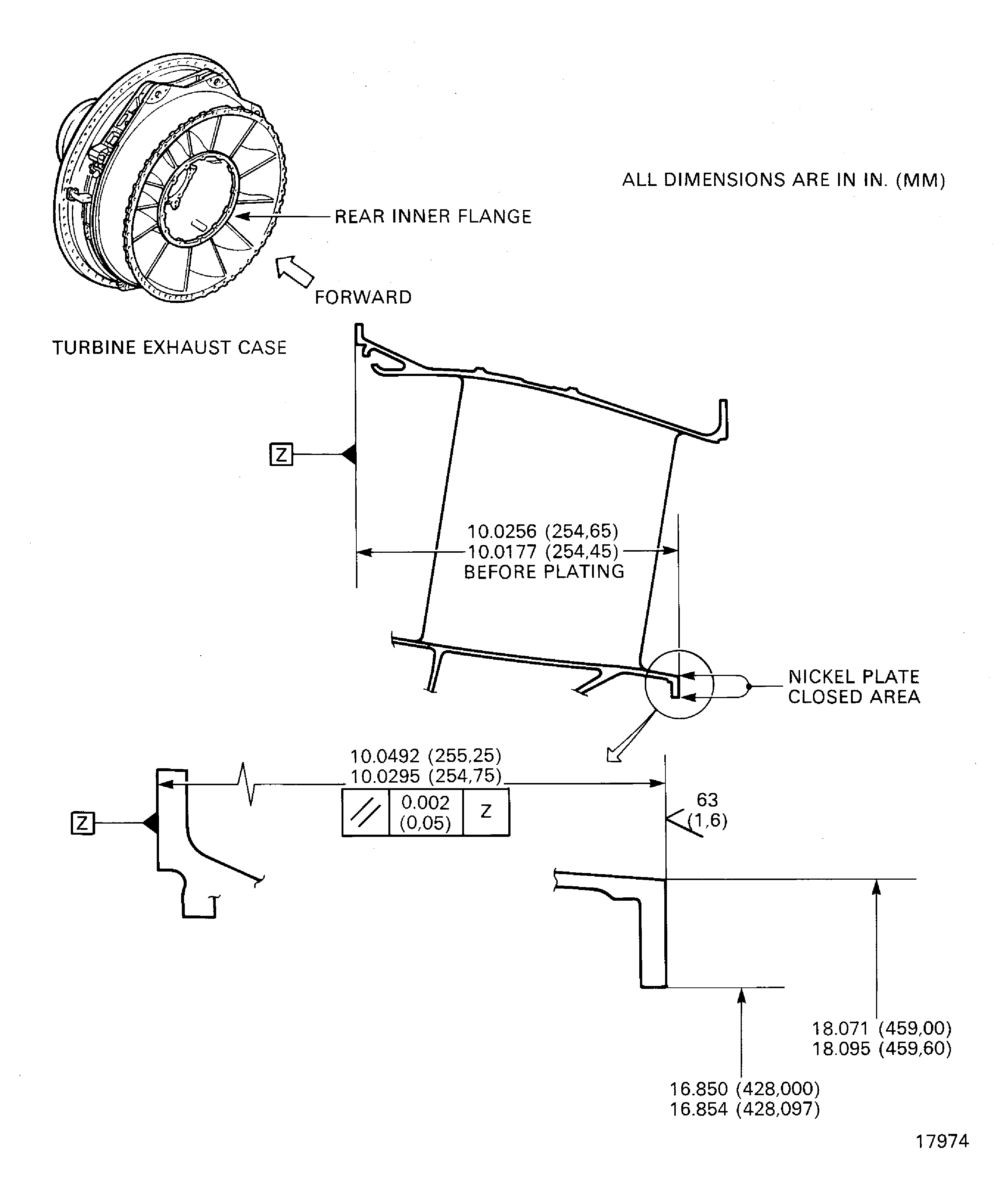

    9. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
