TASK 72-50-53-300-022 Turbine Exhaust Case (TEC) - Nickel Plate The Cover Mating Diameter, Repair-022 (VRS5406)

DMC:V2500-A1-72-50-5301-02A-647A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-50-53-300-022 Turbine Exhaust Case (TEC) - Nickel Plate The Cover Mating Diameter, Repair-022 (VRS5406)

Effectivity

FIG/ITEM

PART NO.

01-001

4A8014

01-001A

4A8025

Material of component

DESCRIPTION

SYMBOL

MATERIAL

Turbine exhaust case assembly

Corrosion and heat resistant

iron base alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

  1. To identify the consumable materials refer to the PCI.

  2. Consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
BasketLOCALBasket
Process Plating TanksLOCALProcess plating tanks
FurnaceLOCALFurnace
Magnifying glass, 4XLOCALMagnifying glass, 4X
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-53-320-061 Machine the Cover Seat Diameter of the Turbine Exhaust Case Assembly

    1. Refer to: Figure

      2. Machine the cover mating diameter.

      1. The mating diameter must be between 7.1987 to 7.2074in. (182.848 to 183.068 mm) after the removal of the damage.

        Remove all damage and wear.

        Keep the removal of material to the minimum necessary to remove the damage.

    2. SUBTASK 72-50-53-230-059 Examine the Turbine Exhaust Case Assembly

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to the SPM TASK 70-23-02-230-501.

        No cracks are permitted.

      2. Drain the fluorescent penetrant from the struts.

      1. Repair, VRS3655 TASK 72-50-53-300-076 (REPAIR-076).

    3. SUBTASK 72-50-53-330-055 Nickel Plate the Cover Mating Diameter of the Turbine Exhaust Case Assembly

    1. Refer to: Figure

      2. Mask the areas of the turbine exhaust case not to be plated.

      3. Do the nickel plating.

      1. Refer to the SPM TASK 70-33-10-200-502.

        Plate to a sufficient thickness to permit the machining to the last dimensions.

        The plating out of the cover mating diameter is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the turbine exhaust case assembly.

      1. Flush with cold water.

        Flush with hot water.

        Dry with air blast.

    4. SUBTASK 72-50-53-370-056 De-embrittle the Turbine Exhaust Case Assembly

      1. Put the turbine exhaust case into a furnace at 266 to 302 deg F (130 to 150 deg C) for 12 hours.

      1. Do this process as soon as possible in less than 4 hours after the plating.

    5. SUBTASK 72-50-53-220-091 Examine the Turbine Exhaust Case Assembly

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

        No circumferential cracks are permitted.

        No rough and blistering are permitted.

    6. SUBTASK 72-50-53-320-062 Machine the Cover Mating Diameter of the Turbine Exhaust Case Assembly

    1. Refer to: Figure

      2. Machine the cover mating diameter.

      1. The mating diameter must be between 7.1936 to 7.1976in. (182.718 to 182.818 mm).

        Chamfer where necessary.

    7. SUBTASK 72-50-53-220-092 Examine the Nickel Plated Area

    1. Refer to: Figure

      2. Do the visual inspection of the plated area for cracks and adhesion.

      1. Use a 4x magnifying glass.

        The natural network crack, emphasized by grinding, is permitted.

      3. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.0006in. (0.015 mm) after the last machining.

    8. SUBTASK 72-50-53-350-059 Record the Repair

      1. Vibro engrave VRS5406 adjacent to the part number.

      1. Remove the metal lifted by marking the number.

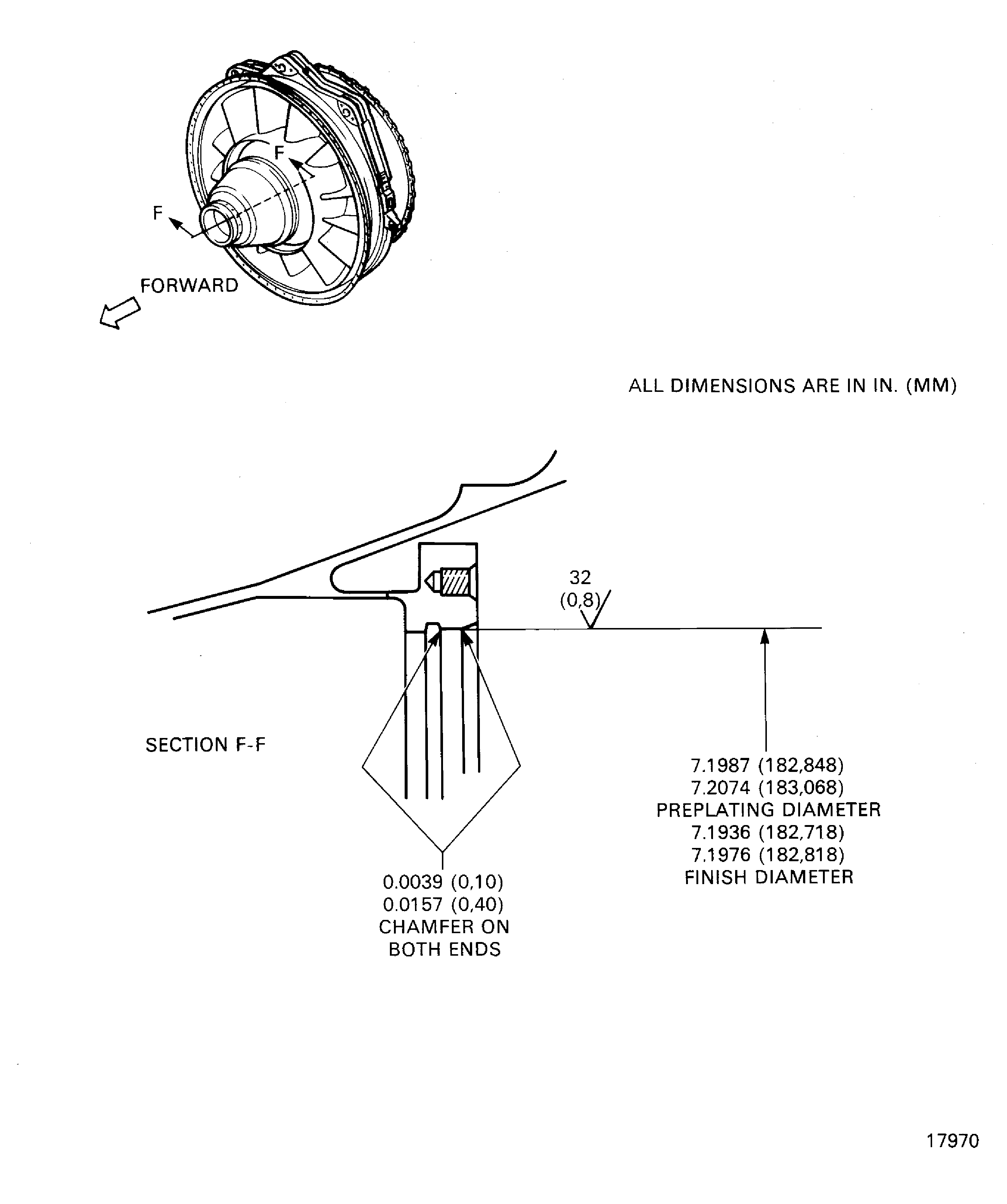

    9. Figure: Repair Details and Diameters

    Repair Details and Diameters

Requirements After Job Completion

Follow-On Conditions

NONE
