TASK 72-50-53-300-023 Turbine Exhaust Case (TEC) - Chromium Plate The No. 5 Bearing Retainer Seat, Repair-023 (VRS5407)

DMC:V2500-A1-72-50-5301-03A-647A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-50-53-300-023 Turbine Exhaust Case (TEC) - Chromium Plate The No. 5 Bearing Retainer Seat, Repair-023 (VRS5407)

Effectivity

FIG/ITEM

PART NO.

01-001

4A8014

01-001A

4A8025

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Turbine exhaust case

Corrosion and heat resistant

iron base alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

  1. To identify the consumable materials refer to the PCI.

  2. Consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
BasketLOCALBasket
Process Plating TanksLOCALProcess plating tanks
FurnaceLOCALFurnace
Magnifying glass, 5XLOCALMagnifying glass, 5X
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-023 CHROMIUM TRIOXIDE CrO3(CHROM.ACID)LOCALCoMat 01-023
CoMat 02-017 WAXLOCALCoMat 02-017
CoMat 02-034 METALLIC MASKING TAPE(LEAD FOIL)76381CoMat 02-034
CoMat 05-030 CAST STEEL SHOT DELETED0AM53CoMat 05-030
CoMat 10-023 MINERAL OIL73277CoMat 10-023
CoMat 01-001 SOLVENT, DELETED0AM53CoMat 01-001

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-53-320-063 Machine the No. 5 Bearing Retainer Seat

    1. Refer to: Figure

      2. Machine the seat of the No. 5 bearing retainer.

      1. The diameter must be between 5.5993 to 5.6047in. (142.223 to 142.360 mm).

        Surface rough must be 32 microin. (0.8 micron) before plating.

        Remove all damage and wear.

        Keep the removal of material to the minimum necessary to remove the damage.

    2. SUBTASK 72-50-53-240-051 Examine the Turbine Exhaust Case

      1. Do the magnetic particle inspection for cracks.

      1. Refer to the SPM TASK 70-24-01-240-501.

        No cracks are permitted.

    3. SUBTASK 72-50-53-210-051 Nital Etch the No. 5 Bearing Retainer Seat

      1. Do the nital etch on the seat to find sign of burning coating.

      1. Refer to the SPM TASK 70-21-02-210-501.

        Machine the seat if there are signs of burned metal.

        Keep the removal of material to the minimum necessary to remove the damage.

    4. SUBTASK 72-50-53-370-057 De-embrittle the Turbine Exhaust Case

      1. Put the turbine exhaust case into oil at 284 deg F (140 deg C) for 2 hours.

      1. Do this process as soon as possible in less than 2 hours after etch.

    5. SUBTASK 72-50-53-110-056 Clean the Turbine Exhaust Case

      1. Do the vapor degreasing.

    6. SUBTASK 72-50-53-330-056 Chromium Plate the No. 5 Bearing Retainer Seat

    1. Refer to: Figure

      2. Mask the area of the turbine exhaust case not to be plated.

      3. Do the chromium plating.

      1. Refer to the SPM TASK 70-33-02-330-501.

        Plate to a sufficient thickness to permit the machining to the last dimensions.

        The plate out of the bearing retainer seat is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the turbine exhaust case.

      1. Flush with cold water.

        Flush with hot water.

        Dry with air blast.

    7. SUBTASK 72-50-53-370-058 De-embrittle the Turbine Exhaust Case

      1. Put the turbine exhaust case into a furnace at 284 to 320 deg F (140 to 160 deg C) for 5 hours.

      1. Do this process as soon as possible in less than 4 hours after the plating.

    8. SUBTASK 72-50-53-220-093 Examine the Chromium Plated Area

    1. Refer to: Figure

      2. Do the visual inspection of the plated area for finish, cracks and adhesion.

      1. Plating must have a constant color.

        No bubbles or sign of burned metal are permitted.

    9. SUBTASK 72-50-53-320-064 Machine the No. 5 Bearing Retainer Seat

    1. Refer to: Figure

      2. Machine the seat of the No. 5 bearing retainer.

      1. The last dimension of the seat must be between 5.5906 to 5.5930in. (142.000 to 142.063 mm).

        Chamfer where necessary.

    10. SUBTASK 72-50-53-220-094 Examine the Chromium Plated Area

      1. Do the visual inspection of the chromium plated area for cracks and adhesion.

      1. Use a 5X magnifying glass.

        The natural network crack, emphasized by grinding, is permitted.

      2. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.001in. (0.025 mm) after the last machining.

    11. SUBTASK 72-50-53-350-060 Record the Repair

      1. Vibro engrave VRS5407 adjacent to the part number.

      1. Remove the metal lifted by marking the number.

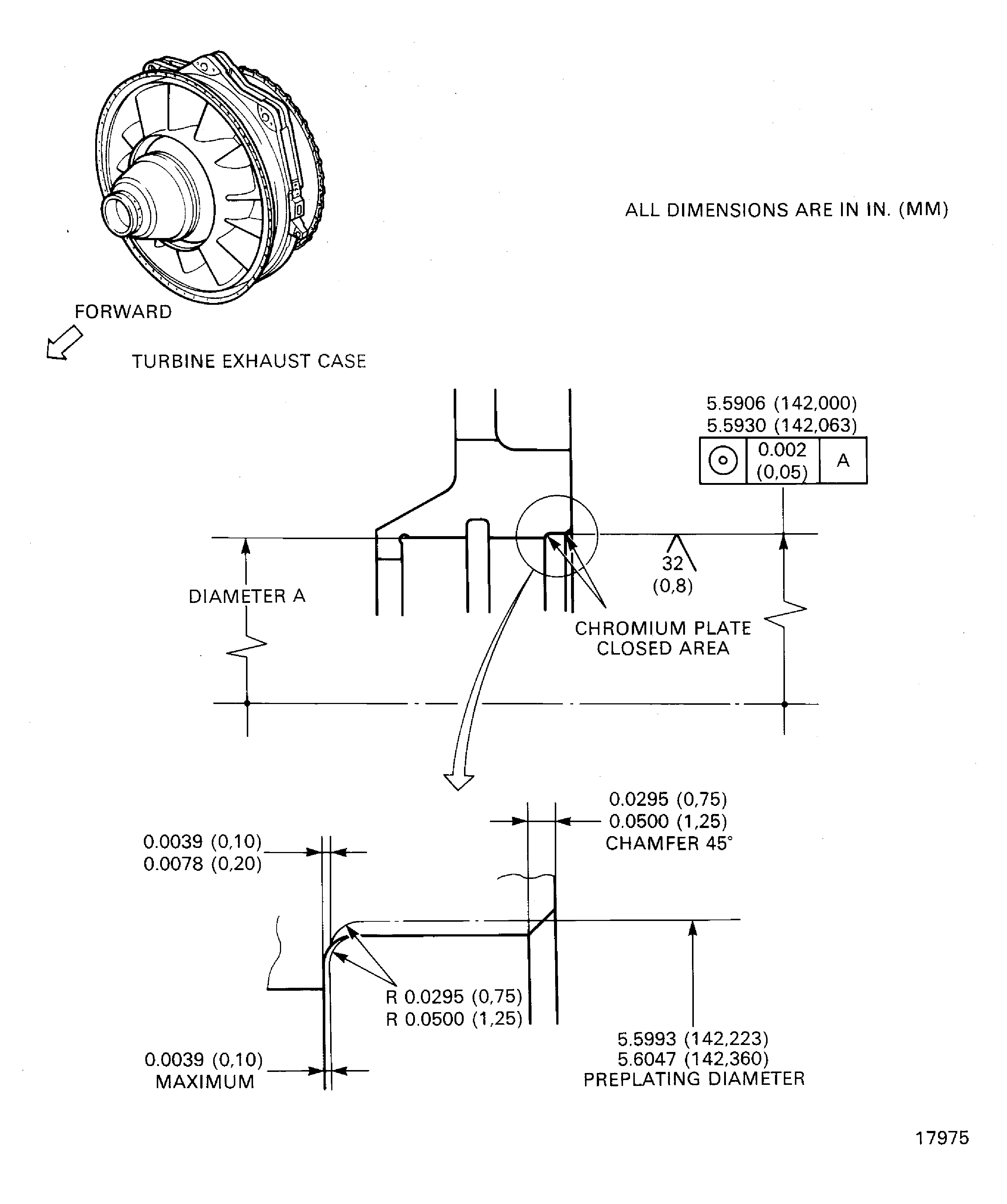

    12. Figure: Chromium plate the No. 5 bearing retainer seat in the turbine exhaust case

    Chromium plate the No. 5 bearing retainer seat in the turbine exhaust case

Requirements After Job Completion

Follow-On Conditions

NONE
