DMC:V2500-A1-72-58-01-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72580101 | ENGINE-NO.5 BEARING COMPARTMENT COVER, PRE SBE72-0104 | aa | ||
| SBE0104-01 | ENGINE-NO.5 BEARING COMPARTMENT COVER, PRE SBE72-0173 | ab | ||
| SBE0173-01 | ENGINE-NO.5 BEARING COMPARTMENT COVER | ac | ||
| 100 | 4T8030 | • SHIELD - ASSY OF PRE SBE72-0104 | aa-ac | 1 |
| 100A | 2A4227-01 | • SHIELD - ASSY OF POST SBE72-0104 | aa-ac | 1 |
| 120 | 4B8050 | • COVER - A/O PRE SBE72-0063 | ***** | 1 |
| 140 | 4W0170 | • BOLT - .250 DIA X 1.000 PRE SBE72-0063 | ***** | 12 |
| 160 | AS3209-167 | • PACKING U1653 PRE SBE72-0063 | ***** | 1 |
| 160A | 2A2913 | • SEAL POST SBE72-0173 | ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

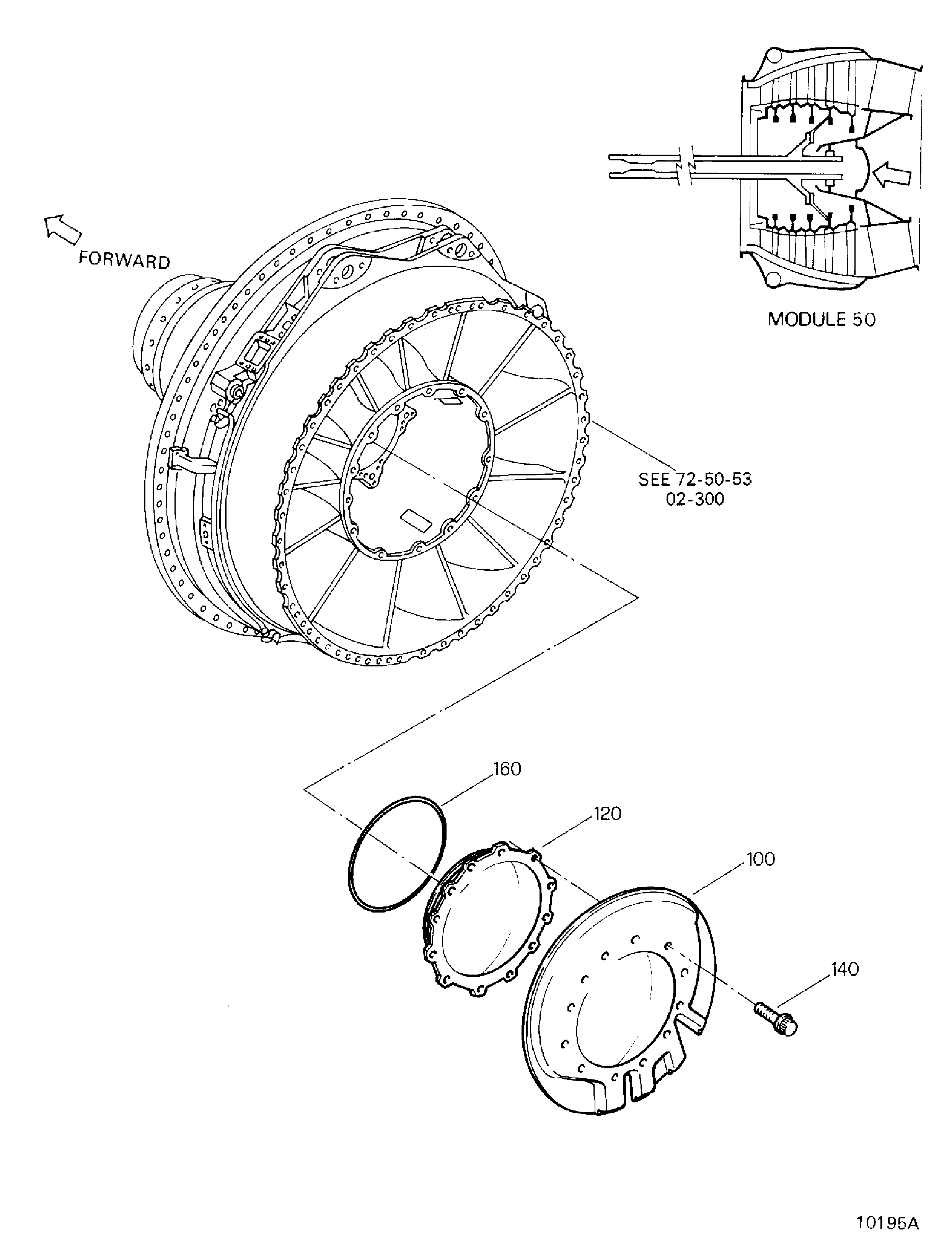

Figure: ENGINE-NO.5 BEARING COMPARTMENT COVER
COVER NO.5 BRG COMPARTMENT
