ENGINE-MAIN GEARBOX CASE AND FITTINGS

DMC:V2500-A1-72-60-21-02A-941A-A|Issue No:002|Issue Date:2018-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
02
000	B72602102	ENGINE - MAIN GEARBOX CASE AND FITTINGS, PRE SBE70-0112	aa
000	SBE0112-01	ENGINE - MAIN GEARBOX CASE AND FITTINGS, PRE SBE70-0189	ab
000	SBE0189-01	ENGINE - MAIN GEARBOX CASE AND FITTINGS, PRE SBE72-0153	ac
000	SBE0153-01	ENGINE - MAIN GEARBOX CASE AND FITTINGS	ad
050050	4B0053	• CASING - ANGLE GEARBOX, ASSEMBLY OF PRE SBE70-0112	aa-ad	1
050050A	4B0054	• CASING - ANGLE GEARBOX, ASSEMBLY OF POST SBE70-0112 PRE SBE70-0189	aa-ad	1
050050B	4B0055	• CASING - ANGLE GEARBOX, ASSEMBLY OF POST SBE70-0189 PRE SBE72-0153	aa-ad	1
050050C	4B0057	• CASING - ANGLE GEARBOX, ASSEMBLY OF POST SBE72-0153	aa-ad	1
-051051	4L0020	• • BUSHING - ,(VRS5258) A3460	*****	1
-052052	4L0021	• • BUSHING - ,(VRS5259) A3460	*****	1
-053053	4L0022	• • BUSHING - ,(VRS5260) A3460	*****	1
-054054	4L0023	• • BUSHING - ,(VRS5261) A3460	*****	1
-055055	4L0007	• • BUSHING - ,(VRS5054) A3460	*****	1
-056056	4L0030	• • BUSHING - ,(VRS5276) A3460	*****	1
060060	4P0116	• • PIN	aa-ad	1
070070	MS51551C205-29	• • STUD 96906	aa-ad	2
080080	MS51990E106P	• • RING - LOCKING 96906	aa-ad	1
090090	MS51991E206L	• • INSERT - SCREW 96906	aa-ad	1
100100	MS51990E108P	• • RING - LOCKING 96906	aa-ad	1
110110	MS51991E208L	• • INSERT - SCREW 96906	aa-ad	1
120120	MS51990E108P	• • RING - LOCKING 96906	aa-ad	1
130130	MS51991E208L	• • INSERT - SCREW 96906	aa-ad	1
140140	4P0128	• • BUSHING	aa-ac	2
150150	MS21209F4-15L	• • INSERT - WIRE, THREAD, 0.250 DIA 96906	aa-ad	1
160160	4P0128	• • BUSHING	aa-ad	1
170170	MS21209F4-15L	• • INSERT - WIRE, THREAD, 0.250 DIA 96906	aa-ad	1
180180	4P0128	• • BUSHING	aa-ad	1
190190	MS21209F4-15L	• • INSERT - WIRE, THREAD, 0.250 DIA 96906	aa-ad	1
200200	MS51990E106P	• • RING - LOCKING 96906	aa-ad	3
210210	MS51551C206-13	• • STUD 96906	aa-ad	3
220220	MS51990E105P	• • RING - LOCKING 96906	aa-ad	3
230230	MS51551C205-9	• • STUD 96906	aa-ad	3
240240	MS51990E106P	• • RING - LOCKING 96906	aa-ad	1
250250	MS51991E206L	• • INSERT - SCREW 96906	aa-ad	1
260260	4P0041	• • PIN - PULLER PRE SBE70-0636	*****	3
270270	MS51997E104P	• • RING - LOCKING 96906	aa-ad	3
280280	MS51992C644-17	• STUD 96906	aa-ad	6
290290	MS51990E105P	• • RING - LOCKING 96906	aa-ad	3
300300	MS51551C205-9	• • STUD 96906	aa-ad	3
310310	AS3124-10	• • PIN U1653	aa-ad	3
320320	AS3123-10	• • PLUG U1653	aa-ad	3
330330	MS21209F4-25	• • INSERT - WIRE, THREAD 96906	aa-ad	3
340340	MS51990E105P	• • RING - LOCKING 96906	aa-ad	3
350350	MS51551C205-9	• • STUD 96906	aa-ad	3
360360	4P0193	• • PIN	aa-ad	2
370370	4P0041	• • PIN - PULLER PRE SBE70-0636	*****	3
380380	MS51990E105P	• • RING - LOCKING 96906	aa-ad	16
390390	MS51551C205-12	• • STUD 96906	aa-ad	16
400400	MS51990E105P	• • RING - LOCKING 96906	aa-ad	1
410410	MS51551C205-10	• • STUD 96906	aa-ad	1
420420	MS51990E105P	• • RING - LOCKING 96906	aa-ad	2
430430	MS51551C205-9	• • STUD 96906	aa-ad	2
440440	MS51990E105P	• • RING - LOCKING 96906	aa-ad	2
450450	MS51551C205-9	• • STUD 96906	aa-ad	2
460460	MS51990E105P	• • RING - LOCKING 96906	aa-ad	3
470470	MS51551C205-9	• • STUD 96906	aa-ad	3
480480	MS51990E106P	• • RING - LOCKING 96906	aa-ad	2
490490	MS51991E206L	• • INSERT - SCREW 96906	aa-ad	2
500500	4P0041	• • PIN - PULLER PRE SBE70-0636	*****	3
510510	MS51990E108P	• • RING - LOCKING 96906	aa-ad	8
520520	MS51991E208L	• • INSERT - SCREW 96906	aa-ad	8
530530	MS51990E105P	• • RING - LOCKING 96906	aa-ad	3
540540	MS51551C205-9	• • STUD 96906	aa-ad	3
550550	4P0041	• • PIN - PULLER PRE SBE70-0636	*****	3
560560	MS51990E106P	• • RING - LOCKING 96906	aa-ad	2
570570	MS51991E206L	• • INSERT - SCREW 96906	aa-ad	2
580580	MS51990E105P	• • RING - LOCKING 96906	aa-ad	7
590590	MS51551C205-14	• • STUD 96906	aa-ad	7
600600	MS51990E105P	• • RING - LOCKING 96906	aa-ad	1
610610	MS51551C205-10	• • STUD 96906	aa-ad	1
620620	MS51990E105P	• • RING - LOCKING 96906	aa-ad	1
630630	MS51551C205-10	• • STUD 96906	aa-ad	1
640640	AS3124-10	• • PIN U1653	aa-ad	2
650650	AS3123-10	• • PLUG U1653	aa-ad	2
660660	MS51990E105P	• • RING - LOCKING 96906	aa-ad	3
670670	MS51551C205-9	• • STUD 96906	aa-ad	3
680680	4P0041	• • PIN - PULLER PRE SBE70-0636	*****	3
690690	MS51990E105P	• • RING - LOCKING 96906	aa-ad	8
700700	MS51551C205-13	• • STUD 96906	aa-ad	8
710710	MS51990E105P	• • RING - LOCKING 96906	aa-ad	2
720720	MS51551C205-11	• • STUD 96906	aa-ad	2
730730	MS51990E105P	• • RING - LOCKING 96906	aa-ad	1
740740	MS51551C205-10	• • STUD 96906	aa-ad	1
750750	MS51990E105P	• • RING - LOCKING 96906	aa-ad	1
760760	MS51551C205-10	• • STUD 96906	aa-ad	1
770770	MS51990E105P	• • RING - LOCKING 96906	aa-ad	4
780780	MS51551C205-12	• • STUD 96906	aa-ad	2
790790	MS51990E105P	• • RING - LOCKING 96906	aa-ad	1
800800	MS51551C205-10	• • STUD 96906	aa-ad	1
810810	MS51990E105P	• • RING - LOCKING 96906	aa-ad	3
820820	MS51551C205-9	• • STUD 96906	aa-ad	3
830830	MS51990E106P	• • RING - LOCKING 96906	aa-ad	2
840840	MS51991E206L	• • INSERT - SCREW 96906	aa-ad	2
850850	4P0041	• • PIN - PULLER	aa-ad	3
860860	MS51997E105P	• • RING - LOCKING 96906	aa-ad	4
870870	MS51992C645-28	• • STUD - LOCKED, IN-RING, LOCKED SERRATED, HIGH STRENGTH, 0.375-24 X 1.750 96906	aa-ad	4
880880	MS51990E105P	• • RING - LOCKING 96906	aa-ad	1
890890	MS51551C205-10	• • STUD 96906	aa-ad	1
900900	MS51990E105P	• • RING - LOCKING 96906	aa-ad	2
910910	MS51551C205-9	• • STUD 96906	aa-ad	2
920920	MS51990E105P	• • RING - LOCKING 96906	aa-ad	1
930930	MS51551C205-9	• • STUD 96906	aa-ad	1
940940	MS51990E105P	• • RING - LOCKING 96906	aa-ad	1
950950	MS51551C205-13	• • STUD 96906	aa-ad	1
-965965	4L0008	• • BUSHING - ,(VRS5051) A3460 POST SBE70-0321	*****	1
-966966	4L0043	• • BUSHING - ,(VRS5292) A3460 POST SBE70-0321	*****	1
-967967	4L0044	• • BUSHING - ,(VRS5285) A3460 POST SBE70-0321	*****	1
-968968	4L0045	• • BUSHING - ,(VRS5286) A3460 POST SBE70-0321	*****	1
-969969	4L0046	• • BUSHING - ,(VRS5282) A3460 POST SBE70-0321	*****	1
-970970	4L0048	• • BUSHING - ,(VRS5291) A3460 POST SBE70-0321	*****	1
-971971	4L0049	• • BUSHING - ,(VRS5274) A3460 POST SBE70-0321	*****	1
-972972	4L0050	• • BUSHING - ,(VRS5270) A3460 POST SBE70-0321	*****	1
-973973	4L0051	• • BUSHING - ,(VRS5423) A3460 POST SBE70-0321	*****	1
-974974	4L7000	• • BUSHING - ,(VRS5278) A3460 POST SBE70-0321	*****	1
-975975	4L0036	• • BUSHING - ,(VRS5125) A3460	*****	1
-976976	4L0037	• • BUSHING - ,(VRS5126) A3460	*****	1
-977977	4L0024	• • BUSHING - ,(VRS5262) A3460	*****	1
-978978	4L0028	• • BUSHING - ,(VRS5266) A3460	*****	1
-979979	4L0029	• • BUSHING - ,(VRS5277) A3460	*****	1
-980980	4L0031	• • BUSHING - ,(VRS5284) A3460	*****	1
-981981	4L0038	• • BUSHING - ,(VRS5107) A3460	*****	1
-982982	4L0052	• • BUSHING - ,(VRS5285) A3460	*****	1
-983983	4L0053	• • BUSHING - ,(VRS5420) A3460	*****	1
-984984	4L0054	• • BUSHING - ,(VRS5296) A3460	*****	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	A3460
Enterprise Name:	DELETED, SEE CAGE CODE U0406

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	4B0053
Part Name:	CASING - ANGLE GEARBOX, ASSEMBLY OF
Manufacturer Code:	0AM53

ENGINE-MAIN GEARBOX CASE AND FITTINGS

Export Control

Copyright

Applicability

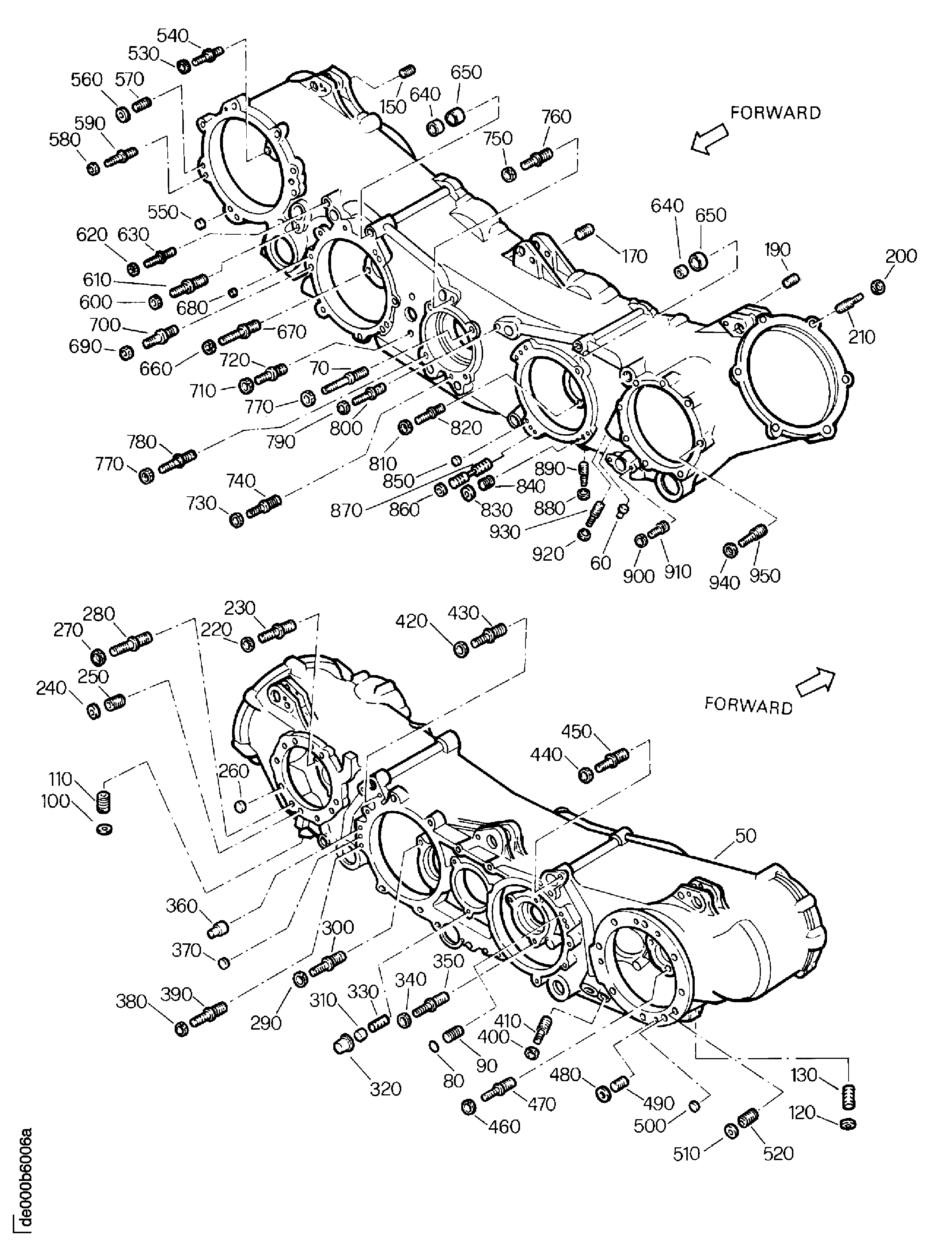

Figure: ENGINE-MAIN GEARBOX CASE AND FITTINGS

Main Gearbox Case And Fittings
