DMC:V2500-A1-72-60-22-01A-941A-DIssue No:002.00Issue Date:2018-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72602201 | ENGINE - STARTER DRIVE GEAR, ASSEMBLY, PRE SBE72-0054 | aa | ||
| SBE0054-01 | ENGINE - STARTER DRIVE GEAR, ASSEMBLY, PRE SBE70-0095 | ab | ||
| SBE0095-01 | ENGINE - STARTER DRIVE GEAR, ASSEMBLY, PRE SBE70-0225 | ac | ||
| SBE0225-01 | ENGINE - STARTER DRIVE GEAR, ASSEMBLY, PRE SBE70-0057 | ad | ||
| SBE0057-01 | ENGINE - STARTER DRIVE GEAR, ASSEMBLY, PRE SBE70-0124 | ae | ||
| SBE0124-01 | ENGINE - STARTER DRIVE GEAR, ASSEMBLY, PRE SBE72-0414 | af | ||
| SBE0414-01 | ENGINE - STARTER DRIVE GEAR, ASSEMBLY, PRE SBE72-0492 | ag | ||
| SBE0492-01 | ENGINE - STARTER DRIVE GEAR, ASSEMBLY, PRE SBE70-0950 | ah | ||
| SBE0950-01 | ENGINE - STARTER DRIVE GEAR, ASSEMBLY, PRE SBE70-0948 | ai | ||
| SBE0948-01 | ENGINE - STARTER DRIVE GEAR, ASSEMBLY | aj | ||
| SBE0645-01 | ENGINE - STARTER DRIVE GEAR, ASSEMBLY | ak | ||
| 080 | 4P0015 | • SEAL - HOUSING PRE SBE70-0124 | aa-ae | 1 |
| 082 | 4A0300 | • SEAL - ASSEMBLY OF POST SBE70-0124 | af-aj | 1 |
| 100 | 4W1246 | • BOLT - 0.250 DIA X 0.750 | aa-aj | 3 |
| 120 | MS9321-10 | • WASHER - FLAT, 0.500 X 0.276 X 0.062 96906 | aa-aj | 3 |
| 140 | AS3209-141 | • PACKING - PREFORMED U1653 PRE SBE70-0124 | aa-ae | 1 |
| 150 | AS3209-141 | • • PACKING - PREFORMED U1653 POST SBE70-0124 | af-aj | 1 |
| 155 | 4P0015 | • • SEAL - HOUSING POST SBE70-0124 | af-aj | 1 |
| 160 | 7T0472 | • SEAL PRE SBE70-0057 | aa-ae | 1 |
| 160A | 4T0230 | • SEAL - INTERCH. CONTROL DWG POST SBE70-0057 PRE SBE70-0124 | aa-ae | 1 |
| 160B | 7T0472 | • SEAL POST SBE70-0057 PRE SBE70-0124 | aa-ae | 1 |
| 160C | 7T0262 | • SEAL POST SBE70-0057 PRE SBE70-0124 | aa-ae | 1 |
| 160D | 7T0452 | • SEAL POST SBE70-0057 PRE SBE70-0124 | aa-ae | 1 |
| 160E | 4T0230 | • • SEAL - INTERCH. CONTROL DWG POST SBE70-0124 | aa-ae | 1 |
| 160E | 4T0230 | • • SEAL - INTERCH. CONTROL DWG POST SBE70-0124 | aa-ae | 1 |
| 160F | 7T0472 | • • SEAL POST SBE70-0124 | aa-ae | 1 |
| 160G | 7T0262 | • • SEAL POST SBE70-0124 | ae | 1 |
| 160H | 7T0452 | • • SEAL POST SBE70-0124 | ae | 1 |
| 180 | AS3209-130 | • PACKING - PREFORMED U1653 | aa-aj | 1 |
| 200 | 7T0473 | • RING - MATING PRE SBE72-0054 | aa-aj | 1 |
| 200A | 7T0273 | • RING - MATING POST SBE72-0054 PRE SBE70-0057 | aa-aj | 1 |
| 200B | 4T0233 | • RING - INTERCH. CONTROL DWG POST SBE70-0057 | aa-aj | 1 |
| -200C | 7T0273 | • RING - MATING POST SBE70-0057 | ae-aj | REF |
| -200D | 7T0453 | • RING - MATING POST SBE70-0057 | ae-aj | REF |
| -200E | 7T0473 | • RING - MATING POST SBE70-0057 | ae-aj | REF |
| 220 | 4T0071 | • BEARING - ROLLER PRE SBE70-0095 PRE SBE72-0645 | aa-ab | 1 |
| 220A | 4T0070 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ac-af | 1 |
| -220B | 4T0071 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ac-af | REF |
| -220C | 4T0073 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ac-af | REF |
| 220D | 4T0070 | • BEARING - ROLLER POST SBE72-0414 PRE SBE70-0948 PRE SBE72-0645 | ag-ai | 1 |
| 220E | 4T0071 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ag-aj | 1 |
| 220F | 4T0073 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ag-aj | 1 |
| 220G | 4T0074 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ag-aj | 1 |
| 220H | 4T0070 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | ac-af | 1 |
| -220J | 4T0071 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -220K | 4T0073 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -220L | 4T0074 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -220M | 4T0075 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -220N | 4T0076 | • BEARING, ROLLER POST SBE72-0645 | ak | REF |
| 240 | 4W0002 | • NUT - 0.250 DIA PRE SBE72-0492 | aa-ag | 3 |
| 240A | 4W0165 | • BOLT - 0.250 DIA X 0.688 POST SBE72-0492 | ah-aj | 3 |
| 260 | 4P0006 | • GEAR - STARTER DRIVE | aa-aj | 1 |
| 290 | AS3208-08 | • PACKING - PREFORMED U1653 POST SBE70-0225 | ad-aj | 1 |
| 292 | 4P0095 | • INSERT - SCREW POST SBE70-0225 | ad-aj | 1 |
| 300 | 4B0248 | • HOUSING - STARTER DRIVE PRE SBE72-0492 | aa-ah | 1 |
| 300A | 4B0349 | • HOUSING - STARTER, ASSEMBLY OF A3460 POST SBE72-0492 PRE SBE70-0950 | aa-ah | 1 |
| 300B | 4B0371 | • HOUSING - STARTER, ASSEMBLY OF A3460 POST SBE70-0950 | aa-aj | 1 |
| 301 | 4L0006 | • • BUSHING - ,(VRS5030) A3460 | ***** | 1 |
| 302 | 4L0008 | • • BUSHING - ,(VRS5051) A3460 | ***** | 1 |
| 303 | 4L0009 | • • BUSHING - ,(VRS5031) A3460 | ***** | 1 |
| 304 | 4L0010 | • • BUSHING - ,(VRS5028) A3460 | ***** | 1 |
| 305 | 4L0007 | • • BUSHING - ,(VRS5054) A3460 | ***** | 1 |
| 320 | MS51997E105P | • • RING - LOCKING 96906 | aa-aj | 6 |
| 340 | MS51992C645-17 | • • STUD 96906 | aa-aj | 6 |
| 360 | 4P0040 | • • INSERT PRE SBE72-0492 | aa-ag | 3 |
| 360A | 1518M33P01 | • • INSERT - SCREW THREAD 07482 POST SBE72-0492 PRE SBE70-0950 | ah | 3 |
| 360B | 4T0318 | • • INSERT - SCREW THREAD A3460 POST SBE70-0950 | ah-aj | 3 |
| 380 | MS51990E105P | • • RING - LOCKING 96906 PRE SBE72-0492 | aa-ag | 3 |
| 400 | MS51551C205-9 | • • STUD 96906 PRE SBE72-0492 | aa-ag | 3 |
| 400A | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | ah-aj | 3 |
| 420 | MS51990E106P | • • RING - LOCKING 96906 | aa-aj | 3 |
| 440 | MS51991E206L | • • INSERT - SCREW 96906 | aa-aj | 3 |
| 490 | 4P0187 | • SHROUD | aa-aj | 1 |
| 500 | 4T0091 | • BEARING - ROLLER PRE SBE70-0095 PRE SBE72-0645 | aa-ab | 1 |
| 500A | 4T0090 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ac-af | 1 |
| -500B | 4T0091 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 | ac-af | REF |
| -500C | 4T0093 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ac-af | REF |
| 500D | 4T0090 | • BEARING - ROLLER POST SBE72-0414 PRE SBE70-0948 PRE SBE72-0645 | ag-ai | 1 |
| 500E | 4T0091 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ag-aj | 1 |
| 500F | 4T0093 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ag-aj | 1 |
| 500G | 4T0094 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ag-aj | 1 |
| 500H | 4T0090 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | aj | 1 |
| -500J | 4T0091 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -500K | 4T0093 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -500L | 4T0094 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -500M | 4T0095 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -500N | 4T0096 | • BEARING, ROLLER POST SBE72-0645 | ak | REF |
| 520 | 4W0002 | • NUT - 0.250 DIA | aa-aj | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

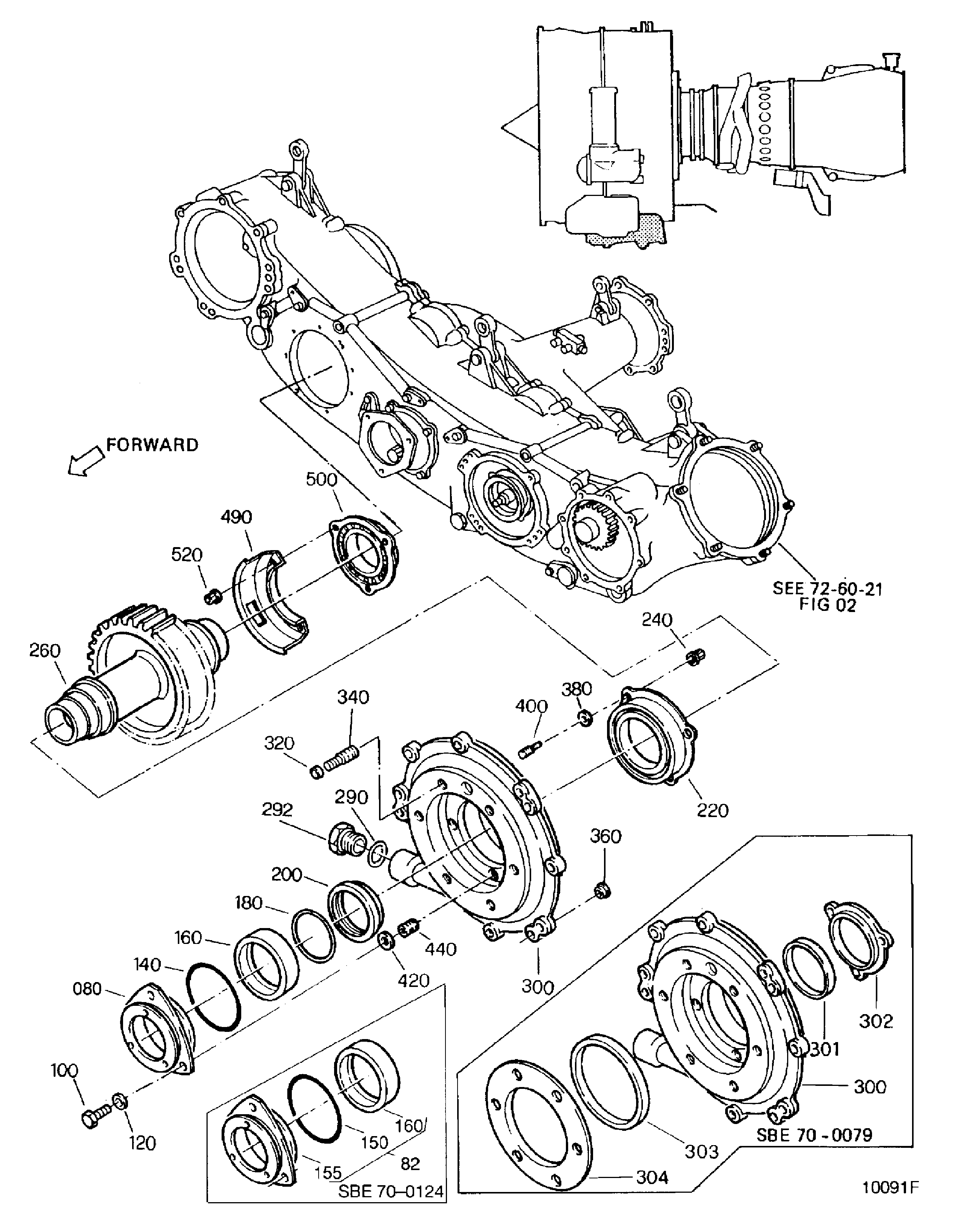

Figure: ENGINE-STARTER DRIVE GEAR ASSEMBLY
Starter Drive Gear Assembly
