DMC:V2500-A1-72-60-24-01A-941A-DIssue No:002.00Issue Date:2018-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72602401 | ENGINE - EXTENSION LAYSHAFT GEAR, PRE SBE70-0071 | aa | ||
| SBE0071-01 | ENGINE - EXTENSION LAYSHAFT GEAR, PRE SBE72-0048 | ab | ||
| SBE0048-01 | ENGINE - EXTENSION LAYSHAFT GEAR, PRE SBE70-0095 | ac | ||
| SBE0095-01 | ENGINE - EXTENSION LAYSHAFT GEAR, PRE SBE72-0070 | ad | ||
| SBE0070-01 | ENGINE - EXTENSION LAYSHAFT GEAR, PRE SBE72-0414 | ae | ||
| SBE0414-01 | ENGINE - EXTENSION LAYSHAFT GEAR, PRE SBE72-0492 | af | ||
| SBE0492-01 | ENGINE - EXTENSION LAYSHAFT GEAR, PRE SBE70-0950 | ag | ||
| SBE0950-01 | ENGINE - EXTENSION LAYSHAFT GEAR, PRE SBE70-0948 | ah | ||
| SBE0948-01 | ENGINE - EXTENSION LAYSHAFT GEAR | ai | ||
| SBE0645-01 | ENGINE - EXTENSION LAYSHAFT GEAR | aj | ||
| 100 | 4T0053 | • BEARING - ROLLER PRE SBE70-0095 PRE SBE72-0645 | aa-ac | 1 |
| 100A | 4T0050 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ad-ae | 1 |
| -100B | 4T0053 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ad-ae | REF |
| -100C | 4T0051 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ad-ae | REF |
| 100D | 4T0050 | • BEARING - ROLLER POST SBE72-0414 PRE SBE70-0948 PRE SBE72-0645 | af-ah | 1 |
| 100E | 4T0053 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | af-ai | 1 |
| 100F | 4T0051 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | af-ai | 1 |
| 100G | 4T0054 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | af-ai | 1 |
| 100H | 4T0050 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | ai | 1 |
| -100J | 4T0053 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | ai | REF |
| -100K | 4T0051 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | ai | REF |
| -100L | 4T0054 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | ai | REF |
| -100M | 4T0055 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | ai | REF |
| -100N | 4T0056 | • BEARING - ROLLER POST SBE72-0645 | aj | REF |
| 120 | 4W0002 | • NUT - 0.250 DIA PRE SBE72-0492 | aa-af | 3 |
| 120A | 4W0165 | • BOLT - 0.250 DIA X 0.688 POST SBE72-0492 | ag-ai | 3 |
| 140 | 4P0175 | • GEARSHAFT PRE SBE70-0071 | aa-ai | 1 |
| 140A | 4P0294 | • GEARSHAFT POST SBE70-0071 PRE SBE72-0070 | aa-ai | 1 |
| 140B | 4P0287 | • GEARSHAFT - INPUT DRIVE POST SBE72-0070 | aa-ai | 1 |
| 140C | 4B0285 | • GEARSHAFT - DRIVE, ASSEMBLY OF POST SBE72-0070 | ae-ai | 1 |
| 180 | 4B0143 | • HOUSING - PERMENANT MAGNET ALTERNATOR DRIVE, ASSEMBLY OF PRE SBE72-0048 | aa-ai | 1 |
| 180A | 4B0292 | • HOUSING - PERMENANT MAGNET ALTERNATOR DRIVE, ASSEMBLY OF POST SBE72-0048 PRE SBE72-0492 | aa-ai | 1 |
| 180B | 4B0352 | • HOUSING - PERMENANT MAGNET ALTERNATOR DRIVE, ASSEMBLY OF A3460 POST SBE72-0492 | aa-ai | 1 |
| 181 | 4L0001 | • • BUSHING - ,(VRS5066) A3460 | ***** | 1 |
| 182 | 4L0089 | • • BUSHING - ,(VRS5072) A3460 POST SBE70-0079 | ***** | 1 |
| 183 | 4L0003 | • • BUSHING - ,(VRS5074) A3460 | ***** | 1 |
| 184 | 4L0004 | • • BUSHING - ,(VRS5073) A3460 | ***** | 1 |
| 200 | MS51990E105P | • • RING - LOCKING 96906 PRE SBE72-0492 | aa-af | 4 |
| 200A | MS51990E105P | • • RING - LOCKING 96906 POST SBE70-0950 | ah-ai | 1 |
| 220 | MS51551C205-9 | • • STUD 96906 | aa-ai | 1 |
| 240 | MS51551C205-9 | • • STUD 96906 PRE SBE72-0492 | aa-af | 3 |
| 240A | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | ag-ai | 3 |
| 280 | 4T0043 | • BEARING - ROLLER PRE SBE70-0095 PRE SBE72-0645 | aa-ac | 1 |
| 280A | 4T0040 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ad-ae | 1 |
| -280B | 4T0043 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ad-ae | REF |
| -280C | 4T0041 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ad-ae | REF |
| 280D | 4T0040 | • BEARING - ROLLER POST SBE72-0414 PRE SBE70-0948 PRE SBE72-0645 | af-ah | 1 |
| 280E | 4T0043 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | af-ai | 1 |
| 280F | 4T0041 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | af-ai | 1 |
| 280G | 4T0044 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | af-ai | 1 |
| 280H | 4T0174 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | af-ai | 1 |
| 280J | 4T0040 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | ai | 1 |
| -280K | 4T0043 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | ai | REF |
| -280L | 4T0041 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | ai | REF |
| -280M | 4T0044 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | ai | REF |
| -280N | 4T0045 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | ai | REF |
| -280O | 4T0046 | • BEARING - ROLLER POST SBE72-0645 | aj | REF |
| 300 | AS3100-10 | • BOLT U1653 | aa-ai | 3 |
| 320 | 4T0210 | • WASHER | aa-ai | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

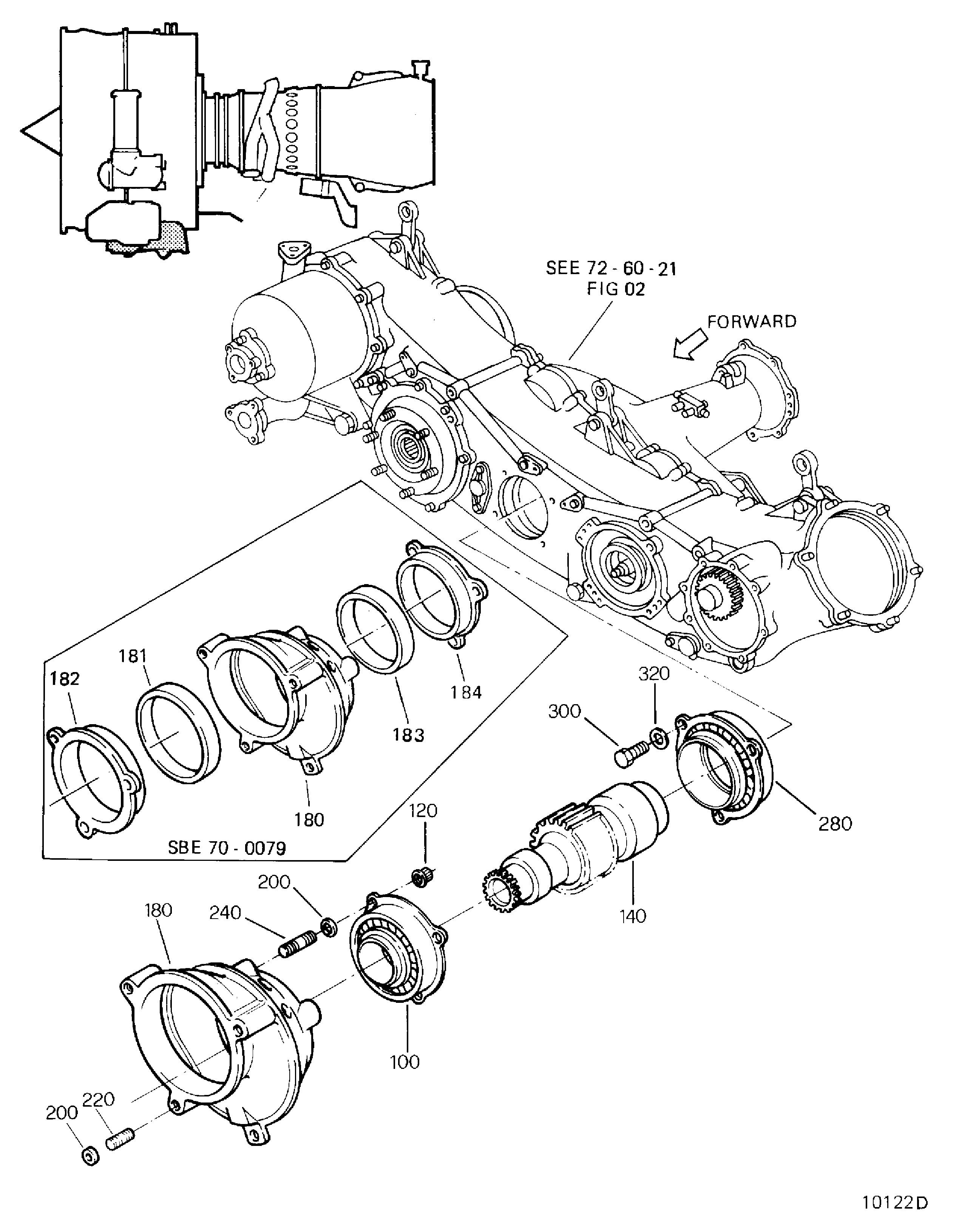

Figure: ENGINE-EXTENSION LAYSHAFT GEAR
Extension Layshaft Gear
