DMC:V2500-A1-72-60-27-01A-941A-DIssue No:003.00Issue Date:2018-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72602701 | ENGINE - STARTER IDLE GEAR, ASSEMBLY, PRE SBE70-0095 | aa | ||
| SBE0095-01 | ENGINE - STARTER IDLE GEAR, ASSEMBLY, PRE SBE70-0111 | ab | ||
| SBE0111-01 | ENGINE - STARTER IDLE GEAR, ASSEMBLY, PRE SBE72-0414 | ac | ||
| SBE0414-01 | ENGINE - STARTER IDLE GEAR, ASSEMBLY, PRE SBE72-0492 | ad | ||
| SBE0492-01 | ENGINE - STARTER IDLE GEAR, ASSEMBLY, PRE SBE70-0948 | ae | ||
| SBE0948-01 | ENGINE - STARTER IDLE GEAR, ASSEMBLY, PRE SBE70-0992 | af | ||
| SBE0992-01 | ENGINE - STARTER IDLE GEAR, ASSEMBLY | ag | ||
| SBE0645-01 | ENGINE - STARTER IDLE GEAR, ASSEMBLY | ah | ||
| 100 | 4T0061 | • BEARING - ROLLER PRE SBE70-0095 PRE SBE72-0645 | aa | 1 |
| 100A | 4T0060 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ab-ac | 1 |
| -100B | 4T0061 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ab-ac | REF |
| -100C | 4T0063 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ab-ac | REF |
| 100D | 4T0060 | • BEARING - ROLLER POST SBE72-0414 PRE SBE70-0948 PRE SBE72-0645 | ad-ae | 1 |
| 100E | 4T0061 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ad-ag | 1 |
| 100F | 4T0063 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ad-ag | 1 |
| 100G | 4T0064 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ad-ag | 1 |
| 100H | 4T0060 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | af-ag | 1 |
| -100J | 4T0061 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | af-ag | REF |
| -100K | 4T0063 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | af-ag | REF |
| -100L | 4T0064 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | af-ag | REF |
| -100M | 4T0065 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | af-ag | REF |
| -100N | 4T0066 | • BEARING - ROLLER A3460 POST SBE72-0645 | ah | REF |
| 120 | 4W0002 | • NUT - 0.250 DIA PRE SBE72-0492 | aa-ad | 3 |
| 120A | 4W0165 | • BOLT - 0.250 DIA X 0.688 POST SBE72-0492 | ae-ag | 3 |
| 140 | 4B0182 | • GEAR - IDLER, ASSEMBLY OF PRE SBE70-0992 | aa-af | 1 |
| 140A | 4B0182 | • GEAR - IDLER, ASSEMBLY OF POST SBE70-0992 | ag | 1 |
| -140B | 4P0336 | • GEAR - IDLER A3460 POST SBE70-0992 | ag | REF |
| 200 | 4P0188 | • SHROUD PRE SBE70-0111 | aa-ag | 1 |
| 200A | 4P0270 | • SHROUD POST SBE70-0111 | aa-ag | 1 |
| 220 | 4T0061 | • BEARING - ROLLER PRE SBE70-0095 PRE SBE72-0645 | aa | 1 |
| 220A | 4T0060 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ab-ac | 1 |
| -220B | 4T0061 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ab-ac | REF |
| -220C | 4T0063 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ab-ac | REF |
| 220D | 4T0060 | • BEARING - ROLLER POST SBE72-0414 PRE SBE70-0948 PRE SBE72-0645 | ad-ae | 1 |
| 220E | 4T0061 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ad-ag | 1 |
| 220F | 4T0063 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ad-ag | 1 |
| 220G | 4T0064 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ad-ag | 1 |
| 220H | 4T0060 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | af-ag | 1 |
| -220J | 4T0061 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | af-ag | REF |
| -220K | 4T0063 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | af-ag | REF |
| -220L | 4T0064 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | af-ag | REF |
| -220M | 4T0065 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | af-ag | REF |
| -220N | 4T0066 | • BEARING - ROLLER A3460 POST SBE72-0645 | ah | REF |
| 240 | 4W0002 | • NUT - 0.250 DIA | aa-ag | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

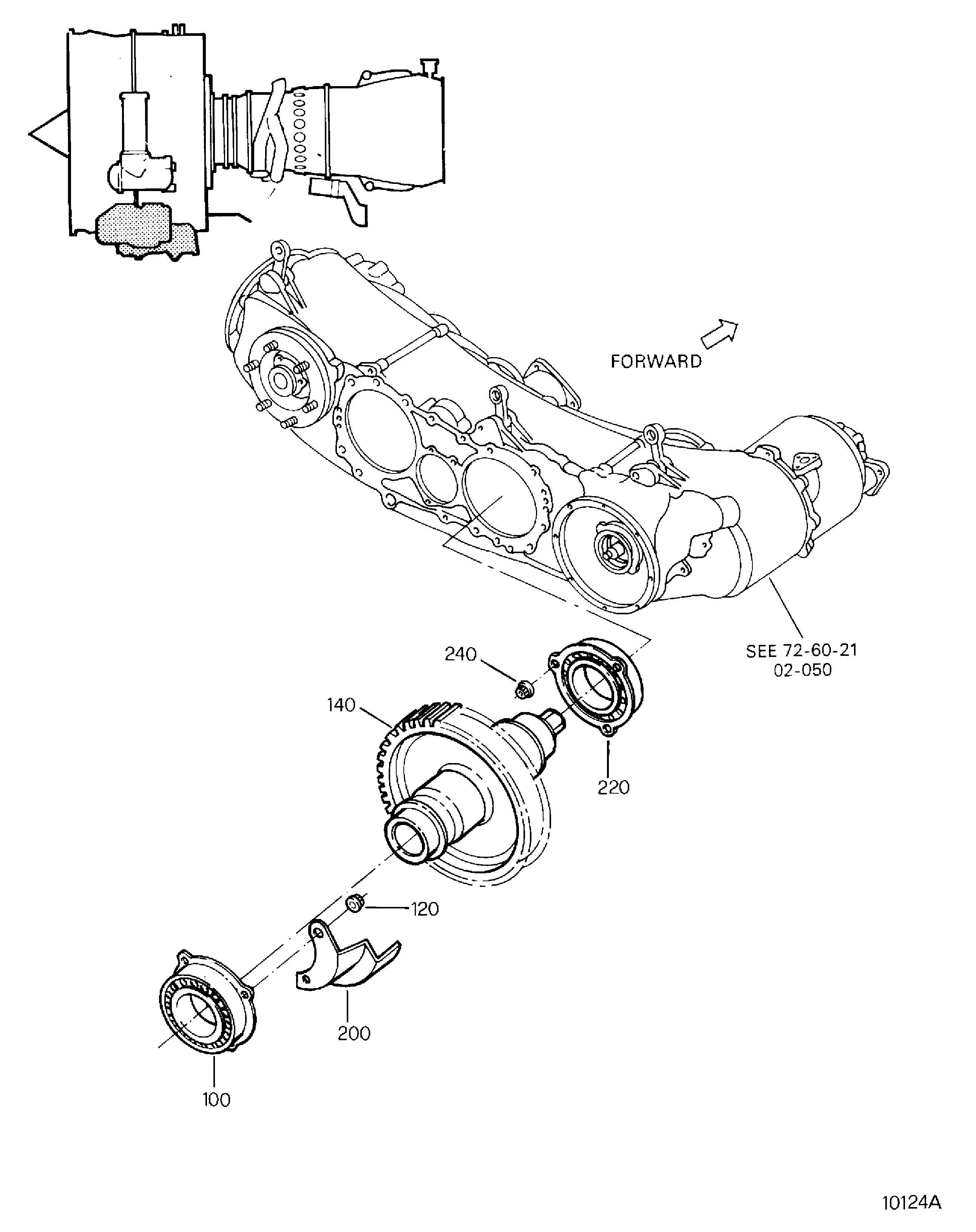

Figure: ENGINE-STARTER IDLE GEAR ASSEMBLY
Gear Starter Idler
