DMC:V2500-A1-72-60-28-01A-941A-DIssue No:002.00Issue Date:2018-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72602801 | ENGINE - IDG DRIVE GEAR ASSEMBLY, PRE SBE72-0012 | aa | ||
| SBE0012-01 | ENGINE - IDG DRIVE GEAR ASSEMBLY, PRE SBE72-0054 | ab | ||
| SBE0054-01 | ENGINE - IDG DRIVE GEAR ASSEMBLY, PRE SBE72-0086 | ac | ||
| SBE0086-01 | ENGINE - IDG DRIVE GEAR ASSEMBLY, PRE SBE70-0095 | ad | ||
| SBE0095-01 | ENGINE - IDG DRIVE GEAR ASSEMBLY, PRE SBE70-0057 | ae | ||
| SBE0057-01 | ENGINE - IDG DRIVE GEAR ASSEMBLY, PRE SBE70-0124 | af | ||
| SBE0124-01 | ENGINE - IDG DRIVE GEAR ASSEMBLY, PRE SBE72-0153 | ag | ||
| SBE0153-01 | ENGINE - IDG DRIVE GEAR ASSEMBLY, PRE SBE72-0414 | ah | ||
| SBE0414-01 | ENGINE - IDG DRIVE GEAR ASSEMBLY, PRE SBE72-0492 | ai | ||
| SBE0492-01 | ENGINE - IDG DRIVE GEAR ASSEMBLY, PRE SBE70-0950 | aj | ||
| SBE0950-01 | ENGINE - IDG DRIVE GEAR ASSEMBLY, PRE SBE70-0948 | ak | ||
| SBE0948-01 | ENGINE - IDG DRIVE GEAR ASSEMBLY | al | ||
| SBE0645-01 | ENGINE - IDG DRIVE GEAR ASSEMBLY | am | ||
| 090 | 4A0163 | • PLUG - SHAFT IDGS DRIVE, ASSEMBLY OF PRE SBE70-0225 | ***** | 1 |
| 110 | AS3209-129 | • • PACKING - PREFORMED U1653 PRE SBE70-0225 | ***** | 1 |
| 130 | 4W0004 | • • NUT - 0.375 DIA Optional Part 4W0004 PRE SBE70-0225 | ***** | 1 |
| 150 | 4P0167 | • • PLUG - SHAFT PRE SBE70-0225 | ***** | 1 |
| 170 | 4P0137 | • • PACKING - PREFORMED PRE SBE70-0225 | ***** | 1 |
| 190 | 4P0166 | • • RING - RETAINING PRE SBE70-0225 | ***** | 1 |
| 210 | 4P0164 | • • RETAINER - PLUG SHAFT PRE SBE70-0225 | ***** | 1 |
| 230 | 4P0168 | • HOUSING - SEAL PRE SBE70-0124 | aa-af | 1 |
| 232 | 4A0301 | • SEAL - ASSEMBLY OF POST SBE70-0124 | ag-al | 1 |
| 250 | 4W1246 | • BOLT - 0.250 DIA X 0.750 | aa-al | 3 |
| 270 | MS9321-10 | • WASHER - FLAT, 0.500 X 0.276 X 0.062 96906 | aa-al | 3 |
| 290 | AS3209-151 | • PACKING - PREFORMED U1653 PRE SBE70-0124 | aa-af | 1 |
| 302 | AS3209-151 | • • PACKING - PREFORMED U1653 POST SBE70-0124 | ag-al | 1 |
| 306 | 4P0168 | • • HOUSING - SEAL POST SBE70-0124 | ag-al | 1 |
| 310 | 7T0476 | • SEAL PRE SBE70-0057 | aa-af | 1 |
| 310A | 4T0232 | • SEAL - INTERCH. CONTROL DWG POST SBE70-0057 PRE SBE70-0124 | aa-af | 1 |
| -310B | 7T0476 | • SEAL POST SBE70-0057 PRE SBE70-0124 | aa-af | REF |
| -310C | 7T0266 | • SEAL POST SBE70-0057 PRE SBE70-0124 | aa-af | REF |
| -310D | 7T0456 | • SEAL POST SBE70-0057 PRE SBE70-0124 | aa-af | REF |
| 310E | 4T0232 | • • SEAL - INTERCH. CONTROL DWG POST SBE70-0124 | aa-af | 1 |
| -310F | 7T0476 | • • SEAL POST SBE70-0124 | aa-af | REF |
| -310G | 7T0266 | • • SEAL POST SBE70-0124 | af | REF |
| -310H | 7T0456 | • • SEAL POST SBE70-0124 | af | REF |
| 330 | AS3209-138 | • PACKING - PREFORMED U1653 | aa-al | 1 |
| 350 | 7T0477 | • RING - MATING PRE SBE72-0054 | aa-al | 1 |
| 350A | 7T0277 | • RING - MATING POST SBE72-0054 PRE SBE70-0057 | aa-al | 1 |
| 350B | 4T0235 | • RING - INTERCH. CONTROL DWG POST SBE70-0057 | aa-al | 1 |
| -350C | 7T0277 | • RING - MATING POST SBE70-0057 | af-al | REF |
| -350D | 7T0457 | • RING - MATING POST SBE70-0057 | af-al | REF |
| -350E | 7T0477 | • RING - MATING POST SBE70-0057 | af-al | REF |
| 370 | 7T7100 | • BEARING - ROLLER PRE SBE70-0095 | aa-al | 1 |
| 370A | 7T0110 | • BEARING - ROLLER POST SBE70-0095 | aa-al | 1 |
| -370B | 7T7100 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 | aa-al | REF |
| -370C | 7T7102 | • BEARING POST SBE70-0095 PRE SBE72-0414 | aa-al | REF |
| 370D | 4T0165 | • BEARING - ROLLER A3460 POST SBE72-0414 | ai-al | 1 |
| 370E | 7T7100 | • BEARING - ROLLER POST SBE72-0414 | ai-al | 1 |
| 370F | 7T7102 | • BEARING POST SBE72-0414 | ai-al | 1 |
| 370G | 4T0168 | • BEARING - ROLLER A3460 POST SBE72-0414 | ai-al | 1 |
| 390 | 4W0002 | • NUT - 0.250 DIA PRE SBE72-0492 | aa-ai | 3 |
| 390A | 4W0165 | • BOLT - 0.250 DIA X 0.688 POST SBE72-0492 | aj-al | 3 |
| 410 | 4P0207 | • GEAR - IDG DRIVE | aa-al | 1 |
| 450 | 4B0161 | • HOUSING - INTEGRATED DRIVE GENERATOR, ASSEMBLY OF PRE SBE72-0012 | aa-ac | 1 |
| 450A | 4B0271 | • HOUSING - INTEGRATED DRIVE GENERATOR, ASSEMBLY OF POST SBE72-0012 PRE SBE72-0086 | aa-ac | 1 |
| 450B | 4B0281 | • HOUSING - INTEGRATED DRIVE GENERATOR, ASSEMBLY OF POST SBE72-0086 PRE SBE72-0153 | aa-ag | 1 |
| 450C | 4B0312 | • HOUSING - INTEGRATED DRIVE GENERATOR, ASSEMBLY OF POST SBE72-0153 PRE SBE72-0492 | ah-aj | 1 |
| 450D | 4B0348 | • HOUSING - INTEGRATED DRIVE GENERATOR, ASSEMBLY OF A3460 POST SBE72-0492 PRE SBE70-0950 | ah-aj | 1 |
| 450E | 4B0370 | • HOUSING - INTEGRATED DRIVE GENERATOR, ASSEMBLY OF A3460 POST SBE70-0950 | ah-al | 1 |
| 451 | 4L0001 | • • BUSHING - ,(VRS5066) A3460 | ***** | 1 |
| 452 | 4L0013 | • • BUSHING - ,(VRS5065) A3460 | ***** | 1 |
| 453 | 4L0014 | • • BUSHING - ,(VRS5064) A3460 | ***** | 1 |
| 454 | 4L0015 | • • BUSHING - ,(VRS5063) A3460 | ***** | 1 |
| 455 | 4L0016 | • • BUSHING - ,(VRS5062) A3460 | ***** | 1 |
| 470 | MS51990E105P | • • RING - LOCKING 96906 PRE SBE72-0492 | aa-ai | 3 |
| 490 | MS51551C205-9 | • • STUD 96906 PRE SBE72-0492 | aa-ai | 3 |
| 490A | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | aj-al | 3 |
| 510 | MS51990E106P | • • RING - LOCKING 96906 | aa-al | 3 |
| 530 | MS51991E206L | • • INSERT - SCREW 96906 | aa-al | 3 |
| 550 | 4P0040 | • • INSERT PRE SBE72-0492 | aa-ai | 3 |
| 550A | 1518M33P01 | • • INSERT - SCREW THREAD 07482 POST SBE72-0492 PRE SBE70-0950 | aj | 3 |
| 550B | 4T0318 | • • INSERT - SCREW THREAD A3460 POST SBE70-0950 | aj-al | 3 |
| 590 | 4T0071 | • BEARING - ROLLER PRE SBE70-0095 PRE SBE72-0645 | aa-ad | 1 |
| 590A | 4T0070 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ae-ah | 1 |
| -590B | 4T0071 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ae-ah | REF |
| -590C | 4T0073 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ae-ah | REF |
| 590D | 4T0070 | • BEARING - ROLLER POST SBE72-0414 PRE SBE70-0948 | ai-ak | 1 |
| 590E | 4T0071 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ai-al | 1 |
| 590F | 4T0073 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ai-al | 1 |
| 590G | 4T0074 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ai-al | 1 |
| 590H | 4T0070 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | al | 1 |
| -590J | 4T0071 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | al | REF |
| -590K | 4T0073 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | al | REF |
| -590L | 4T0074 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | al | REF |
| -590M | 4T0075 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | al | REF |
| -590N | 4T0076 | • BEARING, ROLLER POST SBE72-0645 | am | REF |
| 610 | 4W0002 | • NUT - 0.250 DIA | aa-al | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

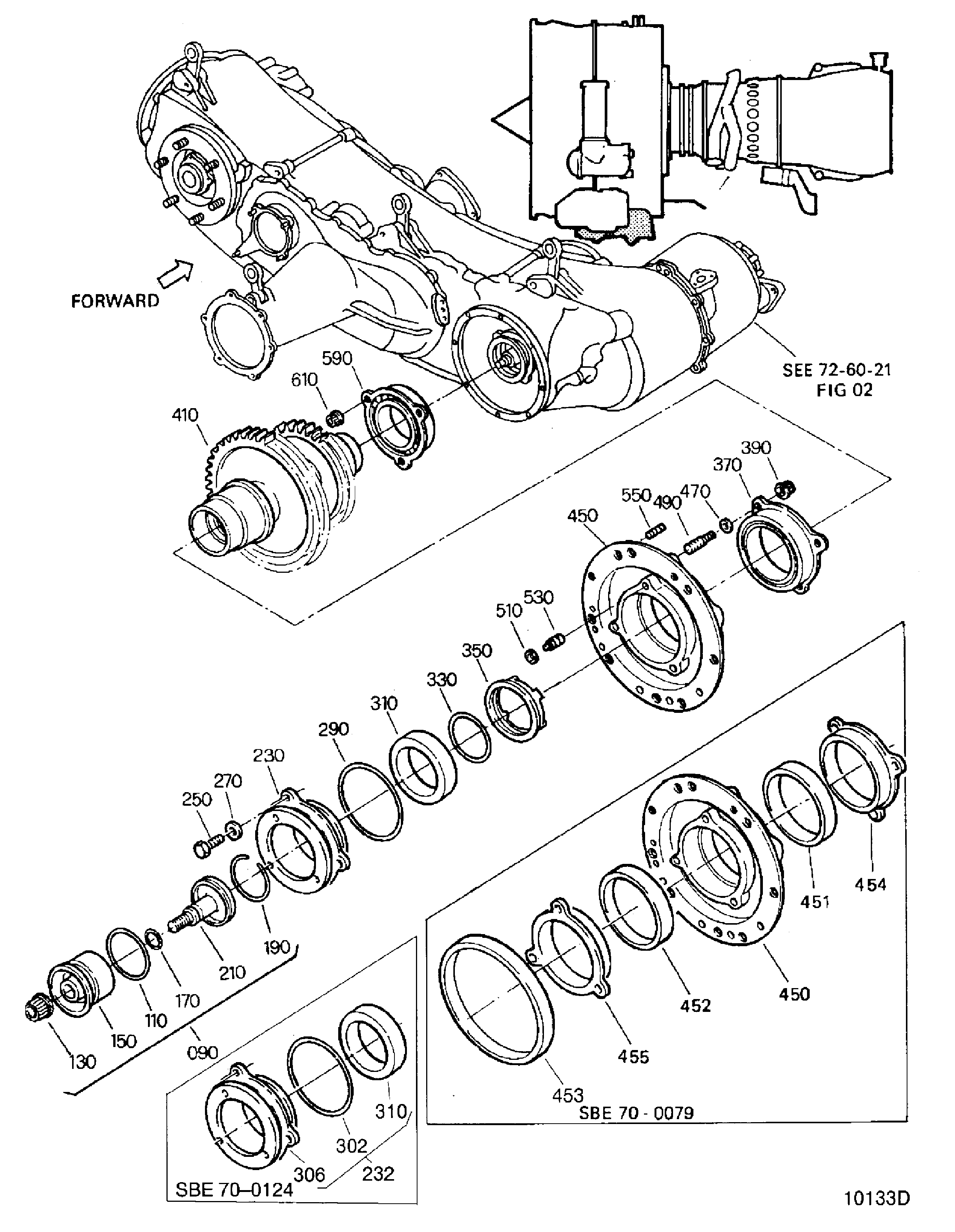

Figure: ENGINE-IDG DRIVE GEAR ASSEMBLY
Idg Drive Gear Assembly
