| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72602901 | ENGINE - DEOILER GEAR AND IMPELLER, PRE SBE79-0008 | aa | ||
| SBE0008-01 | ENGINE - DEOILER GEAR AND IMPELLER, PRE SBE72-0054 | ab | ||
| SBE0054-01 | ENGINE - DEOILER GEAR AND IMPELLER, PRE SBE70-0095 | ac | ||
| SBE0095-01 | ENGINE - DEOILER GEAR AND IMPELLER, PRE SBE70-0057 | ad | ||
| SBE0057-01 | ENGINE - DEOILER GEAR AND IMPELLER, PRE SBE70-0435 | ae | ||
| SBE0435-01 | ENGINE - DEOILER GEAR AND IMPELLER, PRE SBE72-0244 | af | ||
| SBE0244-01 | ENGINE - DEOILER GEAR AND IMPELLER, PRE SBE72-0299 | ag | ||
| SBE0299-01 | ENGINE - DEOILER GEAR AND IMPELLER, PRE SBE72-0414 | ah | ||
| SBE0414-01 | ENGINE - DEOILER GEAR AND IMPELLER, PRE SBE72-0492 | ai | ||
| SBE0492-01 | ENGINE - DEOILER GEAR AND IMPELLER | aj | ||
| SBE0645-01 | ENGINE - DEOILER GEAR AND IMPELLER | ak | ||
| 090 | AS3209-135 | • PACKING - PREFORMED U1653 | aa-aj | 1 |
| 110 | 7T0475 | • RING - MATING PRE SBE72-0054 | aa-aj | 1 |
| 110A | 7T0275 | • RING - MATING POST SBE72-0054 PRE SBE70-0057 | aa-aj | 1 |
| 110B | 4T0234 | • RING - ITERCH, CONTROL DWG POST SBE70-0057 | aa-aj | 1 |
| -110C | 7T0275 | • RING - MATING POST SBE70-0057 | ae-aj | REF |
| -110D | 7T0455 | • RING - MATING POST SBE70-0057 | ae-aj | REF |
| -110E | 7T0475 | • RING - MATING POST SBE70-0057 | ae-aj | REF |
| 130 | 7T0343 | • SEGMENT | aa-aj | 1 |
| 150 | 7T0391 | • WASHER - LOCK | aa-aj | 1 |
| 170 | 7T0390 | • NUT | aa-aj | 1 |
| 190 | 4B7051 | • IMPELLOR - ASSEMBLY OF PRE SBE79-0008 | aa-aj | 1 |
| 190A | 4B7257 | • IMPELLOR - ASSEMBLY OF POST SBE79-0008 PRE SBE70-0435 | aa-aj | 1 |
| 190B | 4B7326 | • DISC - IMPELLOR ASSEMBLY OF POST SBE70-0435 | aa-aj | 1 |
| 250 | 4T0081 | • BEARING - BALL PRE SBE70-0095 | aa-af | 1 |
| 250A | 4T0080 | • BEARING - BALL POST SBE70-0095 PRE SBE72-0244 | aa-af | 1 |
| -250B | 4T0081 | • BEARING - BALL POST SBE70-0095 PRE SBE72-0244 | aa-af | REF |
| -250C | 4T0083 | • BEARING - BALL POST SBE70-0095 PRE SBE72-0244 | aa-af | REF |
| 250D | 4T0085 | • BEARING - BALL A3460 POST SBE72-0244 PRE SBE72-0414 PRE SBE72-0645 | ag-ah | 1 |
| -250E | 4T0087 | • BEARING - BALL A3460 POST SBE72-0244 PRE SBE72-0414 PRE SBE72-0645 | ag-ah | REF |
| -250F | 4T0088 | • BEARING - BALL A3460 POST SBE72-0244 PRE SBE72-0414 PRE SBE72-0645 | ag-ah | REF |
| 250G | 4T0085 | • BEARING - BALL A3460 POST SBE72-0414 PRE SBE72-0645 | ai-aj | 1 |
| -250H | 4T0087 | • BEARING - BALL A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ai-aj | REF |
| -250J | 4T0088 | • BEARING - BALL A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ai-aj | REF |
| -250K | 4T0089 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ai-aj | REF |
| 250L | 4T0085 | • BEARING - BALL A3460 PRE SBE72-0645 | aa-aj | 1 |
| -250M | 4T0087 | • BEARING - BALL A3460 PRE SBE72-0645 | aa-aj | REF |
| -250N | 4T0088 | • BEARING - BALL A3460 PRE SBE72-0645 | aa-aj | REF |
| -250P | 4T0089 | • BEARING - ROLLER A3460 PRE SBE72-0645 | aa-aj | REF |
| -250Q | 4T0084 | • BEARING - ROLLER POST SBE72-0645 | ak | REF |
| 270 | 4W0002 | • NUT - 0.250 DIA PRE SBE72-0244 | aa-af | 3 |
| 270A | 4W0002 | • NUT - 0.250 DIA POST SBE72-0244 PRE SBE72-0492 | ag-ai | 6 |
| 270B | 4W0165 | • BOLT - 0.250 DIA X 0.688 POST SBE72-0492 | aj | 6 |
| 290 | 4B0004 | • GEAR - DEOILER, ASSEMBLY OF | aa-aj | 1 |
| 310 | 4P0119 | • • PIN - SQUARE HEAD | aa-aj | 2 |
| 330 | 4P0245 | • • PLUG - EXPANSION | aa-aj | 1 |
| 390 | 4B0088 | • HOUSING - DEOILER, ASSEMBLY OF PRE SBE72-0244 | aa-af | 1 |
| 390A | 4B0315 | • HOUSING - DEOILER, ASSEMBLY OF A3460 POST SBE72-0244 PRE SBE72-0492 | ag-aj | 1 |
| 390B | 4B0347 | • HOUSING - DEOILER, ASSEMBLY OF A3460 POST SBE72-0492 | ag-aj | 1 |
| 391 | 4L0018 | • • BUSHING - ,(VRS5086) A3460 | ***** | 1 |
| 392 | 4L0019 | • • BUSHING - ,(VRS5087) A3460 | ***** | 1 |
| 410 | MS51990E105P | • • RING - LOCKING 96906 PRE SBE70-0244 | aa-af | 3 |
| 410A | MS51990E105P | • • RING - LOCKING 96906 POST SBE72-0244 PRE SBE72-0492 | ag-ai | 6 |
| 430 | MS51551C205-9 | • • STUD 96906 PRE SBE72-0244 | aa-af | 3 |
| 430A | MS51551C205-9 | • • STUD 96906 POST SBE72-0244 PRE SBE72-0492 | ag-ai | 6 |
| 430B | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | aj-aj | 6 |
| 450 | 4P0040 | • • INSERT | aa-aj | 3 |
| 490 | 4T0101 | • BEARING - ROLLER PRE SBE70-0095 | aa-ag | 1 |
| 490A | 4T0100 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0299 | aa-ag | 1 |
| -490B | 4T0101 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0299 | aa-ah | REF |
| -490C | 4T0103 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0299 | aa-ah | REF |
| 490D | 4T0105 | • BEARING - ROLLER A3460 POST SBE72-0299 PRE SBE72-0414 | aa-ah | 1 |
| 490E | 4T0106 | • BEARING - ROLLER A3460 POST SBE72-0299 PRE SBE72-0414 | aa-ah | 1 |
| 490F | 4T0108 | • BEARING - ROLLER A3460 POST SBE72-0299 PRE SBE72-0414 | aa-ah | 1 |
| 490G | 4T0105 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0645 | ai-aj | 1 |
| 490H | 4T0106 | • BEARING - ROLLER A3460 POST SBE72-0414 | ah | 1 |
| 490J | 4T0108 | • BEARING - ROLLER A3460 POST SBE72-0414 | ah | 1 |
| 490K | 4T0109 | • BEARING - ROLLER A3460 POST SBE72-0414 | ad-ag | 1 |
| -490L | 4T0115 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0645 | ai-aj | REF |
| -490M | 4T0107 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0645 | ai-aj | REF |
| -490N | 4T0116 | • BEARING - ROLLER POST SBE72-0645 | ak | REF |
| 510 | 4W0002 | • NUT - 0.250 DIA | aa-aj | 3 |
| 510A | 4W0165 | • BOLT - 0.250 DIA X 0.688 | aa-aj | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

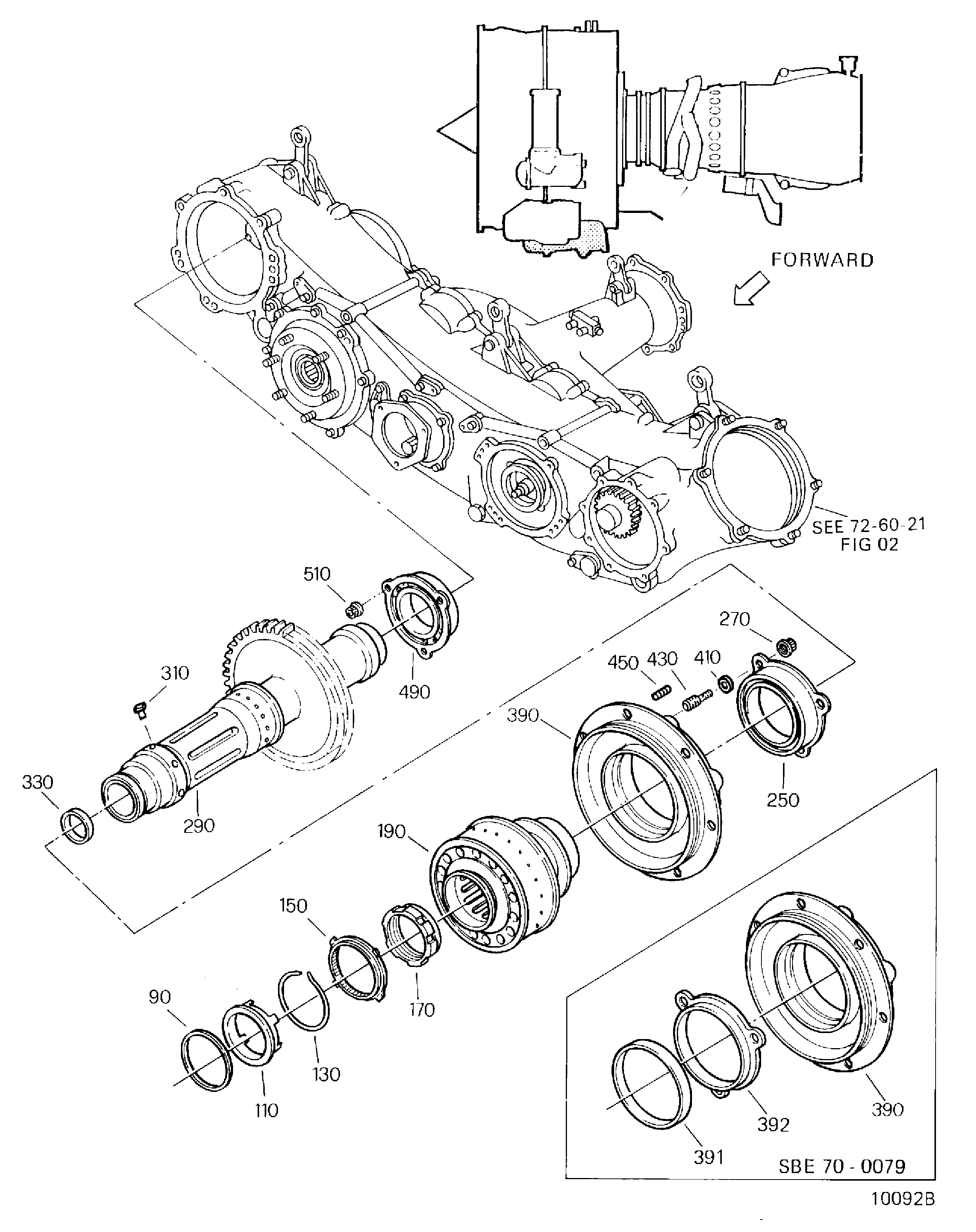

Figure: ENGINE-DEOILER GEAR AND IMPELLER
Deoiler Gear And Impeller
