DMC:V2500-A1-72-60-31-01A-941A-DIssue No:003.00Issue Date:2018-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72603101 | ENGINE - DEOILER CASE AND COVER, PRE SBE70-0110 | aa | ||
| SBE0110-01 | ENGINE - DEOILER CASE AND COVER, PRE SBE70-0057 | ab | ||
| SBE0057-01 | ENGINE - DEOILER CASE AND COVER, PRE SBE70-0124 | ac | ||
| SBE0124-01 | ENGINE - DEOILER CASE AND COVER, PRE SBE72-0183 | ad | ||
| SBE0183-01 | ENGINE - DEOILER CASE AND COVER, PRE SBE72-0504 | ae | ||
| SBE0504-01 | ENGINE - DEOILER CASE AND COVER | af | ||
| 090 | 4B7049 | • CASING - AIR PORT, ASSEMBLY OF PRE SBE70-0124 | aa-ac | 1 |
| 092 | 4A0302 | • SEAL - ASSEMBLY OF POST SBE70-0124 PRE SBE72-0183 | ad | 1 |
| 092A | 4A0401 | • SEAL - ASSEMBLY OF POST SBE72-0183 | ae-af | 1 |
| 100 | 4W0167 | • BOLT - 0.250 DIA X .812 | aa-af | 3 |
| 103 | MS9321-10 | • WASHER - FLAT, 0.500 X 0.276 X 0.062 96906 | aa-af | 3 |
| 107 | AS3209-143 | • PACKING - PREFORMED U1653 PRE SBE70-0124 | aa-ac | 1 |
| 120 | AS3209-143 | • • PACKING - PREFORMED U1653 POST SBE70-0124 | ad-af | 1 |
| 125 | 4B7049 | • • CASING - AIR PORT, ASSEMBLY OF POST SBE70-0124 | ad-af | 1 |
| 130 | MS21209F4-15L | • • INSERT - WIRE, THREAD, 0.250 DIA 96906 PRE SBE70-0124 | aa-ac | 3 |
| 130A | MS21209F4-15L | • • • INSERT - WIRE, THREAD, 0.250 DIA 96906 POST SBE70-0124 | ad-af | 1 |
| 150 | 7T0474 | • SEAL PRE SBE70-0057 | aa-ac | 1 |
| 150A | 4T0231 | • SEAL - INTERCH. CONTROL DWG POST SBE70-0057 PRE SBE70-0124 | aa-ac | 1 |
| -150B | 7T0474 | • SEAL POST SBE70-0057 PRE SBE70-0124 | aa-ac | REF |
| -150C | 7T0264 | • SEAL POST SBE70-0057 PRE SBE70-0124 | aa-ac | REF |
| -150D | 7T0454 | • SEAL POST SBE70-0057 PRE SBE70-0124 | aa-ac | REF |
| 150E | 4T0231 | • • SEAL - INTERCH. CONTROL DWG POST SBE70-0124 PRE SBE72-0183 | aa-ac | 1 |
| -150F | 7T0474 | • • SEAL POST SBE70-0124 PRE SBE70-0124 | aa-ac | REF |
| -150G | 7T0264 | • • SEAL POST SBE70-0124 PRE SBE70-0124 | ac | REF |
| -150H | 7T0454 | • • SEAL POST SBE70-0124 PRE SBE70-0124 | ac | REF |
| 150J | 4T0277 | • • SEAL POST SBE72-0183 | ae-af | 1 |
| 170 | 4B7153 | • CASING - DE-OILER, ASSEMBLY OF PRE SBE70-0110 | aa-ae | 1 |
| 170A | 4B7262 | • CASING - DE-OILER, ASSEMBLY OF POST SBE70-0110 PRE SBE72-0504 | aa-ae | 1 |
| 170B | 4B7361 | • CASING - DE-OILER, ASSEMBLY OF POST SBE72-0504 | af | 1 |
| 180 | MS21209F4-15L | • • INSERT - WIRE, THREAD, 0.250 DIA 96906 | aa-af | 12 |
| 200 | 4B7078 | • • STRAINER - ELEMENT, ASSEMBLY OF | aa-af | 1 |
| -260 | 4W2627 | • WIRE - THRUST Optional Part 4W2627 | aa-af | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

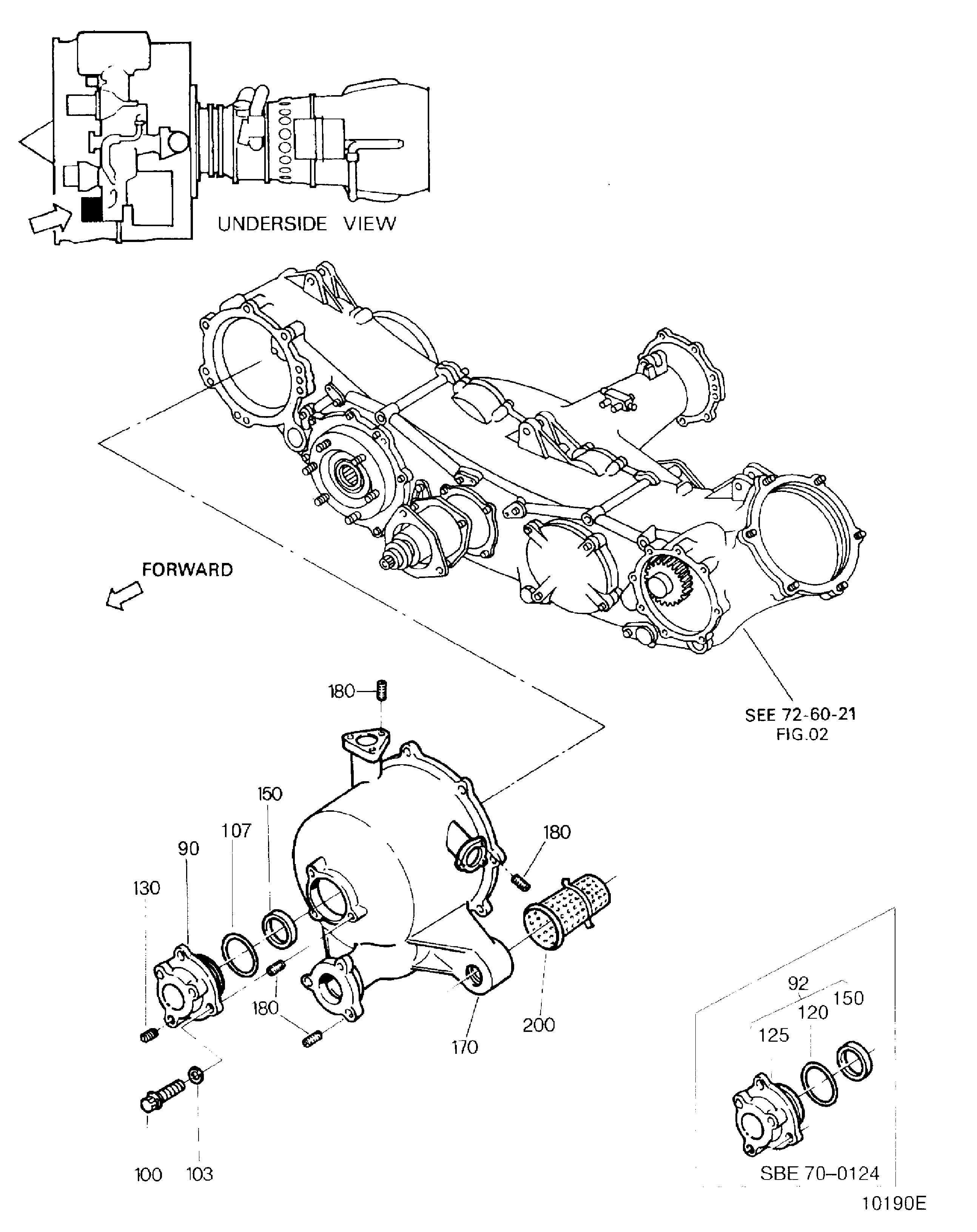

Figure: ENGINE-DEOILER CASE AND COVER
Deoiler Case And Cover
