DMC:V2500-A1-72-60-40-01A-941A-DIssue No:002.00Issue Date:2018-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72604001 | ENGINE - ANGLE GEARBOX ASSEMBLY, PRE SBE72-0012 | aa | ||
| SBE0012-01 | ENGINE - ANGLE GEARBOX ASSEMBLY, PRE SBE70-0040 | ab | ||
| SBE0040-01 | ENGINE - ANGLE GEARBOX ASSEMBLY, PRE SBE71-0107 | ac | ||
| SBE0107-01 | ENGINE - ANGLE GEARBOX ASSEMBLY, PRE SBE70-0153 | ad | ||
| SBE0153-01 | ENGINE - ANGLE GEARBOX ASSEMBLY, PRE SBE72-0482 | ae | ||
| SBE0482-01 | ENGINE - ANGLE GEARBOX ASSEMBLY, PRE SBE72-0492 | af | ||
| SBE0492-01 | ENGINE - ANGLE GEARBOX ASSEMBLY, PRE SBE70-0950 | ag | ||
| SBE0950-01 | ENGINE - ANGLE GEARBOX ASSEMBLY | ah | ||
| -001 | 4A0074 | GEARBOX - ANGLE, ASSEMBLY OF PRE SBE72-0012 | aa-ag | 1 |
| 001A | 4A0074 | GEARBOX - ANGLE, ASSEMBLY OF POST SBE72-0012 PRE SBE72-0482 | aa-ag | 1 |
| 001B | 4A0074 | GEARBOX - ANGLE, ASSEMBLY OF POST SBE72-0482 PRE SBE72-0492 | aa-ag | 1 |
| 001C | 4A0075 | GEARBOX - ANGLE, ASSEMBLY OF A3460 POST SBE72-0492 PRE SBE70-0950 | aa-ag | 1 |
| 001D | 4A0075 | GEARBOX - ANGLE, ASSEMBLY OF A3460 POST SBE70-0950 | ag-ah | 1 |
| 055 | 4W0002 | • NUT - 0.250 DIA PRE SBE72-0492 | aa-af | 6 |
| 055A | 4W0170 | • BOLT - 0.250 DIA X 1.000 POST SBE72-0492 | ag-ah | 6 |
| 056 | 740-5709-507 | • BRACKET 51563 | aa-ah | 1 |
| 056A | 740-5709-509 | • BRACKET 51563 PRE SBE71-0107 | aa-ac | 1 |
| 056B | 740-5709-511 | • BRACKET 51563 POST SBE71-0107 | aa-ah | 1 |
| 057 | 740-5718-509 | • BRACKET - ASSEMBLY OF 51563 POST SBE70-0040 | ac-ah | 1 |
| 060 | MS9321-10 | • WASHER - FLAT, 0.500 X 0.276 X 0.062 96906 | aa-ah | 2 |
| 065 | 4P0021 | • SHIM PRE SBE70-0153 | aa-ad | 1 |
| 065A | 4P0304 | • SHIM POST SBE70-0153 PRE SBE72-0482 | ae | 3 |
| 065B | 4P0329 | • SHIM POST SBE72-0482 | af-ah | 1 |
| 067 | 4P0304CL01 | • SHIM - 0.020 INS (0,50MM) POST SBE70-0153 | ae-ah | 3 |
| 068 | 4P0304CL02 | • SHIM - 0.022 INS (0,55MM) POST SBE70-0153 | ae-ah | 3 |
| 069 | 4P0304CL03 | • SHIM - 0.024 INS (0,60MM) POST SBE70-0153 | ae-ah | 3 |
| 070 | AS3209-157 | • PACKING - PREFORMED U1653 PRE SBE70-0153 | aa-ah | 1 |
| 070A | AS3209-157 | • PACKING - PREFORMED U1653 POST SBE70-0153 | aa-ah | 1 |
| 071 | 4P0304CL04 | • SHIM - 0.025 INS (0,65MM) POST SBE70-0153 | ae-ah | 3 |
| 072 | 4P0304CL05 | • SHIM POST SBE70-0153 | ae-ah | 3 |
| 080 | AS3209-157 | • PACKING - PREFORMED U1653 POST SBE70-0153 | ae-ah | 1 |
| 165 | 4W0002 | • NUT - 0.250 DIA PRE SBE72-0492 | aa-af | 4 |
| 165A | 4W0170 | • BOLT - 0.250 DIA X 1.000 POST SBE72-0492 | ag-ah | 4 |
| 170 | MS9321-10 | • WASHER - FLAT, 0.500 X 0.276 X 0.062 96906 | aa-ah | 4 |
| 175 | 4P0022 | • SHIM PRE SBE70-0153 | aa-ad | 1 |
| 175A | 4P0305 | • SHIM POST SBE70-0153 PRE SBE72-0482 | ae | 3 |
| 175B | 4P0330 | • SHIM POST SBE72-0482 | af-ah | 1 |
| 177 | 4P0305CL01 | • SHIM - 0.020 INS (0,50MM) POST SBE70-0153 | ae-ah | 3 |
| 178 | 4P0305CL02 | • SHIM - 0.022 INS (0,55) POST SBE70-0153 | ae-ah | 3 |
| 179 | 4P0305CL03 | • SHIM - 0.024 INS (0,60MM) POST SBE70-0153 | ae-ah | 3 |
| 180 | 4P0305CL04 | • SHIM - 0.026 INS (0,65MM) POST SBE70-0153 | ae-ah | 3 |
| 181 | 4P0305CL05 | • SHIM - 0.031 INS (0,80MM) POST SBE70-0153 | ae-ah | 3 |
| 240 | 4B0252 | • NOZZLE - OIL, ASSEMBLY OF | aa-ah | 1 |
| 245 | 4W0002 | • NUT - 0.250 DIA PRE SBE72-0492 | aa-af | 1 |
| 245A | 4W1246 | • BOLT - 0.250 DIA X 0.750 POST SBE72-0492 | ag-ah | 1 |
| 250 | MS9321-10 | • WASHER - FLAT, 0.500 X 0.276 X 0.062 96906 | aa-ah | 1 |
| 255 | AS3209-113 | • PACKING - PREFORMED U1653 | aa-ah | 1 |
| 260 | AS3209-110 | • PACKING - PREFORMED U1653 | aa-ah | 1 |
| 400 | 4B0241 | • NOZZLE - OIL, ASSEMBLY OF | aa-ah | 1 |
| 405 | 4W0002 | • NUT - 0.250 DIA PRE SBE72-0492 | aa-af | 1 |
| 405A | 4W1246 | • BOLT - 0.250 DIA X 0.750 POST SBE72-0492 | ag-ah | 1 |
| 410 | MS9321-10 | • WASHER - FLAT, 0.500 X 0.276 X 0.062 96906 | aa-ah | 1 |
| 415 | AS3209-113 | • PACKING - PREFORMED U1653 | aa-ah | 1 |
| 420 | AS3209-110 | • PACKING - PREFORMED U1653 | aa-ah | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

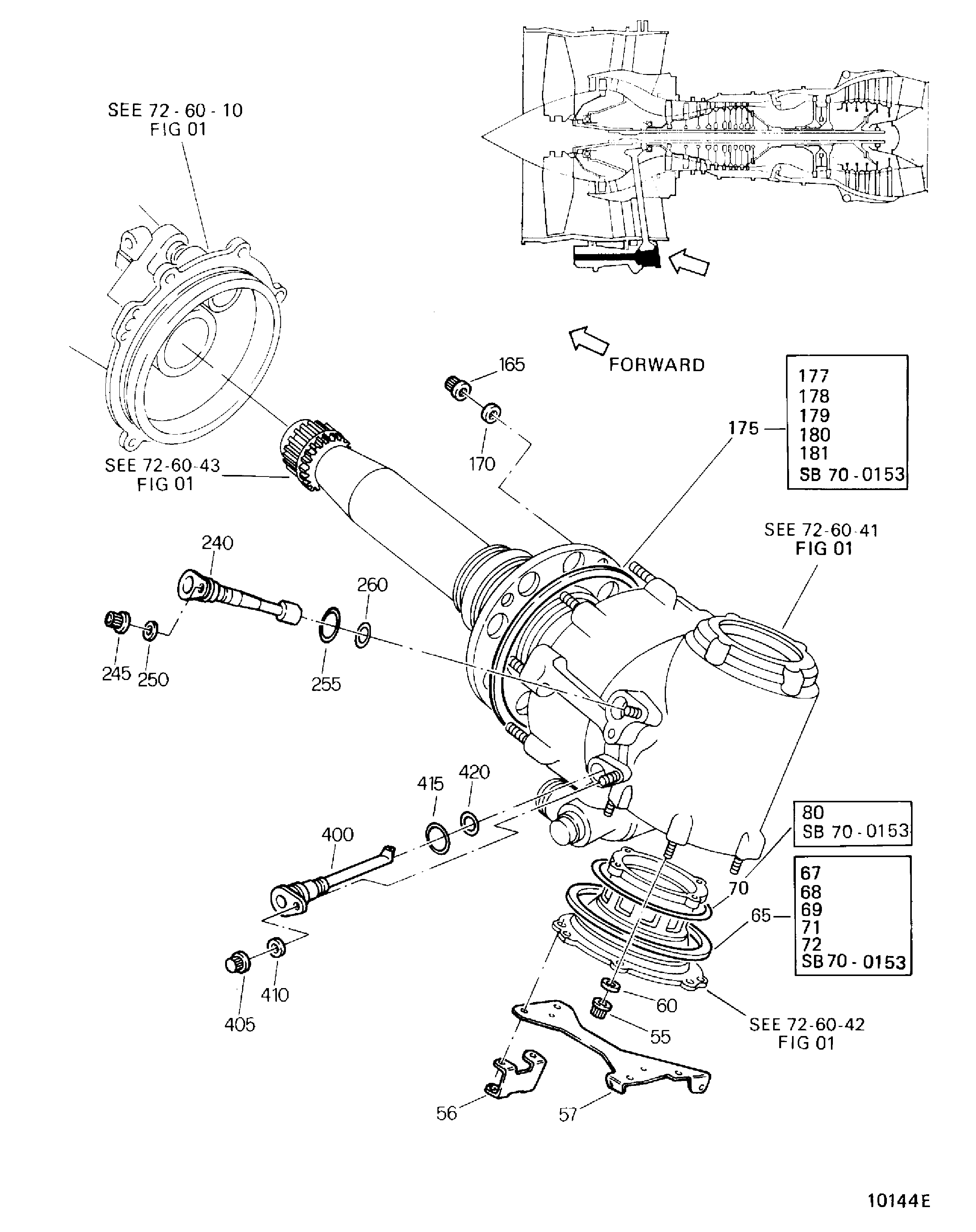

Figure: ENGINE-ANGLE GEARBOX ASSEMBLY
ANGLE GEARBOX ASSEMBLY
