DMC:V2500-A1-72-60-41-01A-941A-AIssue No:002.00Issue Date:2020-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72604101 | ENGINE - ANGLE GEARBOX CASE, PRE SBE72-0492 | aa | ||
| SBE0492-01 | ENGINE - ANGLE GEARBOX CASE, PRE SBE70-0950 | ab | ||
| SBE0950-01 | ENGINE - ANGLE GEARBOX CASE | ac | ||
| 140 | 4B0242 | • STRAINER - ANGLE GEARBOX, ASSEMBLY OF | aa-ac | 1 |
| 144 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA PRE SBE72-0492 | aa | 1 |
| 144A | 4W1246 | • BOLT - 0.250 DIA X 0.750 POST SBE72-0492 | ab-ac | 1 |
| 146 | AS3209-120 | • PACKING - PREFORMED U1653 | aa-ac | 1 |
| 200 | 4P0123 | • ADAPTER - OIL, INPUT | aa-ac | 1 |
| 210 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA PRE SBE72-0492 | aa | 2 |
| 210A | 4W1246 | • BOLT - 0.250 DIA X 0.750 POST SBE72-0492 | ab-ac | 2 |
| 220 | AS3209-110 | • PACKING - PREFORMED U1653 | aa-ac | 1 |
| 230 | AS3214-02 | • WIRE - LOCKING U1653 | aa-ac | 1 |
| -230A | 4W2627 | • WIRE - THRUST Optional Part 4W2627 | aa-ac | 1 |
| 300 | 4B0256 | • CASING - ANGLE GEARBOX, ASSEMBLY OF PRE SBE72-0492 | aa-ac | 1 |
| 300A | 4B0354 | • CASING - ANGLE GEARBOX, ASSEMBLY OF A3460 POST SBE72-0492 | aa-ac | 1 |
| 301 | 4L0038 | • • BUSHING - ,(VRS5107) A3460 POST SBE70-0321 | ***** | 1 |
| 302 | 4L0042 | • • BUSHING - ,(VRS5108) A3460 POST SBE70-0321 | ***** | 1 |
| 303 | 4L0039 | • • BUSHING - ,(VRS5106) A3460 | ***** | 1 |
| 304 | 4L0055 | • • BUSHING - ,(VRS5109) A3460 | ***** | 1 |
| 310 | AS3124-10 | • • PIN U1653 | aa-ac | 1 |
| 320 | AS3123-10 | • • PLUG U1653 | aa-ac | 1 |
| 330 | AS3124-10 | • • PIN U1653 | aa-ac | 1 |
| 340 | AS3123-10 | • • PLUG U1653 | aa-ac | 1 |
| 350 | MS9390-540 | • • PIN 96906 | aa-ac | 1 |
| 360 | MS51990E105P | • • RING - LOCKING 96906 PRE SBE72-0492 | aa | 1 |
| 370 | MS51551C205-10 | • • STUD 96906 PRE SBE72-0492 | aa | 1 |
| 370A | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | ab-ac | 1 |
| 380 | MS51990E105P | • • RING - LOCKING 96906 PRE SBE72-0492 | aa | 1 |
| 390 | MS51551C205-10 | • • STUD 96906 PRE SBE72-0492 | aa | 1 |
| 390A | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | ab-ac | 1 |
| 400 | MS51990E105P | • • RING - LOCKING 96906 PRE SBE72-0492 | aa | 6 |
| 410 | MS51551C205-13 | • • STUD 96906 PRE SBE72-0492 | aa | 6 |
| 410A | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | ab-ac | 6 |
| 420 | MS51990E105P | • • RING - LOCKING 96906 PRE SBE72-0492 | aa | 1 |
| 430 | MS51551C205-9 | • • STUD 96906 PRE SBE72-0492 | aa | 1 |
| 430A | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | ab-ac | 1 |
| 440 | MS51990E105P | • • RING - LOCKING 96906 PRE SBE72-0492 | aa | 4 |
| 450 | MS51551C205-14 | • • STUD 96906 PRE SBE72-0492 | aa | 4 |
| 450A | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | ab-ac | 4 |
| 460 | MS51990E105P | • • RING - LOCKING 96906 PRE SBE72-0492 | aa | 2 |
| 470 | MS51551C205-9 | • • STUD 96906 PRE SBE72-0492 | aa | 2 |
| 470A | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | ab-ac | 2 |
| 480 | 4P0041 | • • PIN - PULLER PRE SBE70-0636 | ***** | 3 |
| 490 | 4P0041 | • • PIN - PULLER PRE SBE70-0636 | ***** | 2 |
| 500 | MS51990E105P | • • RING - LOCKING 96906 PRE SBE70-0950 | aa-ab | 2 |
| 500A | MS51990E105P | • • RING - LOCKING 96906 POST SBE70-0950 | ac | 2 |
| 510 | MS51551C205-10 | • • STUD 96906 PRE SBE70-0950 | aa-ab | 2 |
| 510A | MS21209F4-20L | • • INSERT 96906 POST SBE70-0950 | ac | 2 |
| 520 | MS51990E105P | • • RING - LOCKING 96906 PRE SBE72-0492 | aa | 8 |
| 530 | MS51551C205-13 | • • STUD 96906 PRE SBE72-0492 | aa | 8 |
| 530A | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | ab-ac | 8 |
| 540 | MS51990E106P | • • RING - LOCKING 96906 PRE SBE72-0492 | aa | 4 |
| 550 | MS51991E206L | • • INSERT - SCREW 96906 PRE SBE72-0492 | aa | 4 |
| 550A | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | ab-ac | 4 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

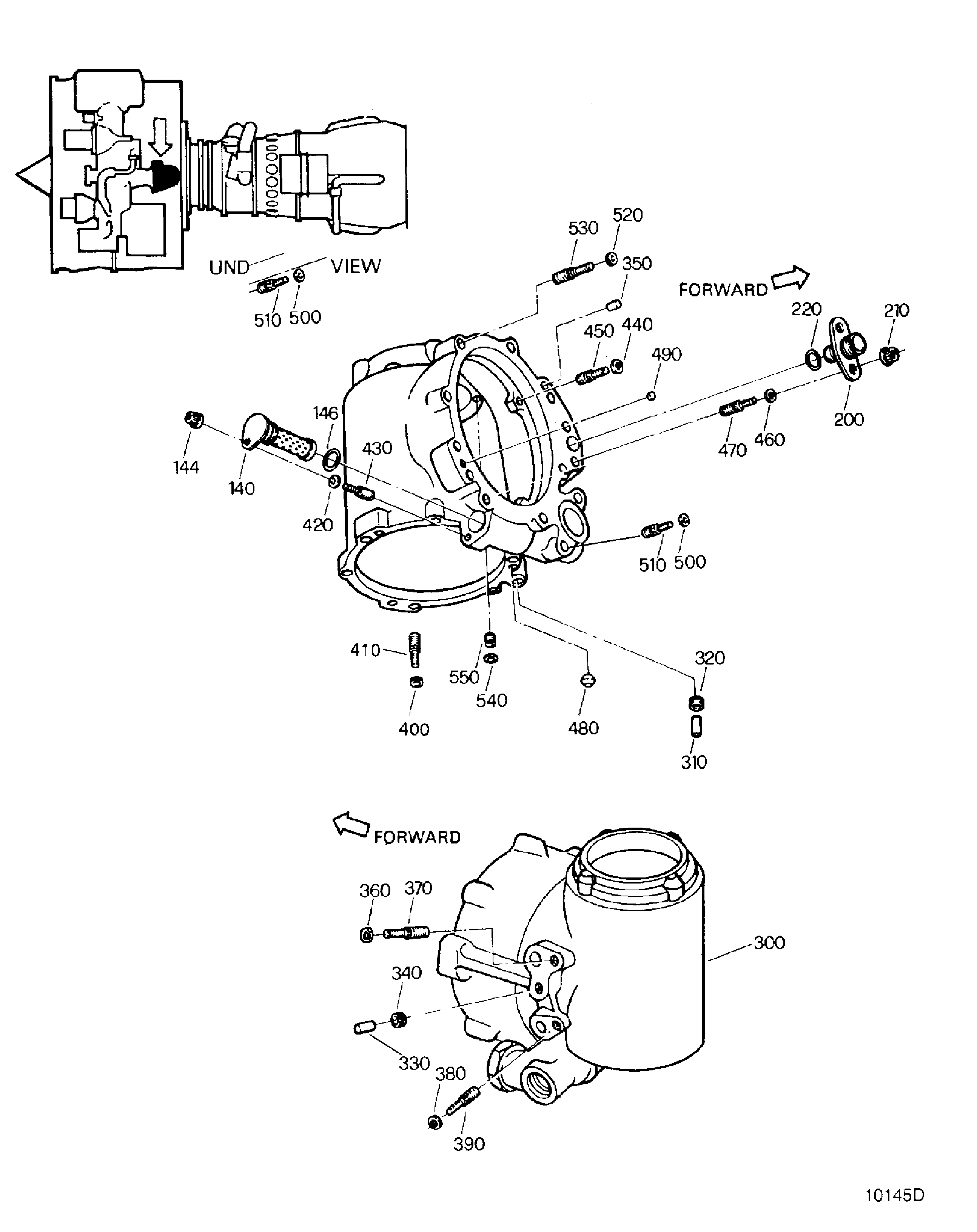

Figure: ENGINE-ANGLE GEARBOX CASE
ENGINE-ANGLE GEARBOX CASE
