TASK 72-60-42-300-011 Angle Gearbox Radial Gearshaft Support - Nickel Plate The Mounting Face, Repair-011 (VRS5095)

DMC:V2500-A1-72-60-4204-01A-647A-C|Issue No:002.00|Issue Date:2018-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-60-42-300-011 Angle Gearbox Radial Gearshaft Support - Nickel Plate The Mounting Face, Repair-011 (VRS5095)

Effectivity

FIG/ITEM

PART NO.

01-230

4B0211

01-230

4B0272

01-230

4B0355

01-230

4B0375

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Support

Aluminum alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to PCI.

NOTE

Consumable materials are given in SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
FPI inspection stationLOCALFPI inspection station
BasketLOCALBasket
Process Plating TanksLOCALProcess plating tanks
OvenLOCALOven
Magnifying glass, 4xLOCALMagnifying glass, 4x
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-027 HYDROFLUORIC ACIDLOCALCoMat 01-027
CoMat 01-058 NITRIC ACID HNO3LOCALCoMat 01-058
CoMat 01-112 ALKALINE SILICATE DEGREASER23373CoMat 01-112
DELETEDLOCALDELETED
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-42-350-065 Remove the Inserts

    1. Refer to Figure.

      2. Remove the three inserts from the support.

      1. Refer to Repair, VRS5090 TASK 72-60-42-300-006 (REPAIR-006) for pre service bulletin 72-0492 parts.

      2. Refer to Repair, VRS5678 TASK 72-60-42-300-038 (REPAIR-038) for post service bulletin 72-0492 and 70-0950 parts.

    2. SUBTASK 72-60-42-320-068 Machine the Mounting Face of the Radial Gearshaft Support

    1. Refer to Figure.

      2. Machine the mounting face.

      1. The mounting face must be between 2.4067 in. to 2.4094 in. (61.130 to 61.200 mm) in relation to Surface E.

      2. Remove all damage and wear.

      3. Keep the removal of material to the minimum necessary to remove the damage.

    3. SUBTASK 72-60-42-230-057 Examine the Support

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to the SPM TASK 70-23-01-230-501.

      2. No cracks are permitted.

    4. SUBTASK 72-60-42-330-060 Nickel Plate the Mounting Face of the Radial Gearshaft Support

    1. Refer to Figure.

      2. Mask the areas of the support not to be plated.

      3. Do the nickel plating.

      1. Refer to the SPM TASK 70-33-08-300-503.

      2. Plate to a sufficient thickness to permit the machining to the last dimensions.

      3. The plating out of the mounting face is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the support.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    5. SUBTASK 72-60-42-370-064 De-embrittle the Support

      1. Put the support into an oven at 241 deg F to 260 deg F (116 deg C to 127 deg C) for 60 to 90 minutes.

      1. Do this process as soon as possible in less than four hours after the plating.

    6. SUBTASK 72-60-42-220-092 Examine the Support

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

      2. No circumferential cracks are permitted.

      3. No rough and blistering are permitted.

    7. SUBTASK 72-60-42-320-069 Machine the Mounting Face of the Radial Gearshaft Support

    1. Refer to Figure.

      2. Machine the mounting face.

      1. The dimension must be between 2.3976 in. to 2.4055 in. (60.900 mm to 61.100 mm) in relation to Surface E.

    8. SUBTASK 72-60-42-220-093 Examine the Nickel Plated Area

    1. Refer to Figure.

      2. Do the visual inspection of the plated area for cracks and adhesion.

      2. The natural network crack, emphasized by grinding, is permitted.

      3. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.0006 in. (0.015 mm) after the last machining.

    9. SUBTASK 72-60-42-350-066 Install the New Inserts

    1. Refer to Figure.

      2. Install the new three inserts.

      1. Refer to Repair, VRS5090 TASK 72-60-42-300-006 (REPAIR-006) for pre service bulletin 72-0492 parts.

      2. Refer to Repair, VRS5678 TASK 72-60-42-300-038 (REPAIR-038) for post service bulletin 72-0492 and 70-0950 parts.

    10. SUBTASK 72-60-42-350-067 Record the Repair

      1. Vibro engrave VRS5095 adjacent to the part number.

      1. Remove the metal lifted by marking the number.

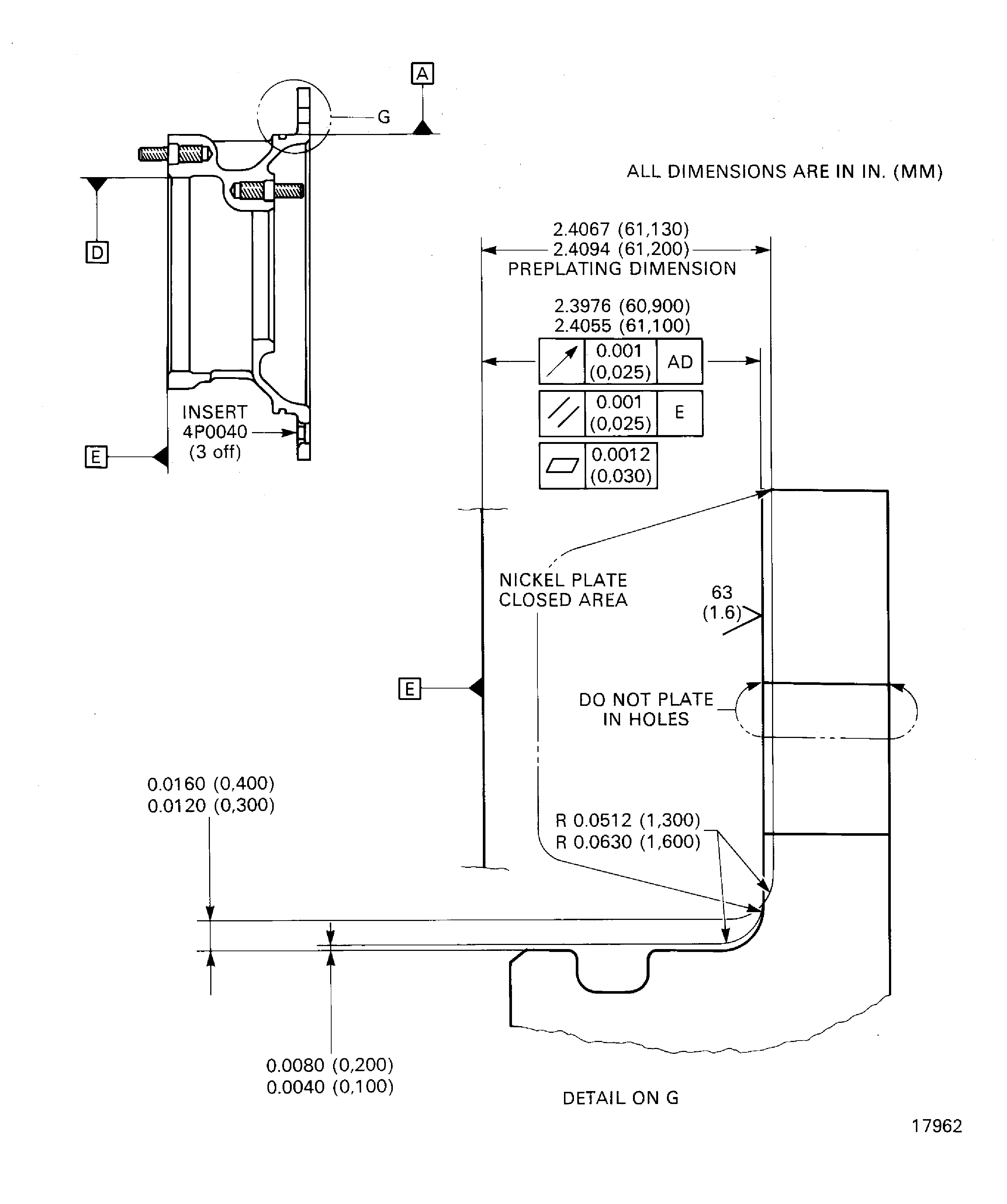

    11. Figure: Nickel plate the mounting face of the radial gearshaft support

    Nickel plate the mounting face of the radial gearshaft support

Requirements After Job Completion

Follow-On Conditions

NONE
