DMC:V2500-A1-73-11-41-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B73114101 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD, PRE SBE72-0029 | aa | ||
| SBE0029-01 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD, PRE SBE73-0036 | ab | ||
| SBE0036-01 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD, PRE SBE72-0119 | ac | ||
| SBE0119-01 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD, PRE SBE73-0088 | ad | ||
| SBE0088-01 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD, PRE SBE73-0131 | ae | ||
| SBE0131-01 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD, PRE SBE73-0139 | af | ||
| SBE0139-01 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD, PRE SBE73-0134 | ag | ||
| SBE0134-01 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD, PRE SBE73-0147 | ah | ||
| SBE0147-01 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD, PRE SBE70-0857 | ai | ||
| SBE0857-01 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD | aj | ||
| 010 | MS9967-010 | • PACKING - PREFORMED 96906 PRE SBE73-0036 | aa-aj | 18 |
| 010A | AS3209-010 | • PACKING - PREFORMED RING U1653 POST SBE73-0036 PRE SBE70-0857 | aa-aj | 18 |
| 010B | ST1946-010 | • PACKING - PREFORMED 77445 POST SBE70-0857 | aa-aj | 18 |
| 020 | 1B2355 | • TUBE - TRANSFER | aa-aj | 9 |
| 040 | ST2229-07 | • GASKET - OPTION 77445 PRE SBE73-0088 | aa-ad | 3 |
| 050 | ST2229-08 | • GASKET - OPTION 77445 PRE SBE72-0029 | aa-ad | 6 |
| 050A | ST2229-08 | • GASKET - OPTION 77445 POST SBE72-0029 PRE SBE73-0088 | aa-ad | 6 |
| 060 | 2A0504-01 | • MANIFOLD - SPY, FUEL NOZZLE PRE SBE73-0088 | aa-ae | 1 |
| 060A | 2A3229-01 | • NOZZLE - FUEL,MANIF, SPY POST SBE73-0088 PRE SBE73-0131 | aa-ae | 1 |
| 060B | 2A3256-01 | • NOZZLE - FUEL,MANIF,SPY A/O POST SBE73-0131 | af-aj | 1 |
| -060C | 2A3229-001 | • NOZZLE - SPY,FUEL,NOZZLE,A/O 77445 POST SBE73-0134 | ah-aj | 1 |
| 100 | ST2121-07 | • • NUT - TUBE COUPLING 77445 POST SBE73-0131 | af-aj | 1 |
| 102 | ST2121-08 | • • NUT - TUBE COUPLING 77445 POST SBE73-0131 | af-aj | 2 |
| -145 | 354581 | • • WIRE - THRUST 77445 POST SBE73-0131 | af-aj | 2 |
| -150 | 690704 | • • WIRE - THRUST 77445 POST SBE73-0131 | af-aj | 1 |
| 160 | 2A0508-01 | • MANIFOLD - SPY, FUEL NOZZLE PRE SBE73-0088 | aa-af | 1 |
| 160A | 2A3230-01 | • NOZZLE - A/O FUEL,MANIF,SPY POST SBE73-0088 PRE SBE73-0139 | aa-af | 1 |
| 160B | 2A3257-01 | • NOZZLE - MANIF,SPY,FUEL,A/O POST SBE73-0139 | ag-aj | 1 |
| 160C | 2A3230-001 | • NOZZLE - SPY,FUEL,NOZZLE,A/O 77445 POST SBE73-0134 | ah-aj | 1 |
| 165 | 2A3382 | • BRACKET - LOOP CLAMP POST SBE73-0147 | ai-aj | 1 |
| -245 | 354581 | • • WIRE - THRUST 77445 POST SBE73-0139 | ag-aj | 2 |
| -250 | 690704 | • • WIRE - THRUST 77445 POST SBE73-0139 | ag-aj | 1 |
| 258 | 2A3430 | • BRACKET - LOOP CLAMP POST SBE73-0139 | ag-aj | 1 |
| 259 | 2A3380 | • BRACKET - LOOP CLAMP POST SBE73-0147 | ai-aj | 1 |
| 260 | 2A0509-01 | • MANIFOLD - SPY, FUEL NOZZLE PRE SBE73-0088 | aa-ae | 1 |
| 260A | 2A3231-01 | • NOZZLE - A/O FUEL,MANIF,SPY POST SBE73-0088 PRE SBE73-0131 | aa-ae | 1 |
| 260B | 2A3258-01 | • NOZZLE - FUEL,MANIF,SPY A/O POST SBE73-0131 | af-aj | 1 |
| -260C | 2A3231-001 | • NOZZLE - SPY,FUEL,NOZZLE,A/O 77445 POST SBE73-0134 | ah-aj | 1 |
| 300 | ST2121-07 | • • NUT - TUBE COUPLING 77445 POST SBE73-0131 | af-aj | 1 |
| 302 | ST2121-08 | • • NUT - TUBE COUPLING 77445 POST SBE73-0131 | af-aj | 2 |
| -345 | 354581 | • • WIRE - THRUST 77445 POST SBE73-0131 | af-aj | 2 |
| -350 | 690704 | • • WIRE - THRUST 77445 POST SBE73-0131 | af-aj | 1 |
| 355 | 2A3277 | • BRACKET - LOOP CLAMP POST SBE73-0131 POST SBE70-0797 | ***** | 1 |
| 360 | MS122904 | • CLAMP - LOOP TYPE SUPPORT 96906 PRE SBE73-0131 | aa-ae | 6 |
| 360A | MS122904 | • CLAMP - LOOP TYPE SUPPORT 96906 POST SBE73-0131 | af-aj | 2 |
| 365 | ST1540-05 | • CLAMP - LOOP CUSHION 27238 POST SBE72-0119 POST SBE73-0131 | ad-ae | 4 |
| 365A | ST1540-05 | • CLAMP - LOOP CUSHION 27238 POST SBE73-0131 | af-aj | 8 |
| 365B | ST1540-05 | • CLAMP - LOOP CUSHION 27238 POST SBE73-0139 | ag-aj | 10 |
| 380 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 PRE SBE72-0119 | aa-ac | 4 |
| 380A | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE72-0119 PRE SBE73-0131 | ad-ae | 8 |
| 380B | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE73-0131 PRE SBE73-0139 | af | 6 |
| 380C | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE73-0139 | ag-aj | 7 |
| 390 | 4W0104 | • BOLT - .190 DIA X .562 Optional Part 4W0104 POST SBE73-0131 | af-aj | 2 |
| 400 | 4W0107 | • BOLT - .190 DIA X .750 Optional Part 4W0107 PRE SBE73-0131 | aa-ae | 1 |
| 400A | 4W0107 | • BOLT - .190 DIA X .750 Optional Part 4W0107 POST SBE73-0131 | af-aj | 1 |
| 420 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 PRE SBE72-0119 | aa-ac | 5 |
| 420A | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE72-0119 PRE SBE73-0131 | ad-ae | 9 |
| 420B | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0131 | af-aj | 10 |
| 420C | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0139 | ag-aj | 9 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

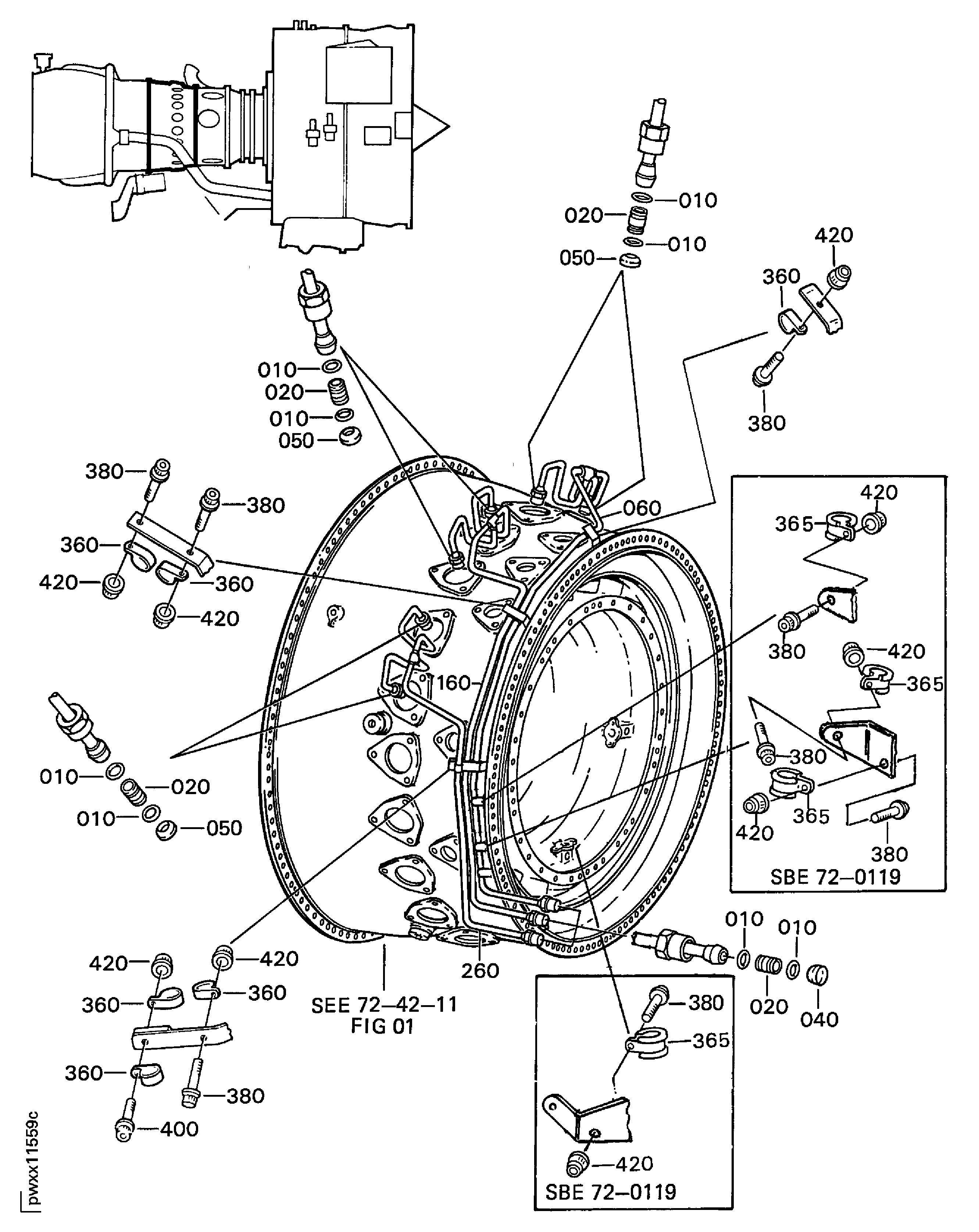

Figure: ENGINE FUEL AND CONTROL-FUEL MANIFOLD
Fuel Manifolds

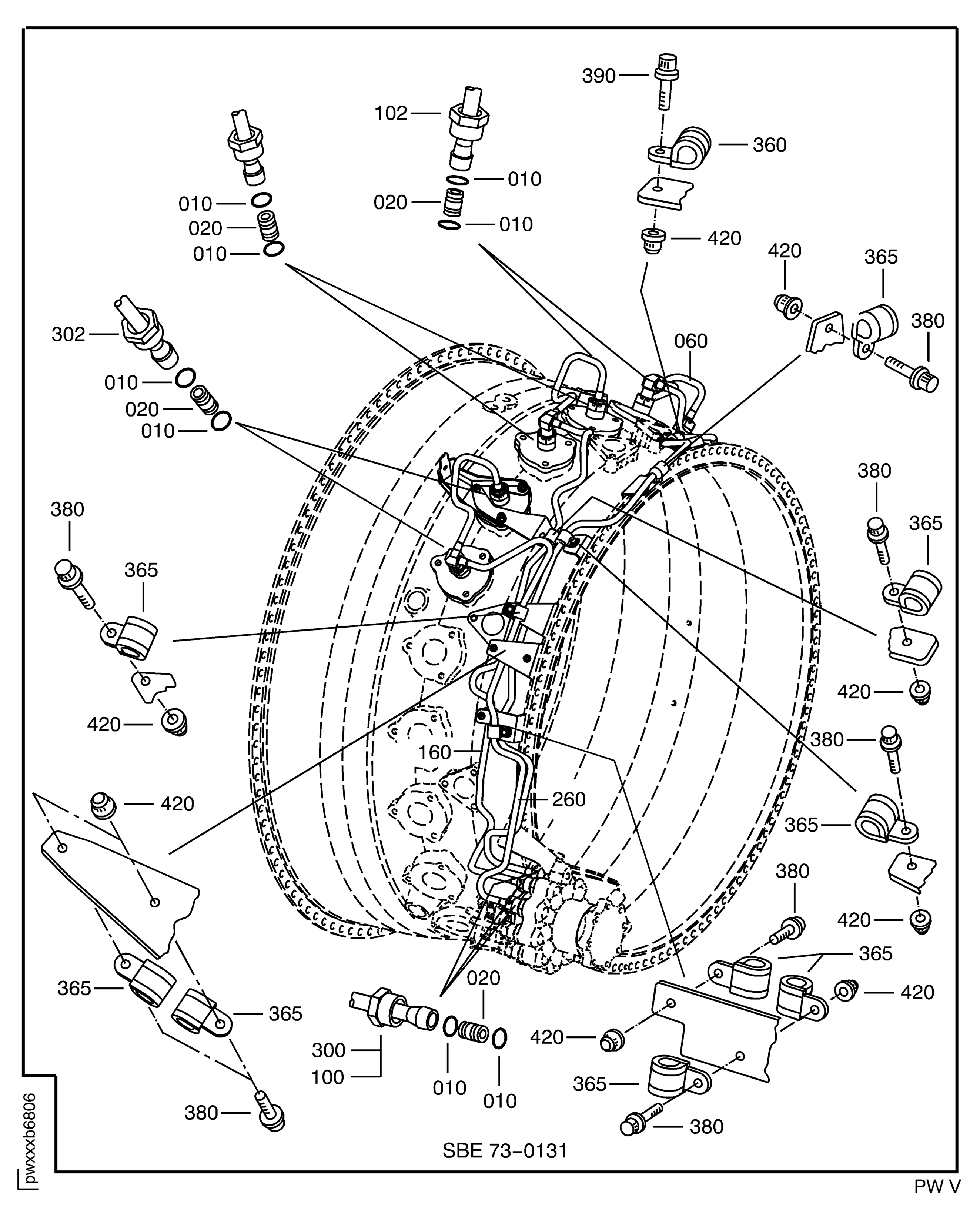

Figure: ENGINE FUEL AND CONTROL-FUEL MANIFOLD
Fuel Manifolds
