DMC:V2500-A1-73-11-41-03A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B73114103 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD, PRE SBE72-0029 | aa | ||
| SBE0029-01 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD, PRE SBE73-0036 | ab | ||
| SBE0036-01 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD, PRE SBE73-0088 | ac | ||
| SBE0088-01 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD, PRE SBE73-0147 | ad | ||
| SBE0147-01 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD, PRE SBE72-0394 | ae | ||
| SBE0394-01 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD, PRE SBE70-0857 | af | ||
| SBE0857-01 | ENGINE FUEL AND CONTROL-FUEL MANIFOLD | ag | ||
| 001 | MS9967-010 | • PACKING - PREFORMED 96906 PRE SBE73-0036 | aa-ag | 24 |
| 001A | AS3209-010 | • PACKING - PREFORMED RING U1653 POST SBE73-0036 PRE SBE70-0857 | aa-ag | 24 |
| 001B | ST1946-010 | • PACKING - PREFORMED 77445 POST SBE70-0857 | aa-ag | 24 |
| 020 | 1B2355 | • TUBE - TRANSFER | aa-ag | 12 |
| 040 | ST2229-07 | • GASKET - OPTION 77445 PRE SBE73-0088 | aa-ac | 4 |
| 050 | ST2229-08 | • GASKET - OPTION 77445 PRE SBE72-0029 | aa-ac | 8 |
| 050A | ST2229-08 | • GASKET - OPTION 77445 POST SBE72-0029 PRE SBE73-0088 | aa-ac | 8 |
| 060 | 2A0515-01 | • MANIFOLD - SPY, FUEL NOZZLE PRE SBE73-0088 | aa-ag | 1 |
| 060A | 2A3235-01 | • NOZZLE - A/O FUEL,SPY,MANIF POST SBE73-0088 PRE SBE73-0147 | aa-ag | 1 |
| 060B | 2A3263-01 | • MANIFOLD - SPY,FUEL NOZZLE ASSY OF POST SBE73-0147 | aa-ag | 1 |
| 140 | AS3268-083 | • • SLEEVE - HALF U1653 PRE SBE73-0147 | aa-ad | 2 |
| -145 | 354581 | • • WIRE - THRUST 77445 POST SBE73-0147 | ae-ag | 2 |
| -150 | 690704 | • • WIRE - THRUST 77445 POST SBE73-0147 | ae-ag | 1 |
| 160 | 2A1229-01 | • MANIFOLD - ASSY FUEL NOZZLE PRE SBE73-0088 | aa-ag | 1 |
| 160A | 2A3237-01 | • NOZZLE - A/O FUEL,SPY,MANIF POST SBE73-0088 PRE SBE73-0147 | aa-ag | 1 |
| 160B | 2A3264-01 | • MANIFOLD - SPY,FUEL NOZZLE ASSY OF POST SBE73-0147 | aa-ag | 1 |
| -245 | 354581 | • • WIRE - THRUST 77445 POST SBE73-0147 | ae-ag | 2 |
| -250 | 690704 | • • WIRE - THRUST 77445 POST SBE73-0147 | ae-ag | 1 |
| 260 | 2A0513-01 | • MANIFOLD - SPY, FUEL NOZZLE PRE SBE73-0088 | aa-ag | 1 |
| 260A | 2A3234-01 | • NOZZLE - A/O FUEL,SPY,MANIF POST SBE73-0088 PRE SBE73-0147 | aa-ag | 1 |
| 260B | 2A3265-01 | • MANIFOLD - SPY,FUEL NOZZLE ASSY OF POST SBE73-0147 | aa-ag | 1 |
| -345 | 354581 | • • WIRE - THRUST 77445 POST SBE73-0147 | ae-ag | 2 |
| -350 | 690704 | • • WIRE - THRUST 77445 POST SBE73-0147 | ae-ag | 1 |
| 360 | 2A1389-01 | • MANIFOLD - SPY, FUEL NOZZLE, PRE SBE73-0088 | aa-ac | 1 |
| 360A | 2A3238-01 | • NOZZLE - A/O FUEL,SPY,MANIF POST SBE73-0088 PRE SBE73-0147 | aa-ag | 1 |
| 360B | 2A3266-01 | • MANIFOLD - SPY,FUEL NOZZLE ASSY OF POST SBE73-0147 | aa-ag | 1 |
| -410 | 690704 | • • WIRE - THRUST 77445 POST SBE73-0147 | ae-ag | 1 |
| -445 | 354581 | • • WIRE - THRUST 77445 POST SBE73-0147 | ae-ag | 2 |
| 450 | ST1540-05 | • CLAMP - LOOP CUSHION 27238 POST SBE73-0147 | ae-ag | 16 |
| 460 | MS122904 | • CLAMP - LOOP TYPE SUPPORT 96906 PRE SBE73-0147 | aa-ad | 10 |
| 480 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 PRE SBE73-0147 | aa-ad | 2 |
| 480A | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE73-0147 | ae-ag | 10 |
| 485 | 4W1183 | • BOLT - .190 DIA X .500 Optional Part 4W1183 POST SBE73-0147 PRE SBE72-0394 | ae | 2 |
| 485A | 4W1183 | • BOLT - .190 DIA X .500 Optional Part 4W1183 POST SBE72-0394 | af-ag | 3 |
| 500 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 | aa-ag | 6 |
| 500A | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0147 PRE SBE72-0394 | ae | 13 |
| 500B | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE72-0394 | af-ag | 14 |
| 520 | 4W0104 | • BOLT - .190 DIA X .562 Optional Part 4W0104 PRE SBE73-0147 | aa-ad | 2 |
| 520A | 4W0104 | • BOLT - .190 DIA X .562 Optional Part 4W0104 POST SBE73-0147 | ae-ag | 1 |
| 540 | 4W0107 | • BOLT - .190 DIA X .750 Optional Part 4W0107 PRE SBE73-0147 | aa-ad | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

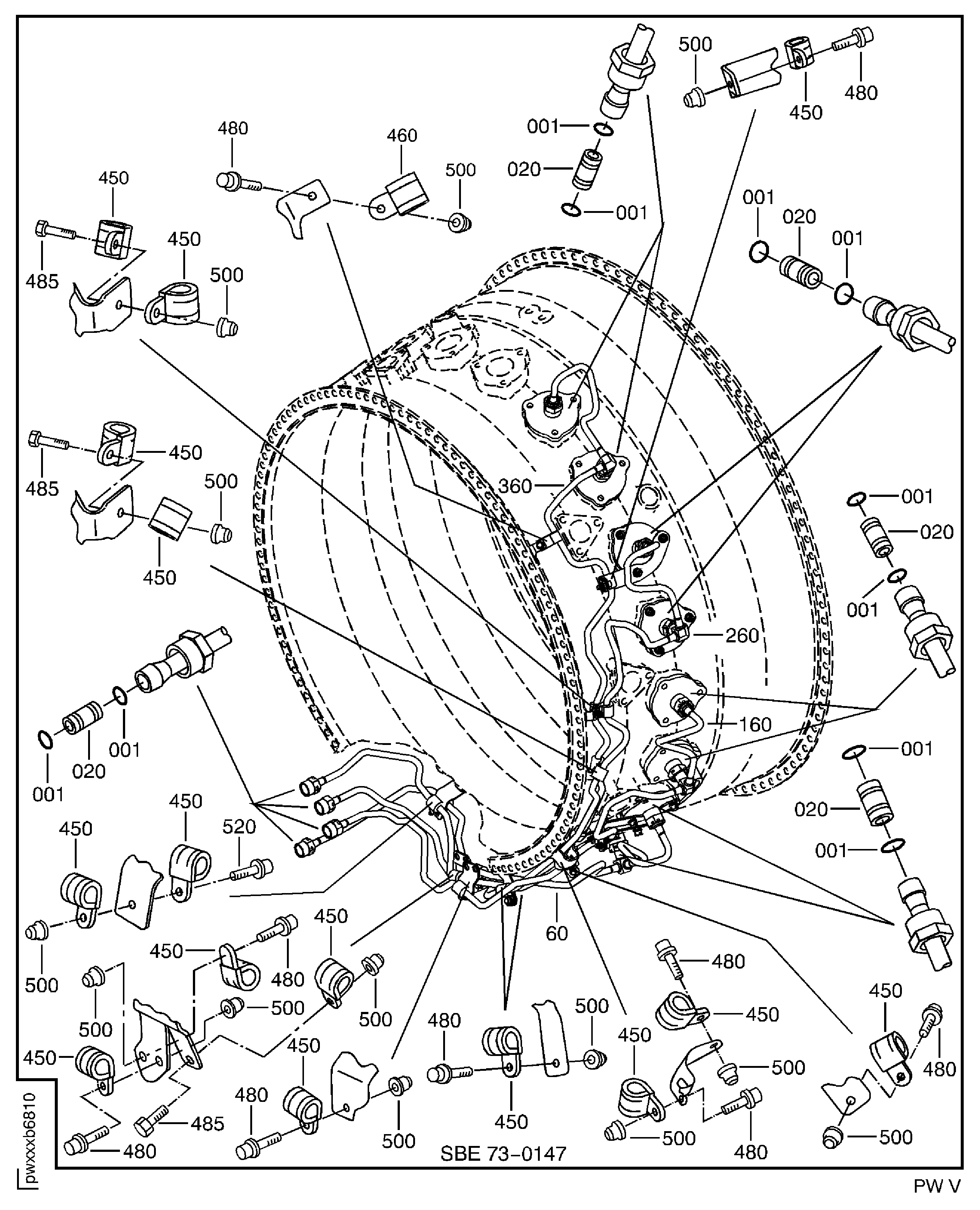

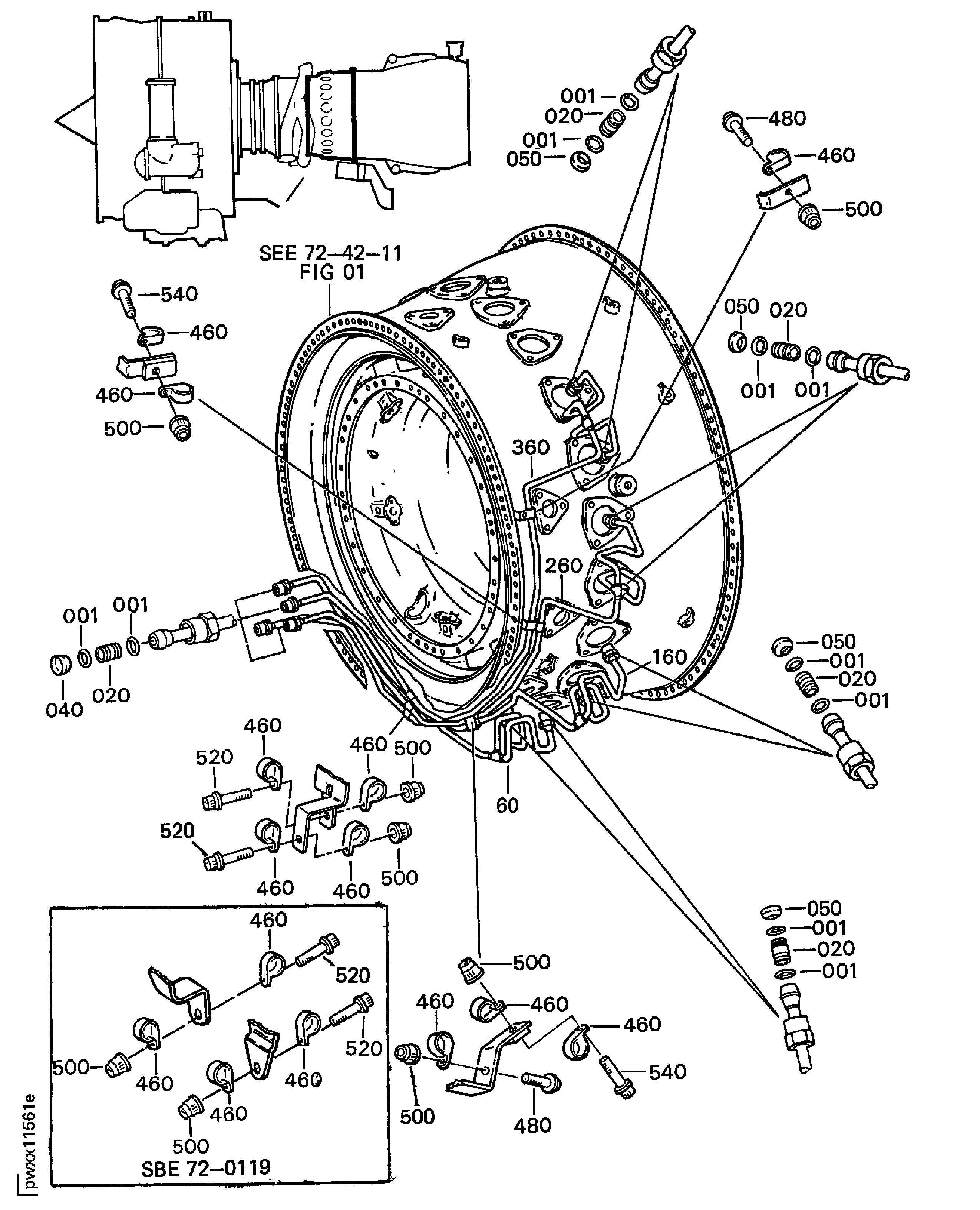

Figure: ENGINE FUEL AND CONTROL-FUEL MANIFOLD
FUEL MANIFOLDS
FUEL MANIFOLDS
