ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE

DMC:V2500-A1-73-11-49-02A-941A-D|Issue No:001|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
02
000	B73114902	ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0022	aa
000	SBE0022-01	ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE70-0155	ab
000	SBE0155-01	ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0045	ac
000	SBE0045-01	ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0058	ad
000	SBE0058-01	ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE	ae
060060	5W8371	• BRACKET PRE SBE73-0022	aa	1
060060A	UP60482	• BRACKET POST SBE73-0022	ab-ae	1

061061	4W0002	• NUT - .250 DIA	aa-ae	2
064064	4W0163	• BOLT - .250 DIA X .562	aa-ae	2

070070	5W2158	• BRACKET	aa-ae	1

071071	4W0002	• NUT - .250 DIA	aa-ae	2
074074	4W0163	• BOLT - .250 DIA X .562	aa-ae	2

080080	5W2159	• BRACKET	aa-ae	1

081081	4W0002	• NUT - .250 DIA	aa-ae	2
084084	4W0163	• BOLT - .250 DIA X .562	aa-ae	2

088088	FRR30S	• RING - RETAINING RESTRICTOR SC571 PRE SBE70-0155	aa-ab	1
088088A	FRR30S	• RING - RETAINING RESTRICTOR SC571 ALT PRE124S POST SBE70-0155 PRE SBE73-0058	ac-ad	1
-088088B	PRE124S	• RING - RETAINING RESTRICTOR 80756 ALT FRR30S POST SBE70-0155 PRE SBE73-0058	ac-ad	REF
090090	5W2057	• RESTRCTR PRE SBE73-0058	aa-ad	1
100100	2A0616	• TUBE - A/O FUEL-PUMP TO FCOC, 1.250O/D X .028T PRE SBE73-0045	aa-ac	1
100100A	6A5340	• TUBE - A/O FUEL - PUMP TO F.C POST SBE73-0045 PRE SBE73-0058	ad	1
100100B	6A6023	• TUBE - A/O LP FUEL-LP PUMP POST SBE73-0058	ae	1

106106	4W0166	• BOLT - .250 DIA X .750 PRE SBE73-0058	aa-ad	6
106106A	4W0166	• BOLT - .250 DIA X .750 POST SBE73-0058	ae	3
108108	AS43013-124	• RING U1653 PRE SBE73-0058	aa-ad	2
108108A	AS43013-124	• RING U1653 POST SBE73-0058	ae	1
125125	4W0104	• BOLT - .190 DIA X .562	aa-ae	1
126126	AN960XC10L	• WASHER 81352 PRE SBE70-0022	aa-ae	1
126126A	5W1086	• WASHER POST SBE70-0022	aa-ae	1
128128	400WSS20	• CLIP 83930 PRE SBE73-0045	aa-ac	1
128128A	AS62420	• CLIP - 31.75 MM (1.250) U1653 POST SBE73-0045	ad-ae	1
132132	4W0043	• NUT - .190 DIA	aa-ae	1
133133	4W0104	• BOLT - .190 DIA X .562 PRE SBE73-0058	aa-ad	1
133133A	4W0107	• BOLT - .190 DIA X .750 POST SBE73-0058	ae	1
134134	AN960XC10L	• WASHER 81352 PRE SBE70-0022	aa-ae	2
134134A	5W1086	• WASHER POST SBE70-0022	aa-ae	2
136136	400WSS20	• CLIP 83930 PRE SBE73-0045	aa-ac	1
136136A	AS62420	• CLIP - 31.75 MM (1.250) U1653 POST SBE73-0045	ad-ae	1

138138	UP10478	• SPACER - 5MM POST SBE73-0058	ae	1

140140	4W0001	• NUT - .190 DIA	aa-ae	1
141141	4W0104	• BOLT - .190 DIA X .562 PRE SBE73-0058	aa-ad	1
141141A	4W0107	• BOLT - .190 DIA X .750 POST SBE73-0058	ae	1
142142	AN960XC10L	• WASHER 81352 PRE SBE70-0022	aa-ae	1
142142A	5W1086	• WASHER POST SBE70-0022	aa-ae	1
144144	400WSS20	• CLIP 83930 PRE SBE73-0045	aa-ac	1
144144A	AS62420	• CLIP - 31.75 MM (1.250) U1653 POST SBE73-0045	ad-ae	1

145145	UP10478	• SPACER - 5MM POST SBE73-0058	ae	1

148148	4W0001	• NUT - .190 DIA	aa-ae	1
149149	4W0107	• BOLT - .190 DIA X .750 PRE SBE73-0045	aa-ac	1
149149A	4W0108	• BOLT - .190 DIA X .812 POST SBE73-0045	ad-ae	1
150150	AN960XC10L	• WASHER 81352 PRE SBE70-0022	aa-ae	1
150150A	5W1086	• WASHER POST SBE70-0022	aa-ae	1
152152	400WSS20	• CLIP 83930 PRE SBE73-0045	aa-ac	1
152152A	AS62420	• CLIP - 31.75 MM (1.250) U1653 POST SBE73-0045	ad-ae	1

154154	5W1029	• SPACER - SLEEVE, (5MM)	aa-ae	1

156156	4W0043	• NUT - .190 DIA	aa-ae	1
157157	4W0102	• BOLT - .190 DIA X .438 PRE SBE73-0045	aa-ac	1
157157A	4W0103	• BOLT - .190 DIA X .500 POST SBE73-0045	ad-ae	1
158158	AN960XC10L	• WASHER 81352 PRE SBE70-0022	aa	1
158158A	5W1086	• WASHER POST SBE70-0022 PRE SBE73-0022	aa	1
160160	400WSS20	• CLIP 83930 PRE SBE73-0022	aa	1
160160A	TA025074-16	• CLAMP - 1.000 DIA 84971 POST SBE73-0022 PRE SBE73-0045	ab-ac	1
160160B	AS62420	• CLIP - 31.75 MM (1.250) U1653 POST SBE73-0045	ad-ae	1
164164	4W0001	• NUT - .190 DIA	aa-ae	1

202202	5W1535	• • ADAPTOR - STRAIGHT FLANGED PRE SBE73-0045	aa-ac	2
202202A	UP60496	• • ADAPTOR POST SBE73-0045	ad-ae	1
222222	5W8142	• • CONNECTR - TEE PRE SBE73-0045	aa-ac	2
222222A	5W8134	• • ADAPTOR - TEE POST SBE73-0045 PRE SBE73-0058	ad	1
222222B	6A5722	• • ADAPTOR - TEE POST SBE73-0058	ae	1
230230	5W1646	• • ADAPTOR - HOUSING RESTRICTOR	aa-ae	1
288288	6A5724	• RESTRCTR POST SBE73-0058	ae	1
290290	PRE124S	• RING - RETAINING RESTRICTOR 80756 ALT FRR30S POST SBE73-0058	ae	1
-290290A	FRR30S	• RING - RETAINING RESTRICTOR SC571 ALT PRE124S POST SBE73-0058	ae	REF
300300	6A6024	• TUBE - A/O -LP FUEL DISCONNEC POST SBE73-0058	ae	1

305305	4W0171	• BOLT - .250 DIA X 1.062 POST SBE73-0058	ae	3
306306	4W0002	• NUT - .250 DIA POST SBE73-0058	ae	3
308308	AS43013-124	• RING U1653 POST SBE73-0058	ae	1

314314	AS43013-124	• RING - SEALING TOROIDAL U1653 POST SBE73-0058	ae	1
316316	4W0166	• BOLT - .250 DIA X .750 Optional Part 4W0166 POST SBE73-0058	ae	3
402402	UP60494	• • ADAPTOR POST SBE73-0058	ae	1
442442	UP60496	• • ADAPTOR POST SBE73-0058	ae	1
475475	2A1413	• SHIELD - A/O FIRE	aa-ae	1
485485	5W8201	• HOUSING - SEAL	aa-ae	1
498498	AS43013-214	• RING - SEALING TOROIDAL, 24.99 MM I/D X 3.53 MM U1653	aa-ae	2
500500	2A0651	• TUBE - ASSY,FUEL	aa-ae	1

514514	AS21040	• BOLT - .250 DIA X 2.500 U1653	aa-ae	2
516516	AS43013-120	• RING U1653	aa-ae	1

600600	AS15785	• • WIRE - THRUST U1653	aa-ae	1
601601	AS15709	• • NUT - TUBE COUPLING U1653	aa-ae	1
602602	AS15738	• • FERRULE - WELDING TUBE U1653	aa-ae	1
638638	5W8200	• • RETAINER - FERRULE	aa-ae	1
642642	5W8455	• • FERRULE	aa-ae	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	80756
Enterprise Name:	KAYDON CORPORATION
BU Name:	KAYDON CORPORATION
Department:	SPIROLOX DIVISION
Street:	29 CASSENS COURT
City:	ST LOUIS
State:	MO
Zip Code:	63026-2542
Country:	USA

Manufacturer Code:	83930
Enterprise Name:	TRANSDIGM INC
BU Name:	TRANSDIGM INC
Department:	ADEL FASTENERS
Building:	SANDWELL INDUSTRIAL ESTATE
Street:	5000 TRIGGS STREET
City:	LOS ANGELES
State:	WEST MIDLANDS
Zip Code:	B66 1QJ
Country:	USA

Manufacturer Code:	84971
Enterprise Name:	KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:	KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:	TA MFG LTD
Street:	28065 WEST FRANKLIN PARKWAY,VALENCIA
City:	SANTA CLARITA
State:	CALIFORNIA
Zip Code:	GL1 2BS
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE

Export Control

Copyright

Applicability

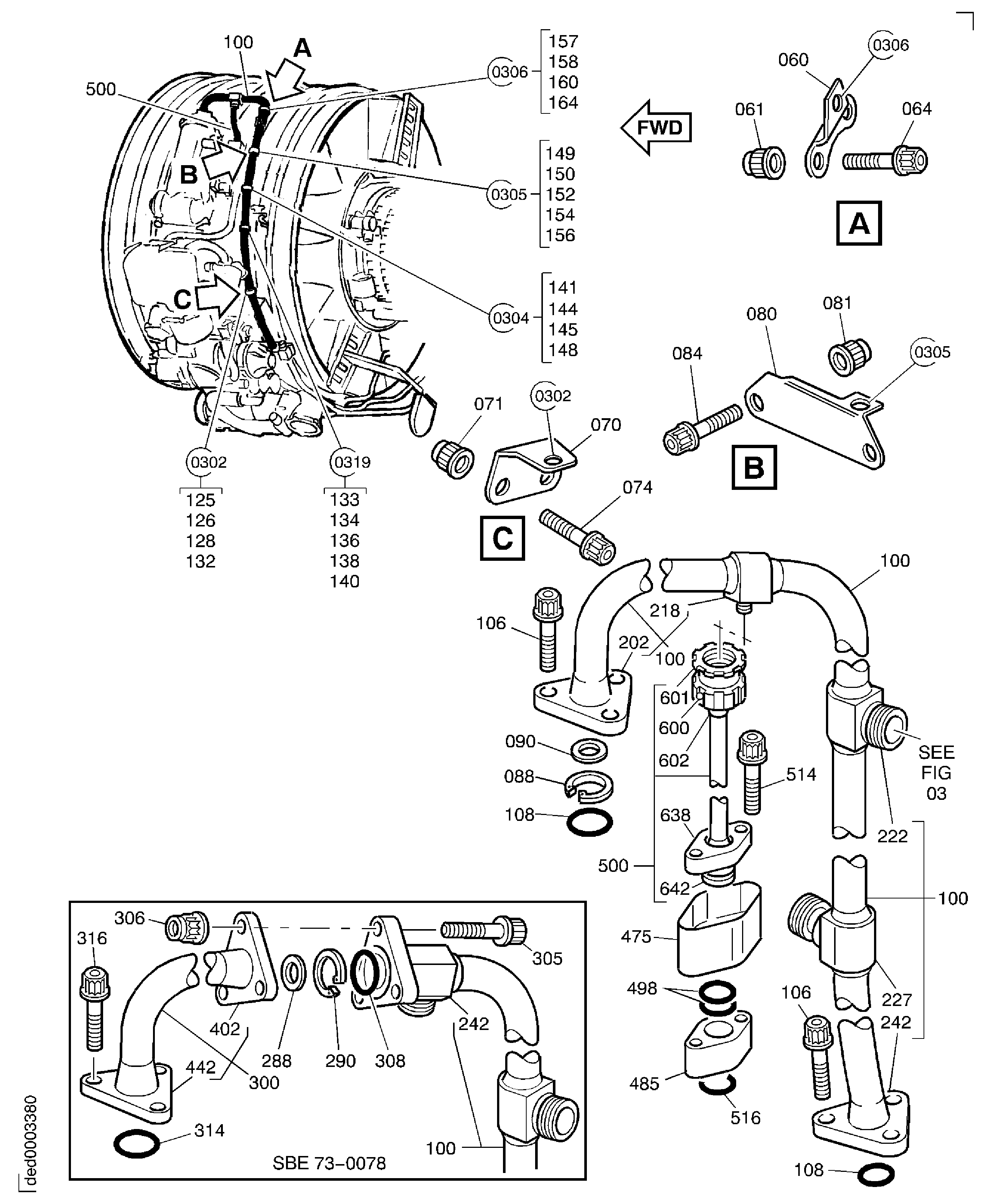

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE

FUEL TUBES ENGINE

Manufacturer Code:	SC571
Enterprise Name:	MATSUMURA KOUKI LTD
BU Name:	MATSUMURA KOUKI LTD
Street:	1-9-8 HAMAMATSU-CHO
City:	MINATO-KUIKLAAS
State:	TOKYO
Country:	JAPAN

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	2A0616
Part Name:	TUBE - FUEL TO HIGH PRESSURE PUMP, ASSEMBLY OF
Manufacturer Code:	0AM53

Part Number:	AS20624
Part Name:	NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:	U1653

Part Number:	AS20625
Part Name:	NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:	AS21412
Part Name:	BOLT - 0.190 DIA X 0.750
Manufacturer Code:	U1653

Part Number:	AS21413
Part Name:	BOLT - 0.190 DIA X 0.812
Manufacturer Code:	U1653

Part Number:	AS21512
Part Name:	BOLT - 0.25 DIA X 0.750
Manufacturer Code:	U1653

Part Number:	AS41104
Part Name:	NUT - 0.19 DIA
Manufacturer Code:	U1653
