DMC:V2500-A1-73-11-49-24A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 24 | ||||
| B73114924 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE70-0069 | aa | ||
| SBE0069-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0061 | ab | ||
| SBE0061-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE79-0087 | ac | ||
| SBE0087-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ad | ||
| 100 | 5R8130 | • TUBE - A/O FUEL AIRVLV TO FMU PRE SBE73-0061 | aa-ab | 1 |
| 100A | 6A5358 | • TUBE - A/O -FUEL-ACOC TO HPT POST SBE73-0061 PRE SBE79-0087 | ac | 1 |
| 100B | 6A6232 | • TUBE - A/O FUEL-ACOC AMV TO DISCON TEE POST SBE79-0087 | ad | 1 |
| 128 | 400WSS4 | • CLIP 83930 PRE SBE73-0061 | aa-ab | 1 |
| 128A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0061 PRE SBE79-0087 | aa-ac | 1 |
| 133 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE79-0087 | aa-ac | 1 |
| 134 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ac | 1 |
| 136 | 400WSS4 | • CLIP 83930 PRE SBE73-0061 | aa-ab | 1 |
| 136A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0061 PRE SBE79-0087 | aa-ac | 1 |
| 140 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ac | 1 |
| 141 | 4W0117 | • BOLT - .190 DIA X 1.375 POST SBE79-0087 | ad | 1 |
| 142 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad | 1 |
| 144 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ad | 1 |
| 146 | UP10481 | • SPACER - 20MM POST SBE79-0087 | ad | 1 |
| 148 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ad | 1 |
| 149 | 4W0120 | • BOLT - .190 DIA X 1.562 POST SBE79-0087 | ad | 1 |
| 150 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad | 2 |
| 152 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ad | 1 |
| 154 | UP10482 | • SPACER - 25MM POST SBE79-0087 | ad | 1 |
| 156 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ad | 1 |
| 160 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ad | 1 |
| 165 | 4W0103 | • BOLT - .190 DIA X .500 POST SBE79-0087 | ad | 1 |
| 166 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad | 1 |
| 168 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ad | 1 |
| 172 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ad | 1 |
| 173 | 4W0111 | • BOLT - .190 DIA X 1.000 POST SBE79-0087 | ad | 1 |
| 174 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad | 1 |
| 176 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ad | 1 |
| 178 | UP10479 | • SPACER - 10MM POST SBE79-0087 | ad | 1 |
| 180 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ad | 1 |
| 200 | AS15777 | • • WIRE - THRUST U1653 POST SBE73-0061 | ac-ad | 1 |
| 201 | AS15701 | • • NUT - TUBE COUPLING U1653 POST SBE73-0061 | ac-ad | 1 |
| 202 | AS15768 | • • FERRULE - ASSY U1653 POST SBE73-0061 PRE SBE79-0087 | ac | 1 |
| 202A | K17404 | • • FERRULE POST SBE79-0087 | ad | 1 |
| 204 | K12664 | • • BUSHING POST SBE79-0087 | ad | 1 |
| 240 | AS15777 | • • WIRE - THRUST U1653 POST SBE79-0087 | ad | 1 |
| 241 | AS15701 | • • NUT - TUBE COUPLING U1653 POST SBE79-0087 | ad | 1 |
| 242 | AS15802 | • • ADAPTOR U1653 POST SBE73-0061 PRE SBE79-0087 | ac | 1 |
| 242A | K17404 | • • FERRULE POST SBE79-0087 | ad | 1 |
| 243 | K12664 | • • BUSHING POST SBE79-0087 | ad | 1 |
| 500 | 5R8131 | • TUBE - A/O FUEL AIRVLV TO FMU PRE SBE70-0069 | aa-ab | 1 |
| 500A | 5R8144 | • TUBE - ASSY OF FUEL AIR VALVE TO FMU POST SBE70-0069 PRE SBE73-0061 | aa-ab | 1 |
| 500B | 6A5359 | • TUBE - A/O -FUEL-VSVA TO DV-D POST SBE73-0061 PRE SBE79-0087 | ac | 1 |
| 525 | 4W0125 | • BOLT - .190 DIA X 1.875 PRE SBE73-0061 | aa-ab | 1 |
| 525A | 4W0124 | • BOLT - .190 DIA X 1.812 POST SBE73-0061 PRE SBE79-0087 | aa-ac | 1 |
| 526 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ac | 1 |
| 528 | 400WSS4 | • CLIP 83930 PRE SBE73-0061 | aa-ab | 1 |
| 528A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0061 PRE SBE79-0087 | aa-ac | 1 |
| 530 | 5W1030 | • SPACER - (10MM) PRE SBE79-0087 | aa-ac | 1 |
| 531 | 5W1032 | • SPACER - (20MM) PRE SBE79-0087 | aa-ac | 1 |
| 532 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ac | 1 |
| 533 | 4W0104 | • BOLT - .190 DIA X .562 PRE SBE73-0061 | aa-ab | 1 |
| 533A | 4W0103 | • BOLT - .190 DIA X .500 POST SBE73-0061 PRE SBE79-0087 | aa-ac | 1 |
| 534 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ac | 1 |
| 536 | 400WSS4 | • CLIP 83930 PRE SBE73-0061 | aa-ab | 1 |
| 536A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0061 PRE SBE79-0087 | aa-ac | 1 |
| 540 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ac | 1 |
| 541 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE73-0061 | aa-ab | 1 |
| 541A | 4W0102 | • BOLT - .190 DIA X .438 POST SBE73-0061 PRE SBE79-0087 | aa-ac | 1 |
| 542 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ac | 1 |
| 544 | 400WSS4 | • CLIP 83930 PRE SBE73-0061 | aa-ab | 1 |
| 544A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0061 PRE SBE79-0087 | aa-ac | 1 |
| 548 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ac | 1 |
| 600 | AS15777 | • • WIRE - THRUST U1653 POST SBE73-0061 PRE SBE79-0087 | ac | 1 |
| 601 | AS15701 | • • NUT - TUBE COUPLING U1653 POST SBE73-0061 PRE SBE79-0087 | ac | 1 |
| 602 | AS15768 | • • FERRULE - ASSY U1653 POST SBE73-0061 PRE SBE79-0087 | ac | 1 |
| 618 | 6A5531 | • • ADAPTOR - LUG POST SBE73-0061 PRE SBE79-0087 | ac | 1 |
| 620 | 5W1587 | • • ADAPTOR - LUG POST SBE73-0061 | ac-ad | 2 |
| 640 | AS15777 | • • WIRE - THRUST U1653 POST SBE73-0061 PRE SBE79-0087 | ac | 1 |
| 641 | AS15701 | • • NUT - TUBE COUPLING U1653 POST SBE73-0061 PRE SBE79-0087 | ac | 1 |
| 642 | K17404 | • • FERRULE POST SBE73-0061 PRE SBE79-0087 | ac | 1 |
| 643 | K12664 | • • BUSHING POST SBE73-0061 PRE SBE79-0087 | ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

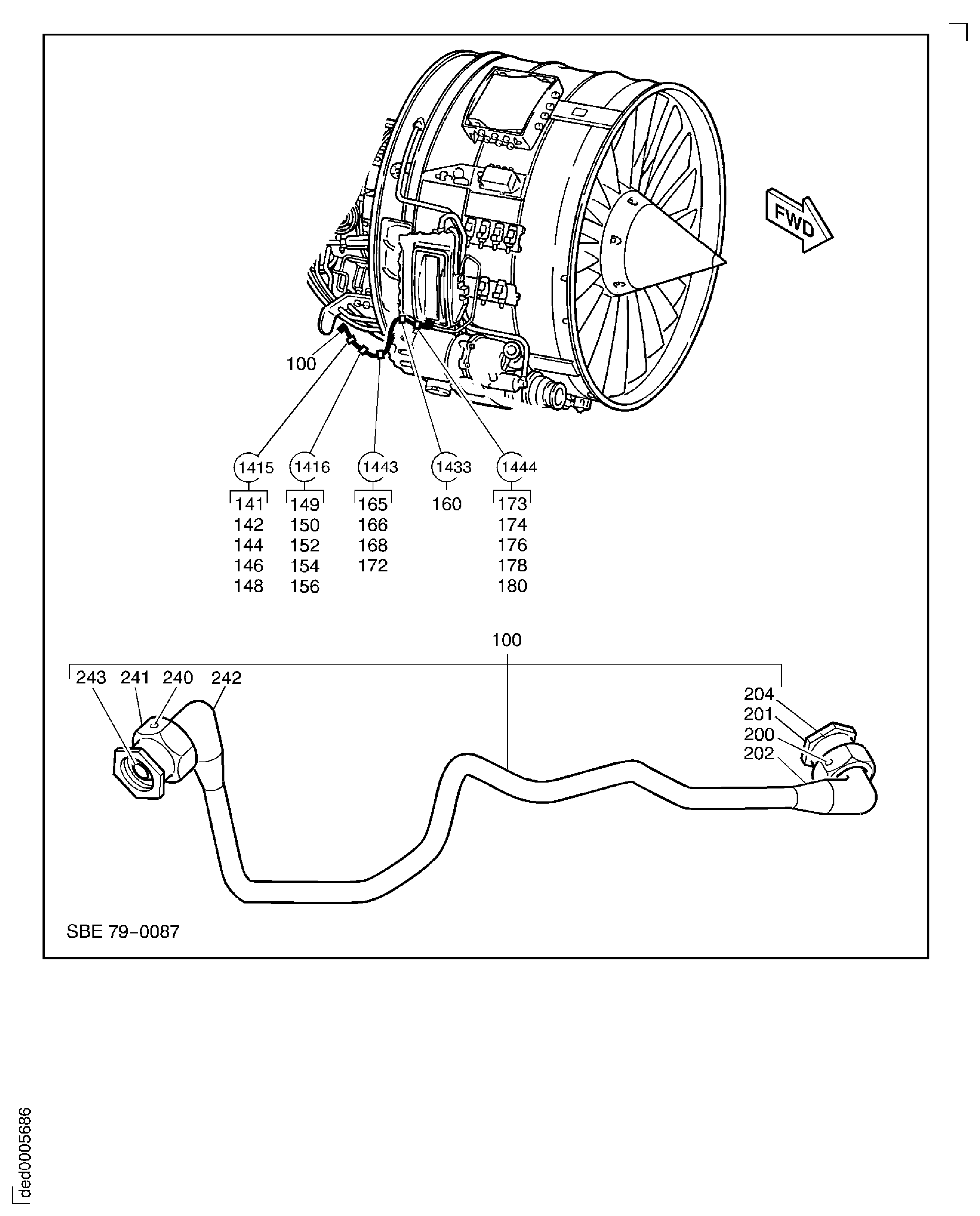

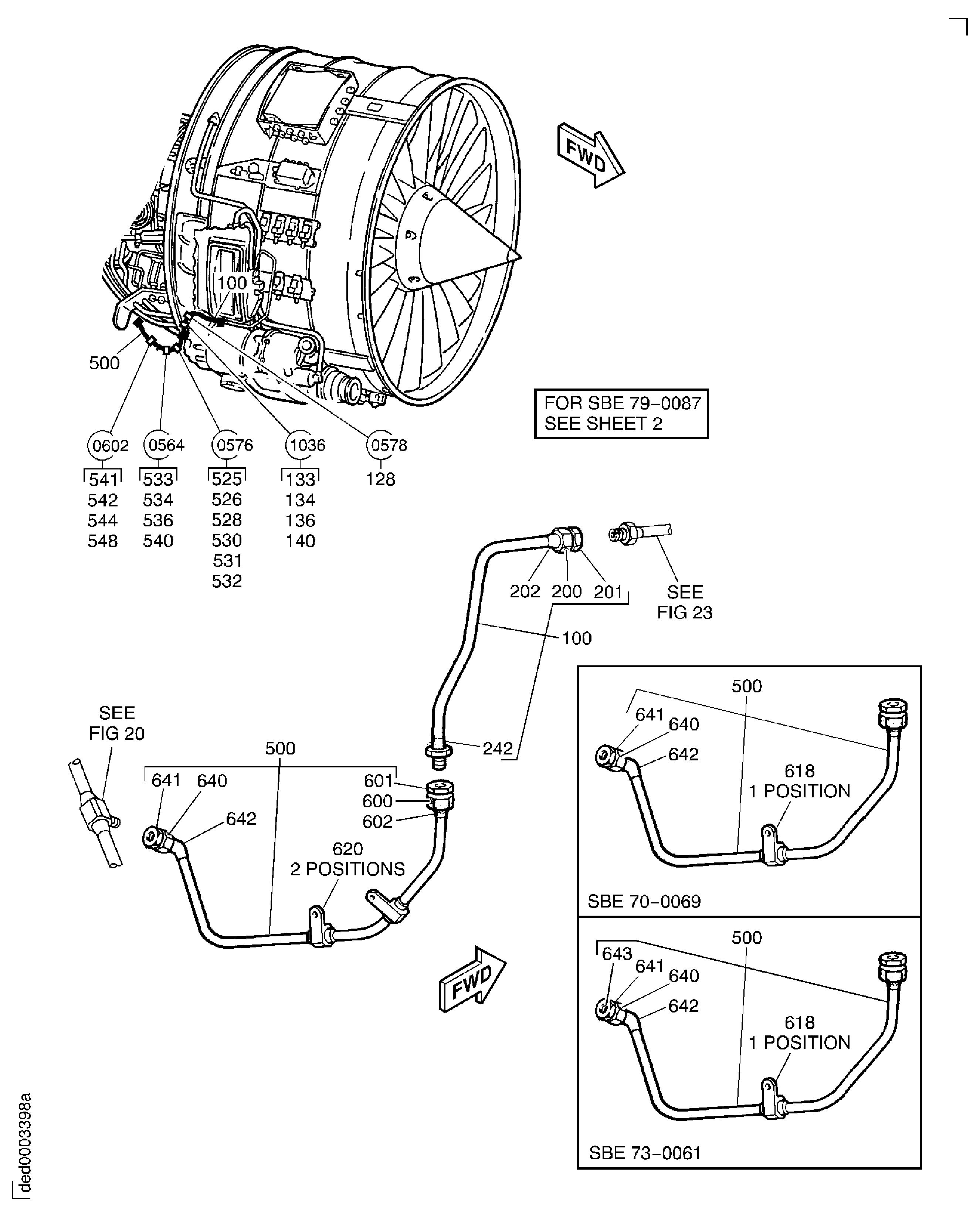

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE
FUEL TUBES ENGINE
FUEL TUBES ENGINE
