| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 26 | ||||
| B73114926 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE70-0047 | aa | ||
| SBE0047-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE70-0109 | ab | ||
| SBE0109-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE, PRE SBE73-0045 | ac | ||
| SBE0045-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE | ad | ||
| 085 | 5W8201 | • HOUSING - SEAL | aa-ad | 1 |
| 098 | AS43013-214 | • RING - SEALING TOROIDAL, 24.99 MM I/D X 3.53 MM U1653 | aa-ad | 2 |
| 100 | 5R8121 | • TUBE - A/O FUEL PRE SBE73-0045 | aa-ac | 1 |
| 100A | 6A5353 | • TUBE - A/O FUEL - FMU TO DIVERTER VALVE POST SBE73-0045 | ad | 1 |
| 106 | 4W0169 | • BOLT - .250 DIA X .938 | aa-ad | 3 |
| 108 | AS43013-120 | • RING U1653 | aa-ad | 1 |
| 114 | MS9760-33 | • BOLT 96906 PRE SBE70-0109 | aa-ad | 2 |
| 114A | AS21040 | • BOLT - .250 DIA X 2.500 U1653 POST SBE70-0109 | aa-ad | 2 |
| 116 | AS43013-120 | • RING U1653 | aa-ad | 1 |
| 152 | 400WSS16 | • CLIP 83930 PRE SBE73-0045 | aa-ac | 1 |
| 152A | AS62416 | • CLIP - 25.40 MM (1.000) U1653 POST SBE73-0045 | ad | 1 |
| 157 | AS21408 | • BOLT - .190 DIA X .500 U1653 | aa-ad | 1 |
| 158 | SP154D | • WASHER - .190 DIA K7766 | aa-ad | 1 |
| 160 | 400WSS16 | • CLIP 83930 | aa-ad | 1 |
| 164 | AS20624 | • NUT - .190 DIA U1653 | aa-ad | 1 |
| 165 | AS21408 | • BOLT - .190 DIA X .500 U1653 | aa-ad | 1 |
| 165A | AS21425 | • BOLT - .190 DIA X 1.562 U1653 | aa-ad | 1 |
| 166 | SP154D | • WASHER - .190 DIA K7766 | aa-ad | 1 |
| 168 | 400WSS16 | • CLIP 83930 | aa-ad | 1 |
| 168A | AS62416 | • CLIP - 25.40 MM (1.000) U1653 POST SBE73-0045 | ad | 1 |
| 170 | 5W1033 | • SPACER - (25MM) | aa-ad | 1 |
| 172 | AS20624 | • NUT - .190 DIA U1653 | aa-ad | 1 |
| 173 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ad | 1 |
| 174 | 5W1086 | • WASHER | aa-ad | 1 |
| 176 | 400WSS16 | • CLIP 83930 PRE SBE73-0045 | aa-ac | 1 |
| 176A | AS62416 | • CLIP - 25.40 MM (1.000) U1653 POST SBE73-0045 | ad | 1 |
| 180 | AS41104 | • NUT - .190 DIA U1653 PRE SBE70-0047 | aa-ad | 1 |
| 180A | 4W0043 | • NUT - .190 DIA POST SBE70-0047 | aa-ad | 1 |
| 202 | 5W8073 | • • ADAPTOR - STRAIGHT FLANGED | aa-ad | 1 |
| 202A | AS27437 | • • ADAPTOR - STRAIGHT TUBE U1653 POST SBE73-0045 | ad | 1 |
| 230 | 5W1596 | • • ADAPTOR - LUG | aa-ad | 2 |
| 230A | 6A4531 | • • ADAPTOR POST SBE73-0045 | ad | 1 |
| 238 | 5W8200 | • • RETAINER - FERRULE | aa-ad | 1 |
| 238A | 5W8200 | • • RETAINER - FERRULE POST SBE73-0045 | ad | 1 |
| 242 | 5W1579 | • • FERRULE | aa-ad | 1 |
| 242A | 5W8455 | • • FERRULE POST SBE73-0045 | ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

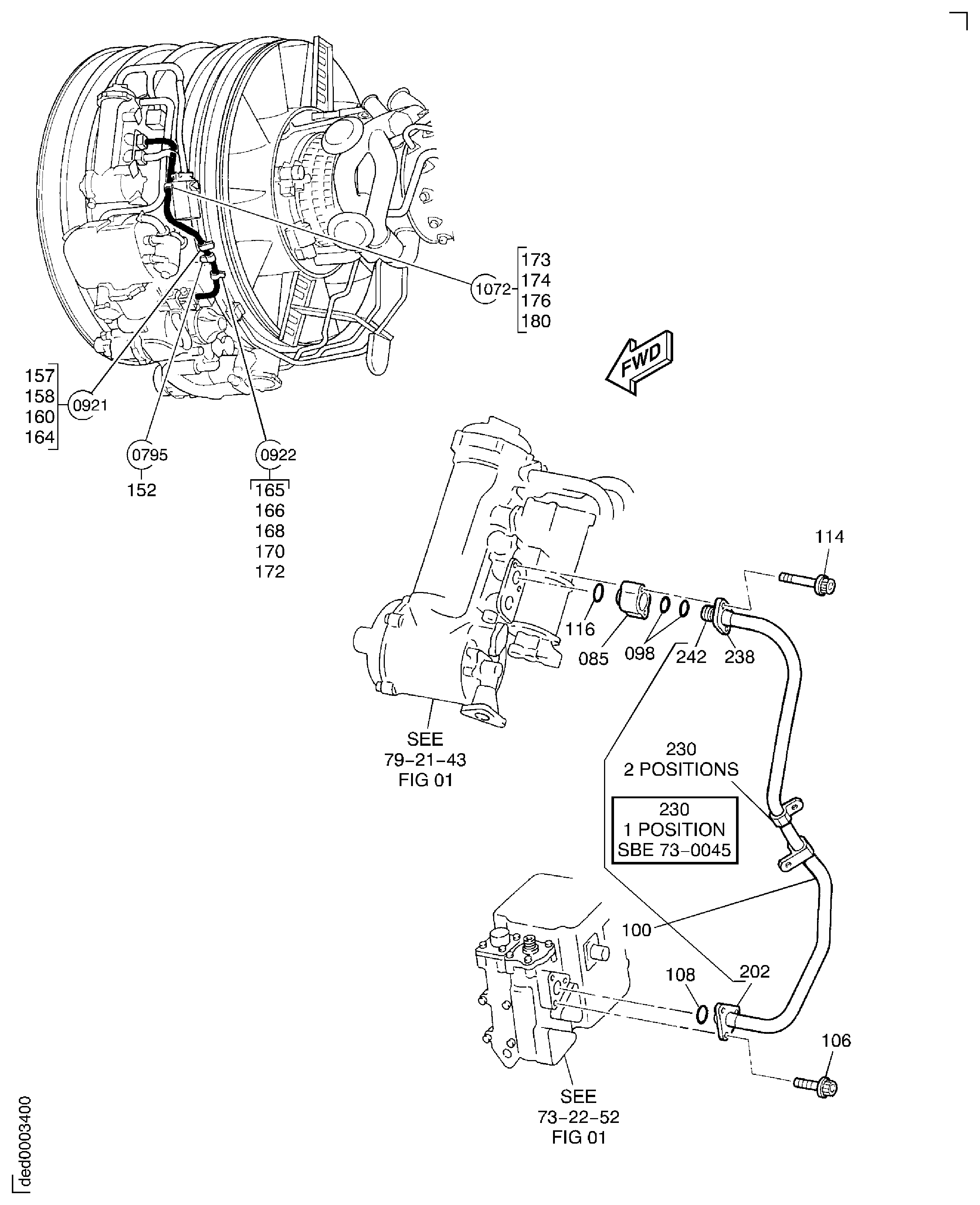

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE
FUEL TUBES ENGINE
