DMC:V2500-A1-73-22-49-06A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 06 | ||||
| B73224906 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE73-0011 | aa | ||
| SBE0011-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE73-0019 | ab | ||
| SBE0019-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE73-0166 | ac | ||
| SBE0166-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE79-0087 | ad | ||
| SBE0087-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE73-0198 | ae | ||
| SBE0198-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES | af | ||
| 080 | MS9405-01 | • • PLUG 96906 | aa-af | 1 |
| 083 | MS9321-10 | • • WASHER - FLAT 96906 | aa-af | 1 |
| 100 | 5A8735 | • TUBE - ASSY PRE SBE73-0011 | aa | 1 |
| 100A | 5A0446 | • TUBE - ASSY AIR PS3 BURNER POST SBE73-0011 PRE SBE73-0019 | aa-af | 1 |
| 100B | 5A8799 | • TUBE - ASSY BURNER TO EEC POST SBE73-0019 PRE SBE73-0166 | aa-af | 1 |
| 100C | 6A8090 | • TUBE - ASSY BURNER TO EEC POST SBE73-0166 | aa-af | 1 |
| 100D | 6A6211 | • TUBE - A/O AIR-PB TO EEC BIF PANEL TO DISCON POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 100E | 6A9040 | • TUBE - ASSY POST SBE73-0198 | af | 1 |
| 102 | 4W0002 | • NUT - .250 DIA | aa-af | 2 |
| 106 | 4W0163 | • BOLT - .250 DIA X .562 | aa-af | 2 |
| 128 | 400WSS4 | • CLIP 83930 PRE SBE73-0019 | aa-ab | 1 |
| 128A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 149 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE79-0087 | aa-ad | 1 |
| 150 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ad | 1 |
| 152 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ad | 1 |
| 156 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ad | 1 |
| 160 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ad | 1 |
| 165 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE79-0087 | aa-ad | 1 |
| 166 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ad | 1 |
| 168 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ad | 1 |
| 172 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ad | 1 |
| 176 | 400WSS4 | • CLIP - LOOP TYPE 83930 POST SBE73-0019 PRE SBE79-0087 | ac-ad | 1 |
| 184 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 184A | AS62406 | • CLIP - 9.52 MM (0.375) U1653 POST SBE73-0198 | af | 1 |
| 192 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 192A | AS62406 | • CLIP - 9.52 MM (0.375) U1653 POST SBE73-0198 | af | 1 |
| 202 | 5W8019 | • • ADAPTOR - UNION FLANGED PRE SBE73-0198 | aa-ae | 1 |
| 202A | 6A9084 | • • ADAPTOR POST SBE73-0198 | af | 1 |
| 218 | 5A9375 | • • CONNECTR - TRAP PRE SBE73-0011 | aa | 1 |
| 218A | 5A0447 | • • TRAP - ASSY OF POST SBE73-0011 | aa-af | 1 |
| 218B | 5A0454 | • • TRAP - A/O POST SBE73-0019 PRE SBE73-0166 | ac | 1 |
| 218C | 6A8092 | • • RECEPTCL - ASSY, MOISTURE POST SBE73-0166 | ad-af | 1 |
| 226 | UP10758 | • CONNECTR POST SBE73-0198 | af | 1 |
| 228 | UP10757 | • CONNECTR - 3 WAY POST SBE73-0198 | af | 1 |
| 232 | UP11155 | • BRACKET - INTER TUBE SUPPORT POST SBE73-0198 | af | 1 |
| 234 | AS15810 | • ADAPTOR - STRAIGHT TUBE U1653 POST SBE73-0198 | af | 1 |
| 240 | AS15777 | • • WIRE - THRUST U1653 PRE SBE79-0087 | aa-ad | 1 |
| 241 | AS15701 | • • NUT - TUBE COUPLING U1653 PRE SBE79-0087 | aa-ad | 1 |
| 242 | AS15802 | • • ADAPTOR U1653 POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 245 | MS9405-01 | • • PLUG 96906 POST SBE73-0019 | ac-af | 1 |
| 250 | MS9321-10 | • • WASHER - FLAT 96906 POST SBE73-0019 PRE SBE73-0198 | ac-ae | 1 |
| 264 | 6A7398 | • PLUG - ASSY POST SBE73-0198 | af | 1 |
| 265 | AS15781 | • WIRE - THRUST U1653 POST SBE73-0198 | af | 1 |
| 266 | AS15705 | • NUT - TUBE COUPLING U1653 POST SBE73-0198 | af | 1 |
| 500 | 5A9093 | • TUBE - A/O AIR PS3 PRESS EEC PRE SBE79-0087 | aa-ad | 1 |
| 500A | 6A6212 | • TUBE - A/O AIR-PB TO EEC DISCON TO DISCON POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 500B | 6A9045 | • TUBE - ASSY POST SBE73-0198 | af | 1 |
| 528 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ad | 1 |
| 536 | 400WSS4 | • CLIP 83930 PRE SBE73-0198 | aa-ae | 1 |
| 536A | AS62406 | • CLIP - 9.52 MM (0.375) U1653 POST SBE73-0198 | af | 1 |
| 544 | 400WSS4 | • CLIP 83930 PRE SBE73-0198 | aa-ae | 1 |
| 544A | AS62406 | • CLIP - 9.52 MM (0.375) U1653 POST SBE73-0198 | af | 1 |
| 552 | 400WSS4 | • CLIP 83930 PRE SBE73-0198 | aa-ae | 1 |
| 557 | 4W0119 | • BOLT - .190 DIA X 1.500 PRE SBE73-0198 | aa-ae | 1 |
| 558 | 5W1086 | • WASHER PRE SBE73-0198 | aa-ae | 1 |
| 560 | 400WSS4 | • CLIP 83930 PRE SBE73-0198 | aa-ae | 1 |
| 562 | 5W1033 | • SPACER - (25MM) PRE SBE73-0198 | aa-ae | 1 |
| 564 | 4W0043 | • NUT - .190 DIA PRE SBE73-0198 | aa-ae | 1 |
| 573 | 4W0102 | • BOLT - .190 DIA X .438 POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 574 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 576 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 580 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 581 | 4W0105 | • BOLT - .190 DIA X .625 POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 582 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 PRE SBE73-0198 | ae | 2 |
| 584 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 588 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 600 | AS15777 | • • WIRE - THRUST U1653 POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 600A | AS15779 | • • WIRE - THRUST U1653 POST SBE73-0198 | af | 1 |
| 601 | AS15701 | • • NUT - TUBE COUPLING U1653 POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 601A | AS15703 | • • NUT - TUBE COUPLING U1653 POST SBE73-0198 | af | 1 |
| 602 | AS15802 | • ADAPTOR U1653 PRE SBE79-0087 | aa-ad | 2 |
| 602A | AS15768 | • FERRULE - ASSY U1653 POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 602B | LK40979 | • FERRULE POST SBE73-0198 | af | 1 |
| 642 | AS15802 | • • ADAPTOR U1653 POST SBE79-0087 PRE SBE73-0198 | ae | 1 |
| 642A | AS15806 | • • ADAPTOR - STRAIGHT TUBE U1653 POST SBE73-0198 | af | 1 |
| 660 | AS62406 | • CLIP - 9.52 MM (0.375) U1653 POST SBE73-0198 | af | 1 |
| 665 | 4W0115 | • BOLT - .190 DIA X 1.250 ALT 4W0115 POST SBE73-0198 | af | 1 |
| 665A | 4W0355 | • BOLT - .190 DIA X 1.250 ALT 4W0355 POST SBE73-0198 | af | 1 |
| 666 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE73-0198 | af | 2 |
| 668 | AS62406 | • CLIP - 9.52 MM (0.375) U1653 POST SBE73-0198 | af | 1 |
| 670 | UP10480 | • SPACER - 15MM POST SBE73-0198 | af | 1 |
| 672 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0198 | af | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

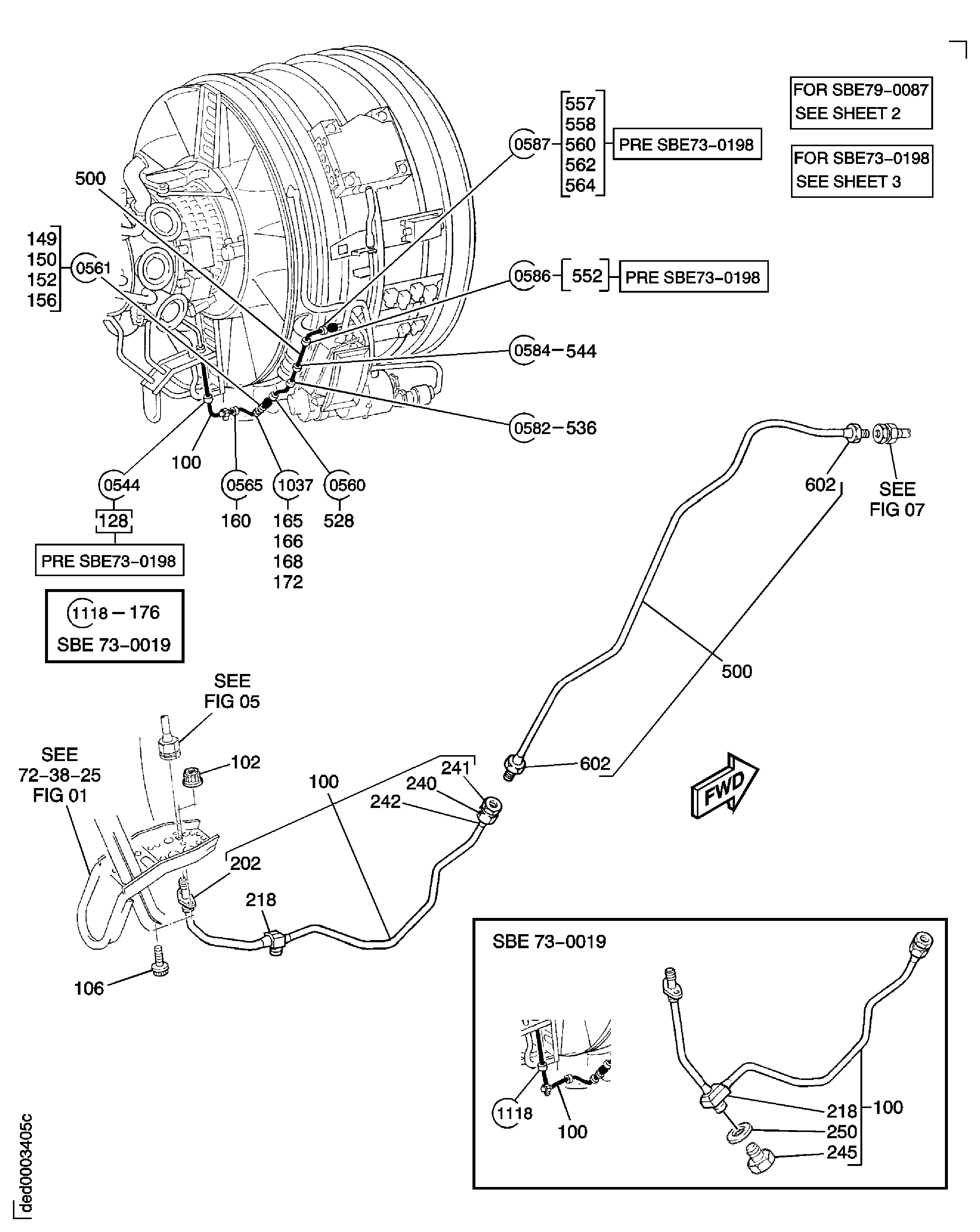

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES
FUEL SYSTEM AIR TUBES
FUEL SYSTEM AIR TUBES
FUEL SYSTEM AIR TUBES
