| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 07 | ||||
| B73224907 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE73-0011 | aa | ||
| SBE0011-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE73-0019 | ab | ||
| SBE0019-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE73-0166 | ac | ||
| SBE0166-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE70-0835 | ad | ||
| SBE0835-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE73-0198 | ae | ||
| SBE0198-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES | af | ||
| 070 | MS9405-01 | • • PLUG 96906 | aa-af | 1 |
| 073 | MS9321-10 | • • WASHER - FLAT 96906 | aa-af | 1 |
| 100 | 5A8736 | • TUBE - ASSY PRE SBE73-0011 | aa | 1 |
| 100A | 5A0448 | • TUBE - ASSY AIR PS3 BURNER POST SBE73-0011 PRE SBE73-0019 | aa-af | 1 |
| 100B | 5A8800 | • TUBE - ASSY BURNER TO EEC POST SBE73-0019 PRE SBE73-0166 | aa-af | 1 |
| 100C | 6A8091 | • TUBE - ASSY BURNER TO EEC POST SBE73-0166 | aa-af | 1 |
| 100D | 6A9039 | • TUBE - ASSY POST SBE73-0198 | af | 1 |
| 110 | MS9201-04 | • NUT - .437 DIA 96906 PRE SBE73-0198 | aa-ae | 1 |
| 141 | 4W0102 | • BOLT - .190 DIA X .438 PRE SBE73-0198 | aa-ae | 1 |
| 142 | 5W1086 | • WASHER PRE SBE73-0198 | aa-ae | 1 |
| 144 | 400WSS4 | • CLIP 83930 PRE SBE73-0198 | aa-ae | 1 |
| 148 | 4W0043 | • NUT - .190 DIA PRE SBE73-0198 | aa-ae | 1 |
| 149 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE73-0198 | aa-ae | 1 |
| 150 | 5W1086 | • WASHER PRE SBE73-0198 | aa-ae | 1 |
| 152 | 400WSS4 | • CLIP 83930 PRE SBE73-0198 | aa-ae | 1 |
| 156 | 4W0001 | • NUT - .190 DIA PRE SBE73-0198 | aa-ae | 1 |
| 200 | AS15777 | • • WIRE - THRUST U1653 PRE SBE73-0198 | aa-ae | 1 |
| 200A | AS15779 | • • WIRE - THRUST U1653 POST SBE73-0198 | af | 1 |
| 201 | AS15701 | • • NUT - TUBE COUPLING U1653 PRE SBE73-0198 | aa-ae | 1 |
| 201A | AS15703 | • • NUT - TUBE COUPLING U1653 POST SBE73-0198 | af | 1 |
| 202 | AS15768 | • • FERRULE - ASSY U1653 PRE SBE73-0198 | aa-ae | 1 |
| 202A | AS15726 | • • FERRULE U1653 POST SBE73-0198 | af | 1 |
| 218 | 5A9374 | • • CONNECTR - TRAP PRE SBE73-0011 | aa | 1 |
| 218A | 5A0449 | • • TRAP - ASSY OF POST SBE73-0011 | aa-af | 1 |
| 218B | 5A0454 | • • TRAP - A/O POST SBE73-0019 PRE SBE73-0166 | ac | 1 |
| 218C | 6A8092 | • • RECEPTCL - ASSY, MOISTURE POST SBE73-0166 | ad-af | 1 |
| 242 | 5A9369 | • • ADAPTOR PRE SBE73-0198 | aa-ae | 1 |
| 245 | MS9405-01 | • • PLUG 96906 POST SBE73-0019 PRE SBE73-0198 | ac-ae | 1 |
| 250 | MS9321-10 | • • WASHER - FLAT 96906 POST SBE73-0019 PRE SBE73-0198 | ac-ae | 1 |
| 253 | 4W0102 | • BOLT - .190 DIA X .438 ALT 4W0342 POST SBE73-0198 | af | 1 |
| 253A | 4W0342 | • BOLT - .190 DIA X .438 ALT 4W0102 POST SBE73-0198 | af | 1 |
| 254 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE73-0198 | af | 1 |
| 256 | AS62406 | • CLIP - 9.52 MM (0.375) U1653 POST SBE73-0198 | af | 1 |
| 260 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0198 | af | 1 |
| 261 | 4W0102 | • BOLT - .190 DIA X .438 ALT 4W0342 POST SBE73-0198 | af | 1 |
| 261A | 4W0342 | • BOLT - .190 DIA X .438 ALT 4W0102 POST SBE73-0198 | af | 1 |
| 262 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE73-0198 | af | 1 |
| 264 | AS62406 | • CLIP - 9.52 MM (0.375) U1653 POST SBE73-0198 | af | 1 |
| 268 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0198 | af | 1 |
| 272 | AS62406 | • CLIP - 9.52 MM (0.375) U1653 POST SBE73-0198 | af | 1 |
| 280 | AS62406 | • CLIP - 9.52 MM (0.375) U1653 POST SBE73-0198 | af | 1 |
| 500 | 5A9166 | • FLEXIBLE - HOSE METAL TYPE PRE SBE70-0835 | aa-ae | 1 |
| 500A | 44456 | • TUBE - ASSY U1596 POST SBE70-0835 PRE SBE73-0198 | aa-ae | 1 |
| 800 | 5W8351 | • BRACKET POST SBE73-0198 | af | 1 |
| 801 | 4W0164 | • BOLT - .250 DIA X .625 Optional Part 4W0164 POST SBE73-0198 | af | 1 |
| 802 | 4W0002 | • NUT - .250 DIA Optional Part 4W0002 POST SBE73-0198 | af | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

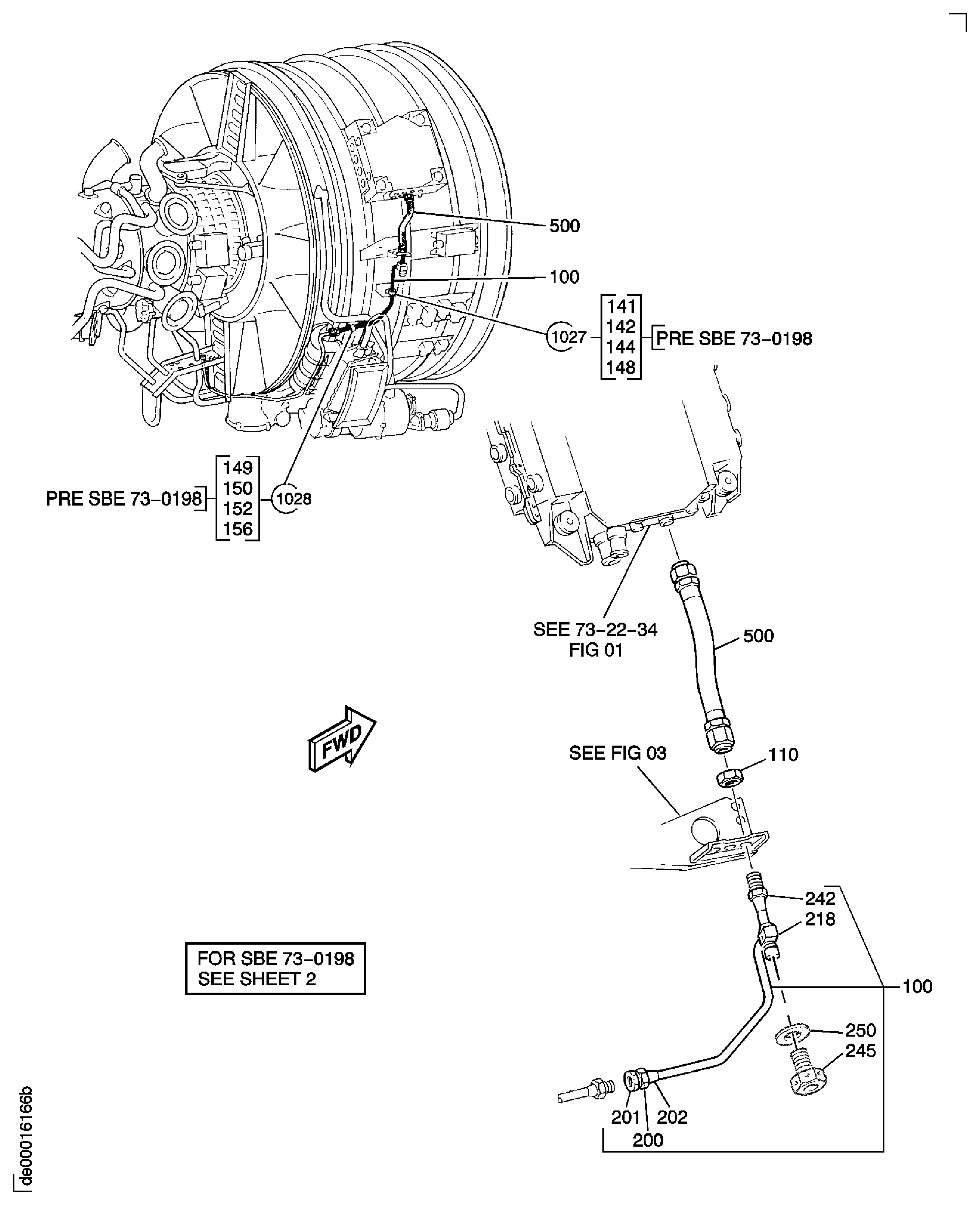

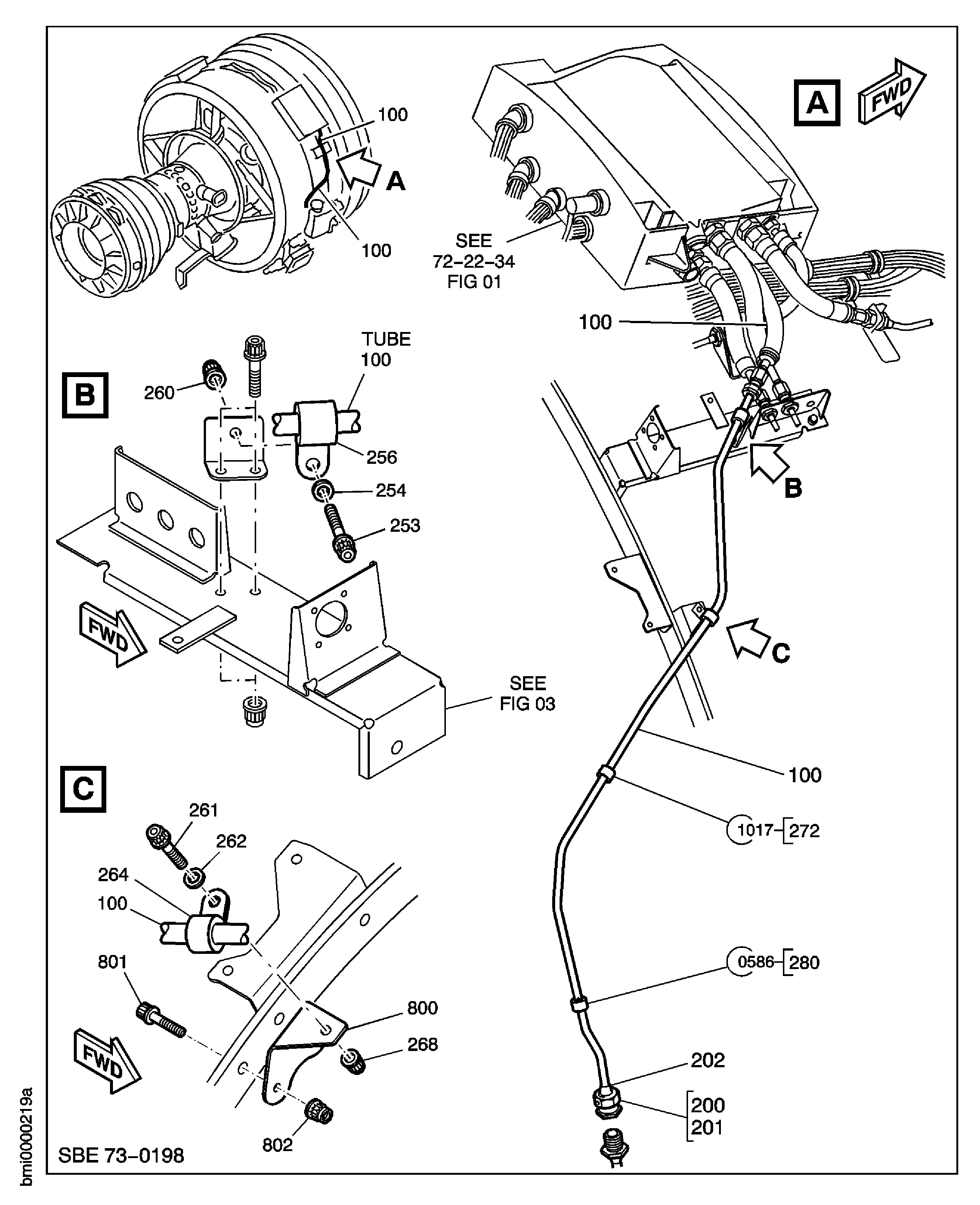

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES
FUEL SYSTEMS AIR TUBES
FUEL SYSTEMS AIR TUBES
