ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES

DMC:V2500-A1-73-22-49-08A-941A-D|Issue No:002|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
08
000	B73224908	ENGINE - FUEL AND CONTROL - FUEL SYSTEM AIR TUBES, PRE SBE73-0010	aa
000	SBE0010-01	ENGINE - FUEL AND CONTROL - FUEL SYSTEM AIR TUBES, PRE SBE70-0158	ab
000	SBE0158-01	ENGINE - FUEL AND CONTROL - FUEL SYSTEM AIR TUBES, PRE SBE73-0038	ac
000	SBE0038-01	ENGINE - FUEL AND CONTROL - FUEL SYSTEM AIR TUBES, PRE SBE70-0568	ad
000	SBE0568-01	ENGINE - FUEL AND CONTROL - FUEL SYSTEM AIR TUBES, PRE SBE70-0604	ae
000	SBE0604-01	ENGINE - FUEL AND CONTROL - FUEL SYSTEM AIR TUBES, PRE SBE70-0571	af
000	SBE0571-01	ENGINE - FUEL AND CONTROL - FUEL SYSTEM AIR TUBES, PRE SBE70-0835	ag
000	SBE0835-01	ENGINE - FUEL AND CONTROL - FUEL SYSTEM AIR TUBES	ah
030030	5W8334	• BRACKET PRE SBE73-0010	aa	1
030030A	5W8385	• BRACKET POST SBE73-0010	ab-ah	1

031031	4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA	aa-ah	2
034034	4W2388	• SCREW - 0.250 DIA X 0.750	aa-ah	2

060060	5W8246	• BRACKET PRE SBE70-0158	aa-ah	2
060060A	6A4676	• BRACKET POST SBE70-0158 PRE SBE70-0568	aa-ah	2
060060B	6A4676	• BRACKET ALT 5W8246 POST SBE70-0568	aa-ah	2
060060C	5W8246	• BRACKET ALT 6A4676 POST SBE70-0568	ae-ah	2

061061	4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA	aa-ah	4
064064	4W2388	• SCREW - 0.250 DIA X 0.750	aa-ah	4

070070	5W8261	• BRACKET PRE SBE70-0158	aa-ah	2
070070A	6A4677	• BRACKET - CLIPPING POST SBE70-0158 PRE SBE70-0568	aa-ah	2
070070B	6A4677	• BRACKET - CLIPPING ALT 5W8261 POST SBE70-0568	aa-ah	2
070070C	5W8261	• BRACKET ALT 6A4677 POST SBE70-0568	ae-ah	2

071071	4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA	aa-ah	4
074074	4W2388	• SCREW - 0.250 DIA X 0.750	aa-ah	4

100100	5A8742	• TUBE - ASSEMBLY OF PRE SBE73-0010	aa	1
100100A	5A8782	• TUBE - AIR, P2 T2, ASSEMBLY OF POST SBE73-0010 PRE SBE73-0038	ab-ac	1
100100B	6A5273	• TUBE - PT T2, ASSEMBLY OF POST SBE73-0038	ad-ah	1

125125	4W0102	• BOLT, MACHINE DOUBLE HEX - .190 DIA X .438 PRE SBE73-0038	aa-ac	1
125125A	4W0103	• BOLT - .190 DIA X .500 POST SBE73-0038	ad-ah	1
126126	5W1086	• WASHER PRE SBE73-0038	aa-ac	1
126126A	K8831	• WASHER - .190 DIA X 0.51 THK POST SBE73-0038	ad-ah	1
128128	400WSS4	• CLIP 83930	aa-ah	1
132132	4W0043	• NUT, SELF LOCKING, ASSEMBLY OF - .190 DIA PRE SBE73-0038	aa-ac	1
132132A	4W0001	• NUT, OPTION - .190 DIA POST SBE73-0038	ad-ah	1
133133	4W0104	• BOLT - .190 DIA X .562	aa-ah	1
134134	5W1086	• WASHER	aa-ah	2
136136	400WSS4	• CLIP 83930	aa-ah	1
140140	4W0001	• NUT, OPTION - .190 DIA	aa-ah	1
141141	4W0108	• BOLT, MACHINE DOUBLE HEX - .190 DIA X .812 PRE SBE73-0010	aa	1
141141A	4W0104	• BOLT - .190 DIA X .562 POST SBE73-0010	ab-ah	1
142142	5W1086	• WASHER	aa-ah	2
144144	400WSS4	• CLIP 83930	aa-ah	1

146146	5W1029	• SPACER, SLEEVE, (5MM) PRE SBE73-0010	aa	1

148148	4W0001	• NUT, OPTION - .190 DIA	aa-ah	1
149149	4W0102	• BOLT, MACHINE DOUBLE HEX - .190 DIA X .438	aa-ah	1
150150	5W1086	• WASHER	aa-ah	1
152152	400WSS4	• CLIP 83930	aa-ah	1
156156	4W0043	• NUT, SELF LOCKING, ASSEMBLY OF - .190 DIA	aa-ah	1
157157	4W0106	• BOLT - .190 DIA X .688 PRE SBE73-0010	aa	1
157157A	4W0103	• BOLT - .190 DIA X .500 POST SBE73-0010	ab-ah	1
158158	5W1086	• WASHER	aa-ah	1
160160	400WSS4	• CLIP 83930	aa-ah	1

162162	5W1029	• SPACER, SLEEVE, (5MM) PRE SBE73-0010	aa	1

164164	4W0043	• NUT, SELF LOCKING, ASSEMBLY OF - .190 DIA	aa-ah	1
189189	4W0102	• BOLT, MACHINE DOUBLE HEX - .190 DIA X .438 PRE SBE73-0010	aa-ah	1
189189A	4W0103	• BOLT - .190 DIA X .500 POST SBE73-0010	aa-ah	1
190190	5W1086	• WASHER	aa-ah	1
192192	400WSS4	• CLIP 83930	aa-ah	1
196196	4W0043	• NUT, SELF LOCKING, ASSEMBLY OF - .190 DIA	aa-ah	1

202202	AS15802	• • ADAPTER - STRAIGHT, TUBE U1653	aa-ah	1
240240	AS15777	• • WIRE - THRUST U1653	aa-ah	1
241241	AS15701	• • NUT - TUBE COUPLING U1653	aa-ah	1
242242	AS15722	• • FERRULE U1653 PRE SBE73-0038	aa-ac	1
242242A	AS15768	• • FERRULE - ASSEMBLY U1653 POST SBE73-0038	ad-ah	1
300300	5A8738	• TUBE - ASSEMBLY OF	aa-ah	1
310310	MS9201-06	• NUT - PLAIN, HEXAGON HEAD 96906	aa-ah	1

328328	400WSS4	• CLIP 83930	aa-ah	1
336336	400WSS4	• CLIP 83930	aa-ah	1

402402	AS15802	• • ADAPTER - STRAIGHT, TUBE U1653	aa-ah	1
418418	5A9376	• • TRAP - MOISTURE, ASSEMBLY OF PRE SBE70-0571	aa-ah	1
418418A	UP11198	• • TRAP - MOISTURE, ASSEMBLY OF ALT 5A9376 POST SBE70-0571	aa-ah	1
418418B	5A9376	• • TRAP - MOISTURE, ASSEMBLY OF ALT UP11198 POST SBE70-0571	aa-ah	1
442442	5A8612	• • ADAPTER - UNION	aa-ah	1
500500	5A0148	• HOSE - METAL FLEXIBLE, PTFE, ASSEMBLY OF PRE SBE70-0604	aa-ah	1
500500A	M1546-1	• HOSE - FLEXIBLE, ASSEMBLY 81349 ALT 5A0148 POST SBE70-0604 PRE SBE70-0835	aa-ah	1
-500500B	5A0148	• HOSE - METAL FLEXIBLE, PTFE, ASSEMBLY OF ALT M1546-1 POST SBE70-0604 PRE SBE70-0604	aa-ah	REF
500500C	44849	• TUBE - FLEXIBLE, ASSEMBLY OF U1596 ALT M1546-1 POST SBE70-0835	aa-ah	1
500500D	M1546-1	• HOSE - FLEXIBLE, ASSEMBLY 81349 ALT 5A0148 POST SBE70-0835	aa-ah	1
500500E	5A0148	• HOSE - METAL FLEXIBLE, PTFE, ASSEMBLY OF ALT 44849 POST SBE70-0835	aa-ah	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	81349
Enterprise Name:	DELETED, SEE CAGE CODE 81348

Manufacturer Code:	83930
Enterprise Name:	TRANSDIGM INC
BU Name:	TRANSDIGM INC
Department:	ADEL FASTENERS
Building:	SANDWELL INDUSTRIAL ESTATE
Street:	5000 TRIGGS STREET
City:	LOS ANGELES
State:	WEST MIDLANDS
Zip Code:	B66 1QJ
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	98441
Enterprise Name:	STRATOFLEX PRODUCTS DIV
BU Name:	STRATOFLEX PRODUCTS DIV
Department:	PARKER HANNIFIN CORP.
P.O. Box:	10398
City:	FORT WORTH
State:	TEXAS
Zip Code:	76114-0398
Country:	USA

Manufacturer Code:	U1596
Enterprise Name:	MEGGITT AEROSPACE COMPONENTS
BU Name:	MEGGITT AEROSPACE COMPONENTS
Street:	BOUNDARY WAY
City:	HEMEL HEMPSTEAD
State:	HERTS
Zip Code:	HP2 7SL
Country:	ENGLAND

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	4W0106
Part Name:	BOLT - .190 DIA X .688
Manufacturer Code:	0AM53

Part Number:	AS20624
Part Name:	NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:	U1653

Part Number:	AS20625
Part Name:	NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:	AS21413
Part Name:	BOLT - 0.190 DIA X 0.812
Manufacturer Code:	U1653

Part Number:	AS41104
Part Name:	NUT - 0.19 DIA
Manufacturer Code:	U1653

ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES

Export Control

Copyright

Applicability

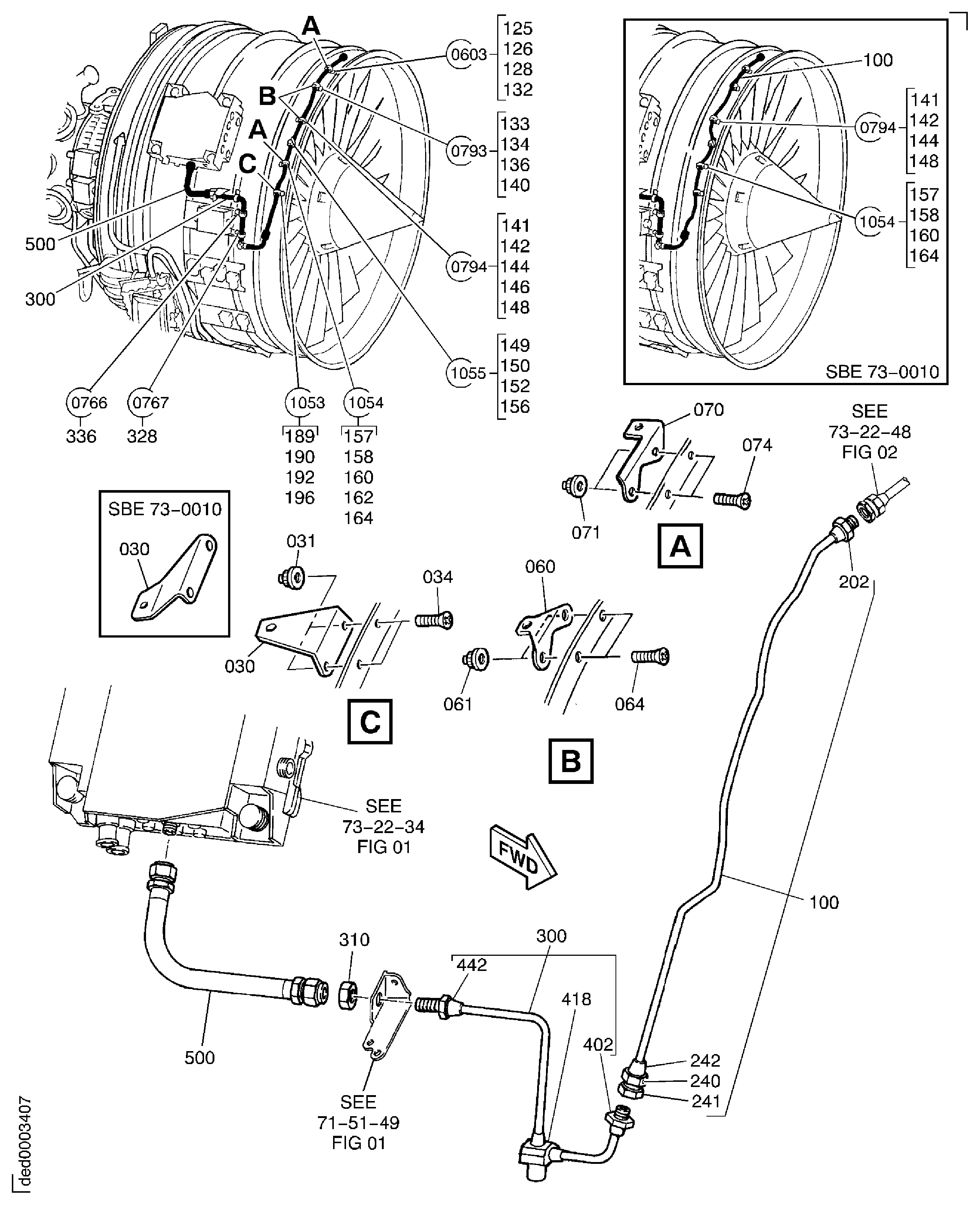

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES
