DMC:V2500-A1-73-22-49-10A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 10 | ||||
| B73224910 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE73-0064 | aa | ||
| SBE0064-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE79-0087 | ab | ||
| SBE0087-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE73-0198 | ac | ||
| SBE0198-01 | ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES | ad | ||
| 100 | 6A2126 | • TUBE - A/O-AIR PRE SBE79-0087 | aa-ab | 1 |
| 100A | 6A6213 | • TUBE - A/O AIR-P2.5TO EEC BIF PANEL TO DISCON POST SBE79-0087 | ac-ad | 1 |
| 102 | 4W0002 | • NUT - .250 DIA | aa-ad | 2 |
| 106 | 4W0163 | • BOLT - .250 DIA X .562 | aa-ad | 2 |
| 128 | 400WSS4 | • CLIP 83930 | aa-ad | 1 |
| 136 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac-ad | 1 |
| 144 | 400WSS4 | • CLIP 83930 | aa-ad | 1 |
| 149 | 400WSS4 | • CLIP 83930 | aa-ad | 1 |
| 150 | 4W0103 | • BOLT - .190 DIA X .500 POST SBE73-0064 PRE SBE79-0087 | ab | 1 |
| 151 | 5W1086 | • WASHER POST SBE73-0064 PRE SBE79-0087 | ab | 2 |
| 152 | 400WSS4 | • CLIP - LOOP TYPE 83930 POST SBE73-0064 PRE SBE79-0087 | ab | 1 |
| 156 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0064 PRE SBE79-0087 | ab | 1 |
| 157 | 4W0102 | • BOLT - .190 DIA X .438 ALT 4W0102 POST SBE73-0198 | ad | 1 |
| 157A | 4W0342 | • BOLT - .190 DIA X .438 ALT 4W0342 POST SBE73-0198 | ad | 1 |
| 158 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE73-0198 | ad | 1 |
| 160 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0198 | ad | 1 |
| 164 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0198 | ad | 1 |
| 184 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac-ad | 1 |
| 192 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac-ad | 1 |
| 202 | UP11028 | • • ADAPTOR - ,(VRS6228) POST SBE70-0364 | ***** | 1 |
| 218 | UP11197 | • • TRAP - ASSY,MOISTURE,(VRS6228) POST SBE70-0364 | ***** | 1 |
| 242 | AS15802 | • • ADAPTOR - STRAIGHT TUBE,(VRS6228) U1653 POST SBE70-0364 | ***** | 1 |
| 500 | 6A1692 | • TUBE - A/O-AIR PRE SBE79-0087 | aa-ab | 1 |
| 500A | 6A6214 | • TUBE - A/O AIR-P2.5DISCON TO DISCON POST SBE79-0087 | ac-ad | 1 |
| 528 | 400WSS4 | • CLIP 83930 | aa-ad | 1 |
| 536 | 400WSS4 | • CLIP 83930 PRE SBE73-0198 | aa-ad | 1 |
| 536A | 400WSS4 | • CLIP 83930 ALT AS62404 POST SBE73-0198 | aa-ad | 1 |
| 536B | AS62404 | • CLIP - 6.35 MM (0.250) U1653 ALT 400WSS4 POST SBE73-0198 | ad | 1 |
| 544 | 400WSS4 | • CLIP 83930 PRE SBE73-0198 | aa-ad | 1 |
| 544A | 400WSS4 | • CLIP 83930 ALT AS62404 POST SBE73-0198 | aa-ad | 1 |
| 544B | AS62404 | • CLIP - 6.35 MM (0.250) U1653 ALT 400WSS4 POST SBE73-0198 | aa-ad | 1 |
| 552 | 400WSS4 | • CLIP 83930 PRE SBE73-0198 | aa-ad | 1 |
| 552A | 400WSS4 | • CLIP 83930 ALT AS62404 POST SBE73-0198 | aa-ad | 1 |
| 552B | AS62404 | • CLIP - 6.35 MM (0.250) U1653 ALT 400WSS4 POST SBE73-0198 | aa-ad | 1 |
| 560 | 400WSS4 | • CLIP 83930 | aa-ad | 1 |
| 573 | 4W0118 | • BOLT - .190 DIA X 1.438 POST SBE79-0087 | ac-ad | 1 |
| 574 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ac-ad | 2 |
| 576 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac-ad | 1 |
| 578 | UP10481 | • SPACER - 20MM POST SBE79-0087 | ac-ad | 1 |
| 580 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ac-ad | 1 |
| 584 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac-ad | 1 |
| 600 | AS15777 | • • WIRE - THRUST,(VRS6228) U1653 POST SBE70-0364 | ***** | 1 |
| 601 | AS15701 | • • NUT - TUBE COUPLING,(VRS6228) U1653 POST SBE70-0364 | ***** | 1 |
| 602 | AS15768 | • • FERRULE - ASSY WELDING,(VRS6228) U1653 POST SBE70-0364 | ***** | 1 |
| 642 | AS15802 | • • ADAPTOR - STRAIGHT TUBE,(VRS6228) U1653 POST SBE70-0364 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

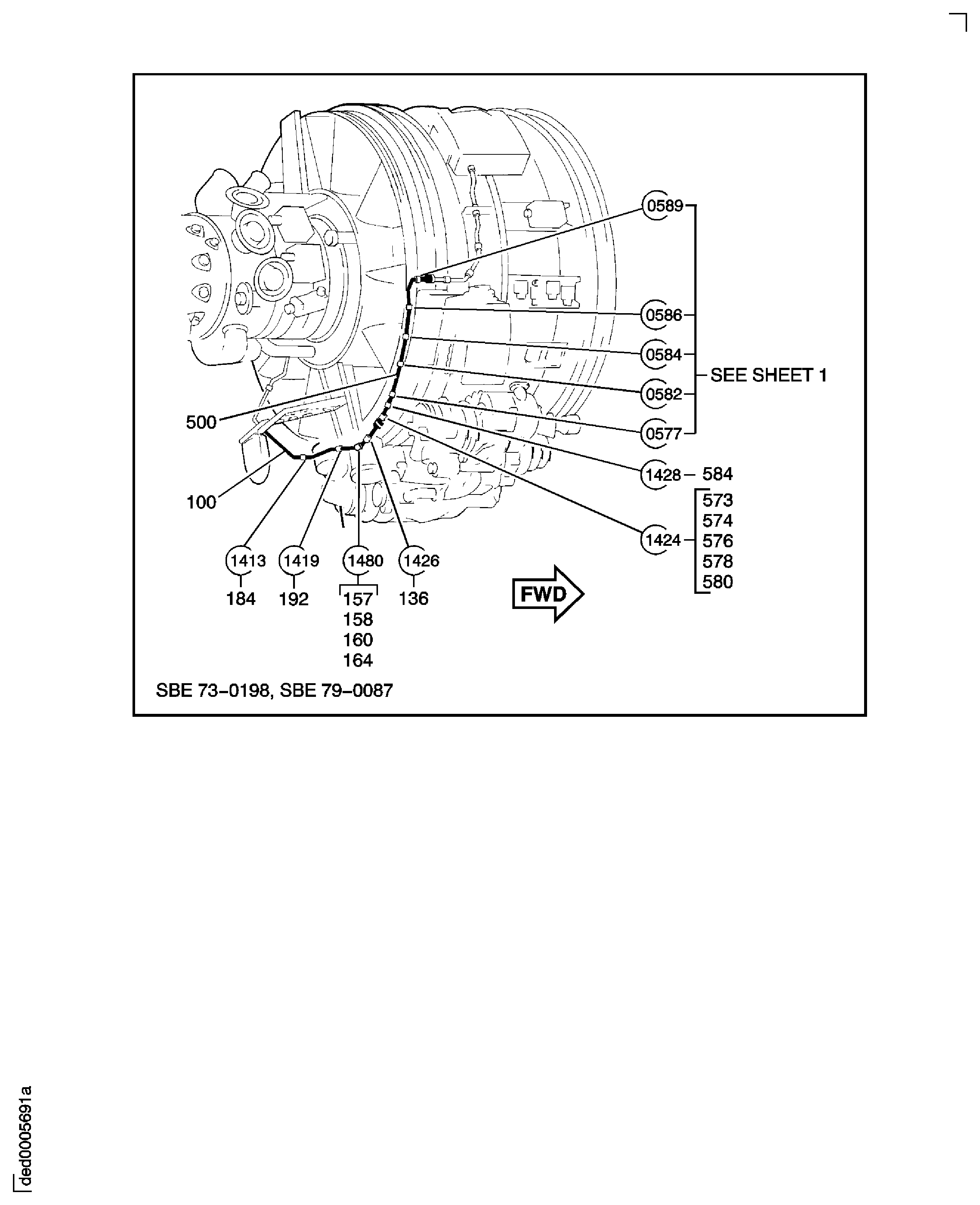

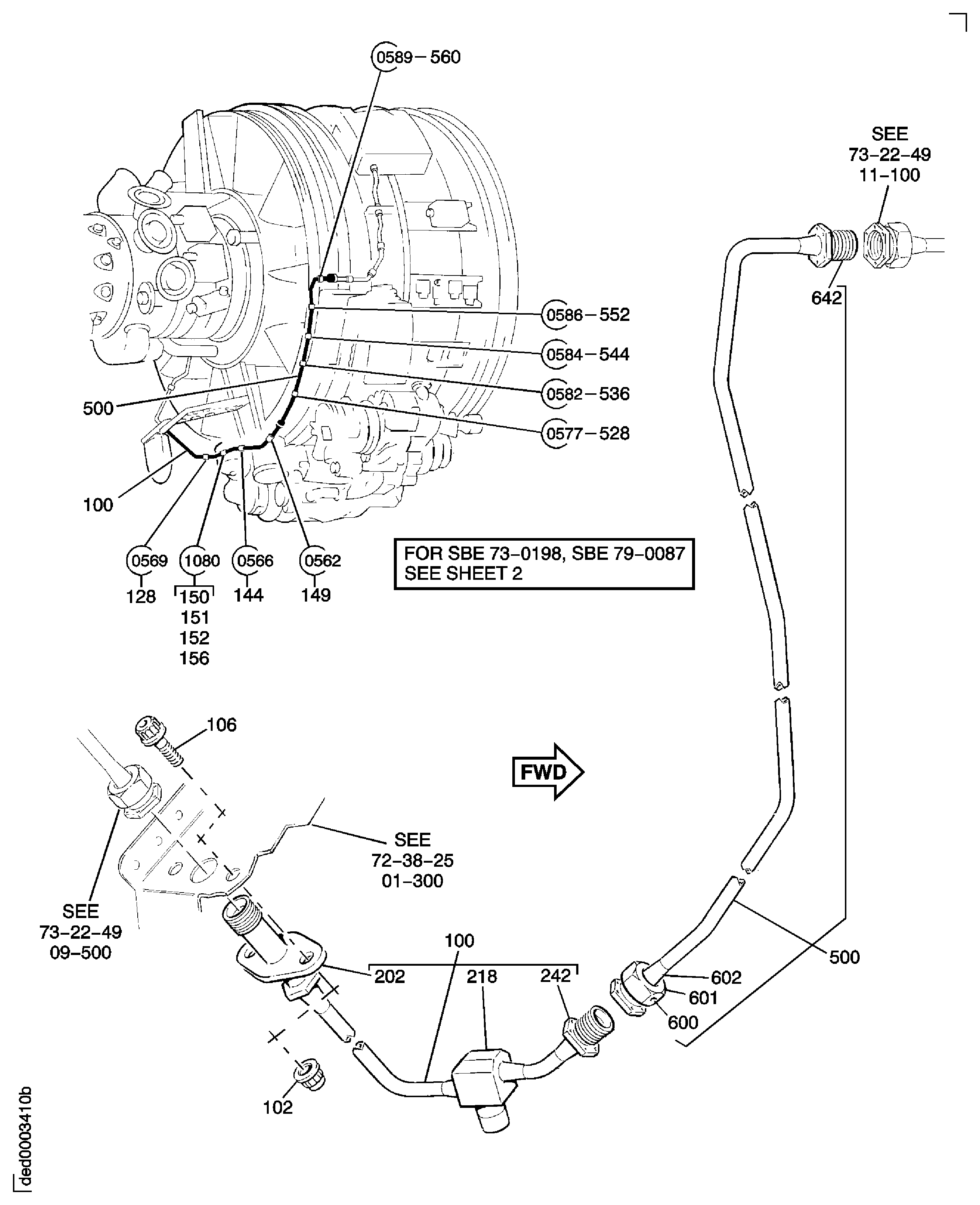

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES
FUEL SYSTEM AIR TUBES
FUEL SYSTEM AIR TUBES
