ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES

DMC:V2500-A1-73-22-49-11A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
11
000B73224911ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE70-0567aa
000SBE0567-01ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE70-0835ab
000SBE0835-01ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBESac
1001006A1693• TUBE - A/O-AIRaa-ac1
110110MS9201-04• NUT - .437 DIA
96906		aa-ac1
128128400WSS4• CLIP
83930		aa-ac1
136136400WSS4• CLIP
83930		aa-ac1
144144400WSS4• CLIP
83930		aa-ac1
200200AS15777• • WIRE - THRUST,(VRS6228)
U1653
POST SBE70-0364		*****1
201201AS15701• • NUT - TUBE COUPLING,(VRS6228)
U1653
POST SBE70-0364		*****1
202202AS15768• • FERRULE - ASSY WELDING,(VRS6228)
U1653
POST SBE70-0364		*****1
242242UP11029• • ADAPTOR - ,(VRS6228)
POST SBE70-0364		*****1
500500107432• HOSE - FLEXIBLE
K0685
ALT 556-1-15404-000
PRE SBE70-0567		aa-ab1
-500500A556-1-15404-000• HOSE - ASSY,METALFLEX
U1603
ALT C39440
PRE SBE70-0567		aa-abREF
-500500BC39440• HOSE - ASSY,METALFLEX
81349
ALT 107432
PRE SBE70-0567		aa-abREF
500500CM1545-1• TUBE - ASSY OF,AIR,FLEXIBLE
81349
ALT 107432
POST SBE70-0567
PRE SBE70-0835		aa-ac1
500500D107432• HOSE - FLEXIBLE
K0685
ALT 556-1-15404-000
POST SBE70-0567
PRE SBE70-0835		aa-ac1
500500E556-1-15404-000• HOSE - ASSY,METALFLEX
U1603
ALT M1545-1
POST SBE70-0567
PRE SBE70-0835		aa-ac1
500500FC39440• HOSE - ASSY,METALFLEX
81349
ALT M1545-1
POST SBE70-0567
PRE SBE70-0835		aa-ac1
500500G39440• TUBE - ASSEMBLY FLEXIBLE
U1596
ALT M1545-1
POST SBE70-0835		aa-ac1
500500HM1545-1• TUBE - ASSY OF,AIR,FLEXIBLE
81349
ALT 107432
POST SBE70-0835		aa-ac1
500500J107432• HOSE - FLEXIBLE
K0685
ALT 556-1-15404-000
POST SBE70-0835		aa-ac1
500500K556-1-15404-000• HOSE - ASSY,METALFLEX
U1603
ALT C39440
POST SBE70-0835		aa-ac1
500500LC39440• HOSE - ASSY,METALFLEX
81349
ALT 39440
POST SBE70-0835		aa-ac1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

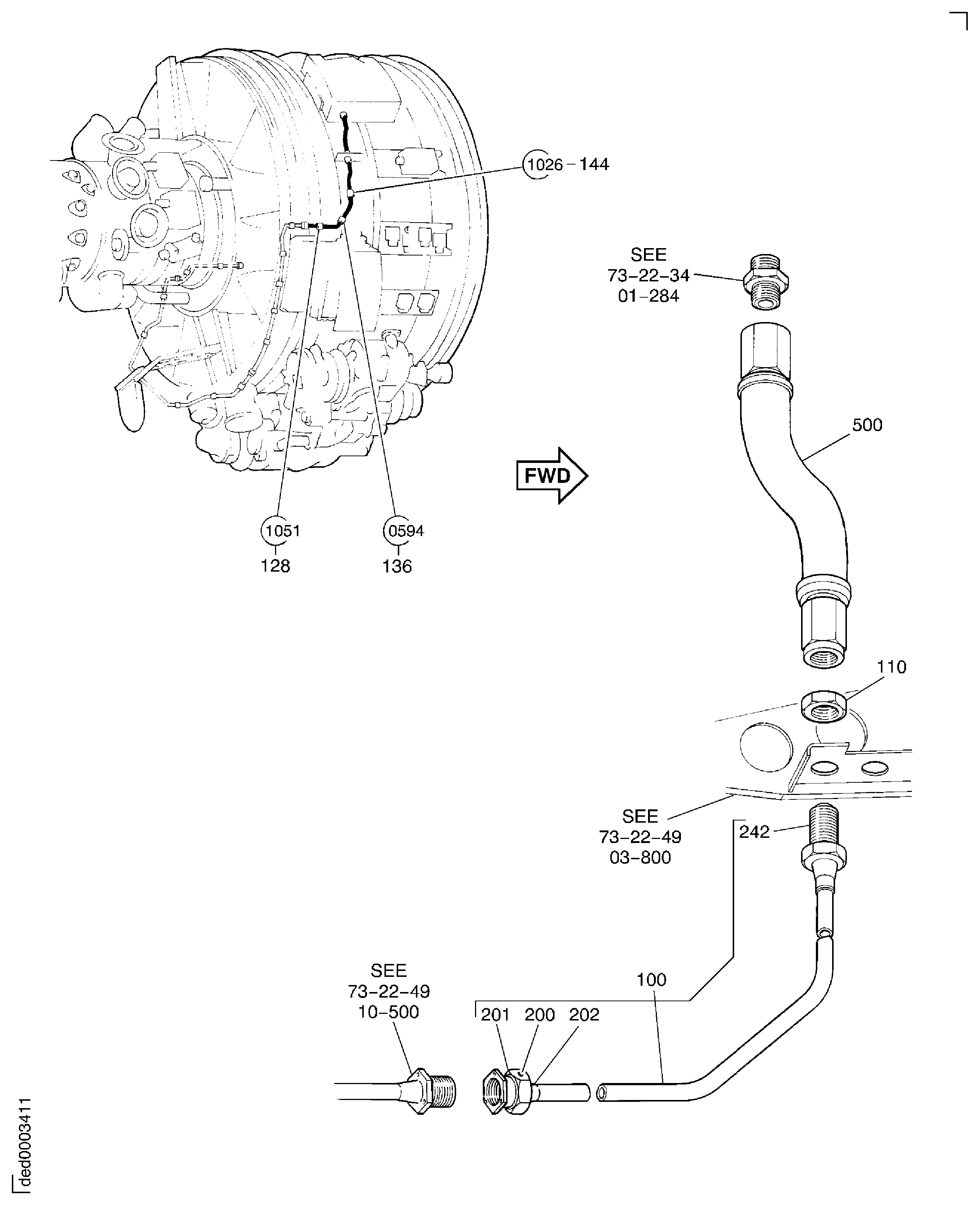

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES

FUEL SYSTEM AIR TUBES

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:81349
Enterprise Name:DELETED, SEE CAGE CODE 81348
Manufacturer Code:83930
Enterprise Name:TRANSDIGM INC
BU Name:TRANSDIGM INC
Department:ADEL FASTENERS
Building:SANDWELL INDUSTRIAL ESTATE
Street:5000 TRIGGS STREET
City:LOS ANGELES
State:WEST MIDLANDS
Zip Code:B66 1QJ
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K0685
Enterprise Name:ICORE INTERNATIONAL LTD
BU Name:NULL
Street:814 LEIGH ROAD
City:SLOUGH
State:BERKS
Zip Code:SL1 4BB
Country:ENGLAND
Manufacturer Code:U1596
Enterprise Name:MEGGITT AEROSPACE COMPONENTS
BU Name:MEGGITT AEROSPACE COMPONENTS
Street:BOUNDARY WAY
City:HEMEL HEMPSTEAD
State:HERTS
Zip Code:HP2 7SL
Country:ENGLAND
Manufacturer Code:U1603
Enterprise Name:HS MARSTON AEROSPACE LTD
BU Name:HS MARSTON AEROSPACE LTD
Street:WOBASTON ROAD
City:FORDHOUSES
State:WOLVERHAMPTON
Zip Code:WV10 6QJ
Country:ENGLAND
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Link not Found
Part Number:107432
Part Name:HOSE - FLEXIBLE
Manufacturer Code:K0685
Optional Parts
Part NumberPart NameManufacturer
556-1-15404-000HOSE - METAFLEX, ASSEMBLY OFU1603
Link not Found
Part Number:39440
Part Name:TUBE - ASSEMBLY FLEXIBLE
Manufacturer Code:U1596
Optional Parts
Part NumberPart NameManufacturer
M1545-1TUBE - AIR, ASSEMBLY OF81349
Part Number:400WSS4
Part Name:CLIP
Manufacturer Code:83930
Optional Parts
Part NumberPart NameManufacturer
AS62404CLIP - 6.35 MM (0.250)U1653
Link not Found
Part Number:556-1-15404-000
Part Name:HOSE - METAFLEX, ASSEMBLY OF
Manufacturer Code:U1603
Optional Parts
Part NumberPart NameManufacturer
C39440HOSE - ASSY,METALFLEX81349
Part Number:6A1693
Part Name:TUBE - AIR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:AS15701
Part Name:NUT - TUBE COUPLING
Manufacturer Code:U1653
Part Number:AS15768
Part Name:FERRULE - ASSEMBLY
Manufacturer Code:U1653
Part Number:AS15777
Part Name:WIRE - THRUST
Manufacturer Code:U1653
Part Number:AS62404
Part Name:CLIP - 6.35 MM (0.250)
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
400WSS4CLIP83930
Part Number:C39440
Part Name:HOSE - ASSY,METALFLEX
Manufacturer Code:81349
Optional Parts
Part NumberPart NameManufacturer
39440TUBE - ASSEMBLY FLEXIBLEU1596
Part Number:M1545-1
Part Name:TUBE - AIR, ASSEMBLY OF
Manufacturer Code:81349
Optional Parts
Part NumberPart NameManufacturer
107432HOSE - FLEXIBLEK0685
Part Number:MS9201-04
Part Name:NUT - 0.437 DIAMETER
Manufacturer Code:96906
Part Number:UP11029
Part Name:ADAPTER
Manufacturer Code:0AM53
