DMC:V2500-A1-73-22-51-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B73225101 | ENGINE FUEL AND CONTROL-P4.9 SENSOR AND MANIFOLD, PRE SBE72-0014 | aa | ||
| SBE0014-01 | ENGINE FUEL AND CONTROL-P4.9 SENSOR AND MANIFOLD, PRE SBE73-0004 | ab | ||
| SBE0004-01 | ENGINE FUEL AND CONTROL-P4.9 SENSOR AND MANIFOLD, PRE SBE73-0001 | ac | ||
| SBE0001-01 | ENGINE FUEL AND CONTROL-P4.9 SENSOR AND MANIFOLD, PRE SBE72-0063 | ad | ||
| SBE0063-01 | ENGINE FUEL AND CONTROL-P4.9 SENSOR AND MANIFOLD, PRE SBE73-0050 | ae | ||
| SBE0050-01 | ENGINE FUEL AND CONTROL-P4.9 SENSOR AND MANIFOLD, PRE SBE73-0175 | af | ||
| SBE0175-01 | ENGINE FUEL AND CONTROL-P4.9 SENSOR AND MANIFOLD | ag | ||
| 050 | 4B8051 | • MANIFOLD - RH PRESS CONTROL PRE SBE73-0004 | aa-ab | 1 |
| 050A | 4B8069 | • MANIFOLD - RH PRESS CONTROL POST SBE73-0004 PRE SBE72-0063 | ac-ad | 1 |
| 050B | 4B8071 | • MANIFOLD - RH PRESS. CONTROL POST SBE73-0050 PRE SBE73-0175 | af-ag | 1 |
| 050C | 2A3547-01 | • MANIFOLD - RH,PRESSURE CONTROL 77445 POST SBE73-0175 | af-ag | 1 |
| 055 | 4B8069-01 | • • SLEEVE - ,(VRS5428) POST SBE70-0241 PRE SBE73-0175 | ***** | 1 |
| 055A | AS3268-082 | • • SLEEVE - HALF REINFORCING U1653 POST SBE73-0175 | ***** | 2 |
| 057 | AS15769 | • • FERRULE - ASSY WELDING U1653 POST SBE73-0175 | ag | 1 |
| 058 | AS15701 | • • NUT - TUBE COUPLING U1653 POST SBE73-0175 | ag | 1 |
| 059 | AS15777 | • • WIRE - THRUST U1653 POST SBE73-0175 | ag | 1 |
| 060 | AS43706 | • BOLT U1653 PRE SBE72-0063 | aa-ad | 2 |
| 070 | 4T8007 | • RING PRE SBE72-0063 | aa-ad | 2 |
| 070A | 2A2256 | • SEAL POST SBE72-0063 | ae-ag | 2 |
| 080 | 4W0001 | • NUT - .190 DIA PRE SBE72-0063 | aa-ad | 1 |
| 085 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0050 | af-ag | 1 |
| 090 | 4W1185 | • BOLT - .190 DIA X .625 PRE SBE72-0063 | aa-ag | 1 |
| 090A | 4W1185 | • BOLT - .190 DIA X .625 POST SBE72-0063 | aa-ag | 1 |
| 095 | 4W1185 | • BOLT - .190 DIA X .625 Optional Part 4W1185 POST SBE73-0050 | af-ag | 1 |
| 100 | 4P8082 | • CLAMP ALT MS21106-4 PRE SBE73-0004 | aa-ab | 1 |
| -100A | MS21106-4 | • CLAMP 96906 ALT 4P8082 PRE SBE73-0004 | aa-ab | REF |
| 100B | MS21106-5 | • CLAMP 96906 POST SBE73-0004 PRE SBE72-0063 | ac-ad | 1 |
| 105 | 4P8120 | • BRACKET POST SBE73-0050 | af-ag | 1 |
| 180 | 4B8052 | • MANIFOLD - LH PRESS CONTROL PRE SBE73-0004 | aa-ab | 1 |
| 180A | 4B8070 | • MANIFOLD - LH PRESS CONTROL POST SBE73-0004 PRE SBE72-0063 | ac-ad | 1 |
| 180B | 4B8072 | • MANIFOLD - LH PRESS. CONTROL POST SBE73-0050 PRE SBE73-0175 | af-ag | 1 |
| 180C | 2A3548-01 | • MANIFOLD - LH,PRESSURE CONTROL 77445 POST SBE73-0175 | af-ag | 1 |
| 185 | 4B8069-01 | • • SLEEVE - ,(VRS5428) POST SBE70-0241 PRE SBE73-0175 | ***** | 1 |
| 185A | AS3268-082 | • • SLEEVE - HALF REINFORCING U1653 POST SBE73-0175 | ***** | 2 |
| 186 | AS15769 | • • FERRULE - ASSY WELDING U1653 POST SBE73-0175 | ag | 1 |
| 187 | AS15701 | • • NUT - TUBE COUPLING U1653 POST SBE73-0175 | ag | 1 |
| 189 | AS15777 | • • WIRE - THRUST U1653 POST SBE73-0175 | ag | 1 |
| 190 | AS43706 | • BOLT U1653 PRE SBE72-0063 | aa-ad | 2 |
| 200 | 4T8007 | • RING PRE SBE72-0063 | aa-ad | 2 |
| 200A | 2A2256 | • SEAL POST SBE72-0063 | ae-ag | 2 |
| 210 | 4W0001 | • NUT - .190 DIA PRE SBE72-0063 | aa-ad | 1 |
| 215 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0050 | af-ag | 1 |
| 220 | 4W1185 | • BOLT - .190 DIA X .625 PRE SBE72-0063 | aa-ad | 1 |
| 225 | 4W1185 | • BOLT - .190 DIA X .625 Optional Part 4W1185 POST SBE73-0050 | af-ag | 1 |
| 230 | 4P8082 | • CLAMP ALT MS21106-4 PRE SBE73-0004 | aa-ab | 1 |
| -230A | MS21106-4 | • CLAMP 96906 ALT 4P8082 PRE SBE73-0004 | aa-ab | REF |
| 230B | MS21106-5 | • CLAMP 96906 POST SBE73-0004 PRE SBE72-0063 | ac-ad | 1 |
| 231 | 4P8120 | • BRACKET POST SBE73-0050 | af-ag | 1 |
| 310 | 4P8089 | • ADAPTOR PRE SBE73-0001 | aa-ad | 1 |
| 310A | 4P8105 | • ADAPTOR - PIPES POST SBE73-0001 PRE SBE72-0063 | aa-ad | 1 |
| 320 | AS43706 | • BOLT U1653 PRE SBE72-0063 | aa-ad | 2 |
| 323 | 2A1092-01 | • BRACKET - LOOP CLAMP,ASSY OF PRE SBE72-0014 | aa | 1 |
| 323A | 2A1803-01 | • BRACKET - LOOP CLAMP A/O POST SBE72-0014 | ab-ag | 1 |
| -325 | 714845 | • • NUT - OPTION 77445 ALT 4W0038 PRE SBE72-0014 | aa | REF |
| -325A | 4W0038 | • • NUT - .190 DIA ALT 4W0038 PRE SBE72-0014 | aa | REF |
| 325B | 4W0038 | • • NUT - .190 DIA ALT 4W0038 POST SBE72-0014 | aa | 1 |
| -325C | 714845 | • • NUT - OPTION 77445 ALT 594412 POST SBE72-0014 | aa | REF |
| -325D | 594412 | • • NUT - OPTION 77445 ALT 714845 POST SBE72-0014 | aa | REF |
| 326 | AN123468 | • • RIVET - SOLID,100 DEGREE 81352 | aa-ag | 4 |
| 330 | 4T8007 | • RING PRE SBE72-0063 | aa-ad | 2 |
| 330A | 2A2256 | • SEAL POST SBE72-0063 | ae-ag | 2 |
| 350 | 4W2627 | • WIRE Optional Part 4W2627 PRE SBE72-0063 | aa-ad | 1 |
| 350A | 4W2627 | • WIRE Optional Part 4W2627 POST SBE72-0063 | ae-ag | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

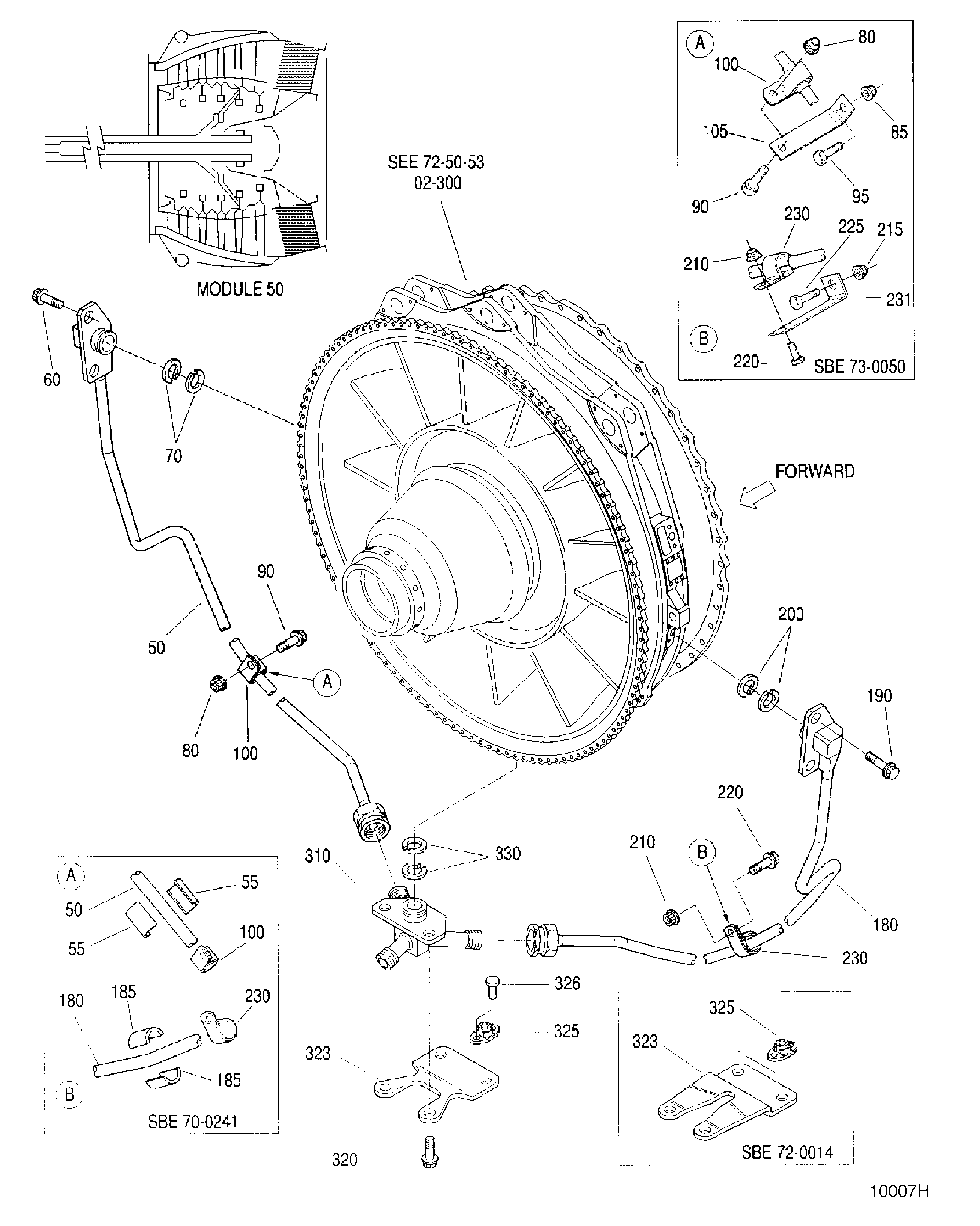

Figure: ENGINE FUEL AND CONTROL-P4.9 SENSOR AND MANIFOLD
P4.9 SENSOR AND MANIFOLD
