DMC:V2500-A1-73-31-17-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B73311701 | ENGINE FUEL AND CONTROL-FUEL FLOWMETER | aa | ||
| 100 | 18-018-02 | • TRNSMTTR - FLOW-FUEL K0656 | aa | 1 |
| 125 | AS20910 | • BOLT - .190 DIA X .625 U1653 PRE SBE71-0109 | ***** | 1 |
| 126 | 4W2621 | • WASHER PRE SBE71-0109 | ***** | 2 |
| 132 | 4W0001 | • NUT - .190 DIA PRE SBE71-0109 | ***** | 1 |
| -300 | AS43013-116 | • RING - SEALING TOROIDAL, 18.72 MM I/DIA X 2,62 U1653 (SEE 73-11-49-07-108 ) | aa | REF |
| -310 | AS43013-116 | • RING - SEALING TOROIDAL, 18.72 MM I/DIA X 2,62 U1653 (SEE 73-11-49-07-508 ) | aa | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

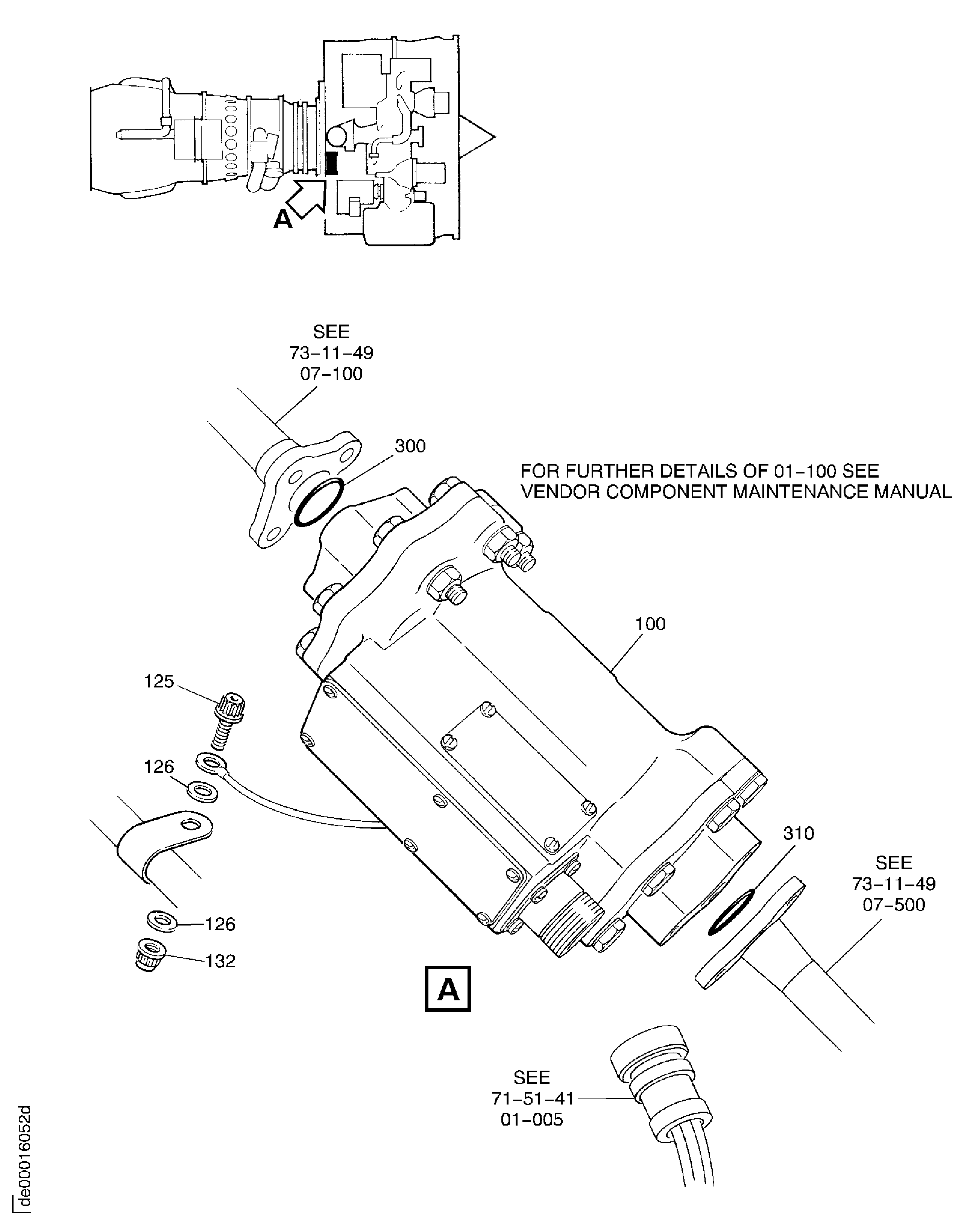

Figure: ENGINE FUEL AND CONTROL-FUEL FLOWMETER
FUEL FLOW TRANSMITTER
