| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B75235101 | AIR-STAGE 10 TO HPT AIR VALVE, PRE SBE70-0016 | aa | ||
| SBE0016-01 | AIR-STAGE 10 TO HPT AIR VALVE, PRE SBE70-0099 | ab | ||
| SBE0099-01 | AIR-STAGE 10 TO HPT AIR VALVE, PRE SBE75-0022 | ac | ||
| SBE0022-01 | AIR-STAGE 10 TO HPT AIR VALVE | ad | ||
| 010 | 5W8467 | • BRACKET | aa-ad | 1 |
| 100 | 5860010-103 | • VALVE - AIR-STAGE 10 TO HPT 92003 REF No. 5U0008 PRE SBE70-0016 | aa-ad | 1 |
| 100A | 5860010-103 | • VALVE - AIR-STAGE 10 TO HPT 92003 ALT 5860010-106 REF No. 5U0008 POST SBE70-0016 PRE SBE75-0022 | aa-ad | 1 |
| -100B | 5860010-106 | • VALVE - AIR STG.10 TO HPT 92003 ALT 5860010-103 REF No. 5U0027 POST SBE70-0016 PRE SBE75-0022 | aa-ac | REF |
| 100C | 5860010-108 | • VALVE - AIR STG.10 TO HPT 92003 REF No. 5U0027 POST SBE75-0022 | aa-ad | 1 |
| 110 | 4W0227 | • BOLT - .3125 DIA X .875 Optional Part 4W0227 | aa-ad | 4 |
| 120 | 5U0001 | • SEAL - C | aa-ad | 1 |
| 150 | 5863291-101 | • • FITTING 92003 POST SBE70-0099 | ac-ad | 1 |
| 155 | 5863292-101 | • • SEAL - BOSS 92003 POST SBE70-0099 | ac-ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

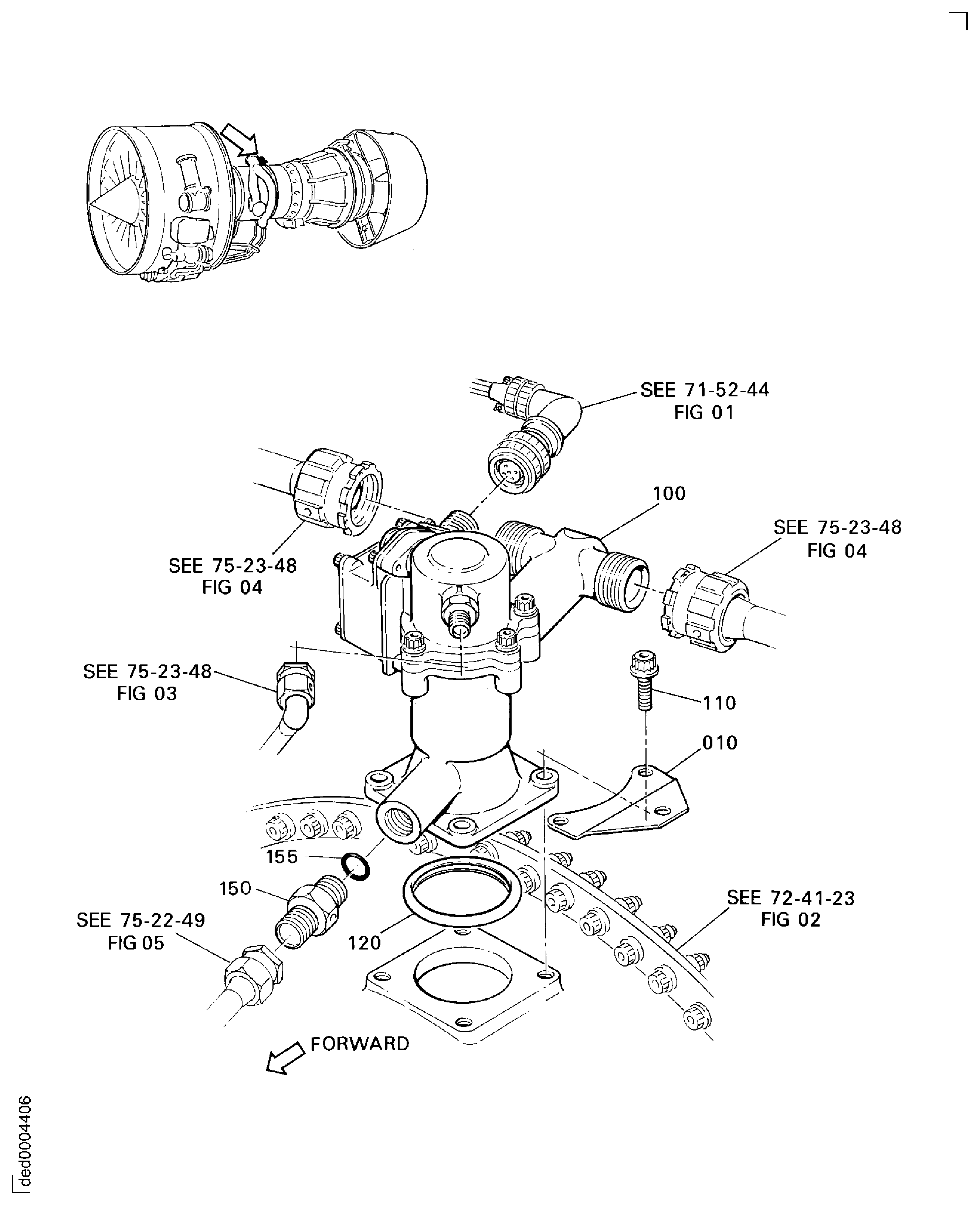

Figure: AIR-STAGE 10 TO HPT AIR VALVE
AIR-STAGE 10 TO HPT AIR VALVE
