DMC:V2500-A1-75-24-49-04A-941A-DIssue No:002.00Issue Date:2016-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||
| B75244904 | AIR-LP ACTIVE CLEARANCE CONTROL MANIFOLD, PRE SBE75-0001 | aa | ||
| SBE0001-01 | AIR-LP ACTIVE CLEARANCE CONTROL MANIFOLD, PRE SBE75-0002 | ab | ||
| SBE0002-01 | AIR-LP ACTIVE CLEARANCE CONTROL MANIFOLD, PRE SBE70-0053 | ac | ||
| SBE0053-01 | AIR-LP ACTIVE CLEARANCE CONTROL MANIFOLD, PRE SBE70-0563 | ad | ||
| SBE0563-01 | AIR-LP ACTIVE CLEARANCE CONTROL MANIFOLD, PRE SBE75-0095 | ae | ||
| SBE0095-01 | AIR-LP ACTIVE CLEARANCE CONTROL MANIFOLD, PRE SBE70-0938 | af | ||
| SBE0938-01 | AIR-LP ACTIVE CLEARANCE CONTROL MANIFOLD, PRE SBE70-0946 | ag | ||
| SBE0946-01 | AIR-LP ACTIVE CLEARANCE CONTROL MANIFOLD | ah | ||
| 010 | 3A0568 | • SUPPORT - ASSY PRE SBE75-0001 | aa | 1 |
| 010A | 3A1745 | • SUPPORT POST SBE75-0001 PRE SBE70-0563 | ab-ah | 1 |
| 010B | 3A2337 | • SUPPORT POST SBE70-0563 | ab-ah | 1 |
| 020 | MS9697-06 | • BOLT 96906 PRE SBE70-0053 | aa-ah | 1 |
| 020A | 4W0582 | • BOLT - .250 DIA X .500 POST SBE70-0053 | aa-ah | 1 |
| 030 | 3A0166 | • WASHER PRE SBE70-0938 | aa-ah | 1 |
| 030A | 3A2987 | • WASHER POST SBE70-0938 | aa-ah | 1 |
| 040 | 3A0167 | • SPACER PRE SBE75-0095 | aa-ae | 1 |
| 040A | 3A2827 | • SPACER POST SBE75-0095 PRE SBE70-0946 | af-ag | 4 |
| 040B | 3A3048 | • SPACER POST SBE70-0946 | ah | 4 |
| 050 | MS9696-08 | • BOLT 96906 PRE SBE75-0002 | aa-ab | 2 |
| 050A | AS3303-08 | • BOLT U1653 POST SBE75-0002 | ac-ah | 2 |
| 060 | 3A0168 | • SPACER PRE SBE70-0946 | aa-ag | A/R |
| 060A | 3A3046 | • SPACER POST SBE70-0946 | ah | A/R |
| 070 | 776440 | • NUT 77445 PRE SBE75-0001 | aa | 2 |
| 070A | 4W0001 | • NUT - .190 DIA POST SBE70-0053 | ad-ah | 2 |
| 110 | ST1300-14 | • • RIVET - BLIND 77445 POST SBE75-0001 | ab-ah | 4 |
| 115 | 4W0043 | • • NUT - .190 DIA Optional Part 4W0043 POST SBE75-0001 | ab-ah | 18 |
| 120 | MS21209F1-10 | • • INSERT - SCREW THREAD 96906 | aa-ah | 2 |
| 200 | 3A1742 | • • CLAMP POST SBE75-0001 PRE SBE70-0563 | ab-ah | 1 |
| 200A | 3A2343 | • • CLAMP POST SBE70-0563 | ab-ah | 1 |
| 215 | 3A1744 | • • CLAMP - A/O,HALF,LOOP POST SBE75-0001 PRE SBE70-0563 | ab-ah | 1 |
| 215A | 3A2349 | • • CLAMP POST SBE70-0563 | ab-ah | 1 |
| 230 | 776440 | • NUT - OPTION 77445 PRE SBE75-0001 | aa | 20 |
| 230A | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE70-0053 | ad-ah | 20 |
| 240 | MS9696-06 | • BOLT - DOUBLE HEXAGON 96906 PRE SBE75-0001 | aa | 20 |
| 240A | 4W0101 | • BOLT - .190 DIA X .375 Optional Part 4W0101 POST SBE75-0001 | ab-ah | 16 |
| 280 | 3A0948 | • CLAMP - A/O HALF LOOP PRE SBE75-0001 | aa | 2 |
| -285 | 3A0949 | • • CLAMP - HALF LOOP PRE SBE75-0001 | aa | REF |
| -290 | 3A0950 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| -295 | 3A0951 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| -300 | 3A0952 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| -305 | 3A0953 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| -310 | 3A0954 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| -315 | 3A0955 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| -320 | 3A0956 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| -325 | 3A0957 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| 410 | 3A0577 | • SUPPORT - A/O PRE SBE75-0001 | aa | 1 |
| 410A | 3A1755 | • SUPPORT POST SBE75-0001 PRE SBE70-0563 | ab-ah | 1 |
| 410B | 3A2358 | • SUPPORT POST SBE70-0563 | ab-ah | 1 |
| 420 | MS9697-06 | • BOLT 96906 PRE SBE70-0053 | aa-ah | 1 |
| 420A | 4W0582 | • BOLT - .250 DIA X .500 POST SBE70-0053 | aa-ah | 1 |
| 430 | 3A0166 | • WASHER PRE SBE70-0938 | aa-ah | 1 |
| 430A | 3A2987 | • WASHER POST SBE70-0938 | aa-ah | 1 |
| 440 | 3A0167 | • SPACER PRE SBE75-0095 | aa-ae | 1 |
| 440A | 3A2827 | • SPACER POST SBE75-0095 PRE SBE70-0946 | af-ag | 4 |
| 440B | 3A3048 | • SPACER POST SBE70-0946 | ah | 4 |
| 450 | MS9696-08 | • BOLT 96906 PRE SBE75-0002 | aa-ab | 2 |
| 450A | AS3303-08 | • BOLT U1653 POST SBE75-0002 | ac-ah | 2 |
| 460 | 3A0168 | • SPACER PRE SBE70-0946 | aa-ag | A/R |
| 460A | 3A3046 | • SPACER POST SBE70-0946 | ah | A/R |
| 470 | 776440 | • NUT 77445 PRE SBE75-0001 | aa | 2 |
| 470A | 4W0001 | • NUT - .190 DIA POST SBE70-0053 | ad-ah | 2 |
| 595 | ST1300-14 | • • RIVET - BLIND 77445 POST SBE75-0001 | ab-ah | 4 |
| 597 | 4W0043 | • • NUT - .190 DIA Optional Part 4W0043 POST SBE75-0001 | ab-ah | 18 |
| 610 | 3A1742 | • • CLAMP POST SBE75-0001 PRE SBE70-0563 | ab-ah | 1 |
| 610A | 3A2343 | • • CLAMP POST SBE70-0563 | ab-ah | 1 |
| 620 | 3A1744 | • • CLAMP - A/O,HALF,LOOP POST SBE75-0001 PRE SBE70-0563 | ab-ah | 1 |
| 620A | 3A2349 | • • CLAMP POST SBE70-0563 | ab-ah | 1 |
| 630 | 776440 | • NUT - OPTION 77445 PRE SBE75-0001 | aa | 20 |
| 630A | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE70-0053 | ad-ah | 20 |
| 640 | MS9696-06 | • BOLT - DOUBLE HEXAGON 96906 PRE SBE75-0001 | aa | 20 |
| 640A | 4W0101 | • BOLT - .190 DIA X .375 Optional Part 4W0101 POST SBE75-0001 | ab-ah | 16 |
| 680 | 3A0948 | • CLAMP - A/O HALF LOOP PRE SBE75-0001 | aa | 2 |
| -685 | 3A0949 | • • CLAMP - HALF LOOP PRE SBE75-0001 | aa | REF |
| -690 | 3A0950 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| -695 | 3A0951 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| -700 | 3A0952 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| -705 | 3A0953 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| -710 | 3A0954 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| -715 | 3A0955 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| -720 | 3A0956 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| -725 | 3A0957 | • • PLATE - STIFFENING PRE SBE75-0001 | aa | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

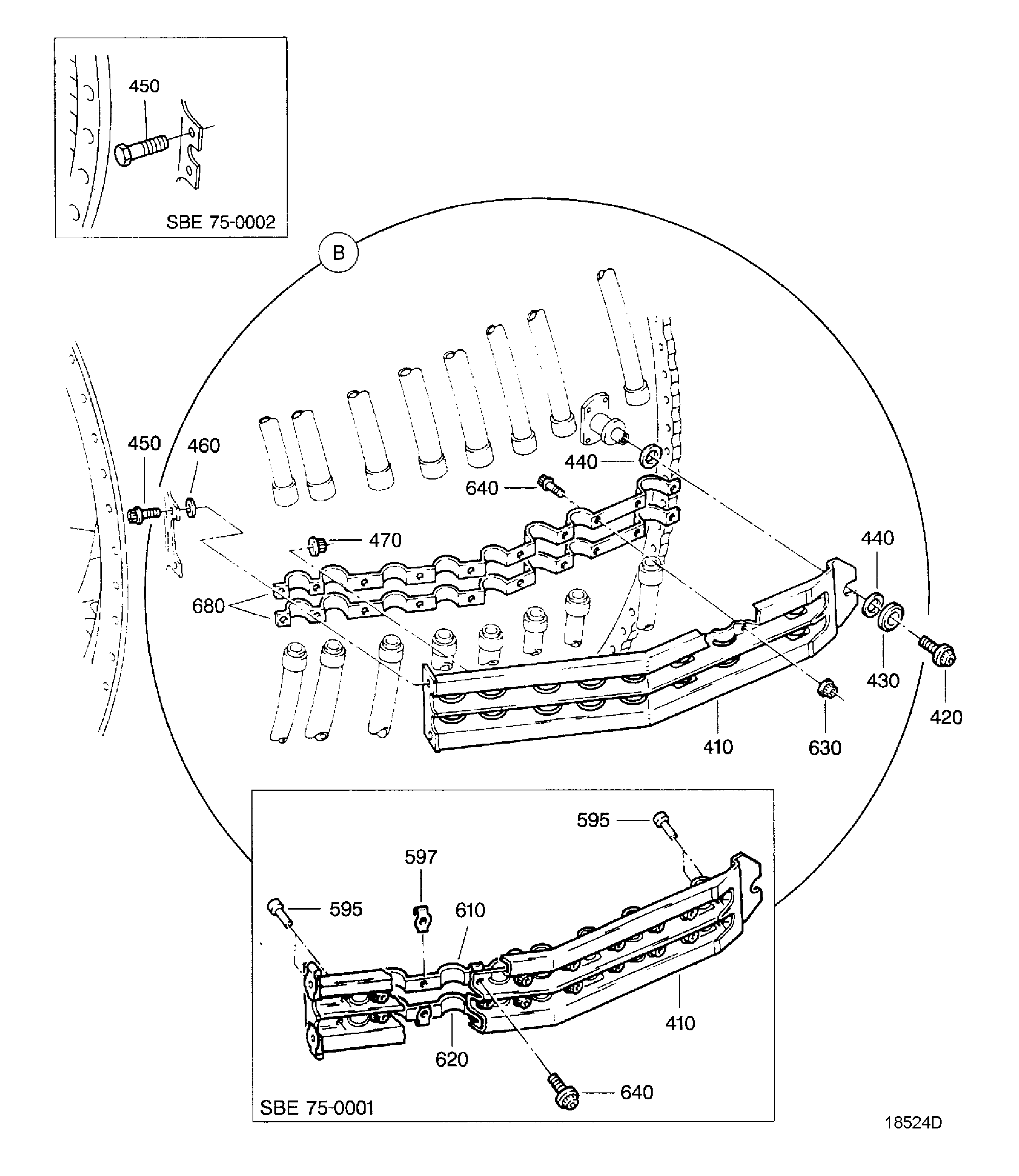

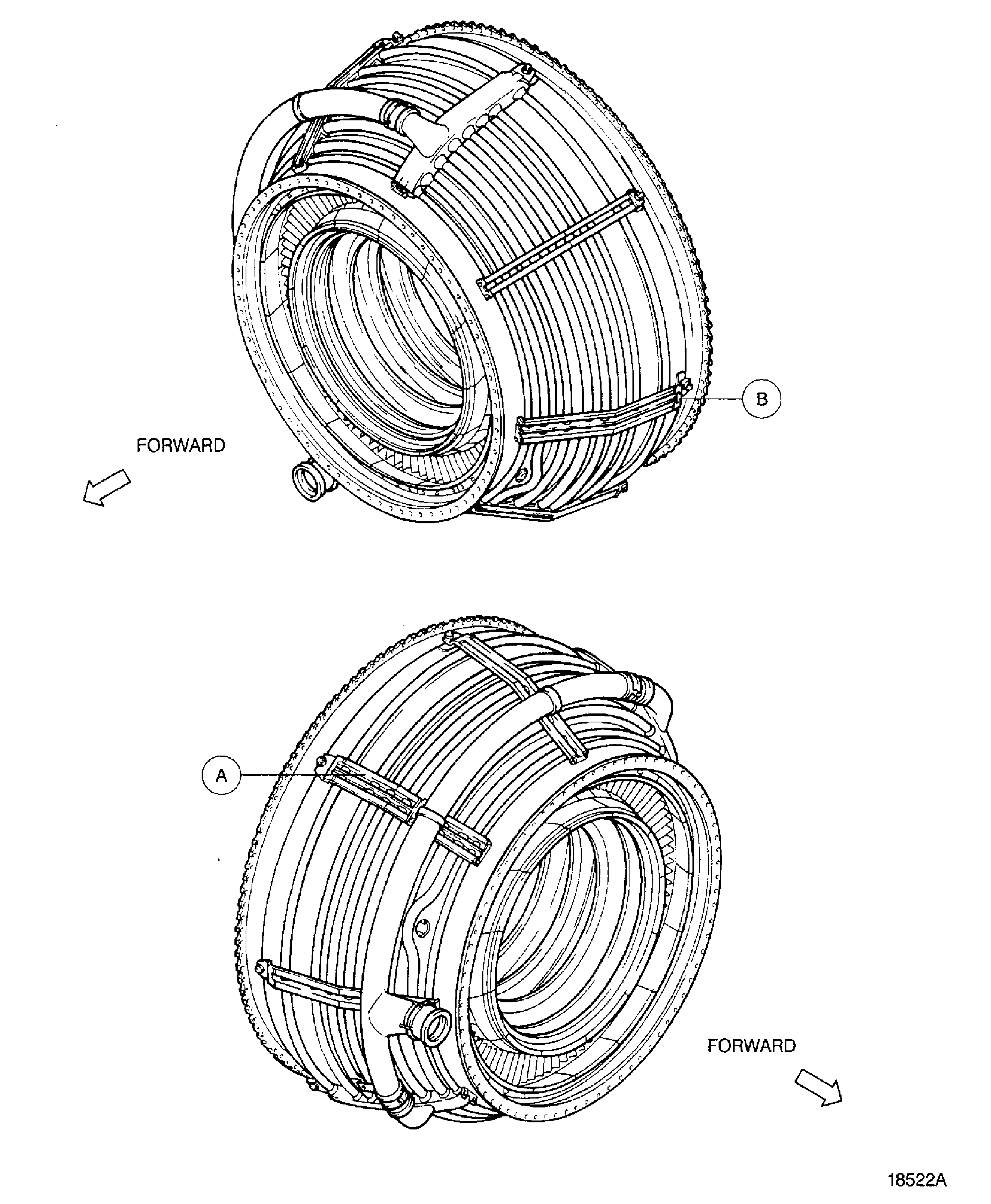

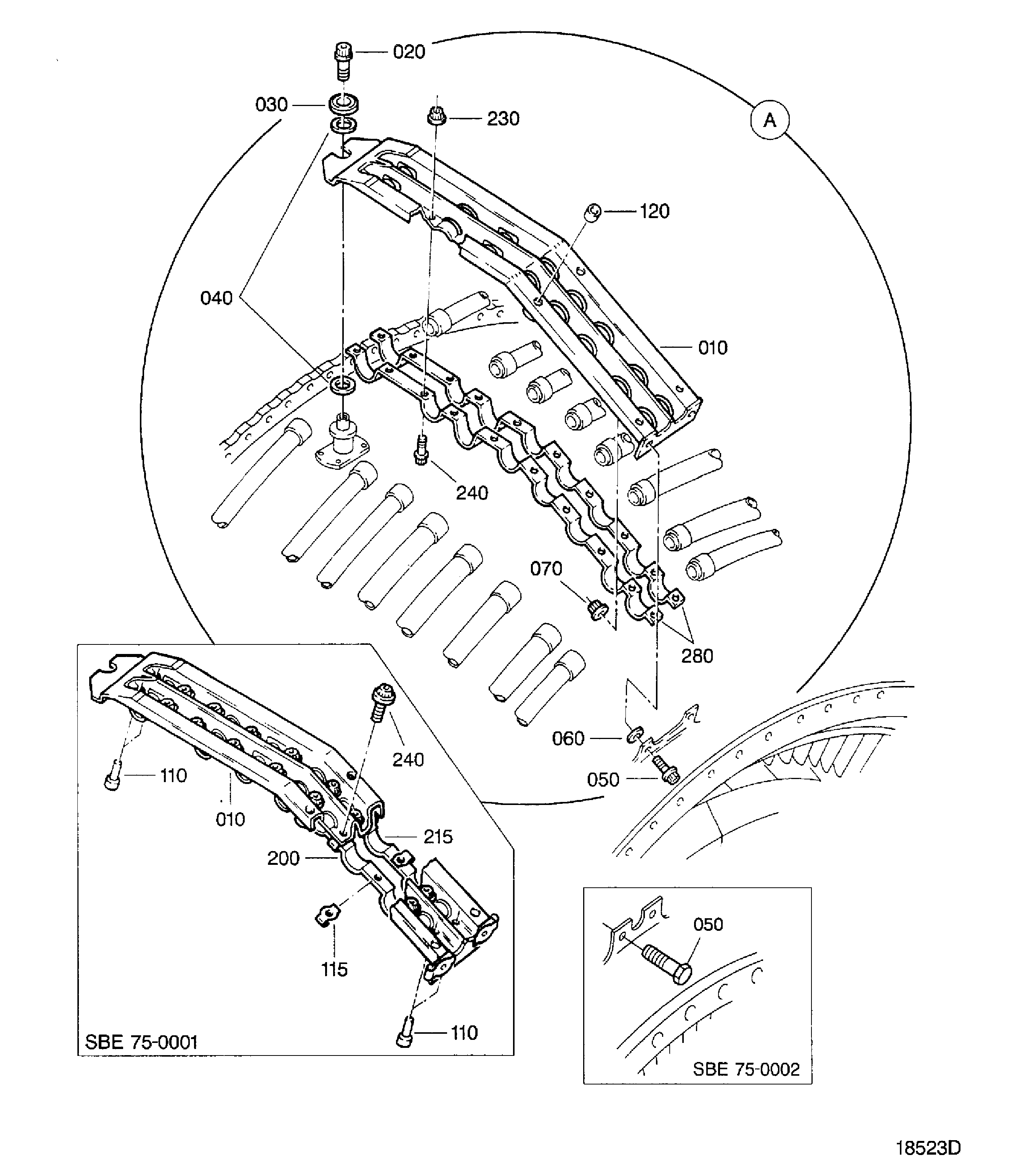

Figure: AIR-LP ACTIVE CLEARANCE CONTROL MANIFOLD
DUCT ASSY COOLING AIR LPT
SUPPORT ASSY
SUPPORT ASSY
